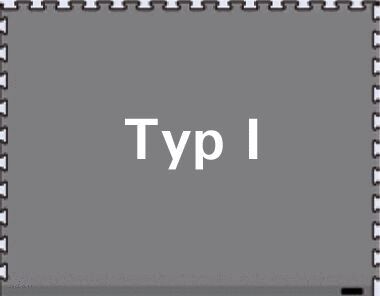

The image shows a gray, rectangular background with a continuous, jagged line at the edge. In the center is the text "Type I" in large, white font.
Workstation mat ESD-dry ergolastec type I
(Product No.: 1350.153.I)

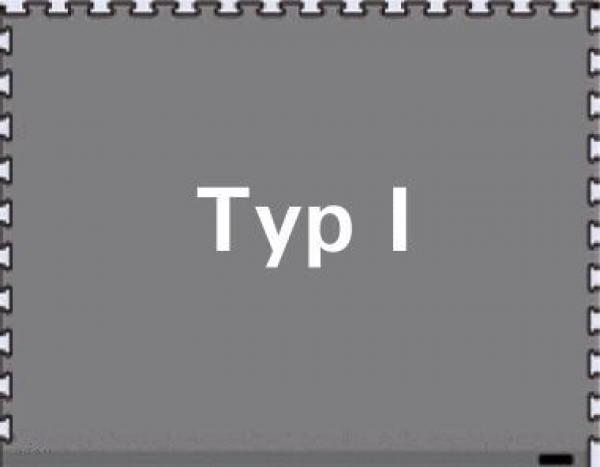

The image shows a gray, rectangular background with a continuous, jagged line at the edge. In the center is the text "Type I" in large, white font.
Notice

Workstation mat ESD-dry ergolastec type I

Workstation mat ESD-dry ergolastec type I

dpvlink:
17109
Length :
1242 mm
Width :
948 mm
Thickness :
16 mm
Color:
black
Properties:
Further product information

available available
249,70 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Workstation mat ESD-dry ergolastec type I

The ergolastec® workplace mat ESD-dry Type I is specifically designed for use in electronics and microelectronics workplaces to meet the specific requirements of these sensitive environments. With a length of 1242 mm and a width of 948 mm, it provides ample surface area, while the thickness of 16 mm and the beveled outer edges minimize the risk of tripping and allow for easy handling.
The mat is made from a new rubber blend (SBR), making it nearly odorless and suitable for enclosed spaces. It can withstand weights up to 200 kg and temperatures from -35°C to +95°C. The surface resistance of 10^7 Ω ensures compliance with the ESD standard DIN EN 61340-5-1 ESD, qualifying it for use in ESD-sensitive areas.
Thanks to the puzzle technique on one longitudinal and two lateral sides, the mat can be flexibly expanded and laid without fixation on the ground. This simplifies adaptation to individual workplace dimensions and allows for easy and quick installation. The high stability and lying capability of the mat also support the use of transport equipment without any impairment.
Produced by ergolastec, this workplace mat combines functionality with safety and comfort, ideal for highly sensitive production environments.
Length
Length
1242 mm
Width
Width
948 mm
Thickness
Thickness
16 mm
Color
Color
black
Surface resistance Rs
Surface resistance Rs
107 Ω
Material
Material
SBR
Shore hardness
Shore hardness
55 Shore A
Temperature resistance
Temperature resistance
-35 - 95 °C
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 157
Complete Catalog 2023 - 2024

Product Family

ergolastec® ESD Floor mats - interlocking system -

ergolastec®-ESD floor mats - interlocking system - are suitable for the special requirements of electronics and microelectronics workstations

  • Reduced risk of stumbling by beveled outer edges
  • Elastic cushioning to relieve muscles and joints
  • Comfortable standing
  • Thermal and footfall-sound insulation
  • Slip-resistant
  • Protection against falling objects
  • Very high stability and lying capacity, so it is best suited when transport equipment  is applied
  • Due to the chosen high-quality materials the mat is nearly odorless and can therefore be used also in closed rooms
  • Mat can easily be cleaned by means of conventional cleaning methods and agents
  • Higher lying resistance due to higher dead weight of the mat
  • Accessible up to 200 kg
  • Mat is electrically conductive according to EN 61340-4-1

Technical data:

 Top side flat structure
 Bottom side shock-absorbing bubbles
 Outer edges 20° beveled
 Dimensions 16 mm
 Weight 19 ± 1 kg
 Hardness 55 ± 4 Shore A
 Temperature range - 35°C to + 95°C
 Material  SBR (new rubber compound)
 Color black

In compliance with ESD standard DIN EN 61340-5-1

ergolastec®-ESD floor mats type  B - J as interlocking system


Article image
Article description
Length
Width
Thickness
Color
Price
Compare
1350.130.B - Workstation mat ESD-dry ergolastec type B
1350.130.B
Workstation mat ESD-dry ergolastec type B
1350 mm
948 mm
16 mm
black
235,60 EUR
1350.131.C - Workstation mat ESD-dry ergolastec type C
1350.131.C
Workstation mat ESD-dry ergolastec type C
1350 mm
887 mm
16 mm
black
235,60 EUR
1350.140.D - Workstation mat ESD-dry ergolastec type D
1350.140.D
Workstation mat ESD-dry ergolastec type D
1303 mm
1000 mm
16 mm
black
235,60 EUR
1350.141.E - Workstation mat ESD-dry ergolastec type E
1350.141.E
Workstation mat ESD-dry ergolastec type E
1242 mm
1000 mm
16 mm
black
235,60 EUR
1350.150.F - Workstation mat ESD-dry ergolastec type F
1350.150.F
Workstation mat ESD-dry ergolastec type F
1303 mm
948 mm
16 mm
black
249,70 EUR
1350.151.G - Workstation mat ESD-dry ergolastec type G
1350.151.G
Workstation mat ESD-dry ergolastec type G
1303 mm
948 mm
16 mm
black
249,70 EUR
1350.152.H - Workstation mat ESD-dry ergolastec type H
1350.152.H
Workstation mat ESD-dry ergolastec type H
1303 mm
887 mm
16 mm
black
249,70 EUR
1350.153.I - Workstation mat ESD-dry ergolastec type I
1350.153.I
Workstation mat ESD-dry ergolastec type I
1242 mm
948 mm
16 mm
black
249,70 EUR
1350.154.J - Workstation mat ESD-dry ergolastec type J
1350.154.J
Workstation mat ESD-dry ergolastec type J
1242 mm
887 mm
16 mm
black
249,70 EUR
