TP 6 / PR-F - OLAMEF

The TP 6 / PR-F is a cutting and bending machine for processing taped, axial components. It forms the basis for various standard tools with which wire connections can be cut, shaped or adapted to specific assembly requirements - e.g. through defined bending, stand-off shapes or snap-in designs. The combination of machine and tools enables reproducible results with high quantities and supports integration into automated production processes.

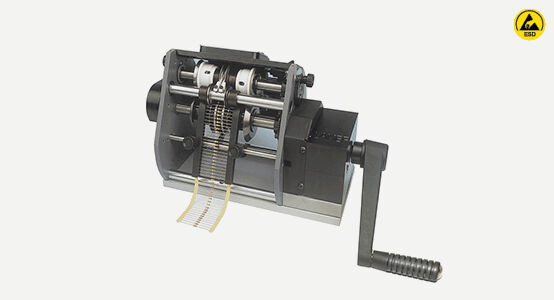

The image shows a mechanical machine with visible gears and rollers. A hand crank is located on the right side, and a long, thin strip of paper extends from the machine.
Cutting and bending machine TP6/PR-F/1 - basic machine
TP 6, PR-F, 1 cutting and bending machine
for axial components wire thickness 0.5 - 0.9 mm
Basic machine ++ without processing tools ++
(Model 43.OL01 art. no....)

Product No.: 415.191
4.937,00 EUR
excl. 19% tax
Show product

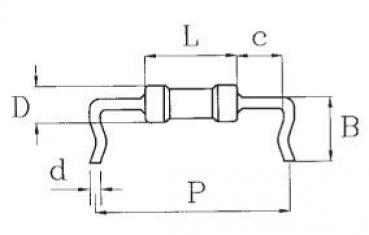

The image shows a technical drawing of a component with various labels for dimensions: L, D, B, P, d, and c. The shape is symmetrical with two outwardly curved ends.
Standard tool cut/bend for cutting and bending machine TP 6/PR-F
Standard tool cut / bend
wire thickness 0.5 - 0.9 mm
++ Tool code 420650 TP6/PR-F/1++

Product No.: 415.191.420650
1.265,00 EUR
excl. 19% tax
Show product
The image displays a technical drawing of a profile with various dimensions. It has a U-shape, two upright sides, and a central connection. Dimensions are noted beside the lines.
Standard tool stand-off 3.0 mm for cutting and bending machine TP 6/PR-F
Standard tool stand-off 3.0 mm
wire thickness 0.5 - 0.9 mm
++ Tool code 420750 TP6/PR-F/1++

Product No.: 415.191.420750
1.265,00 EUR
excl. 19% tax
Show product

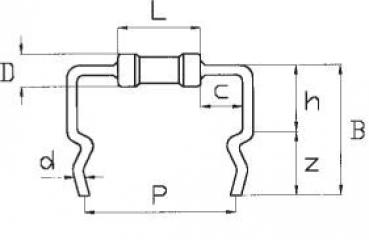

The image displays a technical drawing of a profile. Various dimensions are indicated: L (length), B (width), h (height), d, and z, as well as a central connection (c) and a structure with curved lines.
Standard tool stand-off 2.5 mm for cutting and bending machine TP 6/PR-F
Standard tool stand-off 2.5 mm
wire thickness 0.5 - 0.9 mm
++ Tool code 420800 TP6/PR-F/1++

Product No.: 415.191.420800
1.265,00 EUR
excl. 19% tax
Show product

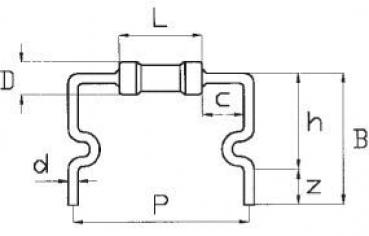

The image shows a technical drawing of a component with various dimensions. It has a U-shaped structure with two lateral bulges that bend downwards, and markings for dimensions such as B, D, L, and h.
Standard tool stand-off/snap-in for cutting and bending machine TP 6/PR-F
Standard tool stand-off/snap-in
wire thickness 0.5 - 0.8 mm
++ Tool code 420850 TP6/PR-F/1++

Product No.: 415.191.420850
1.265,00 EUR
excl. 19% tax
Show product
The image shows a technical drawing of a component with multiple dimensions. It has curved ends on both sides and a central connection. The dimensions are marked with letters and lines.
Standard tool stand-off/snap-in for cutting and bending machine TP 6/PR-F
Standard tool stand-off/snap-in
wire thickness 0.6 - 0.9 mm / larger beading
++ Tool code 420950 TP6/PR-F/1++

Product No.: 415.191.420950
1.265,00 EUR
excl. 19% tax
Show product

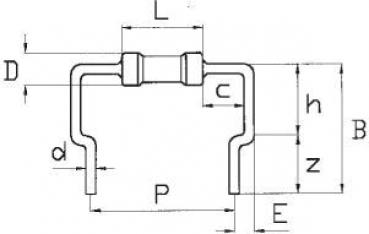

The image displays a technical drawing of a U-shaped component with various dimensions. Lines and measurements for D, L, c, h, B, E, d, P, and z are indicated.
Standard tool, reducing pitch for cutting and bending machine TP 6/PR-F
Standard tool reducing grid dimension
by 2.54 mm, wire thickness. 0.5 - 0.9 mm
++ Tool code 420900 TP6/PR-F/1++

Product No.: 415.191.420900
1.265,00 EUR
excl. 19% tax
Show product
The image displays a technical drawing of a component with various dimensions. It features a cylindrical center with two lateral arms that are bent downwards.
Standard tool snap-in for cutting and bending machine TP 6/PR-F
Standard tool component lying on
printed circuit board, snap - in,
wire thickness 0.5 - 0.8 mm
complete with component holder 421004 and 421005
++ Tool code 421000 TP6/PR-F/1++

Product No.: 415.191.421000
1.353,00 EUR
excl. 19% tax
Show product
1 to 8 (from a total of 8)
