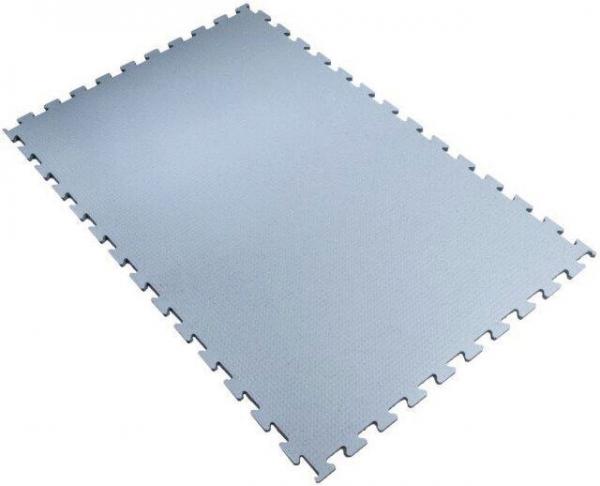

ergolastec® ESD Floor mats Vario G with/without interlocking system

The ERGOLASTEC® VARIO G is an electrically conductive workplace mat for environments in which electrostatic discharges pose a potential danger to people and electronic components. This electrically conductive mat effectively prevents sparking caused by electrical discharge. The mat is characterized by the following properties:

Fire protection class Bfl-s1
high-quality appearance
Optimally coordinated pivot point
Slip resistance
Easy to clean
particularly easy on the back: the mat reduces back pain for people who work standing up for long periods of time. The elastic properties of the rubber compound and the special geometry on the back give the mat a shock-absorbing and activating effect.
Durability: the ERGOLASTEC® VARIO Log Plus ESD workstation mat is ideal for multi-shift operation (24/7)
Cold protection thanks to its strength and high-quality materials.

Within this product family, the mats differ in size and shape. Type A is a mat without interlocking system. It has beveled edges all around.

The interlocking technology is characterized by the following properties:

Can be combined with each other as required
Flexible and simple horizontal and vertical mat connection possible
Simple installation without fixing to the subfloor
Mat size corresponds to the workplace dimensions in the production area in accordance with DIN 33406

The Vario A mats differ from the Vario G mats in color.

The technical data and comparison of ergolastec floor mats can be found here:

Technical data:

Top side	flat structure
Bottom side	cushioning hemispheres
Dimensions	1350 x 1000 x 16 mm
Weight	20 ± 1 kg
Hardness	55 ± Shore A
Fire protection classification	Bfl-S1
Temperature resistance	-35°C to +95°C
Material	NBR (nitrile rubber)
Color	light grey/black

Comparison of the ergolastec floor mats

Model	ergolastec ESD floor mat (to the product family)		ergolastec ESD floor matVario A	ergolastec ESD floor mat Vario G (to the product family)
Color	black		anthracite	light grey
Mat type	Antistatic and anti-fatigue mat
Field of application	Ideal for workplaces with walking, standing and turning movements.
	Can also be used in explosion-protected areas. Inspection and acceptance by a specialist is absolutely essential!
		Can also be used on floors with underfloor heating..
Ergonomics and surface geometry	The cushioning RFLX structure on the underside activates blood circulation and, in combination with the surfaces, provides appropriate pressure relief through intuitive balancing movements.
	Awarded the AGR seal of approval, the ergonomic mat promotes back health, can reduce downtime and increase employee productivity..
			Thanks to the surface geometries, the rubber mat can be used as an orientation aid for visually impaired people.
Material	SBR (styrene-butadiene rubber) - more flexible at low temperatures - more suitable for applications without heavy chemical exposure		NBR (acrylonitrile-butadiene rubber) - significantly higher resistance to oil, petrol and other hydrocarbons - more suitable for applications involving contact with oils and chemical substances
			The thickness and high-quality material protects against unhealthy floor cold and is suitable for multi-shift operation.
	The rubber mat is electrically conductive in accordance with EN 61340-4-1 (surface resistance ≤ 10⁷ Ohm) and is suitable for the special requirements of electronic and microelectronic workstations. All versions are marked with the ESD safety label.
Fire protection			Fire protection class Bfl-s1
Slip resistance	slip-resistant
