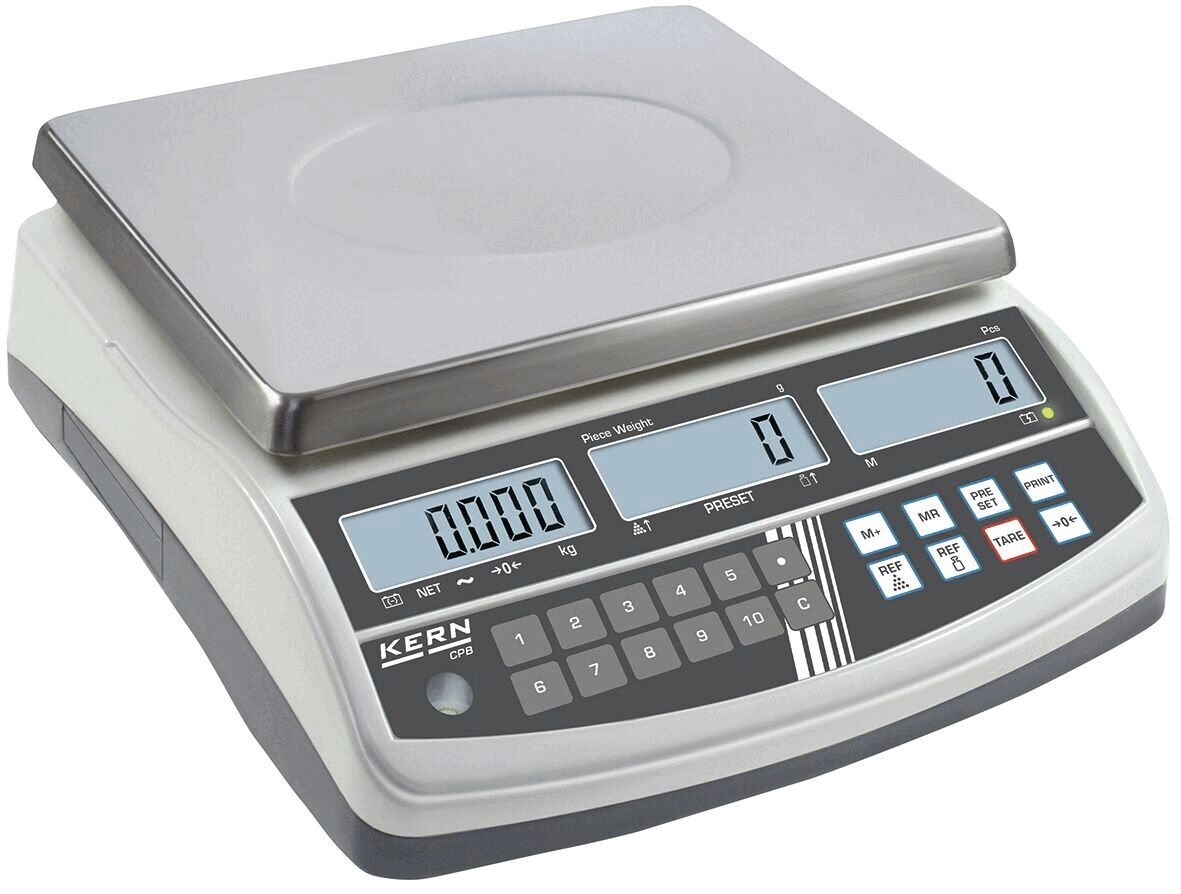

Counting balance KERN CPB-15K0.2N
Professional model with a counting resolution of up to 60,000 points
- Counting results memory for adding up the individual countings, result is shown in total quantity and total weight
- Target quantity programmable for checkweighing with acoustic signal
- Large LCD display with a digit height of 20 mm, backlighting 3-fold adjustable: permanently on, in case of load exchange on for 3 seconds and permanently off.
- High mobility due to operation with rechargeable battery (optional), compact, flat design and low weight
- 3 displays for totalweight, piece weight and total quantity
- PRE-TARE function for manual substraction of a known container weight
- Precise counting: automatic optimization of reference weight for a gradual improvement of the average piece weight value
| Technical data: | |
| Display: | backlit LCD display, 3-fold adjustable |
| Net weight: | approx. 4.0 kg |
Dimensions: Weighing plate: | 315 x 355 x 110 mm (WxDxH) 295 x 225 mm |
| Power supply: | 230 V / 50 Hz or rechargeable battery (optional) |
| Ambient termperature: | 0°C to +40°C |
| Test weight: | optional |
Battery operation (optional): rechargeable battery set internal, operating time up to 90 h, charging time approx. 12 h (art. 401.GAB-A04)
| Weighing range: | |
| 401.CPB-6K0.1N | 6000 g |
| 401.CPB-15K0.2N | 15,000 g |
| 401.CPB-30K0.5N | 30,000 g |
Details
Counting balance KERN CPB-15K0.2NReadability 0.2 g, weighing range max 15,000 g,.
smallest part weight/piece counting 0.1 g / piece
Weighing plate 295 x 225 mm / stainless steel
Data interface RS232C, protective cover, 230 V mains/rechargeable battery internal power supply
++without calibration certificate++
++ Delivery takes place does not include a calibration certificate - if required, this must be ordered separately directly with the balance ++
- Readability [g] Readability
- 0.2
- Repeatability [g] Repeatability
- 0.4
- Weighing capacity [kg] Weighing capacity
- 15
- Linearity [g] Linearity
- 0.8
- Min. weight [g] Minimum Weight
- 2.5
- Weighing plate [mm] Weighing plate
- 295x225
- D [mm] Depth
- 350
- H [mm] Height
- 100
- W [mm] Width
- 315
- Weight [g] Weight
- 3300
-for DKD calibration certificate and rechargable battery see accessories-
Show accessories
The brand KERN stands for precision and reliability. KERN is a specialist for accurate weighing having more than 160 years of experience. The products are of an excellent manufacturing quality, extremely robust and durable, and are characterized by an easy handling.
|
Adjusting program CAL: Adjusting program CAL: For quick setting up of the balance‘s accuracy. External adjusting weight required |
 |
Weighing units: Can be switched to e.g. nonmetric units. See balance mode. |
|
Data interface RS-232: To connect the balance to a printer, PC or network |
 |
Hold function: (Animal weighing program) When the weighing conditions are unstable, a stable weight is calculated as an average value |
 |
Memory: Balance memory capacity, e.g. for article data, weighing data, tare weights, PLU etc |
 |
Suspended weighing: Load support with hook on the underside of the balance |
 |
GLP/ISO log: The balance displays serial number, user ID, weight, date and time, regardless of a printer connection |
|
Weighing with tolerance range: (Checkweighing) Upper and lower limits can be programmed individually |
 |
GLP/ISO log: With weight, date and time. Only with KERN printers |
 |
Battery operation: Ready for battery operation. The battery type is specified for each device |
|
KERN Communication Protocol (KCP): It is a standardized interface command set for KERN balances and other instruments |
 |
Rechargeable battery pack: Rechargeable set |
|
Piece counting: Reference quantities selectable. Display can be switched from piece to weight |
|
Universal plug-in power supply: with universal input and optional input socket adapters for EU, CH, GB |
 |
Recipe level A: The weights of the recipe ingredients can be added together and the total weight of the recipe can be printed ou |
 |
Universal plug-in power supply: with universal input and optional input socket adapters for EU, CH, GB, USA |
|
Totalising level A: The weights of similar items can be added together and the total can be printed out |
 |
Weighing principle: Strain gauges Electrical resistor on an elastic deforming body |
 |
Percentage determination: Determining the deviation in % from the target value (100 %) |
 |
KERN Universal Port (KUP) allows the connection of external KUP interface adapters, e.g. RS-232, RS-485, SB, Bluetooth, WLAN, Analogue, Ethernet etc. for the exchange of data and control commands, without installation effort |
Adjusting program CAL
Adjusting program CAL:
Adjusting program CAL:
For quick setting up of the balance‘s accuracy. External adjusting weight required
RS-232
Data interface RS-232:
To connect the balance to a printer, PC or network
KCP
KERN Communication Protocol (KCP):
It is a standardized interface command set for KERN balances and other instruments, which allows retrieving and controlling all relevant parameters and functions of the device. KERN devices featuring KCP are thus easily integrated with computers, industrial controllers and other digital systems
Piece counting
Piece counting:
Reference quantities selectable. Display can be switched from piece to weight
Totalising level A
Totalising level A:
The weights of similar items can be added together and the total can be printed out
Weighing with tolerance range
Weighing with tolerance range:
(Checkweighing) Upper and lower limits can be programmed individually, e.g. for sorting and dosing. The process is supported by an audible or visual signal, see the relevant model
Universal plug-in power supply A
Universal plug-in power supply:
with universal input and optional input socket adapters for EU, CH, GB
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Readability [g] | Repeatability [g] | Weighing capacity [kg] | Linearity [g] | Min. weight [g] | Price | Compare | ||
|---|---|---|---|---|---|---|---|---|
|
401.CPB-6K0.1N Counting balance KERN CPB-6K0.1N |
| 0.1 | 0.2 | 6 | 0.4 | 1 | 280,00 EUR | |
|
401.CPB-15K0.2N Counting balance KERN CPB-15K0.2N |
| 0.2 | 0.4 | 15 | 0.8 | 2.5 | 280,00 EUR | |
|
401.CPB-30K0.5N Counting balance KERN CPB-30K0.5N |
| 0.5 | 1 | 30 | 2 | 5 | 280,00 EUR | |
