Axial components

Axial components are electronic components whose connection wires run parallel to the longitudinal axis of the housing so that the connection ends are arranged in a straight line on both sides of the component. Typical examples of axial components are resistors, capacitors and diodes. Specialized cutting and bending machines are used for the mechanical processing of these components, in particular for cutting and bending the connecting wires. These machines ensure precise, reproducible processing and contribute to process stability in electronics production.

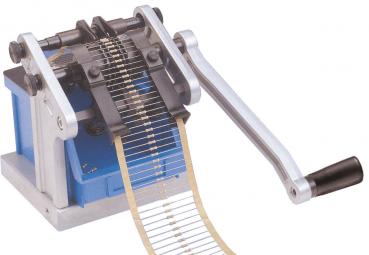

The image shows a mechanical machine with a sturdy frame and a long metal band that is pulled through a mechanism. A handle on the side is used to operate the machine.
CUTBEND
Cutting and bending machine CUTBEND type A (VB 08) standard
Cutting and bending machine CUTBEND type A (VB 05)
Cutting and bending machine CUTBEND type A (VB 10)
Cutting and bending machine CUTBEND type A (VB 12)
Cutting machine CUTBEND type B (FG 08) standard
Cutting and bending machine CUTBEND type C (BG 08) standard

6 Products
Product No.: 405.100
from 468,00 EUR
excl. 19% tax
to the product family

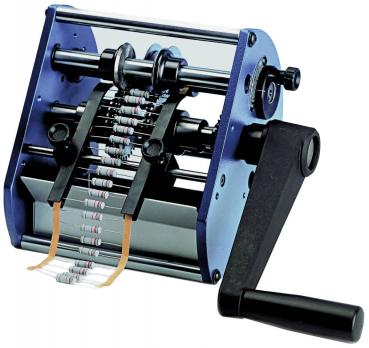

The image shows a blue machine with a handle. It has a rotating axis and contains multiple spools. Attached to it is a series of small resistors, which are neatly arranged.
TP 6/1 • TP 6/1.97 standard
Cutting and bending machine TP 6/1 - standard
Version: standard / Tape pitch pattern P : 6.5 - 60 mm / Lead diameter d: 0.4 - 1.3 mm / Body diameter D: 0.4 - 16 mm
Cutting and bending machine TP 6/1.97 - standard
Version: simplified bending wheel adjustment / Tape pitch pattern P : 6.5 - 60 mm / Lead diameter d: 0.4 - 1.3 mm / Body diameter D: 0.4 - 16 mm

2 Products
Product No.: 415.100
from 1.687,00 EUR
excl. 19% tax
to the product family
The image shows a manual resistance winding machine. It has a blue body, two rollers, and a handle. Resistors are arranged in a row and are wound automatically.
TP 6-EC cutting and bending machines
TP 6/1.EC Cutting/bending machine - standard
TP 6/6.EC Cutting/bending machine - reduced pitch
TP 6/7.EC Cutting/bending machine - fixed pitch P = 5.08 mm
TP 6/4.EC Cutting/bending machine - reinforced bending wheels

4 Products
Product No.: 415.100.EC
1.058,00 EUR
excl. 19% tax
to the product family
The image shows a machine. On the right side, there is a black box with a red emergency stop button and various control knobs. On the left, metal rollers are visible.
M Adjustable motor drive
M adjustable motor drive
M/1 adjustable motor drive

2 Products
Product No.: 415.825
from 1.848,00 EUR
excl. 19% tax
to the product family

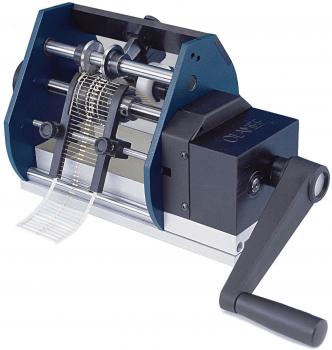

The image shows a mechanical device with a hand crank. Two rollers grasp a long, narrow strip that slides through the device. The colors are predominantly blue and black.
Cutting and bending machine TP 6/V1.EC - standard standing assembly
TP 6/V1.EC - cutting and bending machine
for axial components, standing mounting
Wire thickness
0.5 - 0.8 mm, P = 2.54 mm, A = 2.0 mm
(Model 81.OL01 art. no....)

Product No.: 415.400.EC
1.123,00 EUR
excl. 19% tax
to the product family
Preview: Image
Preview: The image shows a large, round roll made of light material, with a mechanism attached to it that includes a motor. A belt connects the roll to the mechanism.
Conversion kits / wheel sets, accessories
Wheel set - type A (VB 08) standard for CUTBEND
Wheel set - type A (VB 05) for CUTBEND
Wheel set - type A (VB 10) for CUTBEND
Wheel set - type A (VB 12) for CUTBEND
Wheel set - type B (FG 08) for CUTBEND
Wheel set - type C (BG 08) for CUTBEND
Replacement blade for VB 05 / VB 08 for CUTBEND
Replacement blade for VB 10 / VB 12 for CUTBEND
Dispenser reel CB-109 for taped components for CUTBEND

9 Products
Product No.: 405.250
from 24,60 EUR
excl. 19% tax
to the product family
The image shows a mechanical adhesive or labeling machine. It has metallic parts, rollers, and a platform through which a label passes. The machine is robust and designed for industrial use.
TNS Waste tape ejector
TNS/1 waste tape ejector
TNS/13 waste tape ejector

2 Products
Product No.: 415.835.1
398,40 EUR
excl. 19% tax
to the product family

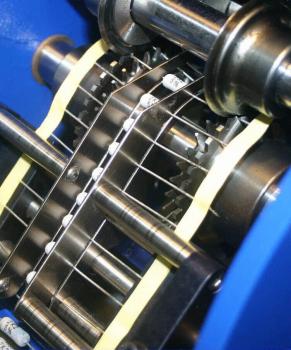

The image shows a machine with metallic rollers processing a black roll with fine, parallel wires. Yellow bands hold the structure together.
Feeder / component body type 200240
Feeding / component body type 200240
for taped components
suitable for TP 6.EC / TP 6 / TP 6.97, TP6/PR-B,
TP6/PR-B/97, TP6/S

Product No.: 415.200240
370,00 EUR
excl. 19% tax
Show product

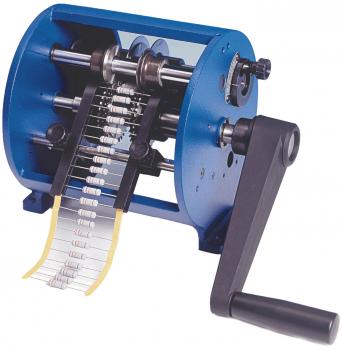

The image shows a blue machine with a handle. It has a rotating axis and contains multiple spools. Attached to it is a series of small resistors, which are neatly arranged.
TP 6/6 • TP 6/6.97 reduced pitch
Cutting and bending machine TP 6 / 6 - reduced pitch
Version: reduced grid dimensions / Tape pitch pattern P : 5.08 - 60 mm / Lead diameter d: 0.4 - 0.8 mm / Body diameter D: 0.4 - 10 mm
Cutting and bending machine TP 6 / 6.97 - reduced pitch
Version: reduced grid dimensions, simplified bending wheel adjustment / Tape pitch pattern P : 5.08 - 60 mm / Lead diameter d: 0.4 - 0.8 mm / Body diameter D: 0.4 - 10 mm

2 Products
Product No.: 415.101
from 1.735,00 EUR
excl. 19% tax
to the product family
The image shows a blue machine with a handle. It has a rotating axis and contains multiple spools. Attached to it is a series of small resistors, which are neatly arranged.
TP 6/7 fixed pitch
Cutting and bending machine TP 6 / 7 – fixed pitch P = 5.08 mm
Width : 180 mm / Height : 210 mm / Length : 230 mm / Tape pitch pattern P : 5.08 mm
additional bending wheel for cutting and bending machine TP 6/7
Width : 180 mm / Height : 210 mm / Length : 230 mm / Tape pitch pattern P : 7.62 mm
additional bending wheel for cutting and bending machine TP 6/7
Width : 180 mm / Height : 210 mm / Length : 230 mm / Tape pitch pattern P : 10.16 mm

3 Products
Product No.: 415.102
from 146,75 EUR
excl. 19% tax
to the product family
The image shows a blue machine with a handle. It has a rotating axis and contains multiple spools. Attached to it is a series of small resistors, which are neatly arranged.
TP 6/4 • TP 6/4.97 reinforced bending wheels
Cutting and bending machine TP 6 / 4 - reinforced bending wheels
Width : 180 mm / Height : 210 mm / Length : 230 mm / Version: reinforced bending wheels
Cutting and bending machine TP 6 / 4.97 - reinforced bending wheels
Width : 180 mm / Height : 210 mm / Length : 230 mm / Version: reinforced bending wheels, simplified bending wheel adjustment

2 Products
Product No.: 415.103
from 1.652,00 EUR
excl. 19% tax
to the product family
The image displays a technical drawing of a component with various dimensions. There is a cylindrical center with two ends that have different lengths (A to F).
Preview: The image shows a mechanical machine with a blue casing and a crank. Inside, there are several rotating rollers that work with striped belts to perform processing steps.
Preview: The image displays a technical drawing of a component with various dimensions. There is a cylindrical center with two ends that have different lengths (A to F).
Preview: The image displays a technical drawing of a component, likely a fuse. Various dimension lines (A, D, F, L, P, d) are marked, indicating the dimensions of the component.
Preview: The image displays a simple, green symbol of a landscape. It features stylized mountains and a sun circle. The background is bright and neutral.
TP 6 / V
Cutting and bending machine TP 6 / V1 - standard
Width : 180 mm / Height : 210 mm / Length : 230 mm / Tape pitch pattern P : 2.54 mm
Additional bending tool P = 3.8 mm for cutting and bending machine TP 6 / V
Tape pitch pattern P : 3.80 mm
Additional bending tool P = 5.08 mm for cutting and bending machine TP 6 / V
Tape pitch pattern P : 5.08 mm
Holder for additional bending tool for cutting and bending machine TP 6 / V

4 Products
Product No.: 415.430.V1
from 107,75 EUR
excl. 19% tax
to the product family

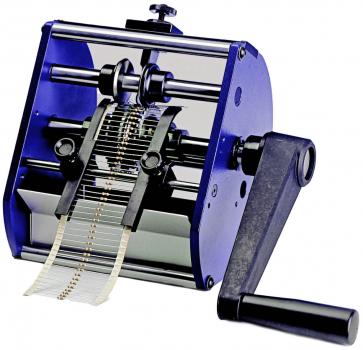

The image depicts a manual machine with a handle. It features two rollers and an area where paper strips are processed. The mechanism appears sturdy and functional.
TP 6 / V-PR
Cutting and bending machine TP 6 / V-PR (P = 2.54 mm) standing assembly
Tape pitch pattern P : 2.54 mm / Lead diameter d: 0.5 - 0.8 mm / Body diameter D: 0.5 - 4 mm
Cutting and bending machine TP 6 / V-PR (P = 5.08 mm)
Tape pitch pattern P : 5.08 mm / Lead diameter d: 0.5 - 0.8 mm / Body diameter D: 0.5 - 8 mm

2 Products
Product No.: 415.500
5.051,00 EUR
excl. 19% tax
to the product family
The image shows a mechanical machine with visible gears and rollers. A hand crank is located on the right side, and a long, thin strip of paper extends from the machine.
Cutting and bending machine TP6/PR-F/1 - basic machine
TP 6, PR-F, 1 cutting and bending machine
for axial components wire thickness 0.5 - 0.9 mm
Basic machine ++ without processing tools ++
(Model 43.OL01 art. no....)

Product No.: 415.191
4.937,00 EUR
excl. 19% tax
to the product family
The image shows a technical drawing of a component with various labels for dimensions: L, D, B, P, d, and c. The shape is symmetrical with two outwardly curved ends.
Standard tool cut/bend for cutting and bending machine TP 6/PR-F
Standard tool cut / bend
wire thickness 0.5 - 0.9 mm
++ Tool code 420650 TP6/PR-F/1++

Product No.: 415.191.420650
1.265,00 EUR
excl. 19% tax
Show product
The image displays a technical drawing of a profile with various dimensions. It has a U-shape, two upright sides, and a central connection. Dimensions are noted beside the lines.
Standard tool stand-off 3.0 mm for cutting and bending machine TP 6/PR-F
Standard tool stand-off 3.0 mm
wire thickness 0.5 - 0.9 mm
++ Tool code 420750 TP6/PR-F/1++

Product No.: 415.191.420750
1.265,00 EUR
excl. 19% tax
Show product
1 to 16 (from a total of 23)
