ESD interlayers

ESD interlayers reliably protect sensitive electronic components during storage and transportation in ESD containers. Depending on requirements, variants made of cavity PP for particularly lightweight applications, solid PS for high stability or PE foam with shock-absorbing properties are available. All materials are dissipative and guarantee protection against electrostatic discharge and mechanical impacts - for safe processes in electrostatically protected areas (EPA).

Configurator interlayers

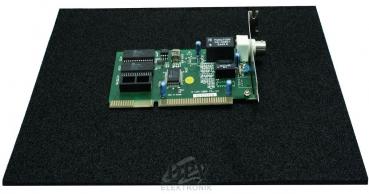

PE foam interlayers, dissipative
ESD-protective
PE foam, dissipative 253x153x3 mm
ESD / Length : 253 mm / Width : 153 mm / Thickness : 3 mm / Operating temperature: up to 90 °C
PE foam, dissipative 353x253x3 mm
ESD / Length : 353 mm / Width : 253 mm / Thickness : 3 mm / Operating temperature: 90 °C
PE foam, dissipative 340x255x3 mm
ESD / Length : 340 mm / Width : 255 mm / Thickness : 3 mm / Operating temperature: 90 °C
PE foam, dissipative 300x300x3 mm
ESD / Length : 300 mm / Width : 300 mm / Thickness : 3 mm / Operating temperature: 90 °C
PE foam, dissipative 553x353x3 mm
ESD / Length : 553 mm / Width : 353 mm / Thickness : 3 mm / Operating temperature: 90 °C
PE foam, dissipative 540x355x3 mm
ESD / Length : 540 mm / Width : 355 mm / Thickness : 3 mm / Operating temperature: 90 °C
PE foam plate, dissipative 1000x1000x3 mm
ESD / Length : 1000 mm / Width : 1000 mm / Thickness : 3 mm / Operating temperature: 90 °C
PE foam plate, dissipative 1000x1500x3 mm
ESD / Length : 1500 mm / Width : 1000 mm / Thickness : 3 mm / Operating temperature: 90 °C
PE foam, dissipative, cutting
ESD / Width : Cutting mm / Thickness : 3 mm / Operating temperature: 90 °C
PE foam, dissipative 253x153x6 mm
ESD / Length : 253 mm / Width : 153 mm / Thickness : 6 mm / Operating temperature: 90 °C
PE foam, dissipative 353x253x6 mm
ESD / Length : 353 mm / Width : 253 mm / Thickness : 6 mm / Operating temperature: 90 °C
PE foam, dissipative 340x255x6 mm
ESD / Length : 340 mm / Width : 255 mm / Thickness : 6 mm / Operating temperature: 90 °C
PE foam, dissipative 300x300x6 mm
ESD / Length : 300 mm / Width : 300 mm / Thickness : 6 mm / Operating temperature: 90 °C
PE foam, dissipative 553x353x6 mm
ESD / Length : 553 mm / Width : 353 mm / Thickness : 6 mm / Operating temperature: 90 °C
PE foam, dissipative 540x355x6 mm
ESD / Length : 540 mm / Width : 355 mm / Thickness : 6 mm / Operating temperature: 90 °C
PE foam, dissipative 750x550x6 mm
ESD / Length : 750 mm / Width : 550 mm / Thickness : 6 mm / Operating temperature: 90 °C
PE foam plate, dissipative 1000x1000x6 mm
ESD / Length : 1000 mm / Width : 1000 mm / Thickness : 6 mm / Operating temperature: 90 °C
PE foam plate, dissipative 1000x1500x6 mm
ESD / Length : 1500 mm / Width : 1000 mm / Thickness : 6 mm / Operating temperature: 90 °C
PE foam, dissipative, cutting
ESD / Width : Cutting mm / Thickness : 6 mm / Operating temperature: 90 °C
PE foam, dissipative 353x253x10 mm
ESD / Length : 353 mm / Width : 253 mm / Thickness : 10 mm / Operating temperature: 90 °C
PE foam, dissipative 340x255x10 mm
ESD / Length : 340 mm / Width : 255 mm / Thickness : 10 mm / Operating temperature: 90 °C
PE foam, dissipative 553x353x10 mm
ESD / Length : 553 mm / Width : 353 mm / Thickness : 10 mm / Operating temperature: 90 °C
PE foam, dissipative 540x355x10 mm
ESD / Length : 540 mm / Width : 355 mm / Thickness : 10 mm / Operating temperature: 90 °C
PE foam, dissipative 750x550x10 mm
ESD / Length : 750 mm / Width : 550 mm / Thickness : 10 mm / Operating temperature: 90 °C
PE foam plate, dissipative 1000x1000x10 mm
ESD / Length : 1000 mm / Width : 1000 mm / Thickness : 10 mm / Operating temperature: 90 °C
PE foam plate, dissipative 1000x1500x10 mm
ESD / Length : 1500 mm / Width : 1000 mm / Thickness : 10 mm / Operating temperature: 90 °C
PE foam, dissipative, cutting
ESD / Width : Cutting mm / Thickness : 10 mm / Operating temperature: 90 °C

27 Products
Product No.: 4550.06.0353
from 0,82 EUR
excl. 19% tax
to the product family
The image displays a black surface with fine vertical lines. One corner is flattened, giving the picture an irregular shape. The texture appears slightly textured.
Preview: The image displays a black surface with fine vertical lines. One corner is flattened, giving the picture an irregular shape. The texture appears slightly textured.
Preview: The image displays a black sheet with a matte surface. It features two round cutouts at the top edge, resembling an opening. The structure is uniform and monochromatic.
Preview: The image shows a black sheet with two round, white holes at the top and bottom. The surface has fine, vertical lines that give the sheet structure.
Preview: The image displays a black, smooth sheet with a slightly textured surface. Below is a green frame featuring a pattern and a sort of stripe.
Preview: The image shows a black, three-part folder made of sturdy material. It has a central section and two side flaps, each featuring an opening.
PP Interlayers for transport containers 3.0 mm
ESD-protective
Interlayer PP type D, 254 x 154 x 3 mm ESD
ESD / Length : 254 mm / Width : 154 mm / Thickness : 3 mm / Cut-out: Standard type D
Interlayer PP type A, 254 x 154 x 3 mm ESD
ESD / Length : 254 mm / Width : 154 mm / Thickness : 3 mm / Cut-out: Type A
Interlayer PP 3.0 type D, 353 x 253 x 3 mm ESD
ESD / Length : 353 mm / Width : 253 mm / Thickness : 3.0 mm / Cut-out: Standard type D
Interlayer PP type A, 353 x 253 x 3 mm ESD
ESD / Length : 353 mm / Width : 253 mm / Thickness : 3.0 mm / Cut-out: Type A
Interlayer PP type C, 353 x 253 x 3 mm ESD
ESD / Length : 353 mm / Width : 253 mm / Thickness : 3.0 mm / Cut-out: Type C
Interlayer PP with 3 mm PE foam ESD
ESD / Length : 353 mm / Width : 253 mm / Thickness : 6.0 mm / Cut-out: Standard type D / Foam: PE foam for pin insertion
Interlayer PP type D, 340 x 260 x 3 mm (for KLT)
ESD / Length : 340 mm / Width : 260 mm / Thickness : 3.0 mm / Cut-out: Standard type D
Interlayer PP type D, 553 x 353 x 3 mm
ESD / Length : 553 mm / Width : 353 mm / Thickness : 3.0 mm / Cut-out: Standard type D
Interlayer PP type A, 553 x 353 x 3 mm
ESD / Length : 553 mm / Width : 353 mm / Thickness : 3.0 mm / Cut-out: Type A
Interlayer PP type C, 553 x 353 x 3 mm
ESD / Length : 553 mm / Width : 353 mm / Thickness : 3.0 mm / Cut-out: Type C
Interlayer PP with 3 mm PE foam
ESD / Length : 550 mm / Width : 350 mm / Thickness : 6.0 mm / Cut-out: Standard type D / Foam: PE foam for pin insertion
Interlayer PP with 6 mm PE foam
ESD / Length : 550 mm / Width : 350 mm / Thickness : 9.0 mm / Cut-out: Standard type D / Foam: PE foam for pin insertion
Interlayer PP type D, 540 x 360 x 3 mm (for KLT)
ESD / Length : 540 mm / Width : 360 mm / Thickness : 3.0 mm / Cut-out: Standard type D
Interlayer PP type D, 753 x 553 x 3 mm
ESD / Length : 753 mm / Width : 553 mm / Thickness : 3.0 mm / Cut-out: Standard type D
Interlayer PP type A, 753 x 553 x 3 mm
ESD / Length : 753 mm / Width : 553 mm / Thickness : 3.0 mm / Cut-out: Type A
Interlayer PP cutting thickness 3.0 mm
ESD / Length : - mm / Width : - mm / Thickness : 3.0 mm

16 Products
Product No.: 050.235
from 0,81 EUR
excl. 19% tax
to the product family

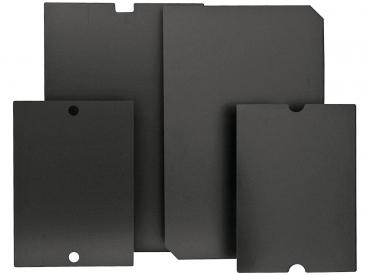

The image shows four black plates of different sizes and shapes, arranged on top of each other. Some have notches on the edges to facilitate handling.
Preview: The picture shows a black area with a slightly rounded top left corner. The surface appears smooth and even, without any discernible details or patterns.
Preview: The image shows a black, rectangular area with rounded corners. At the top center, there is a circular cutout. The background is uniformly dark.
Preview: The image shows a black rectangular area with two round holes, one at the top and one at the bottom. The surface is smooth and even.
Preview: The image shows a rectangular, black object with no discernible patterns or details. It has a notch on the top and appears flat and uniform in color.
Preview: The image shows four black plates of different sizes and shapes, arranged on top of each other. Some have notches on the edges to facilitate handling.
PS Interlayers for transport containers thickness 1.85 mm
ESD-protective
Interlayer PS type D, 353 x 253 x 1.85 mm
ESD / Length : 353 mm / Width : 253 mm / Thickness : 1.85 mm / Cut-out: Standard type D
Interlayer PS type A, 353 x 253 x 1.85 mm
ESD / Length : 353 mm / Width : 253 mm / Thickness : 1.85 mm / Cut-out: Type A
Interlayer PS type C, 353 x 253 x 1.85 mm
ESD / Length : 353 mm / Width : 253 mm / Thickness : 1.85 mm / Cut-out: Type C
Interlayer PS type D, 553 x 353 x 1.85 mm
ESD / Length : 553 mm / Width : 353 mm / Thickness : 1.85 mm / Cut-out: Standard type D
Interlayer PS type A, 553 x 353 x 1.85 mm
ESD / Length : 553 mm / Width : 353 mm / Thickness : 1.85 mm / Cut-out: Type A
Interlayer PS type B, 553 x 353 x 1.85 mm
ESD / Length : 553 mm / Width : 353 mm / Thickness : 1.85 mm / Cut-out: Type B
Interlayer PS type C, 553 x 353 x 1.85 mm
ESD / Length : 553 mm / Width : 353 mm / Thickness : 1.85 mm / Cut-out: Type C
Interlayer PS cutting thickness 1.85 mm
ESD / Length : - mm / Width : - mm / Thickness : 1.85 mm

8 Products
Product No.: 050.301.PS18.Z
from 2,76 EUR
to the product family

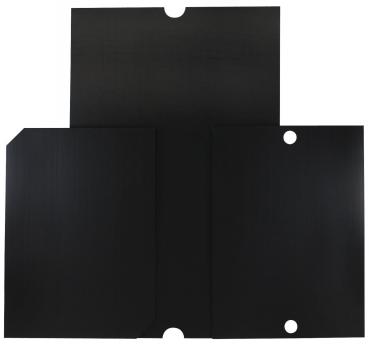

The image shows a black, three-part folder made of sturdy material. It has a central section and two side flaps, each featuring an opening.
Preview: The image displays a black surface with fine vertical lines. One corner is flattened, giving the picture an irregular shape. The texture appears slightly textured.
Preview: The image displays a black sheet with a matte surface. It features two round cutouts at the top edge, resembling an opening. The structure is uniform and monochromatic.
Preview: The image shows a black sheet with two round, white holes at the top and bottom. The surface has fine, vertical lines that give the sheet structure.
Preview: The image shows a black, three-part folder made of sturdy material. It has a central section and two side flaps, each featuring an opening.
PP Interlayers for transport containers thickness 3.5 mm
ESD-protective
Interlayer PP type D, 353 x 253 x 3.5 mm
ESD / Length : 353 mm / Width : 253 mm / Thickness : 3.5 mm / Cut-out: Standard type D
Interlayer PP type A, 353 x 253 x 3.5 mm
ESD / Length : 353 mm / Width : 253 mm / Thickness : 3.0 mm / Cut-out: Type A
Interlayer PP type C, 353 x 253 x 3.5 mm
ESD / Length : 353 mm / Width : 253 mm / Thickness : 3.5 mm / Cut-out: Type C
Interlayer PP type D, 553 x 353 x 3.5 mm
ESD / Length : 553 mm / Width : 353 mm / Thickness : 3.5 mm / Cut-out: Standard type D
Interlayer PP type A, 553 x 353 x 3.5 mm
ESD / Length : 553 mm / Width : 353 mm / Thickness : 3.5 mm / Cut-out: Type A
Interlayer PP type C, 553 x 353 x 3.5 mm
ESD / Length : 553 mm / Width : 353 mm / Thickness : 3.5 mm / Cut-out: Type C
Interlayer PP type D, 753 x 553 x 3.5 mm
ESD / Length : 753 mm / Width : 553 mm / Thickness : 3.5 mm / Cut-out: Standard type D
Interlayer PP type A, 753 x 553 x 3.5 mm
ESD / Length : 753 mm / Width : 353 mm / Thickness : 3.5 mm / Cut-out: Type A
Interlayer PP cutting thickness 3.5 mm
ESD / Length : - mm / Width : - mm / Thickness : 3.5 mm

9 Products
Product No.: 050.201.PP35.Z
from 1,80 EUR
to the product family
The image shows a black, rectangular area with rounded corners. At the top center, there is a circular cutout. The background is uniformly dark.
Preview: The picture shows a black area with a slightly rounded top left corner. The surface appears smooth and even, without any discernible details or patterns.
Preview: The image shows a black, rectangular area with rounded corners. At the top center, there is a circular cutout. The background is uniformly dark.
Preview: The image shows a black rectangular area with two round holes, one at the top and one at the bottom. The surface is smooth and even.
Preview: The image shows four black plates of different sizes and shapes, arranged on top of each other. Some have notches on the edges to facilitate handling.
PS Interlayers for transport containers thickness 1.5 mm
ESD-protective
Interlayer PS type D, 353 x 253 x 1.5 mm
ESD / Length : 353 mm / Width : 253 mm / Thickness : 1.5 mm / Cut-out: Standard type D
Interlayer PS type A, 353 x 253 x 1.5 mm ESD
ESD / Length : 353 mm / Width : 253 mm / Thickness : 1.5 mm / Cut-out: Type A
Interlayer PS type C, 353 x 253 x 1.5 mm ESD
ESD / Length : 353 mm / Width : 253 mm / Thickness : 1.5 mm / Cut-out: Type C
Interlayer PS type D, 553 x 353 x 1.5 mm ESD
ESD / Length : 553 mm / Width : 353 mm / Thickness : 1.5 mm / Cut-out: Standard type D
Interlayer PS type A, 553 x 353 x 1.5 mm ESD
ESD / Length : 553 mm / Width : 353 mm / Thickness : 1.5 mm / Cut-out: Type A
Interlayer PS type C, 553 x 353 x 1.5 mm ESD
ESD / Length : 553 mm / Width : 353 mm / Thickness : 1.5 mm / Cut-out: Type C
Interlayer PS cutting thickness 1.5 mm ESD
ESD / Length : - mm / Width : - mm / Thickness : 1.5 mm

7 Products
Product No.: 050.331.A-15
from 2,43 EUR
excl. 19% tax
to the product family
1 to 5 (from a total of 5)
