EC screwdrivers

EC screwdrivers are torque- and angle-controlled screwdriving systems with brushless EC motors that are used in electronics production for high-precision, reproducible screw connections. They enable precise control and monitoring of the screwdriving parameters and contribute to quality assurance and traceability through integrated documentation functions. Due to their sensitive control, they are particularly suitable for ESDS and mechanically sensitive assemblies. The connection to MES or traceability systems and the low maintenance requirements support the implementation of efficient, ergonomic and error-preventing assembly processes in modern production environments.

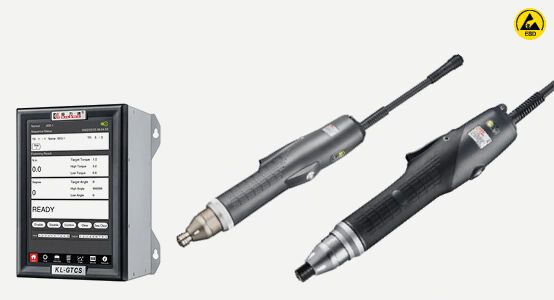

Kilews EC screwdrivers

Kilews EC screwdrivers

The Kilews EC screwdrivers are specially designed for ESD protection zones and offer exceptional precision, safety and efficiency for applications in the electronics industry.

With precise torque control, they are ideal for work where tight tolerances and maximum repeatability are required.

EC screwdrivers offer automatic torque control, guaranteeing consistent quality and precise fastening.

Kilews offers a wide range of EC screwdrivers that can be adapted to different requirements, from extremely small screws to higher torque work.

The image displays an electronic measuring device with a black casing. The display shows numbers and symbols, including a torque value and various control knobs below.

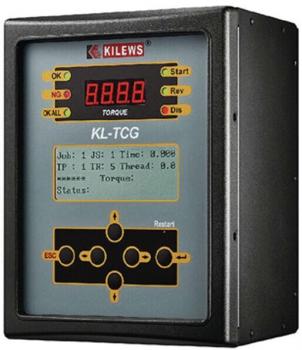

Controller for CG series
ESD-protective
Controller for series CG / SKT-KL-TCG-L
ESD / Input voltage: 115 - 230 V/AC
Controller for series CG / SKT-KL-TCG
Input voltage: 100 - 240 V/AC

2 Products
Product No.: SKT-KL-TCG
2.239,00 EUR
excl. 19% tax
to the product family
The image shows a black electric hand tool with a round, metallic shiny head. It has a handle and a cord. There are several buttons and a small light on the body.
Preview: The image shows a narrow, cylindrical screwdriver or tool with a black handle and a silver metal head. It has a green marking and a clip for attachment.
Preview: The image shows a black electric hand tool with a round, metallic shiny head. It has a handle and a cord. There are several buttons and a small light on the body.
Preview: The image displays a gray, handy power tool, similar to a screwdriver, with a long, flexible cable and a round attachment at the tip. It features a modern design.
Preview: The image displays a gray, handy tool with a long handle and a rotating head. At the tip, there is a hexagonal opening. It features controls and a cable connection.

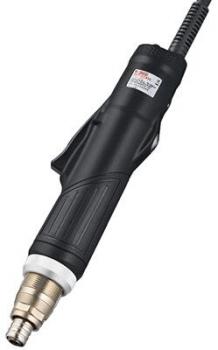

EC screwdriver CG series
ESD-protective
ESD EC Electric screwdriver CGS10
ESD / Start type: lever start/ push start / Torque range: 0.1 - 1.0 Nm / Idle speed High: 980 / Idle speed Low: 100
ESD EC Electric screwdriver CGS30
ESD / Start type: lever start/ push start / Torque range: 0.5 - 3.0 Nm / Idle speed High: 980 / Idle speed Low: 100
ESD EC Electric screwdriver CG30
ESD / Start type: lever start/ push start / Torque range: 0.6 - 3.0 Nm / Idle speed High: 1600 / Idle speed Low: 160
ESD EC Electric screwdriver CG50
ESD / Start type: lever start/ push start / Torque range: 1.0 - 5.0 Nm / Idle speed High: 1100 / Idle speed Low: 110
ESD EC Electric screwdriver CG70
ESD / Start type: lever start/ push start / Torque range: 1.4 - 7.0 Nm / Idle speed High: 660 / Idle speed Low: 70
ESD EC Electric screwdriver CG120
ESD / Start type: lever start/ push start / Torque range: 2,4 - 12.0 Nm / Idle speed High: 1000 / Idle speed Low: 100
ESD EC Electric screwdriver CG180
ESD / Start type: lever start/ push start / Torque range: 3.6 - 18.0 Nm / Idle speed High: 600 / Idle speed Low: 60
ESD EC Electric screwdriver CG250
ESD / Start type: lever start / Torque range: 5.0 - 25.0 Nm / Idle speed High: 400 / Idle speed Low: 40

8 Products
Product No.: SKT-CG50-ESD
from 2.029,00 EUR
excl. 19% tax
to the product family
The image shows a digital measuring device with a large, illuminated display. There are buttons for start, rewind, menu, and a directional key in the middle. The display shows values for torque and status.

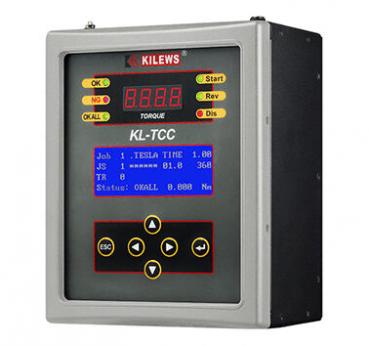

Controller for CC series
ESD / Input voltage: 100 - 240 V/AC / Power: 90 W / Output voltage DC: 40 V/DC / Length : 185 mm / Width : 241 mm / Height : 127 mm
KL-TCC Controller KILEVS
suitable for torques from 0.3 - 7 Nm
Inputs: Sensor/Release/Start/Reset/Reverse
Outputs: OK/NG/OK ALL/Start/Reverse
Interfaces: RS-232X2, Micro SD, LAN
115-240V, output DC 40V, max. 9A
Dimensions: 185 x 241 x 127 mm , weight 4.6 kg
( suitable for SGT-CC )

Serial No. ………………….

Product No.: SGT-KL-TCC
2.163,00 EUR
excl. 19% tax
to the product family
The image shows a black power tool with a handle and a hose connection. It has a sturdy, ergonomic handle and a metal nozzle at the tip.

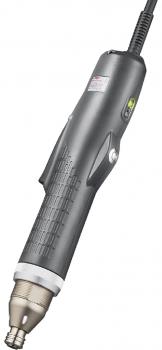

EC Screwdrivers CC series
ESD-protective
ESD EC Electric screwdriver CC612
ESD / Start type: lever start / Torque range: 0.3 - 1.2 Nm / Idle speed High: 1000 / Idle speed Low: 100
ESD EC Electric screwdriver CC620
ESD / Start type: lever start / Torque range: 0.6 - 2.0 Nm / Idle speed High: 1000 / Idle speed Low: 100
ESD EC Electric screwdriver CC650
ESD / Start type: lever start / Torque range: 1.5 - 5.0 Nm / Idle speed High: 1000 / Idle speed Low: 100
ESD EC Electric screwdriver CC670
ESD / Start type: lever start / Torque range: 2.0 - 7.0 Nm / Idle speed High: 800 / Idle speed Low: 100

4 Products
Product No.: SGT-CC612-ESD
from 1.190,00 EUR
excl. 19% tax
to the product family
The image shows a black, handheld device with a rounded head and a handle. There is a yellow symbol on the side. It resembles a tool or a measuring device.

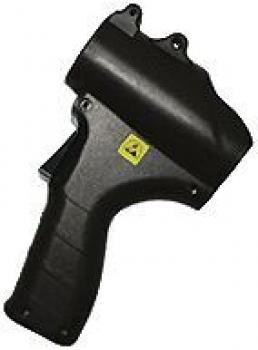

Pistol handle for series SKT CG ESD
Pistol handle SKD-CG series ESD

Product No.: SKZ-LG-15S
61,90 EUR
excl. 19% tax
Show product
The image shows a cylindrical, black screwdriver with a silver head. The handle is non-slip and has a clip mechanism. At the tip, there is a long, thin tool.

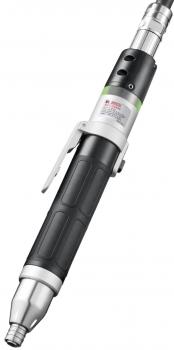

EC Screwdrivers CS series
ESD-protective
ESD EC Electric screwdriver CS301
ESD / Start type: lever start/ push start / Torque range: 0.1 - 1.0 Nm / Idle speed High: 980 / Idle speed Low: 60
ESD EC Electric screwdriver CS302F
ESD / Start type: lever start/ push start / Torque range: 0.3 - 2,4 Nm / Idle speed High: 2000 / Idle speed Low: 60
ESD EC Electric screwdriver CS303
ESD / Start type: lever start/ push start / Torque range: 0.4 - 3.0 Nm / Idle speed High: 980 / Idle speed Low: 60
ESD EC Electric screwdriver CS503
ESD / Start type: lever start/ push start / Torque range: 0.4 - 3.0 Nm / Idle speed High: 1600 / Idle speed Low: 60
ESD EC Electric screwdriver CS505
ESD / Start type: lever start/ push start / Torque range: 0.7 - 5.0 Nm / Idle speed High: 1600 / Idle speed Low: 60
ESD EC Electric screwdriver CS507
ESD / Start type: lever start/ push start / Torque range: 0.9 - 7.0 Nm / Idle speed High: 650 / Idle speed Low: 30

6 Products
Product No.: SGT-CS301-ESD
from 2.338,00 EUR
excl. 19% tax
to the product family
The image shows a digital display in a square casing. It displays various values, including

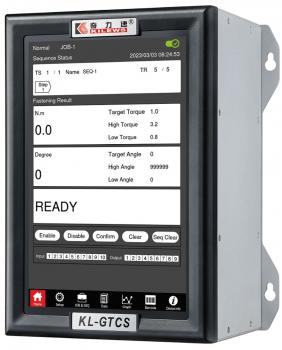

Controller for CS series
ESD / Input voltage: 100 - 240 V/AC / Power: 360 W / Output voltage DC: 40 V/DC / Length : 180 mm / Width : 266 mm / Height : 145 mm
KL-GTCS Controller KILEVS
suitable for torques from 0.1 - 7 Nm
Inputs: Sensor/Release/Start/Reset/Reverse
Outputs: OK/NG/OK ALL/Start/Reverse
Interfaces: RS-232X2, Micro SD, LAN
120-240V, output DC 24V,
Dimensions: 266 x 180 x 145 mm , weight 4.08 kg
( suitable for SKT-CS )

Serial No. ………………….

Product No.: SGT-KL-GTCS
5.338,00 EUR
excl. 19% tax
to the product family
1 to 7 (from a total of 7)
