ESD EC electric screwdriver CG120T

Name: ESD EC electric screwdriver CG120T
SKU: SKT-CG120T-U-ESD
Price: 3400.00 EUR
Availability: InStock

ArticleNo: SKT-CG120T-U-ESD

dpvlink:

31623

Start type:

lever start

Torque range:

2,4 - 12.0 Nm

Idle speed High:

1000

Idle speed Low:

100

Properties:

Further product information

Availability: at short notice

at short notice

NEW

3.400,00 EUR
per PCE

excl. 19% tax

1 PCE

Compare

Notice / Inquire

Product Info

ESD EC electric screwdriver CG120T

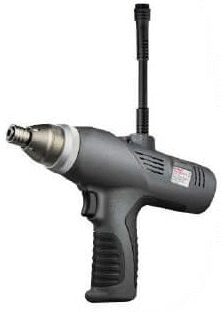

The Kilews CG120T ESD-EC electric screwdriver is characterized by a practical cable exit at the top and a robust construction. This model offers a stepless torque adjustment with a range from 2.4 to 12.0 Nm, enabling precise applications. The no-load speed can be set between 100 and 1000 rpm, making the device suitable for various screwdriving tasks.

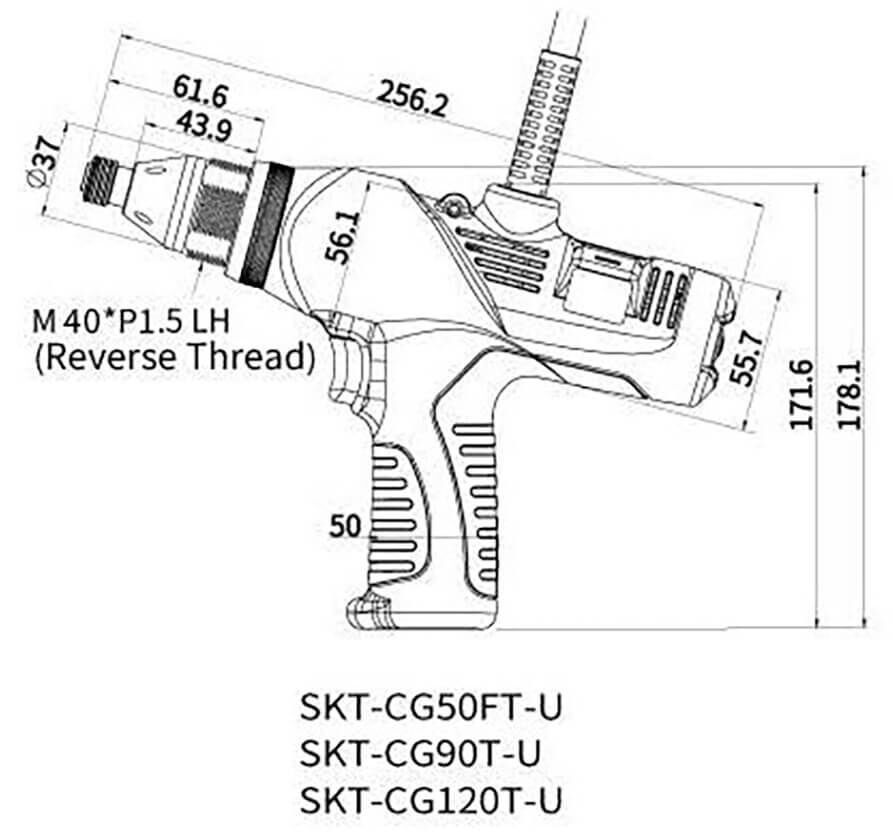

The total length of the electric screwdriver varies between 256 and 178 mm, ensuring flexible handling. Weighing 1385 g, the screwdriver is robust yet easy to handle. ESD safety is guaranteed by the special design, making the screwdriver ideal for sensitive electronic components. It is equipped with a lever start, which allows for easy operation, and the output voltage is 40 V/DC with a power of 90 W.
The screwdriver is designed for bit type B and has a 3/8" (9.53 mm) holder, ensuring good compatibility with common bits. The CG series from Kilews stands for reliability and efficiency in industrial applications.

Details

Start type Start type: lever start
Torque range Torque range: 2,4 - 12.0 Nm
Idle speed High Idle speed High: 1000
Idle speed Low Idle speed Low: 100
Output voltage DC Output voltage DC: 40 V/DC
Power Power: 90 W
Length Length: 256 - 178 mm
ESD ESD: yes
suitable bit type suitable bit type: Typ B
Bit type Bit type: type B
Series Series: CG
Socket Socket: 3/8" 9.53 mm
Torque setting Torque setting: stepless
Weight Weight: 1385 g

Show accessories

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

The image displays an electronic measuring device with a black casing. The display shows numbers and symbols, including a torque value and various control knobs below.

Controller for series CG / SKT-KL-TCG-L

KL-TCG Controller KILEWS
suitable for torques from 2.4 - 25 Nm
Inputs: Sensor/Release/Reset/Star/Reverse
Interfaces: RS-232X2, Micro SD, LAN
100-240V AC, output 24 DC,
Dimensions: 185 x 241 x 127 mm, weight 3.4 kg
( suitable for SKT-CG120/180/250 )
