ESD EC electric screwdriver CG50FT

Name: ESD EC electric screwdriver CG50FT
SKU: SKT-CG50FT-D-ESD
Price: 3245.00 EUR
Availability: InStock

ArticleNo: SKT-CG50FT-D-ESD

dpvlink:

31623

Start type:

lever start

Torque range:

1.0 - 5.0 Nm

Idle speed High:

2600

Idle speed Low:

250

Properties:

Further product information

Availability: at short notice

at short notice

NEW

3.245,00 EUR
per PCE

excl. 19% tax

1 PCE

Compare

Notice / Inquire

Product Info

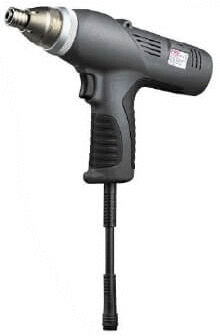

ESD EC electric screwdriver CG50FT

The Kilews ESD-EC electric screwdriver CG50FT combines high functionality with advanced technology, making it ideal for precise assembly work. This model is characterized by its ESD safety, making it perfect for use in sensitive electronic environments.

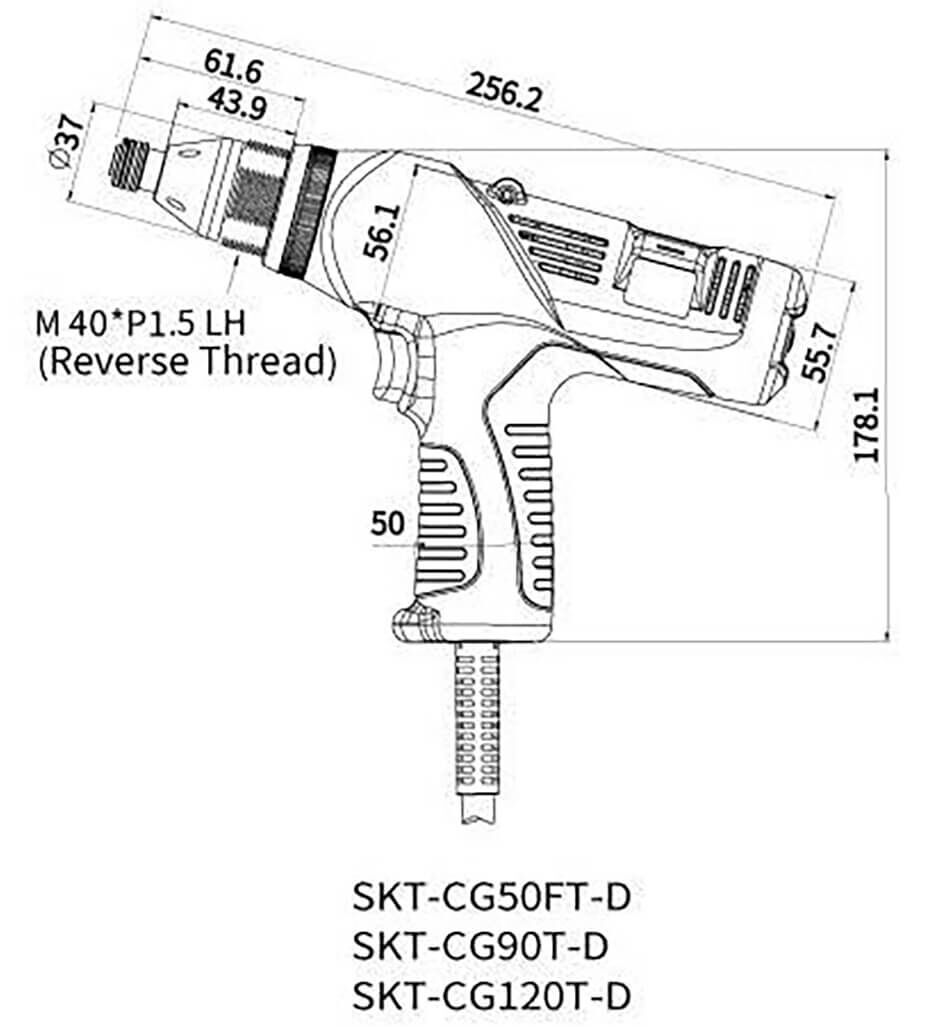

The technical specifications include a variable length from 256 to 178 mm and a weight of 1385 g, making the device handy yet robust. With a power of 90 W and an output voltage of 40 V/DC, the screwdriver guarantees efficient performance with minimal energy consumption.
The torque range from 1.0 to 5.0 Nm can be continuously adjusted, allowing flexible adaptation to different requirements. The no-load speeds are 2600 in high and 250 in low mode. For bit reception, the device is equipped with a 3/8" (9.53 mm) holder and uses bit type B.
The CG series is known for its reliability and durability, with the lever start enabling easy handling of the screwdriver.

Details

Start type Start type: lever start
Torque range Torque range: 1.0 - 5.0 Nm
Idle speed High Idle speed High: 2600
Idle speed Low Idle speed Low: 250
Output voltage DC Output voltage DC: 40 V/DC
Power Power: 90 W
Length Length: 256 - 178 mm
ESD ESD: yes
suitable bit type suitable bit type: Typ B
Bit type Bit type: type B
Series Series: CG
Socket Socket: 3/8" 9.53 mm
Torque setting Torque setting: stepless
Weight Weight: 1385 g

Show accessories

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

The image displays an electronic measuring device with a black casing. The display shows numbers and symbols, including a torque value and various control knobs below.

Controller for series CG / SKT-KL-TCG-L

KL-TCG Controller KILEWS
suitable for torques from 2.4 - 25 Nm
Inputs: Sensor/Release/Reset/Star/Reverse
Interfaces: RS-232X2, Micro SD, LAN
100-240V AC, output 24 DC,
Dimensions: 185 x 241 x 127 mm, weight 3.4 kg
( suitable for SKT-CG120/180/250 )
