EVO Cam Digital microscope

EVO Cam

EVO Cam is a powerful, versatile, yet easy-to-use, high definition digital microscope. Flexible configuration options deliver excellent image quality and optical magnification up to 725x. Digital zoom takes you further. What’s more, a range of precision objectives and wide-field lenses let you choose a configuration that’s an exact match for your unique and individual needs. It’s everything you would expect from a Vision Engineering microscope.

Features

EVO Cam II

EVO Cam ICON

Image acquision and display

✓

✓

Autofocus and manual focus

✓

✓

Optional controle console

✓

✓

Single-point calibration/measurement

✓

✓

Multi-point calibration/measurement

✓



Focus stacking

✓



Overlays

✓



Definition of zoom limits

✓



Setting meta data

✓



Supervisor mode

✓



Image comparison

✓







Camera:

  • Zoom 30x optical, 12x digital
  • Camera resolution Full HD 1080p, 1920 x 1080, 1/2.8" CMOS
  • Frame refresh rate 50fps or 60 fps (switchable)
  • Autofocus and manual focus
  • Output HDMI and USB 3.0
  • File storage format .png, jpeg+, jpeg, jpeg-

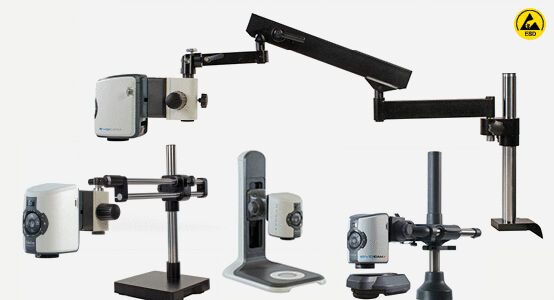

Stand variants

Multi-Achsen-Säulenständer

Multi-axis column stand

  • Precise and robust, ideal for maximum working distance
  • Height adjustment with counterweight via integrated gas spring
  • Direct mounting on the work surface possible or additional base plate (EVB022)

Ergo stand

  • Compact size, high stability
  • transmitted light illumination (optional) for a wide range of samples
  • moving stage (optional) facilitates precise maneuvering of sensitive objects, avoids contamination through contact

Double-arm column stand

  • high stability for a wide range
  • easily adjustable, thus enabling precise positioning and alignment
  • available with platform base or clamp for direct mounting

Column stand

  • stable base plate, ideal for larger objects
  • cost-efficient stand option

Articulating arm stand

  • Maximum flexibility for a long reach
  • Multi-stage adjustability for precise positioning and alignment

Arc stand

  • Offers continuous height adjustment with precise control

Verso universal stand

  • Convenient swivel arm for flexibility and a clear work surface when the microscope is not in use



This is a technical device with a large, horizontal arm that holds a camera head. The arm is mounted on a stable base. It has a modern, functional design.
Preview: The image shows a compact, rectangular camera in silver with a shiny casing. On the front, there is a main button and several control knobs arranged in a circular layout.
Preview: Image
Preview: The image shows a microscope with a camera. It has a compact, gray and black design, with a round lens stage and a long, vertical stand.
Preview: The image shows a medical device in a minimalist style. It has a gray base with a round opening area and a black, rectangular top with a white, rounded device mounted on it.
Preview: The image shows a device that looks like a microscope. It has a gray base and a vertical stand. At the top, there is a camera module with various controls.
Preview: Image
Preview: The image displays a microscopic device on a black base. It features a vertical metal stand, a horizontally mounted rod, and a camera attachment that is tilted to the side.
Preview: The image shows a medical device with a rectangular head and a round base. It has a lens at the front, a large button, and a USB port on the side. Ideal for eye examinations.
Preview: This is a technical device with a large, horizontal arm that holds a camera head. The arm is mounted on a stable base. It has a modern, functional design.
EVO Cam II digital microscope
EVO Cam II video microscope head
Optical zoom max.: 30x / Digital zoom max.: 12x / Height : 16.5 mm / Depth : 14 mm
EVO Cam II with multi-axis stand
Support: multi-axis stand / Optical zoom max.: 30x / Digital zoom max.: 12x / Working distance : 279 mm / Height : 691 mm / Depth : 682 - 830 mm
EVO Cam II with multi-axis stand and rotating viewer
Support: multi-axis stand / Optical zoom max.: 30x / Digital zoom max.: 12x / Working distance : 294 mm / Height : 691 mm / Depth : 682 - 830 mm
EVO Cam II with Ergo stand
Support: Ergo stand / Optical zoom max.: 30x / Digital zoom max.: 12x / Working distance : 192 mm / Height : 515 mm / Depth : 420 mm
EVO Cam II with Ergo stand and rotating viewer
Support: Ergo stand / Optical zoom max.: 30x / Digital zoom max.: 12x / Height : 515 mm / Depth : 420 mm
EVO Cam II with double arm column stand
Support: Double-arm column stand / Optical zoom max.: 30x / Digital zoom max.: 12x
EVO Cam II with column stand
Support: Column stand / Optical zoom max.: 30x / Digital zoom max.: 12x
EVO Cam II with table stand
Support: table stand / Optical zoom max.: 30x / Digital zoom max.: 12x
EVO Cam II with flexible articulated arm
Support: flexible articulated arm / Optical zoom max.: 30x / Digital zoom max.: 12x

9 Products
Product No.: ECO2CE1
from 4.990,00 EUR
excl. 19% tax
to the product family
The image shows a camera on a stable, gray stand. The camera has a rectangular shape, a lens, and numerous buttons for operation. It is designed for visual support.
Preview: The image shows a camera on a stable, gray stand. The camera has a rectangular shape, a lens, and numerous buttons for operation. It is designed for visual support.
Preview: Image
Preview: Image
Preview: The image shows a device with a central control block that has large buttons and knobs. It stands on a sturdy, black stand. The shape is modern and functional.
Preview: The image shows a device on a stable, rectangular base. In the center, there is a rectangular casing with buttons for operation. It has two side wheels and is mounted on a long, black stand.
Preview: The image displays a compact, modern camera in light gray with a circular control panel. On the casing, the words
EVO Cam ICON digital microscope
EVO-Cam ICON video microscope with Ergo table stand
Support: Ergo stand / Optical zoom max.: 30x / Digital zoom max.: 12x / Working distance : 500 mm
EVO-Cam ICON video microscope with multiaxis stand
Support: multi-axis stand / Optical zoom max.: 30x / Digital zoom max.: 12x / Working distance : 500 mm
EVO-Cam ICON video microscope with double-arm column stand
Support: Double-arm column stand / Optical zoom max.: 30x / Digital zoom max.: 12x / Working distance : 500 mm
EVO-Cam ICON video microscope with arc stand
Support: Arch Stand / Optical zoom max.: 30x / Digital zoom max.: 12x / Working distance : 500 mm
EVO-Cam ICON video microscope with column table stand
Support: table stand / Optical zoom max.: 30x / Digital zoom max.: 12x / Working distance : 500 mm
EVO-Cam ICON video microscope head
Optical zoom max.: 30x / Digital zoom max.: 12x

6 Products
Product No.: ICO2501
from 3.120,00 EUR
excl. 19% tax
to the product family
1 to 2 (from a total of 2)
