TP 6/1.EC Cutting/bending machine - standard
(Product No.: 415.100.EC)
The image shows a manual resistance winding machine. It has a blue body, two rollers, and a handle. Resistors are arranged in a row and are wound automatically.
The image shows a technical drawing of a component with two lateral pins and a central connection. Dimensions for D, L, C, P, B, and d are provided.
Mobile Preview: The image shows a manual resistance winding machine. It has a blue body, two rollers, and a handle. Resistors are arranged in a row and are wound automatically.
Mobile Preview: The image shows a technical drawing of a component with two lateral pins and a central connection. Dimensions for D, L, C, P, B, and d are provided.
Notice / Inquire

TP 6/1.EC Cutting/bending machine - standard

dpvlink:
5110
Further product information

available available
1.058,00 EUR
per PCE

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

TP 6/1.EC Cutting/bending machine - standard

The cutting and bending machine TP 6/1.EC - Standard, manufactured by Olamef, is specifically designed for cutting and bending taped, axial components with connecting wires ranging from 0.4 mm to 1.3 mm in diameter. This machine is distinguished by its high processing capacity of up to 50,000 components per hour, offering an efficient solution for mass production.
The robust construction ensures a long lifespan with minimal wear risks and low maintenance requirements. The machine has a width of 180 mm, a height of 210 mm, and a length of 230 mm, making it compact and easy to handle. It weighs 5.0 kg.
The settings for the tape hole pitch range from 6.5 mm to 60 mm, while the distance between the component body and bend is 1.2 mm. The distance from the bend to the wire end varies between 4 mm and 13 mm. The maximum length of the component body is 50 mm, and the diameter of the component body can vary between 0.4 mm and 16 mm.
This machine is ideal for companies that need a reliable and precise solution for processing electronic components.

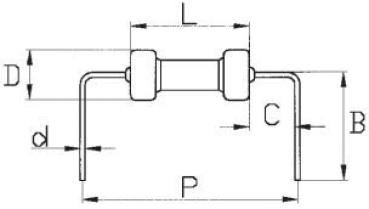

Body diameter D
Body diameter D
0.4 - 16 mm
Component body length L
Component body length L
50 mm
Lead diameter d
Lead diameter d
0.4 - 1.3 mm
Measure bending / lead end B
Measure bending / lead end B
4 - 13 mm
Measure component's body / bending c
Measure component's body / bending c
1.2 mm
Tape pitch pattern P
Tape pitch pattern P
6.5 - 60 mm
Components per hour
Components per hour
50,000
Height
Height
210 mm
Length
Length
230 mm
Width
Width
180 mm
Weight
Weight
5.0 kg
Show accessories
Accessories

Accessories

The image shows a machine with metallic rollers processing a black roll with fine, parallel wires. Yellow bands hold the structure together.
Feeder / component body type 200240
Feeding / component body type 200240
for taped components
suitable for TP 6.EC / TP 6 / TP 6.97, TP6/PR-B,
TP6/PR-B/97, TP6/S
dpvlink
13342

370,00 EUR
Show product
The image shows a blue, cylindrical machine with a handle for turning. On the side, there are several small rollers and an adjustable pressure mechanism. It is presumably used for processing paper strips.
BR6 reel holder
BR6 reel holder
dpvlink
5524

137,40 EUR
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 10 feeding unit / loose components
CS 10 - feeding unit for loose components
for TP 6 + TP6/S + TP6/PR-B
(Model 51.0100 part number...)
dpvlink
5163

1.349,00 EUR
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 20 feeding unit / loose components
CS 20 - feeding unit for loose components
for TP 6/V-PR
(Model 51.0200 part number...)
dpvlink
5163

1.453,00 EUR
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 30 feeding unit / loose components
CS 30 - feeding unit for loose components
for TP/6V
(Model 51.0300 part number...)
dpvlink
5163

1.328,00 EUR
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 40 feeding unit, loose components
CS 40 - feeding unit for loose components
for TP 6/PR F
(Model 51.0400 part number...)
dpvlink
5163

1.453,00 EUR
Show product
The image shows a mechanical adhesive or labeling machine. It has metallic parts, rollers, and a platform through which a label passes. The machine is robust and designed for industrial use.
TNS/1 waste tape ejector
RA waste tape ejector TNS/11
for TP 6 + TP 6 / S + TP 6 / R + TP/6V + TP6/PR-B
(Model 21.0011)
dpvlink
5525

398,40 EUR
Show product
The image shows a mechanical adhesive or labeling machine. It has metallic parts, rollers, and a platform through which a label passes. The machine is robust and designed for industrial use.
TNS/13 waste tape ejector
RA waste tape ejector TNS/13
for TP 6 / V PR
(Model 21.0013)
dpvlink
5525

398,40 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 513
Complete Catalog 2023 - 2024

Product Family

TP 6-EC cutting and bending machines

Cutting and bending machine for axial components

The TP 6-EC cutting and bending machine can be used to cut and bend taped, axial components. Components with connecting wires up to a diameter of 1.3 mm can be processed. A wide range of dimensions can be set quickly and easily.

The quality and reliability of this machine allow years of operation without any risk of wear on the mechanical parts and with low maintenance, which is particularly recommended for cleaning the toothed pulleys.

Technical data:

Performance:

approx. 50,000 components/hour

Dimensions:

230 x 180 x 210 mm

Weight:

5 kg



TP 6/1.EC - Standard

  P B c L dD
 Min. mm 6.5 4 1.2 - 0.40.4
 Max. mm 60 13 - 50 1.316

TP 6/6.EC - reduced pitch

  P B c L dD
 Min. mm 5.08 4 0.8 - 0,40.4
 Max. mm 60 13 - 50 0.810

TP 6/7.EC - fixed pitch P = 5.08 mm

  P B c dD
 Min. mm 5.08 4 0.5 0.40.4
 Max. mm fixed 10 - 0.64

TP 6/4.EC - for wire thicknesses up to 1.4 mm

  P B c L dD
 Min. mm 10.16 5 2.4 - 0.60.6
 Max. mm 60 13 - 50 1.416


Article image
Article description
ESD
Body diameter D
Component body length L
Lead diameter d
Measure bending / lead end B
Measure component's body / bending c
Tape pitch pattern P
Components per hour
Height
Length
Width
Weight
Price
Compare
415.100.EC - TP 6/1.EC Cutting/bending machine - standard
415.100.EC
TP 6/1.EC Cutting/bending machine - standard
0.4 - 16 mm
50 mm
0.4 - 1.3 mm
4 - 13 mm
1.2 mm
6.5 - 60 mm
50,000
210 mm
230 mm
180 mm
5.0 kg
1.058,00 EUR
415.101.EC - TP 6/6.EC Cutting/bending machine - reduced pitch
415.101.EC
TP 6/6.EC Cutting/bending machine - reduced pitch
0.4 - 10 mm
50 mm
0.4 - 0.8 mm
4 - 13 mm
0.8 mm
5.08 - 60 mm
50,000
210 mm
230 mm
180 mm
5.0 kg
1.058,00 EUR
415.102.EC - TP 6/7.EC Cutting/bending machine - fixed pitch P = 5.08 mm
415.102.EC
TP 6/7.EC Cutting/bending machine - fixed pitch P = 5.08 mm
0.4 - 4 mm
50 mm
0.4 - 0.6 mm
4 - 10 mm
0.5 mm
5.08 mm
50,000
210 mm
230 mm
180 mm
5.0 kg
1.058,00 EUR
415.103.EC - TP 6/4.EC Cutting/bending machine - reinforced bending wheels
415.103.EC
TP 6/4.EC Cutting/bending machine - reinforced bending wheels
0.6 - 16 mm
50 mm
0.6 - 1.4 mm
5 - 13 mm
2.4 mm
10.16 - 60 mm
50,000
210 mm
230 mm
180 mm
5.0 kg
1.058,00 EUR
