VE Cam Full HD microscope

Quick. Easy. Compact.

Compact full HD digital microscope system for quick and accurate inspection right where you need it. High quality custom-made optics and digital features combined for superior performance. Ideal for visual inspection or manufacturing quality control.

Designed for productivity, the compact VE Cam 50 & VE Cam 80 offer the power, speed and efficiency of digital imaging in a compact package. Packed with new and established features, VE Cam enables you to do more with maximum space efficiency.

Available with 80mm or 50mm field of view, VE Cam is ideal for many routine inspection tasks. Suitable applications include: electronics, mechanical engineering, plastics, additive manufacturing, and ceramics.

Digital working efficiency: Digital technology supports immediate information capture and share across teams.

Intuitive technology: User friendly interface and common functions make digital systems easy to understand and use.

Wireless viewing: WiFi image mirroring mean colleagues and supervisors can view live images without interrupting workflow.

Improved decision making: Common viewing capability across teams speeds sample and product validation, adding value and reducing cost through
increased efficiency.



The image shows a microscopic device on a stable base. It has a long, adjustable arm with an optical system attached to it. The colors are predominantly gray and metallic.
Preview: The image shows a microscope with a gray lens and a white stand. It has a slide holder and is sleek and modern in shape.
Preview: The image shows a microscopic device on a stable base. It has a long, adjustable arm with an optical system attached to it. The colors are predominantly gray and metallic.
Preview: The image shows a device for measuring eyes. It has a horizontal and vertical bar, on which an optical measuring instrument is attached. The base is stable and square.

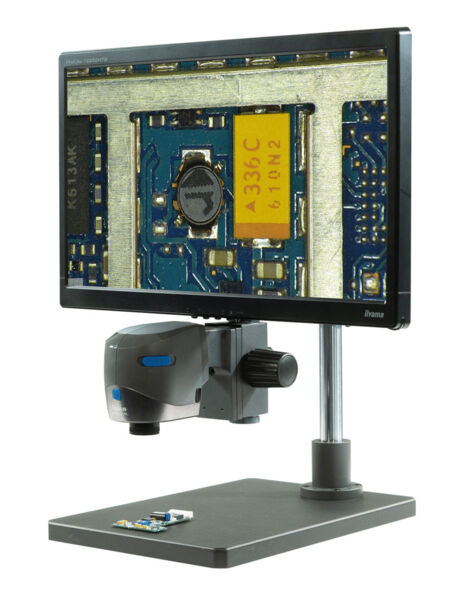

Preview: The image displays an electronic microscope. At the top, there is a large screen showing a circuit board. Below, the microscope is designed with a stable base and control elements.
VE Cam 50
VE Cam 50 head
Zoom range: 9.97 - 49.9 / Field of view min. zoom: 8x6 mm / Field of view max. zoom: 40 x 30 mm / Working distance : 163 mm
VE Cam 50 with column stand
Support: Column stand / Zoom range: 9.97 - 49.9 / Field of view min. zoom: 8x6 mm / Field of view max. zoom: 40 x 30 mm / Working distance : 119 mm
VE Cam 50 with double arm stand
Support: Double-arm column stand / Zoom range: 9.97 - 49.9 / Field of view min. zoom: 8x6 mm / Field of view max. zoom: 40 x 30 mm / Working distance : 407 mm
VE Cam 50 with table stand
Support: table stand / Zoom range: 9.97 - 49.9 / Field of view min. zoom: 8x6 mm / Field of view max. zoom: 40 x 30 mm / Working distance : 75 mm
VE Cam 50 Touch with column stand
Support: Column stand / Zoom range: 9.97 - 49.9 / Field of view min. zoom: 8x6 mm / Field of view max. zoom: 40 x 30 mm / Working distance : 119 mm
VE Cam 50 with table stand incl. remote control
Support: table stand / Zoom range: 9.97 - 49.9 / Field of view min. zoom: 8x6 mm / Field of view max. zoom: 40 x 30 mm / Working distance : 75 mm

6 Products
Product No.: VECM001
from 1.247,00 EUR
excl. 19% tax
to the product family
The image shows a microscope with a gray lens and a white stand. It has a slide holder and is sleek and modern in shape.
Preview: The image shows a microscope with a gray lens and a white stand. It has a slide holder and is sleek and modern in shape.
Preview: The image shows a microscopic device on a stable base. It has a long, adjustable arm with an optical system attached to it. The colors are predominantly gray and metallic.
Preview: The image shows a device for measuring eyes. It has a horizontal and vertical bar, on which an optical measuring instrument is attached. The base is stable and square.

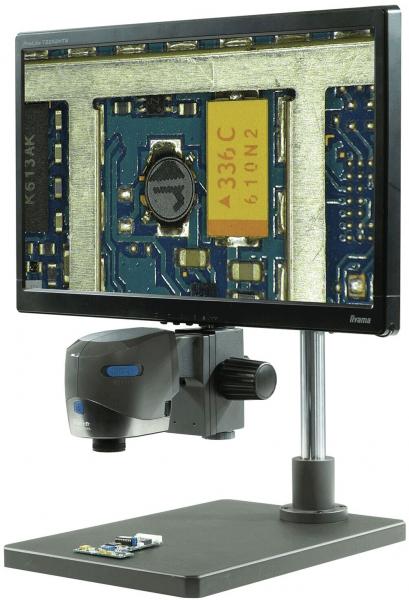

Preview: The image displays an electronic microscope. At the top, there is a large screen showing a circuit board. Below, the microscope is designed with a stable base and control elements.
VE Cam 80
VE Cam 80 with 80 mm head
Zoom range: 6.23 - 31.15 / Field of view min. zoom: 12.8x9.6 mm / Field of view max. zoom: 64 x 48 mm / Working distance : 148 mm
VE Cam 80 with column stand
Support: Column stand / Zoom range: 6.23 - 31.15 / Field of view min. zoom: 12.8x9.6 mm / Field of view max. zoom: 64 x 48 mm / Working distance : 134 mm
VE Cam 80 with double arm stand
Support: Double-arm column stand / Zoom range: 6.23 - 31.15 / Field of view min. zoom: 12.8x9.6 mm / Field of view max. zoom: 64 x 48 mm / Working distance : 422 mm
VE Cam 80 with table stand
Support: table stand / Zoom range: 6.23 - 31.15 / Field of view min. zoom: 12.8x9.6 mm / Field of view max. zoom: 64 x 48 mm / Working distance : 90 mm
VE Cam 80 Touch with column stand
Support: Column stand / Zoom range: 6.23 - 31.15 / Field of view min. zoom: 12.8x9.6 mm / Field of view max. zoom: 64 x 48 mm / Working distance : 134 mm
VE Cam 80 with table stand incl. remote control
Support: table stand / Zoom range: 6.23 - 31.15 / Field of view min. zoom: 12.8x9.6 mm / Field of view max. zoom: 64 x 48 mm / Working distance : 90 mm

6 Products
Product No.: VCM002
from 1.247,00 EUR
excl. 19% tax
to the product family
1 to 2 (from a total of 2)
