DC270 Dispenser with time control
dpvlink 19859

The dispenser DC 270 is used for the precise control of pneumatic dosing, e.g. the direct dosing of all types of media from small cartridges from 3 to 80 ml. A timer for setting a dosing time of 0.01 to 31 seconds and a vacuum retention system to prevent dripping of low-viscosity media allow exact, repeatable dosing. The material pressure can be set precisely using the built-in compressed air regulator.

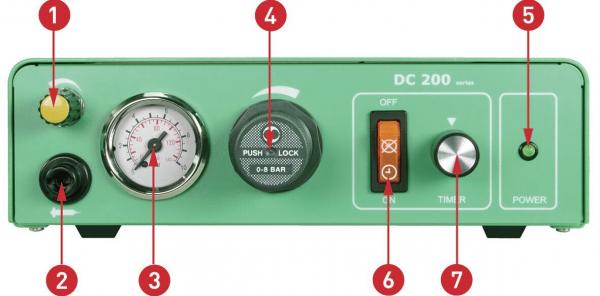

  1. Vacuum retention
  2. Compressed air outlet
  3. Pressure gauge for compressed air outlet
  4. Pressure regulator
  5. Power LED
  6. Timer ON / OFF
  7. Adjustment of period

Technical data:
Dimensions:235 x 75 x 220 mm
Time range:0.01 - 31 seconds
Dispensing method:manual or time-controlled
Input voltage:85-264 V AC / 50/60 Hz
Working voltage24 V DC (incl. foot switch)
Compressed air input:5-7 bar
Compressed air output:0.1-7 bar
Weight:1.3 kg

Features:

  • Wide range of applications
  • Timer with dosing duration from 0.01 to 31 seconds
  • Pressure gauge to set the pressure
  • Vacuum retention to prevent dripping
  • Pressure gauge for compressed air adjustment
  • CE mark
  • 24 V DC operating voltage


Article image
Article description
ESD
Compressed air input
Compressed air output
Dispensing method
Input voltage
Price
Compare
DC270 - DC270 Dispenser
DC270
DC270 Dispenser
5 - 7 bar
0 - 7 bar
manuel / time-controlled
100 - 240 V/AC
478,00 EUR
