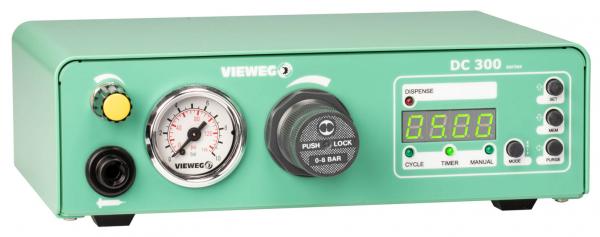

DC370 Dispenser with time control
dpvlink 19864

A digital control of the input pressure and an adjustable pressure limit increase the process reliability of the DC 300. The four devices of the DC 300 series can be distinguished by the compressed air output and the optional I/O port allowing an integration of the DC 300 in automated workflows.

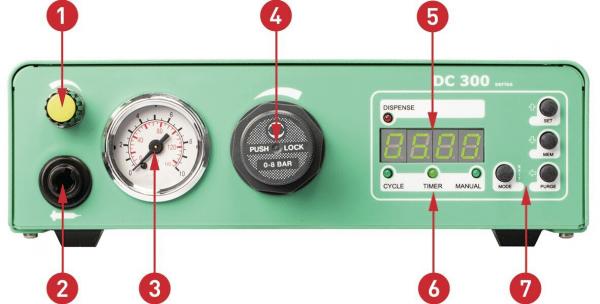

  1. Vacuum retention
  2. Compressed air outlet
  3. Pressure gauge for compressed air outlet
  4. Pressure regulator
  5. 7-segment display
  6. Status LEDs
  7. Operating keys

Technical data:
Dimensions:235 x 75 x 220 mm
Time range:0.01-9999 seconds
Dispensing method:manual or time-controlled
Input voltage:85 - 264 V AC
Working voltage:24 V DC (incl. foot switch)
Compressed air input:0-7 bar
Compressed air output:0.1-7 bar
Weight:1.3 kg

Features:

  • digital display
  • cycle operation
  • 9 program courses
  • input pressure monitoring with integrated pressure sensor and error display
  • switchable unit bar/psi
  • timer
  • pressure gauge for compressed air regulation
  • wide-range power supply 85-264V AC
  • vacuum retention
  • optional I/O port



Accessory kit (scope of delivery)

Pieces

504576

cold-device cable 230V AC

1

504569

foot switch

1

504571

cartridge holder

1

504572

hose for compressed air inlet

1

990180

30cc cartridge adapter

1

801004

30cc cartridge

3

801009

30cc plug

3

990062A-G

dispensing needle set large 134-piece



Article image
Article description
ESD
Compressed air input
Compressed air output
Dispensing method
Input voltage
Price
Compare
DC370 - DC370 Dispenser
DC370
DC370 Dispenser
0 - 7 bar
0 - 7 bar
manuel / time-controlled
100 - 240 V/AC
699,00 EUR
