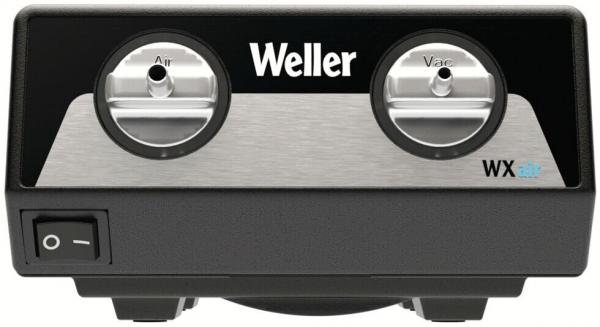

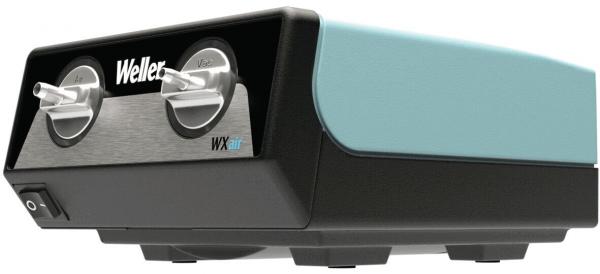

WXair Rework module

The world's first stand-alone 2-in-1 rework module with integrated high-performance vane pump

The Weller WXair is an optimized, stand-alone 2-in-1 rework module with two channels: vacuum and air. In combination with the WXsmart soldering station, it transforms it into an all-in-one rework solution that combines all rework applications in one station. Thanks to the integrated high-performance rotary vacuum pump, both the vacuum and air channels can be operated independently of an external air pressure supply. The WXair is compatible with two high-performance desoldering irons and one hot air iron and is backwards compatible with the existing WX soldering platform, offering maximum flexibility. With the WXair, any existing Weller WX soldering station can be easily converted into a hot air and desoldering station. It has been designed for both vacuum and hot air applications.

  • Upgrade to an all-in-one rework station: The WXair expands the WXsmart soldering station into a fully-fledged rework station that covers all soldering, desoldering and hot air applications.
  • Integrated high-performance pump: The built-in vane pump enables independent operation of vacuum and air channels without an external air supply.
  • Space-saving design: The stackable design allows the WXsmart soldering station to be placed directly on top of the WXair module, saving valuable bench space.
  • Easy maintenance: Replaceable filters extend the life of the pump and can be changed quickly and easily.
  • Backwards compatibility: The WXair module is compatible with existing Weller WX 1 and WX 2 soldering stations, enabling a cost-effective upgrade to a hot air and desoldering station.
  • Tool compatibility:
    Weller desoldering iron WXDP 120 with 120 W for horizontal use
    Weller desoldering iron WXDV 120 with 120 W for vertical use
    WXHAP 200 hot air iron with 200 W
  • Ease of use: Quick and easy station set-up and optional foot switch activation for a smooth workflow
  • ESD-safe: The WXair rework module and all connected tools are fully ESD-safe

Technical data:

Dimensions (mm):

195 x 154 x 87 (L x W x H)

Weight:

approx. 1.28 kg

Supply voltage:

230 V, 50 Hz

Power consumption:

70 W

Flow rate l/min:

18

Vacuum:

70 kPA



Article image
Article description
Width
Height
Length
Power
Flow rate max. per minute
Price
Compare
534.526.99 - WXair Rework module
534.526.99
WXair Rework module
154 mm
195 mm
87 mm
70 W
18 l
573,35 EUR
