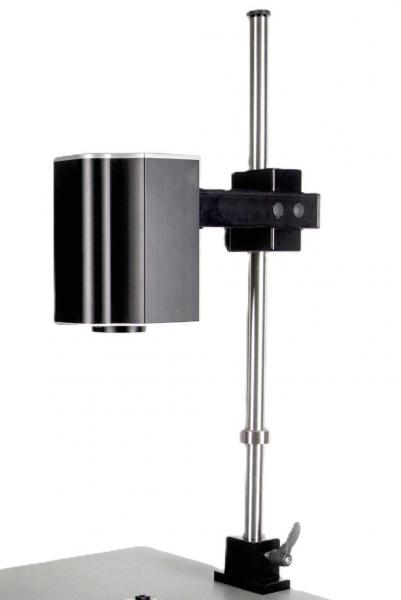

TEK-FLEX-XY FHD digital microscope

Get exceptionally sharp images for inspections, failure analysis and more with TEK-FLEX-XY.
TEK-FLEX-XY from ideal-tek is a high-resolution optical table-top inspection system with a telescopic arm for precise XY positioning and an adjustable Z-axis height from 310 mm to 60 mm. The camera offers an optical magnification of 46x (27“ monitor) and a digital magnification of up to 140x (92x recommended - 27” monitor). The ESD-safe TEK-FLEX-XY is equipped with both manual focus and impressively fast autofocus and delivers high-quality, distortion-free 1080p FHD images with excellent depth of field and no delay. LED lights ensure shadow-free illumination. The large working distance of 310 mm enables the inspection of a wide range of objects. TEK-FLEX-XY must be connected to a monitor.

Highlights of TEK-FLEX-XY

  • Less physical strain than binocular microscopes
  • User-friendly system
  • Longer working distances, no risk of PCB contact. Sufficient clearance for assembly, repair and rework
  • Autofocus frees the hands and enables fast inspection of objects at different heights and magnifications
  • Greater depth of field for easier and faster work
  • Remote control of magnification, focus, brightness, etc.
  • Save images directly to USB stick, no PC required
  • Ethernet connection for simultaneous use of screens
  • ESD-safe



DisplayPort output: live streaming of images on your monitor (FHD 1920x1080)

Using the remote control, you can zoom in and out, turn the autofocus on and off, fine-tune the focus and much more - all at the touch of a button. Simply connect the DisplayPort cable and get started.



Save your pictures directly to a USB stick

Snapshot mode. No computer required. Simply connect a USB stick to your TEK-FLEX-XY and press the MODE button on the remote control for a few seconds.



USB output: Live streaming of images on your PC (FHD 1920x1080)

Use the software toolbar to draw, take measurements, compare images and much more. The software is pre-installed on the supplied USB stick or you can download the latest version from our website (DOWNLOAD section). No drivers, no product keys required - just install and run.

Ethernet connection

The Ethernet connection enables simultaneous screen sharing via the same IP address.


Telescopic movement

The telescopic movement of the camera arm has been specially developed for the inspection industry and enables efficient operation in compact spaces.


Technical data:

  • adjustable working distance
  • FHD camera 1920x1080
  • Wireless remote control
  • Auto or manual focus
  • Independent images in real time (DisplayPort)
  • Measurement software for PC (USB port)
  • Ethernet connection for screen sharing
  • Direct storage of images on USB stick - no PC required
  • Ergonomic
  • ESD-safe



SOFTWARE TEK-FLEX-XY

(remove the previous version of the software before installing this version and restart the PC).
No drivers, no product keys required, just install and run.
With the TEK-FLEX-XY software you can control the device from the PC, take pictures and videos, perform measurements and draw on the objects to be tested. For detailed information, read the full user manual.



Article image
Article description
Input voltage
Output voltage DC
Height
Length
Width
Capture resolution
Magnification
Price
Compare
NEW
I-TEK.FLEX-XY - TEK-FLEX-XY FHD digital microscope
I-TEK.FLEX-XY
TEK-FLEX-XY FHD digital microscope
100 - 240 V/AC
12 V/DC
600 mm
500 mm
300 mm
1920 x 1080
140x
3.932,36 EUR
