TP 6/4 • TP 6/4.97 reinforced bending wheels

Cutting and bending machine for axial components
The TP 6 cutting and bending machine can be used to cut and bend taped, axial components. The robust design of the machine guarantees a high level of reliability.
Components with connecting wires up to a diameter of 1.3 mm can be processed. A wide range of dimensions can be set quickly and easily.

The type 97 machine is also equipped with simplified bending adjustment, which significantly reduces set-up times.

Technical data:

Performance:

approx. 50,000 components/hour

Dimensions:

230 x 180 x 210 mm

Weight:

5 kg



TP 6/4 - reinforced bending wheels

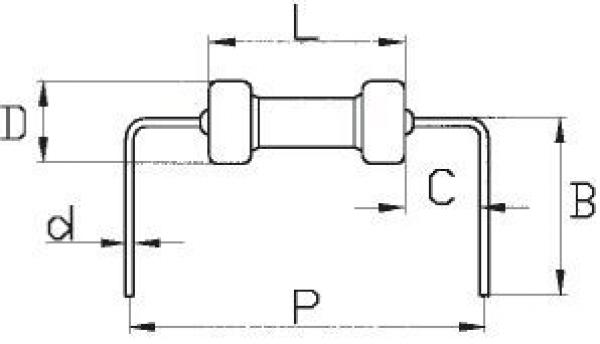

  P B c L dD
 Min. mm 10.16 5 2.4 - 0.60.6
 Max. mm 60 13 - 50 1.416

Article image
Article description
Body diameter D
Component body length L
Lead diameter d
Measure bending / lead end B
Measure component's body / bending c
Tape pitch pattern P
Components per hour
Height
Length
Width
Version
Weight
Price
Compare
415.103 - Cutting and bending machine TP 6 / 4 - reinforced bending wheels
415.103
Cutting and bending machine TP 6 / 4 - reinforced bending wheels
0.6 - 16 mm
50 mm
0.6 - 1.4 mm
5 - 13 mm
2.4 mm
10.16 - 60 mm
50,000
210 mm
230 mm
180 mm
reinforced bending wheels
5.0 kg
1.652,00 EUR
415.103.97 - Cutting and bending machine TP 6 / 4.97 - reinforced bending wheels
415.103.97
Cutting and bending machine TP 6 / 4.97 - reinforced bending wheels
0.6 - 16 mm
50 mm
0.6 - 1.4 mm
5 - 13 mm
2.4 mm
10.16 - 60 mm
50,000
210 mm
230 mm
180 mm
reinforced bending wheels, simplified bending wheel adjustment
5.0 kg
1.889,00 EUR
