Screw separating unit Universal KFR-1050
dpvlink 20455

The adjustable screw separator automates the screwdriving process and increases efficiency and precision. Thanks to flexible adjustment options, it can be easily adapted to different screw types and requirements.

Key features:

  • Automatic shut-off: Saves energy and prevents overloading.
  • Versatile application options: Suitable for top-heavy screws and screws with washers.
  • Flexible feed rail: Adaptable to up to 11 sizes.
  • Individual speed: Adjustable vibration and feed speed.
  • Simple operation: Quick adaptation to the screwdriving process
  • Higher productivity: Reduces manual sorting effort.

Technical data:

 Dimensions (L x W x H) 126 x 182 x 147 mm
 Weight 2.2 kg
 Voltage 100 - 240 V AC
 Power supply unit 15 V DC

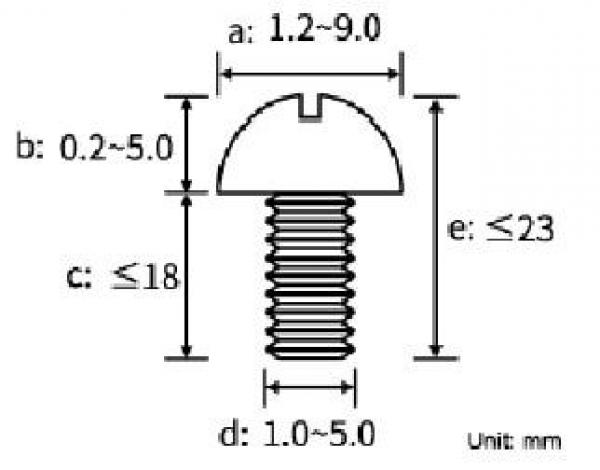

 Screw sizes M 1.0 - M 5.0
 Screw length maximal 19 mm thread length
 Screw bin 200 - 220 ccm

Article image
Article description
ESD
Height
Length
Thread length
Width
Screw size
Filling volume
Weight
Price
Compare
KFR-1050 - Screw separating unit Universal KFR-1050
KFR-1050
Screw separating unit Universal KFR-1050
147 mm
126 mm
19 mm
182 mm
M1.0- M5.0
200- 220 cm³
2,2 kg
664,00 EUR
KR-45100 - Feed rail for KFR-1050
KR-45100
Feed rail for KFR-1050







93,00 EUR
