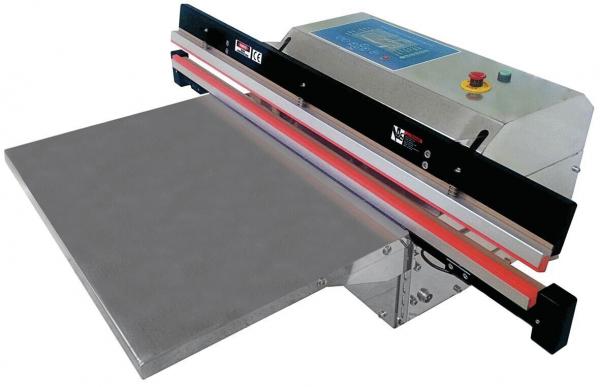

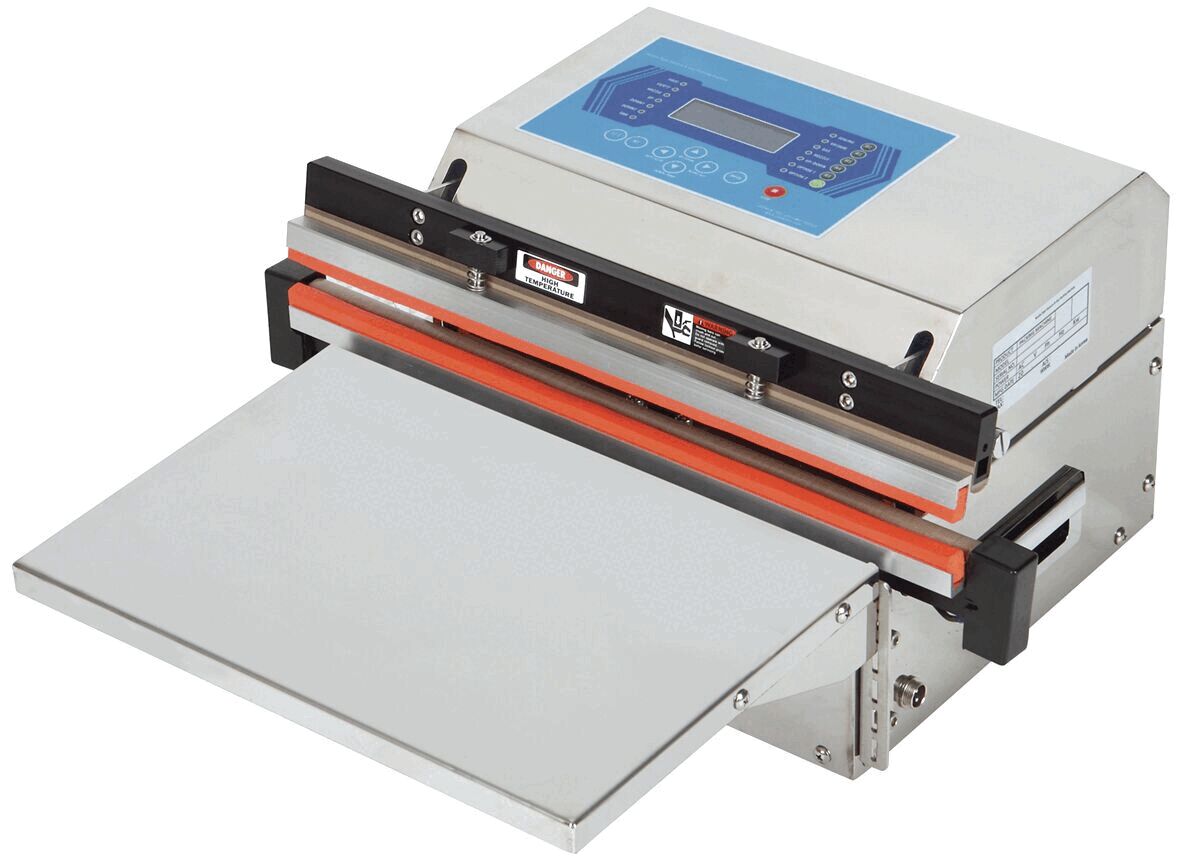

The image shows an electric plate with digital controls. It has a large, flat surface and a movable upper part that can be pressed down.

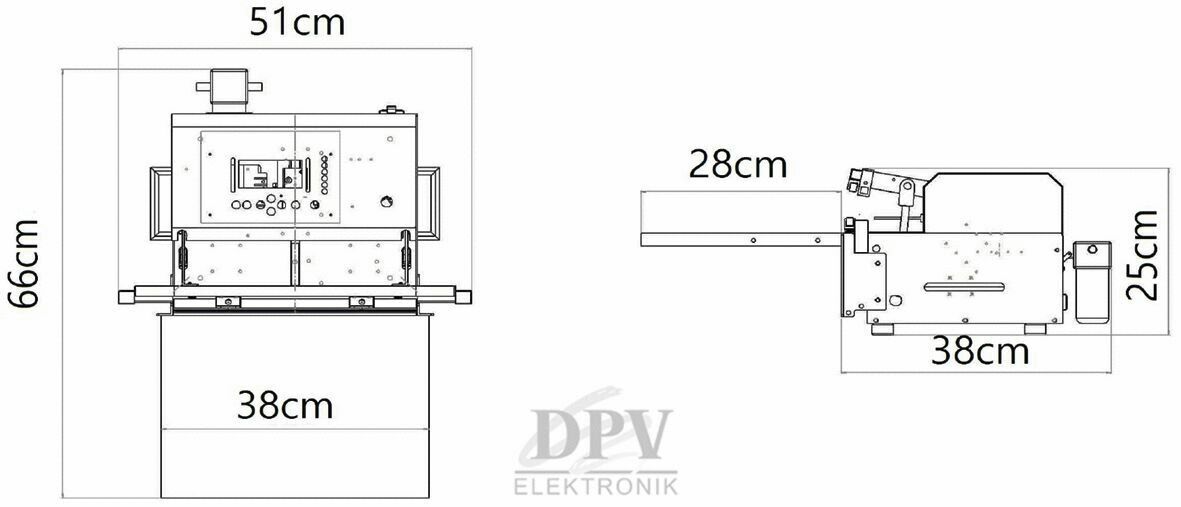

The image displays technical drawings of a device measuring 51 cm (W) x 66 cm (H) x 38 cm (D). There is also a side view that is 28 cm deep and 25 cm high.
Preview: The image shows an electric plate with digital controls. It has a large, flat surface and a movable upper part that can be pressed down.
Preview: The image displays technical drawings of a device measuring 51 cm (W) x 66 cm (H) x 38 cm (D). There is also a side view that is 28 cm deep and 25 cm high.
Vacuum packaging machine type VS450E-D
(Product No.: 3420.450.E)
The image shows an electric plate with digital controls. It has a large, flat surface and a movable upper part that can be pressed down.
The image displays technical drawings of a device measuring 51 cm (W) x 66 cm (H) x 38 cm (D). There is also a side view that is 28 cm deep and 25 cm high.
Mobile Preview: The image shows an electric plate with digital controls. It has a large, flat surface and a movable upper part that can be pressed down.
Mobile Preview: The image displays technical drawings of a device measuring 51 cm (W) x 66 cm (H) x 38 cm (D). There is also a side view that is 28 cm deep and 25 cm high.
Notice / Inquire

Vacuum packaging machine type VS450E-D

dpvlink:
21666
Further product information

Delivery time! Delivery time!
3.500,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Vacuum packaging machine type VS450E-D

The vacuum packaging machine type VS450E-D is distinguished by its high efficiency and advanced technology. Equipped with an ejector vacuum pump, this compact tabletop device offers a quick and energy-saving packaging solution. The machine features a time-controlled re-gassing device that minimizes gas consumption, as well as sensor- or time-controlled vacuum generation.
The high-quality stainless steel casing ensures durability and the digital LCD vacuum display allows for precise control of the vacuuming process. Additionally, five programs can be stored, simplifying operation. The sealing bar length is 450 mm with a maximum bag width of 400 mm.
Technically, the machine supports a compressed air supply of 6.5 bar and requires a voltage of 230 V. With dimensions of 660 mm in length, 510 mm in width, and 250 mm in height, and a weight of 30 kg, the vacuum packaging machine type VS450E-D is ideal for efficient and professional packaging.
Compressed air supply
Compressed air supply
6.5 bar
Sealing bar length
Sealing bar length
450 mm
Voltage
Voltage
230 V
Height
Height
250 mm
Length
Length
660 mm
Max. bag width
Max. bag width
400 mm
Width
Width
510 mm
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 285
Complete Catalog 2023 - 2024

Product Family

Vacuum packaging machines without chamber

The vacuum packaging machines in this series are available as compact table-top units with re-gassing device and high-quality stainless steel housing. The machines offer the following advantages:

  • fast process
  • less gas consumption
  • no limit to the bag length


During each process, only the relevant bag is gas flushed, which means that the process is completed more quickly with less gas consumption than with vacuum packaging machines with a chamber. This makes the machines easy to use and well suited for small batches.

Technical data:

 Device VS450M-D VS450E-D VS600E-D VS800E-D
 Weight 28 kg 30 kg 32 kg 39 kg
Dimensions 641 x 380 x
 269 mm		 354 x 506 x
 263 mm		 700 x 460 x
 260 mm		 735 x 846 x
 276 mm
 Sealing bar length 450 mm 450 mm 600 mm 800 mm
 Sealing bar width 10 mm 10 mm 10 mm 5 mm
 max. bag width 400 mm 400 mm 590 mm 790 mm
 Vacuum pump Vacuum pump Ejector
 vacuum pump		Ejector
 vacuum pump		 Ejector
 vacuum pump
 Open vacuum flow 25 l/min 124 l/min124 l/min 185 l/min
 Air pressure movement motorized approx. 6.5 bar approx. 6.5 bar approx. 6.5 bar
 Max. power consumption approx. 2.2 kW approx. 2.2 kWapprox. 2.2 kWapprox. 2.2 - 3.4 kW

Features:

  • double sealing (up/down)
  • vacuum pump
  • gas flushing time-controlled
  • sensor- or time-controlled vacuum generation
  • digital LCD vacuum display
  • 5 programs can be saved

Article image
Article description
Sealing bar length
Voltage
Height
Length
Max. bag width
Width
Compressed air supply
Price
Compare
3420.450.M - Vacuum packaging machine type VS450E-D
3420.450.M
Vacuum packaging machine type VS450E-D
450 mm
230 V
250 mm
660 mm
400 mm
380 mm

3.256,00 EUR
3420.450.E - Vacuum packaging machine type VS450E-D
3420.450.E
Vacuum packaging machine type VS450E-D
450 mm
230 V
250 mm
660 mm
400 mm
510 mm
6.5 bar
3.500,00 EUR
3420.600.E - Vacuum packaging machine type VS600E-D
3420.600.E
Vacuum packaging machine type VS600E-D
600 mm
230 V
260 mm
700 mm
590 mm
460 mm
6.5 bar
3.800,00 EUR
3420.800.E - Vacuum packaging machine type VS800E-D
3420.800.E
Vacuum packaging machine type VS800E-D
800 mm

276 mm
735 mm
790 mm
846 mm
6.5 bar
4.137,00 EUR
