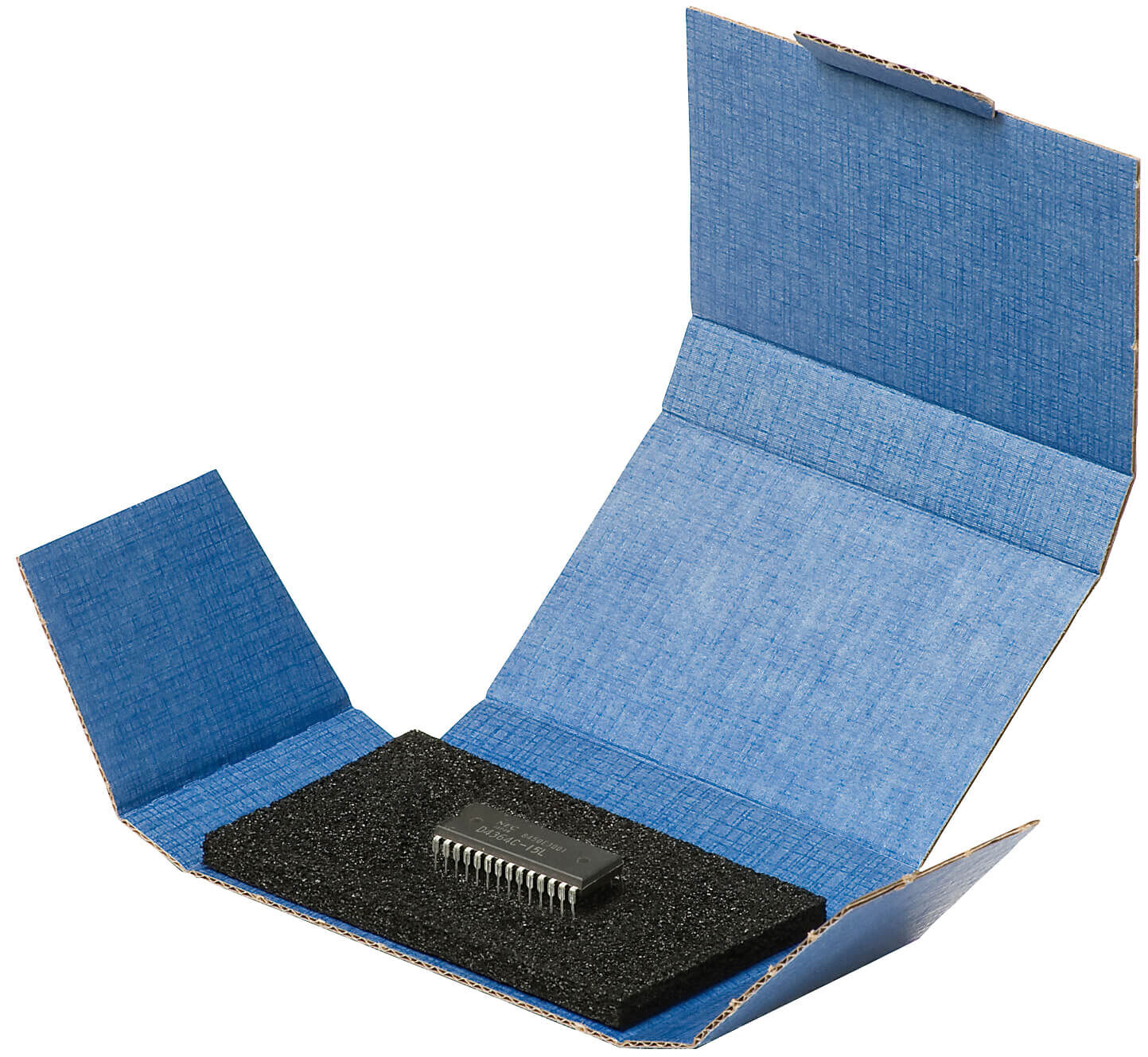

The image shows a small microchip lying on a black foam pad inside an open, rectangular-shaped blue package.
SAFESHIELD Chipbox 100x60x15 mm
(Product No.: 5510.908)
The image shows a small microchip lying on a black foam pad inside an open, rectangular-shaped blue package.
Notice / Inquire

SAFESHIELD Chipbox 100x60x15 mm

dpvlink:
616
inside LxWxH [mm]:
100 x 60 x 15
Foam:
PE foam for pin insertion / 6 mm
Properties:
Further product information
Interlayers
Configure now
Parting Inserts
Configure now


available available
0,82 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

SAFESHIELD Chipbox 100x60x15 mm

The SAFESHIELD Chipbox, measuring 100x60x15 mm, is specifically designed for the safe transportation of sensitive electronic components. This shipping box is distinguished by its high shielding properties against electrostatic discharges, with a shielding of less than 1 nJ, confirming compliance with the ESD standard DIN EN 61340-5-1. The surface resistance is between 10^9 and 10^10 Ohms.
The box is presented in an attractive blue and features a standard print that includes an ESD warning label, the type designation, and a recycling symbol. Inside, the box is equipped with a 6 mm thick PE foam insert, which provides additional protection and perfectly fits the dimensions of 100 x 60 x 15 mm. The FEFCO code 0400 indicates the type of box construction.
Recommended foam inserts for this box can be found under the DPV-Link number 641, allowing for customization to specific requirements.
Foam
Foam
PE foam for pin insertion / 6 mm
Color
Color
blue
Internal height
15 mm
Internal length
100 mm
Internal width
Internal width
60 mm
Electrostatic shielding
Electrostatic shielding
<1 nJ
Surface resistance Rs
Surface resistance Rs
109 - 1010 Ω
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 290
Complete Catalog 2023 - 2024
Configurators:
Interlayers
Configurators:
Parting Inserts

Product Family

SAFESHIELD Shipping boxes

SAFESHIELD shipping boxes offer a high level of electrostatic shielding against electrostatic discharges and fields and are ideal for both internal and external transportation of sensitive electronic components. They are available either without foam or with PE plug-in foam/6mm or with profile foam/20mm. The shipping boxes have the following common features:

  • reusable
  • blue
  • Inner and outer cover permanently dissipative and abrasion-resistant
  • typical surface resistance inner/outer cover RS = 109 - 1010 Ω
  • High shielding properties due to conductive inner layer
  • Electrostatic shielding < 1 nJ (EnergyTest)
  • Good mechanical properties
  • Corrosion-free
  • recyclable
  • Standard imprint: ESD warning imprint, type designation, recycling symbol
  • In compliance with ESD standard DIN EN 61340-5-1

Suitable foam inserts are also separately available in this link


Article image
Article description
Dimensions inside LxWxH [mm]
Foam
Price
Compare
5510.912 - SAFESHIELD shipping box 250x191x110 mm
5510.912
SAFESHIELD shipping box 250x191x110 mm
250 x 191 x 110
without foam
5,44 EUR
5510.913 - SAFESHIELD shipping box 300x300x100 mm
5510.913
SAFESHIELD shipping box 300x300x100 mm
300 x 300 x 100
without foam
5,88 EUR
5510.914 - SAFESHIELD shipping box 330x180x70 mm
5510.914
SAFESHIELD shipping box 330x180x70 mm
330 x 180 x 70
without foam
5,81 EUR
5510.915 - SAFESHIELD shipping box 380x320x60 mm
5510.915
SAFESHIELD shipping box 380x320x60 mm
380 x 320 x 60
without foam
5,59 EUR
5510.916 - SAFESHIELD shipping box 393x300x90 mm
5510.916
SAFESHIELD shipping box 393x300x90 mm
393 x 300 x 90
without foam
7,72 EUR
5510.917 - SAFESHIELD shipping box 420x220x65 mm
5510.917
SAFESHIELD shipping box 420x220x65 mm
420 x 220 x 65
without foam
4,49 EUR
5510.918 - SAFESHIELD shipping box 490x460x80 mm
5510.918
SAFESHIELD shipping box 490x460x80 mm
490 x 460 x 80
without foam
15,45 EUR
5510.903.H - SAFESHIELD Shipping box 178x127x64 mm
5510.903.H
SAFESHIELD Shipping box 178x127x64 mm
178 x 127 x 64
without foam
1,42 EUR
5510.902 - SAFESHIELD Chipbox 95x30x15 mm
5510.902
SAFESHIELD Chipbox 95x30x15 mm
95 x 30 x 15
PE foam for pin insertion / 6 mm
0,87 EUR
5510.903 - SAFESHIELD shipping box 178x127x38 mm
5510.903
SAFESHIELD shipping box 178x127x38 mm
178 x 127 x 38
without foam
1,12 EUR
5510.904 - SAFESHIELD shipping box 250x191x38 mm
5510.904
SAFESHIELD shipping box 250x191x38 mm
250 x 191 x 38
without foam
2,19 EUR
5510.905 - SAFESHIELD shipping box 250x191x64 mm
5510.905
SAFESHIELD shipping box 250x191x64 mm
250 x 191 x 64
without foam
2,55 EUR
5510.906 - SAFESHIELD shipping box 267x216x64 mm
5510.906
SAFESHIELD shipping box 267x216x64 mm
267 x 216 x 64
without foam
3,10 EUR
5510.910 - SAFESHIELD shipping box 420x220x40 mm
5510.910
SAFESHIELD shipping box 420x220x40 mm
420 x 220 x 40
without foam
3,49 EUR
5510.911 - SAFESHIELD shipping box 400x300x65 mm
5510.911
SAFESHIELD shipping box 400x300x65 mm
400 x 300 x 65
without foam
5,00 EUR
5510.907 - SAFESHIELD shipping box 200x140x50 mm
5510.907
SAFESHIELD shipping box 200x140x50 mm
200 x 140 x 50
profile foam / 20 mm
3,15 EUR
5510.908 - SAFESHIELD Chipbox 100x60x15 mm
5510.908
SAFESHIELD Chipbox 100x60x15 mm
100 x 60 x 15
PE foam for pin insertion / 6 mm
0,82 EUR
5510.909 - SAFESHIELD Chipbox 120x100x15 mm
5510.909
SAFESHIELD Chipbox 120x100x15 mm
120 x 100 x 15
PE foam for pin insertion / 6 mm
1,62 EUR
