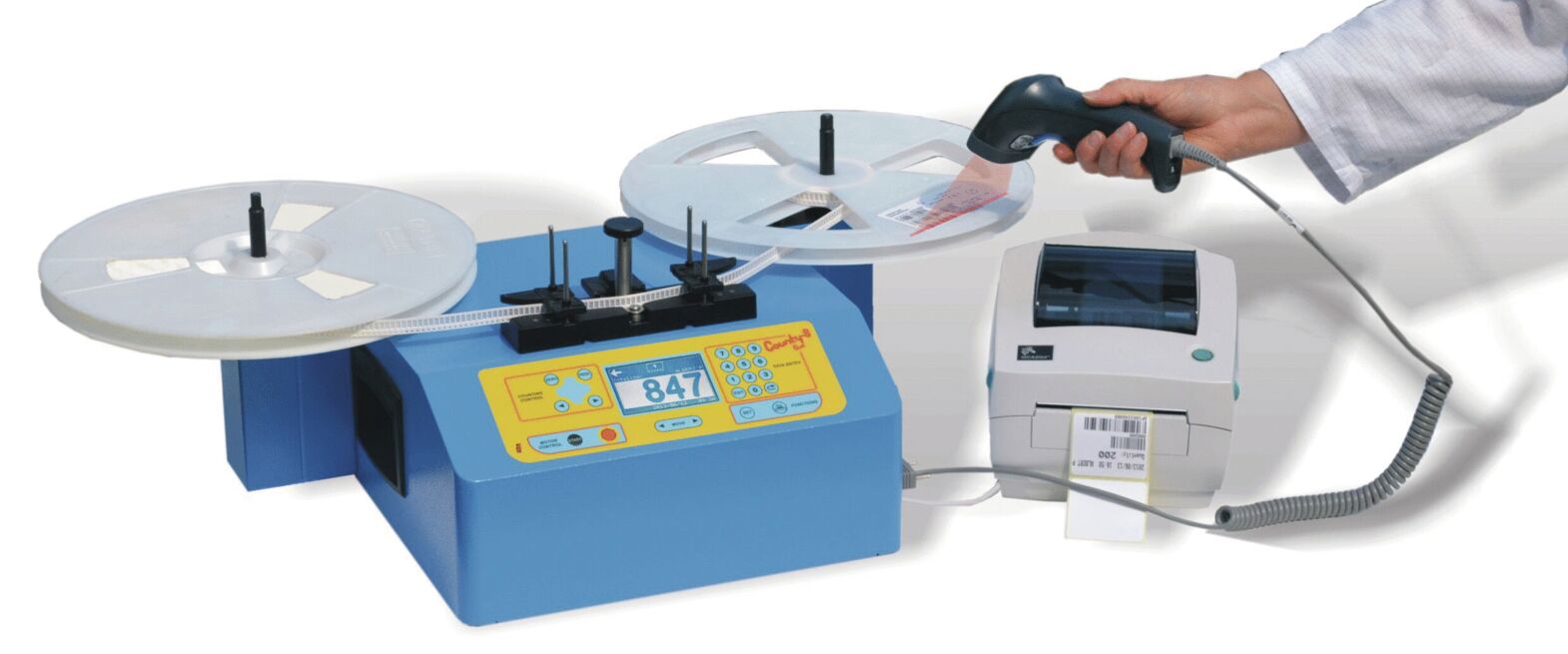

The image shows a blue device with two round plates on top, a display and buttons in the middle. To the right, there is a printer. A hand is holding a scanner, which is pointing at a label.
Preview: The image shows a blue device with two large, round coils. It has a control interface with buttons and a display. One coil is dark, the other is light.
Preview: The image shows a blue device with two round plates on top, a display and buttons in the middle. To the right, there is a printer. A hand is holding a scanner, which is pointing at a label.
County-S EVO counting device 220 / 240 V, 50-60 Hz
(Product No.: 400.100)
The image shows a blue device with two large, round coils. It has a control interface with buttons and a display. One coil is dark, the other is light.
The image shows a blue device with two round plates on top, a display and buttons in the middle. To the right, there is a printer. A hand is holding a scanner, which is pointing at a label.
Mobile Preview: The image shows a blue device with two large, round coils. It has a control interface with buttons and a display. One coil is dark, the other is light.
Mobile Preview: The image shows a blue device with two round plates on top, a display and buttons in the middle. To the right, there is a printer. A hand is holding a scanner, which is pointing at a label.
Notice / Inquire

County-S EVO counting device 220 / 240 V, 50-60 Hz

dpvlink:
5079
Further product information

available available
3.370,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

County-S EVO counting device 220 / 240 V, 50-60 Hz

The County S EVO is a motorized counting device for SMD components, specifically designed for use with taped components. It offers an adjustable feed rate and a step-by-step feed function that allows for precise component counting. The device can be supplemented with a barcode reader and supports user identification for up to ten individuals. Additionally, an internal clock with a one-week backup function is integrated, and a data logger stores the last 500 counts.
The operation of the County S EVO is simplified by an interactive graphic display, which shows important information such as counting direction, number of holes per component, type of count, operator's name, as well as date and time. It has two operating modes: the total counter, which counts from zero and automatically stops at the end of the tape, and the preset counter, which stops upon reaching the preset number of pieces.
The device is equipped with a connection for printers or PCs and allows the totaling of partial counts. It features two lateral handles for transportation and can handle reels with a diameter of up to 400 mm.
Reel diameter
Reel diameter
400 mm
Show accessories
Accessories

Accessories

The image shows a blue device with two large, round coils. It has a control interface with buttons and a display. One coil is dark, the other is light.
Aluminum empty reel for County S EVO
Aluminum empty reel for County S
Mod. 8301.110
dpvlink
5079

251,00 EUR
Show product
The image shows a blue device with two large, round coils. It has a control interface with buttons and a display. One coil is dark, the other is light.
Footplate/support for rolls diameter > 400...
Base plate/support for roll diameter > 400 mm
Accessories for County-S Evo, model 8301.150
dpvlink
5079

93,45 EUR
Show product
The image shows a white label printer with a glossy lid and a green button. Next to it is a roll of white labels that is being unrolled.
Thermal printer
Thermal printer for County EVO + County-S EVO
Model 8301.095
Serial no.: ………………………………..

(suitable for County EVO model 8301.082 and County S EVO model 8301.131 / model. 8301.133)
dpvlink
19245

664,00 EUR
Show product
The image shows an electronic measuring station with a display, connected to two plates and a printer. A hand is holding a barcode scanner.
Label roll
Label roll with 1360 labels 57 x 51 mm
Model 8301.096


(suitable for thermal printer article no. 400.095 / model 8301.095)
dpvlink
19245

28,75 EUR
Show product
The image shows a blue device with two round discs on top and a printer next to it. A hand is holding a barcode scanner. The device has a display and buttons for operation.
Barcode reader
Bar code reader for County EVO + S EVO
Model 8301.155
Serial no.: ………………………………..
dpvlink
19245

300,80 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 522
Complete Catalog 2023 - 2024

Product Family

County S EVO

Motorized component counting device for SMD components

  • adjustable feeding speed
  • Step-by-Step feeding (each single component)
  • input for barcode reader
  • Empty pocket check (only with 400.103)
  • Connection for printer / PC
  • Operator identification (max. 10 persons, 8 alphanumeric characters each)
  • Internal clock (1 week backup)
  • Data logger saves the last 500 countings
  • Totalizing of part countings
  • two lateral handles for transportation

The motorized component counter County-S EVO for SMD components offers two operation options:

1. Totalizer

The components are counted from zero by the motorized device. The counter stops automatically at the end of the tape for not losing the point of reference.

2. Preset mode
The component counter stops automatically when reaching the quantity manually set by the operator.

All funtions of the device are supported by an interactive graphics display and easy to execute.
The counting display shows the following data:

  • counting direction
  • number of holes per component
  • counting mode (total, preset quantity and rewinding)
  • operator's name
  • counting
  • date and time (or recorded barcode)

Technical data:

Display:

6 LED numbers (height approx. 14 mm)

Max. counting speed:

220 components per second (1 component per hole)

Accuracy:

+/- 1 component /1000

Bumbers of holes per component:

1 - 99 (dividing factor)

Max. tape height:

56 mm

Max. reel diameter:

400 mm
(incl. support 400.150 also 650 mm)






Article image
Article description
ESD
Reel diameter
Price
Compare
400.100 - County-S EVO counting device 220 / 240 V, 50-60 Hz
400.100
County-S EVO counting device 220 / 240 V, 50-60 Hz
400 mm
3.370,00 EUR
400.103 - County-S EVO counting device 220 / 240 V, 50-60 Hz
400.103
County-S EVO counting device 220 / 240 V, 50-60 Hz
400 mm
4.110,00 EUR
400.110 - Aluminum empty reel for County S EVO
400.110
Aluminum empty reel for County S EVO

251,00 EUR
400.150 - Footplate/support for rolls diameter > 400 mm for County S EVO
400.150
Footplate/support for rolls diameter > 400 mm for County S EVO

93,45 EUR
