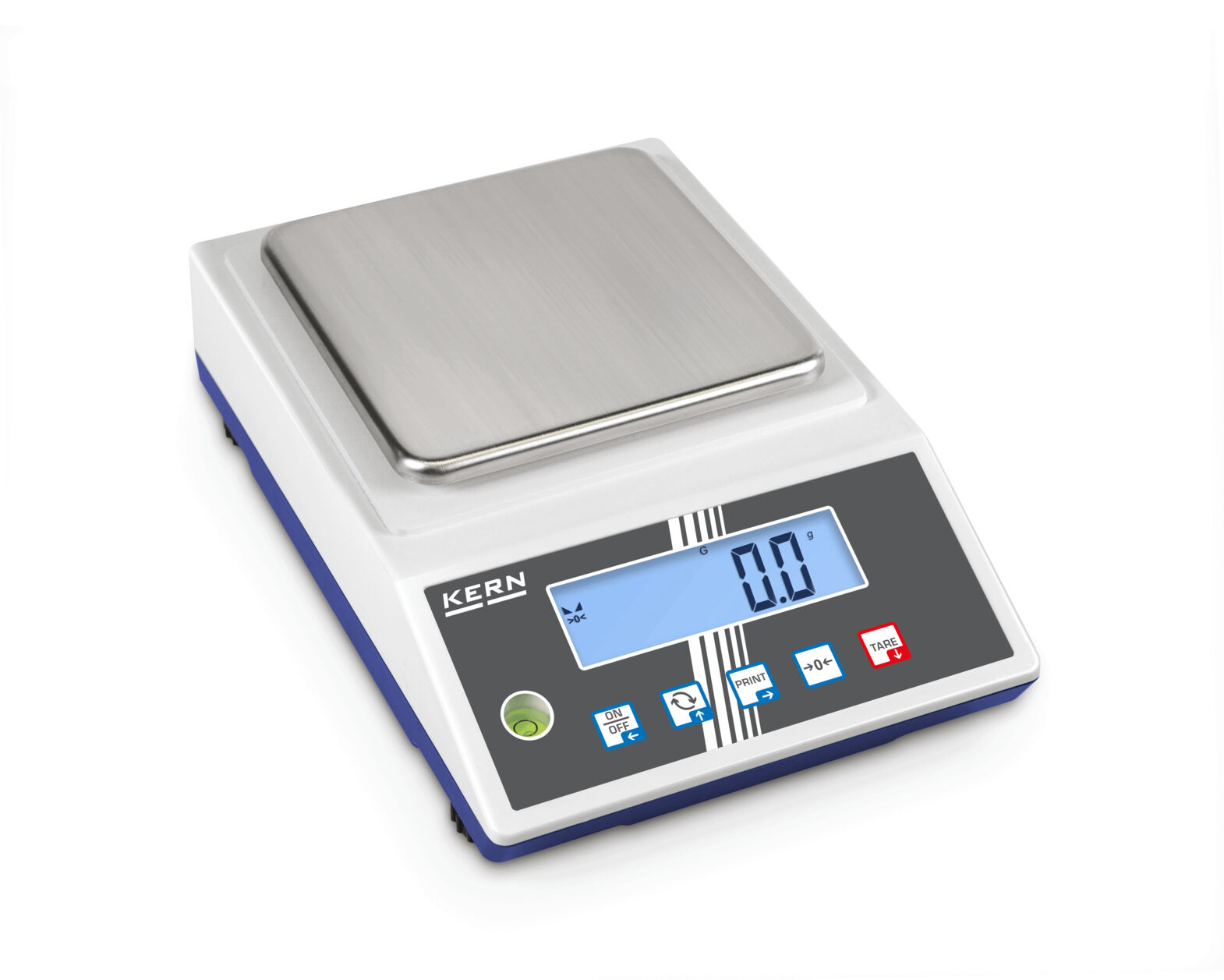

This is a digital kitchen scale with a flat, metallic weighing surface and a digital display that shows the weight in numbers. There are several buttons for functions.
Precision balance KERN PCB 2000-1-2023e
(Product No.: 401.PCB2000-1-2023e)
This is a digital kitchen scale with a flat, metallic weighing surface and a digital display that shows the weight in numbers. There are several buttons for functions.
Notice / Inquire

Precision balance KERN PCB 2000-1-2023e

dpvlink:
27775
Weighing plate:
130 x 130 mm
Readability :
0.1 g
Repeatability:
0.1 g
Linearity :
0.2 g
Min. weight :
0.2 g
Properties:
Further product information

at short notice at short notice
245,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Precision balance KERN PCB 2000-1-2023e

The precision scale KERN PCB 2000-1-2023e, manufactured by Kern, is a top product for technically demanding weighing applications. This scale offers a maximum weighing capacity of 2000 g with a readability and reproducibility of 0.1 g each. The linearity is 0.2 g, ensuring high accuracy in measurements. Equipped with a robust stainless steel weighing plate measuring 130 x 130 mm, this device is particularly suitable for precise laboratory applications.
The scale features a variety of connectivity options through the integrated KERN Universal Port (KUP), which supports interfaces such as RS-232, USB, Bluetooth, WLAN, or Ethernet. This allows for easy data transfer and integration into Industry 4.0 environments. A special anti-shock system reduces vibrations, thereby enabling fast and reliable weighing results.
An optional battery operation is available, offering up to 48 hours of operation without backlight, with a charging time of about 8 hours. The scale is also compatible with school-specific software solutions like Vernier® or LabQuest®, which facilitates the evaluation and visualization of data.
The scale is delivered without a calibration certificate, and there is the option to operate it either via the power grid or by batteries.

Weighing plate
Weighing plate
130 x 130 mm
Readability
Readability
0.1 g
Repeatability
Repeatability
0.1 g
Linearity
Linearity
0.2 g
Min. weight
Min. weight
0.2 g
Weighing capacity
Weighing capacity
2000 g
Pictograms
Adjusting program CAL
Adjusting program CAL: Adjusting program CAL: For quick setting up of the balance‘s accuracy. External adjusting weight required
GLP Printer
GLP/ISO log: With weight, date and time. Only with KERN printers
KCP
KERN Communication Protocol (KCP): It is a standardized interface command set for KERN balances and other instruments, which allows retrieving and controlling all relevant parameters and functions of the device. KERN devices featuring KCP are thus easily integrated with computers, industrial controllers and other digital systems
Piece counting
Piece counting: Reference quantities selectable. Display can be switched from piece to weight
Recipe level A
Recipe level A: The weights of the recipe ingredients can be added together and the total weight of the recipe can be printed ou
Percentage
Percentage determination: Determining the deviation in % from the target value (100 %)
Weighing units
Weighing units: Can be switched to e.g. nonmetric units. See balance mode.
Hold function
Hold function: (Animal weighing program) When the weighing conditions are unstable, a stable weight is calculated as an average value
Suspended weighing
Suspended weighing: Load support with hook on the underside of the balance
Weighing with tolerance range
Weighing with tolerance range: (Checkweighing) Upper and lower limits can be programmed individually, e.g. for sorting and dosing. The process is supported by an audible or visual signal, see the relevant model
Battery operation
Battery operation: Ready for battery operation. The battery type is specified for each device
Universal plug-in power supply B
Universal plug-in power supply: with universal input and optional input socket adapters for EU, CH, GB, USA
Weighing principle
Weighing principle: Strain gauges Electrical resistor on an elastic deforming body
KERN Universal Port (KUP)
KERN Universal Port (KUP) allows the connection of external KUP interface adapters, e.g. RS-232, RS-485, SB, Bluetooth, WLAN, Analogue, Ethernet etc. for the exchange of data and control commands, without installation effort

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

IoT-Line Precision balance KERN PCB

The KERN balance offers versatile functions for precise weighing results and simple data transfer. It is compatible with school-specific software solutions such as Vernier® and LabQuest® and enables the transfer of data for evaluation. Thanks to the integrated KERN Universal Port (KUP), external interface adapters such as RS-232, USB, Bluetooth, WLAN or Ethernet can be connected.

Compatibility: with school-specific software solutions such as Vernier® or LabQuest® for data transfer and visualization

Industry 4.0: KERN Universal Port for connecting external interface adapters

Anti-shock system: reduces vibrations between weighing plate and load cell for fast, reliable weighing results

Battery operation (optional): rechargeable battery set intern, operating time 48 h (without backlighting), charging time approx. 8 h


Article image
Article description
ESD
Weighing plate
Readability
Repeatability
Linearity
Min. weight
Price
Compare
401.PCB1000-2-2023e - Precision balance KERN PCB 1000-2-2023e
401.PCB1000-2-2023e
Precision balance KERN PCB 1000-2-2023e
130 x 130 mm
0.01 g
0.1 g
0.03 g
0.02 g
292,00 EUR
401.PCB2000-1-2023e - Precision balance KERN PCB 2000-1-2023e
401.PCB2000-1-2023e
Precision balance KERN PCB 2000-1-2023e
130 x 130 mm
0.1 g
0.1 g
0.2 g
0.2 g
245,00 EUR
401.PCB200-3-2023e - Precision balance KERN PCB 200-3-2023e
401.PCB200-3-2023e
Precision balance KERN PCB 200-3-2023e
Ø 81 mm
0.001 g
0.001 g
0.005 g
0.02 g
312,00 EUR
401.PCB3000-2-2023e - Precision balance KERN PCB 3000-2-2023e
401.PCB3000-2-2023e
Precision balance KERN PCB 3000-2-2023e
130 x 130 mm
0.01 g
0.01 g
0.05 g
0.02 g
312,00 EUR
401.PCB300-2-2023e - Precision balance KERN PCB 300-2-2023e
401.PCB300-2-2023e
Precision balance KERN PCB 300-2-2023e
Ø 105 mm
0.01 g
0.01 g
0.02 g
0.02 g
265,00 EUR
401.PCB300-3-2023e - Precision balance KERN PCB 300-3-2023e
401.PCB300-3-2023e
Precision balance KERN PCB 300-3-2023e
Ø 82 mm
0.001 g
0.001 g
0.005 g
0.02 g
322,00 EUR
401.PCB6000-1-2023e - Precision balance KERN PCB 6000-1-2023e
401.PCB6000-1-2023e
Precision balance KERN PCB 6000-1-2023e
150 x 170 mm
0.1 g
0.1 g
0.3 g
0.2 g
265,00 EUR
