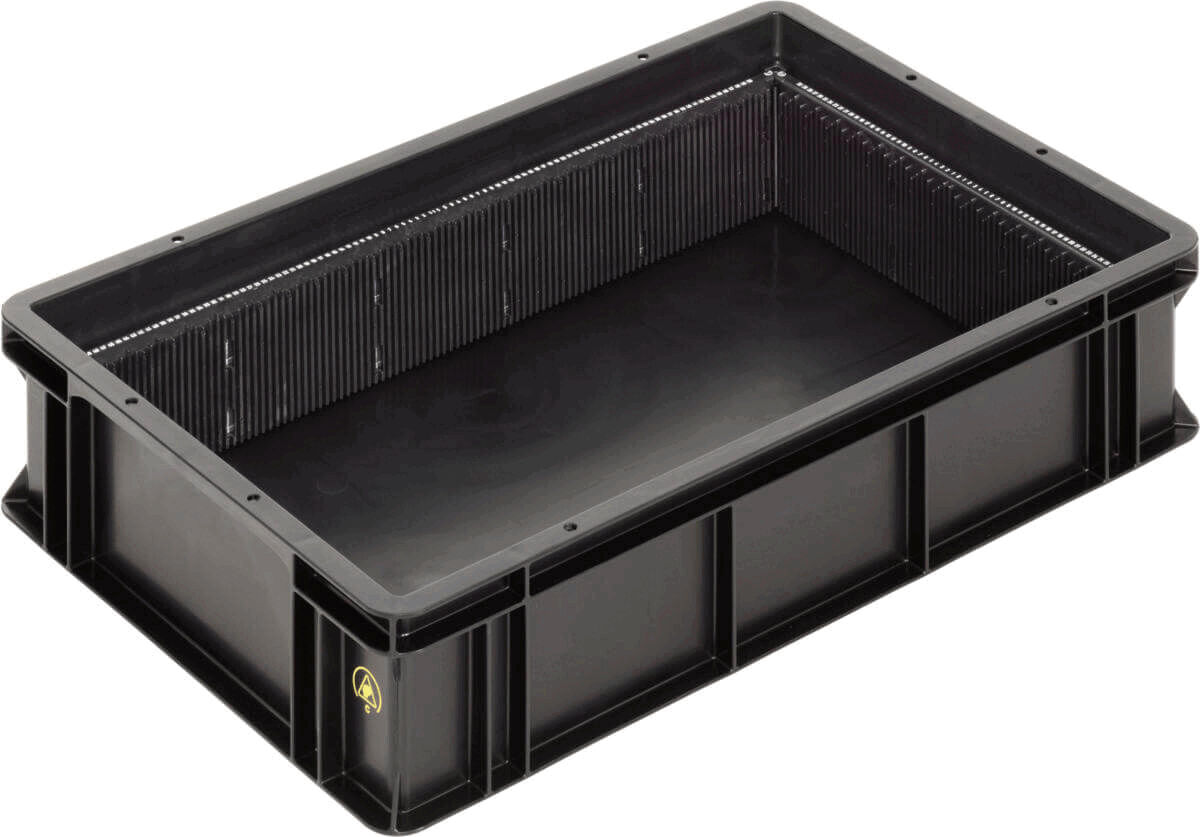

The image shows a rectangular, open container with black walls and white stripes on the short sides. The walls have a textured surface with upright, narrow indentations.

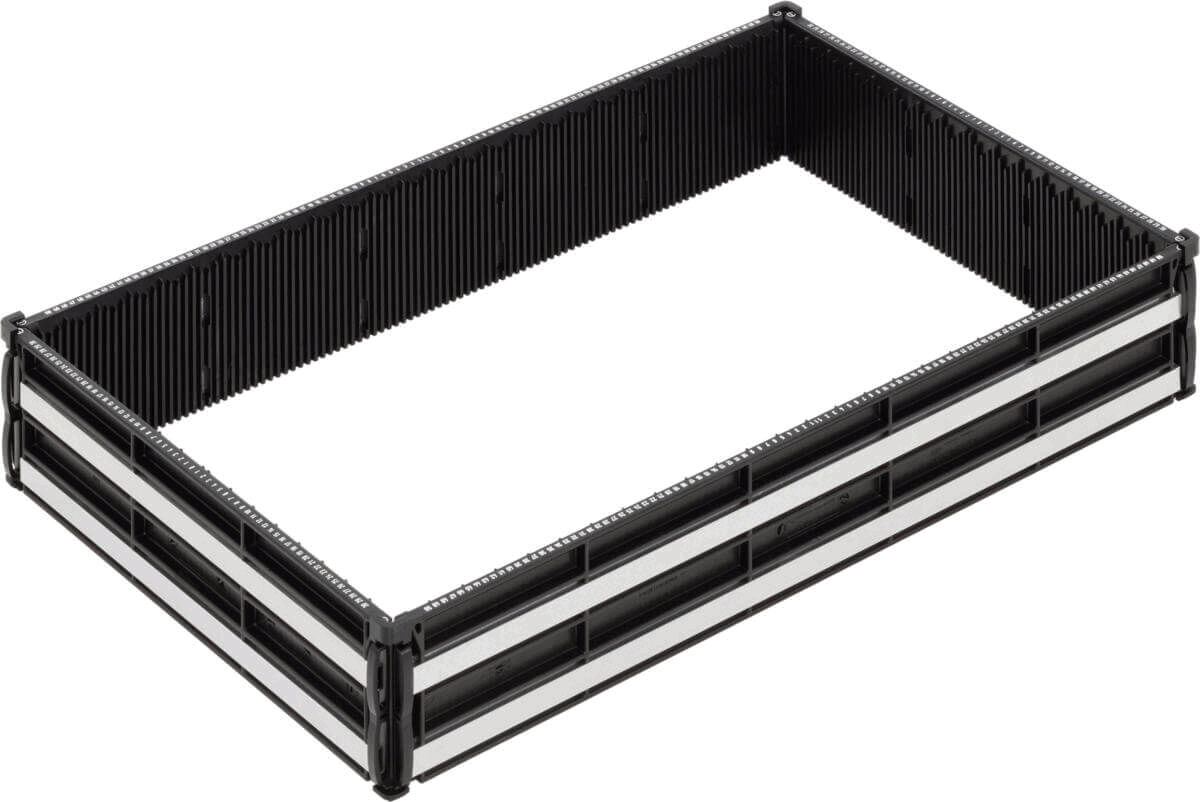

The image shows a rectangular, open basket with black plastic edges and vertical structural elements. The inner surface is empty and smooth, ideal for storage.

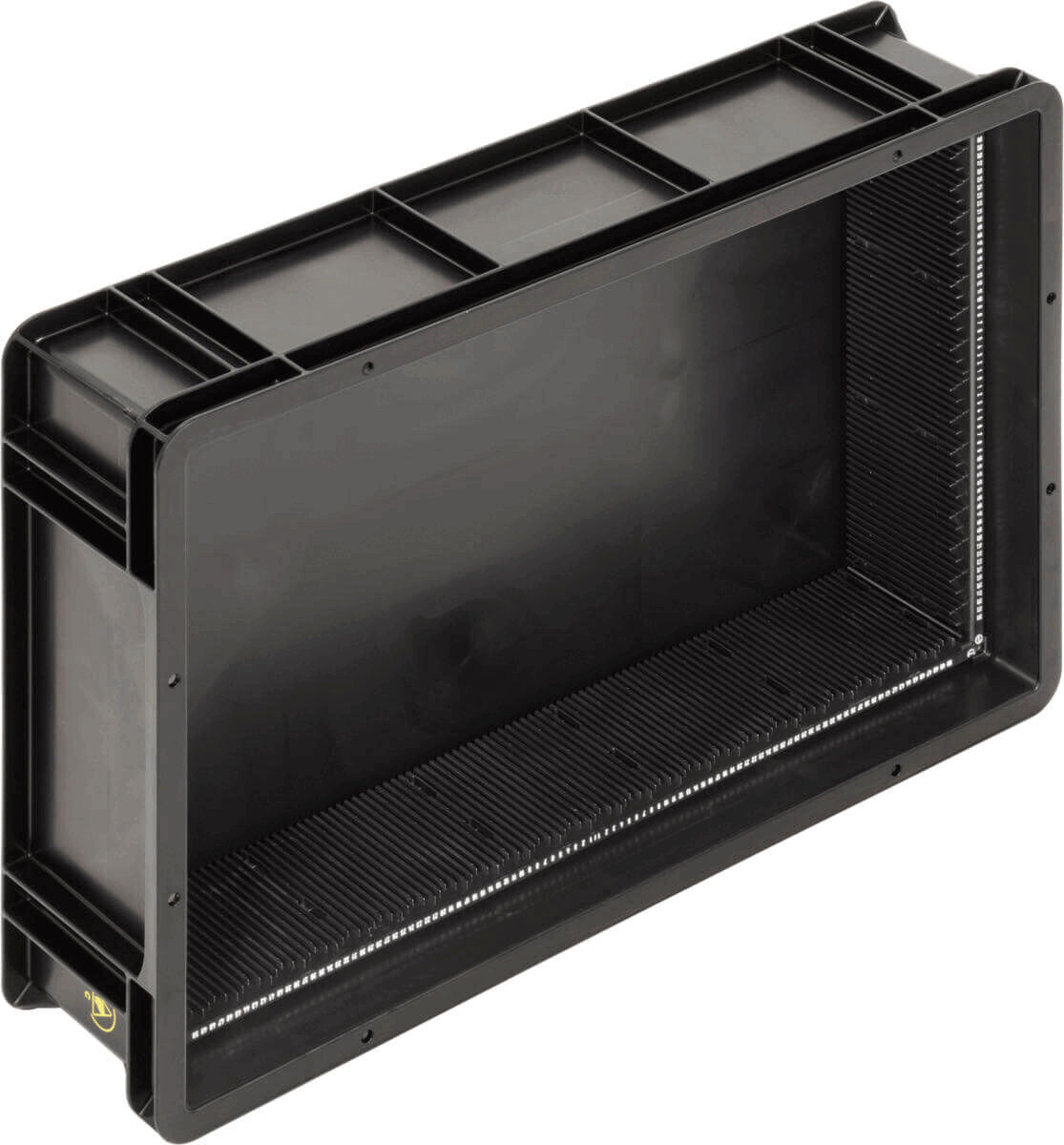

The image displays a rectangular, black plastic box. It has a flat bottom surface with fine grooves visible on the inside. The walls are sturdy and the corners are rounded.

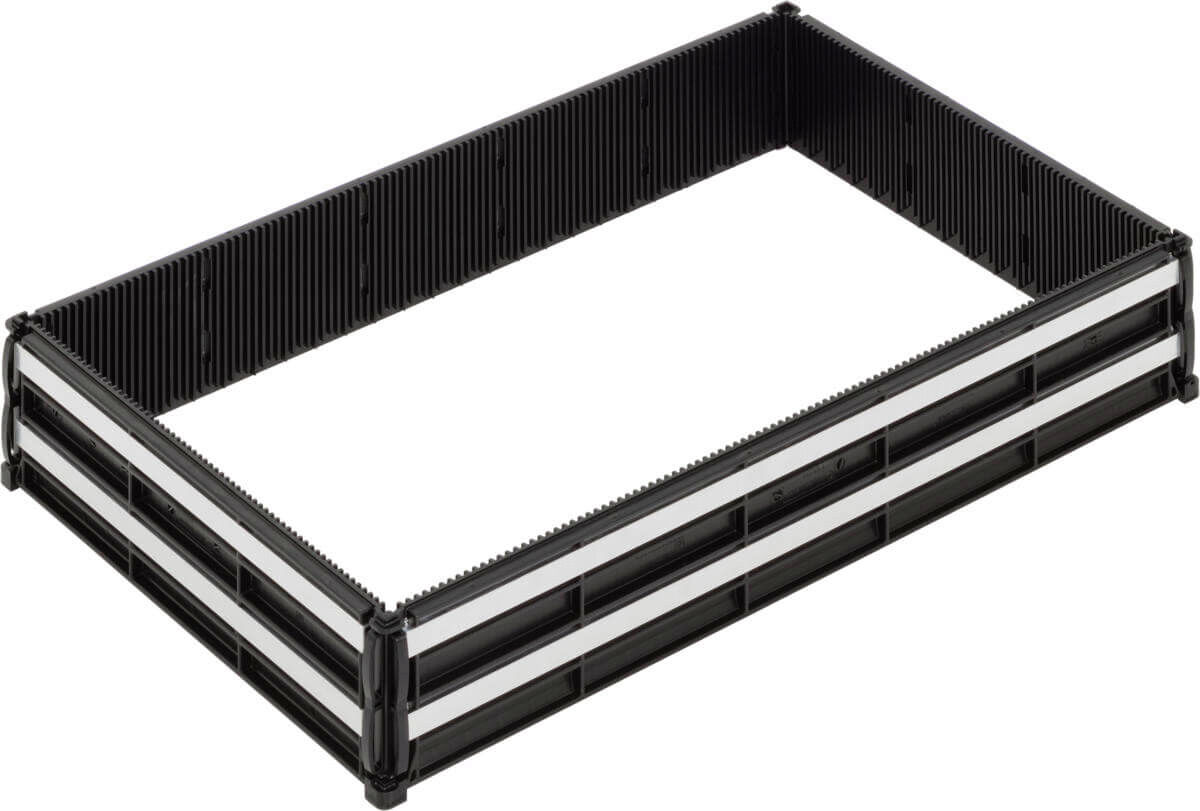

The image shows a rectangular, black plastic box without a lid. It has high walls and a smooth interior surface with vertical grooves on the sides. Ideal for storage or transport.

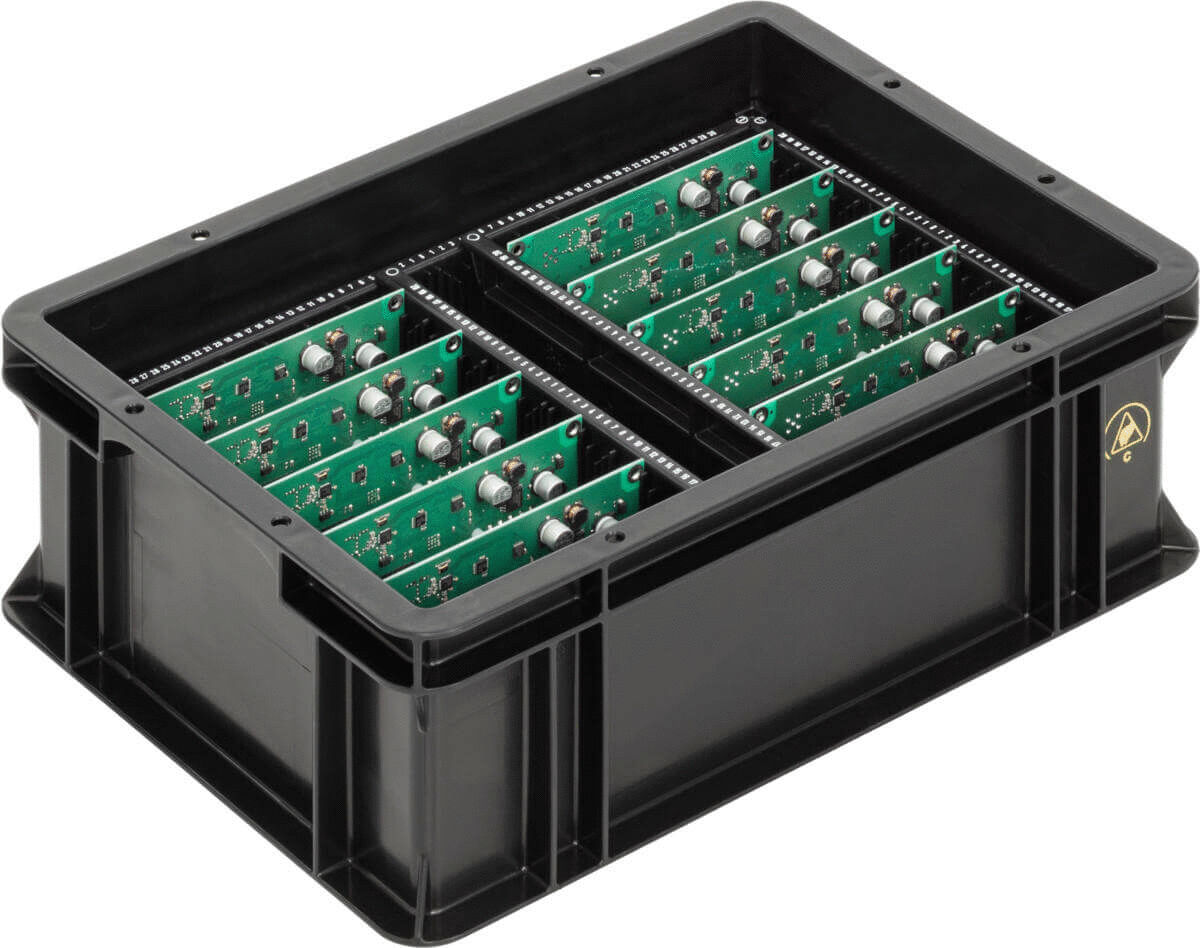

The image shows a black plastic box with two separate compartments. Each compartment contains green circuit boards equipped with small components. The box is sturdy and has a practical shape.
Preview: The image shows a rectangular, open container with black walls and white stripes on the short sides. The walls have a textured surface with upright, narrow indentations.
Preview: The image shows a rectangular, open basket with black plastic edges and vertical structural elements. The inner surface is empty and smooth, ideal for storage.
Preview: The image displays a rectangular, black plastic box. It has a flat bottom surface with fine grooves visible on the inside. The walls are sturdy and the corners are rounded.
Preview: The image shows a rectangular, black plastic box without a lid. It has high walls and a smooth interior surface with vertical grooves on the sides. Ideal for storage or transport.
Preview: The image shows a black plastic box with two separate compartments. Each compartment contains green circuit boards equipped with small components. The box is sturdy and has a practical shape.
Printorama Secondo 600 x 400 type 1
(Product No.: 6410.100.992)
The image shows a rectangular, open container with black walls and white stripes on the short sides. The walls have a textured surface with upright, narrow indentations.
The image shows a rectangular, open basket with black plastic edges and vertical structural elements. The inner surface is empty and smooth, ideal for storage.
The image displays a rectangular, black plastic box. It has a flat bottom surface with fine grooves visible on the inside. The walls are sturdy and the corners are rounded.
The image shows a rectangular, black plastic box without a lid. It has high walls and a smooth interior surface with vertical grooves on the sides. Ideal for storage or transport.
The image shows a black plastic box with two separate compartments. Each compartment contains green circuit boards equipped with small components. The box is sturdy and has a practical shape.
Mobile Preview: The image shows a rectangular, open container with black walls and white stripes on the short sides. The walls have a textured surface with upright, narrow indentations.
Mobile Preview: The image shows a rectangular, open basket with black plastic edges and vertical structural elements. The inner surface is empty and smooth, ideal for storage.
Mobile Preview: The image displays a rectangular, black plastic box. It has a flat bottom surface with fine grooves visible on the inside. The walls are sturdy and the corners are rounded.
Mobile Preview: The image shows a rectangular, black plastic box without a lid. It has high walls and a smooth interior surface with vertical grooves on the sides. Ideal for storage or transport.
Mobile Preview: The image shows a black plastic box with two separate compartments. Each compartment contains green circuit boards equipped with small components. The box is sturdy and has a practical shape.
Notice / Inquire

Printorama Secondo 600 x 400 type 1

dpvlink:
4828
Internal length:
535 mm
Internal width:
335 mm
Internal height:
98 mm
Groove width:
2,5 mm
Groove depth:
3.0 mm
Properties:
Further product information

chevron-down
available available
67,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Printorama Secondo 600 x 400 type 1

The Printorama Secondo 600 x 400 Type 1, manufactured by WEZ, is a high-quality Euro container with dimensions of 600 x 400 x 133 mm, specifically designed for the storage and transport of circuit boards. This model offers a maximum insertion width for circuit boards of up to 535 mm and is made from durable polypropylene, ensuring a long lifespan and stability.
The interior dimensions of the container are 535 x 335 x 98 mm, providing ample space for your components. The groove width is 2.5 mm and the groove depth is 3 mm, ideal for securely fixing the circuit boards during transport. The surface of the container is volume conductive and in black, offering additional protection against electrostatic discharges.
The standard grid spacing of 5.08 mm allows for flexible use and adaptation to various circuit board sizes. Weighing only 1.53 kg, the container is easy to handle and comes assembled upon delivery, ensuring immediate readiness for use.
Internal length
535 mm
Internal width
Internal width
335 mm
Internal height
98 mm
Groove width
Groove width
2,5 mm
Groove depth
Groove depth
3.0 mm
Color
Color
black
Spacing
Spacing
5.08 mm
Conductivity
Conductivity
volume conductive
Material
Material
polypropylene
Weight
Weight
1.53 kg
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 354
Complete Catalog 2023 - 2024

Product Family

Printorama Secondo

Article image
Article description
ESD
Internal length
Internal width
Internal height
Groove width
Groove depth
Price
Compare
4310.100.992 - Printorama Secondo 400 x 300 type 1
4310.100.992
Printorama Secondo 400 x 300 type 1
335 mm
235 mm
98 mm
2,5 mm
3.0 mm
44,65 EUR
6410.100.992 - Printorama Secondo 600 x 400 type 1
6410.100.992
Printorama Secondo 600 x 400 type 1
535 mm
335 mm
98 mm
2,5 mm
3.0 mm
67,00 EUR
