Double slotted wall 322 reinforced

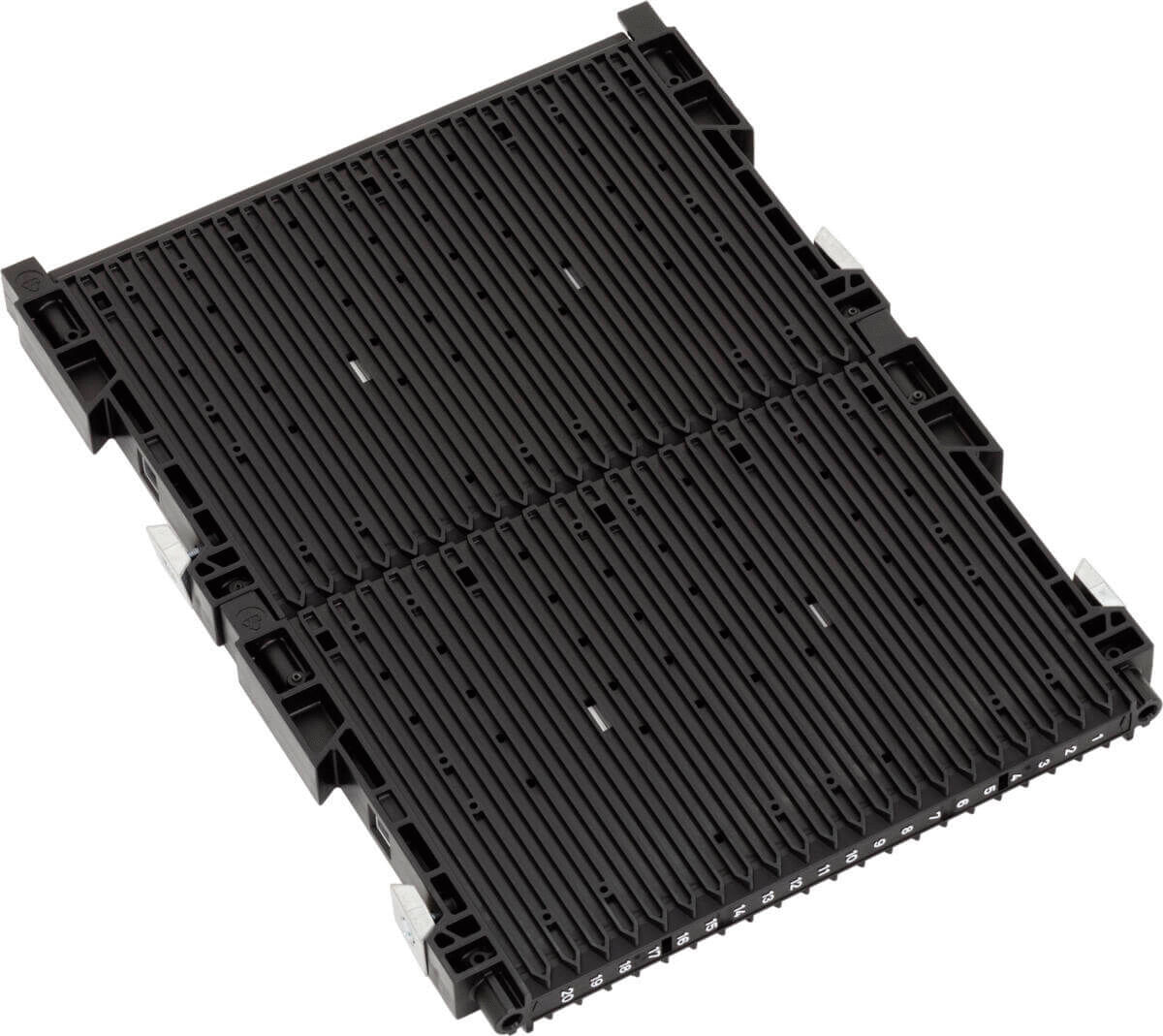

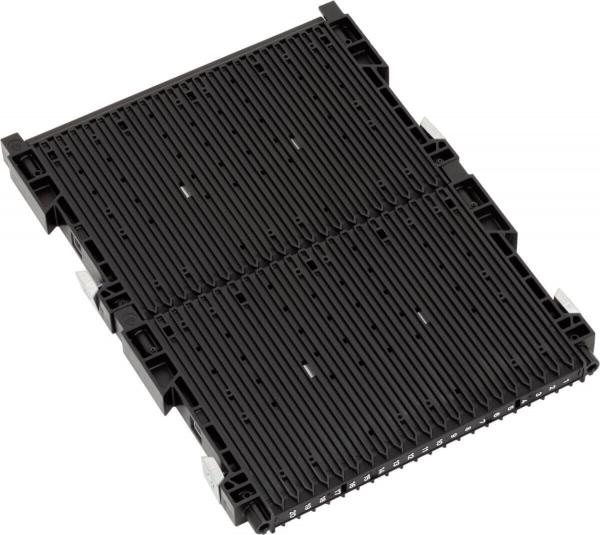

The double groove wall 322 reinforced by WEZ is a robust and functional solution for handling circuit boards in production, storage, and transportation environments. With dimensions of 255 x 345 x 22 mm and aluminum reinforcement, this product offers high stability and durability. It features a bottom stop type 22, which enhances safety during use.
The double groove wall is made from black, volume-conductive PP material and meets the ESD standard DIN EN 61340-5-1, making it ideal for ESD-sensitive environments. Weighing 0.93 kg, with a groove width of 3.5 mm and a groove spacing of 10.16 mm, it is particularly practical to handle. The number of grooves is 20, and the groove depth is 2.5 mm. Additionally, the product is temperature resistant from -20 to 80 °C, allowing for additional flexibility in various work environments.
With its modular design, the reinforced double groove wall 322 can be optimally integrated into Euro containers and can be customized to different requirements.
Version
Version
with base stop type 22, double reinforced
Length
Length
255 mm
Width
Width
345 mm
Height
Height
22 mm
Color
Color
black
Conductivity
Conductivity
volume conductive
Material
Material
PP
ESD
ESD
yes
Groove depth
Groove depth
2.5 mm
Groove spacing
Groove spacing
10.16 mm
Groove width
Groove width
3.5 mm
Groove number
Groove number
20
Temperature resistance
Temperature resistance
-20 - 80 °C
Weight
Weight
0.93 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

In the picture, there are three parallel-arranged, matte aluminum profiles of various lengths. They have a rectangular shape with a slightly curved top.
Profile rail, length = 256 mm
Profile rail 0256 for WEZRack series 180
Length: 256 mm
dpvlink
4797

3,95 EUR
Show product
The image shows two small, black plastic parts. They have a rectangular base with two upright supports that lean slightly upwards. Ideal for mounts or attachments.
Slot lock (Pack = 100 pcs)
Groove lock for WEZ rack system 180
PU = 100 pieces
dpvlink
4803

28,60 EUR
Show product
The image shows a long, narrow, black object with rectangular ends. It has a smooth surface and could be a holder or a support bar.
Handle 230 x 8 mm
Handle 230 x 8 mm
unmounted for WEZ rack 180
dpvlink
4803

2,27 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Double slotted wall 300 / 322

The double slotted wall 300 is a component of the WEZ Rack System 180 and is used for the safe storage and handling of PCBs.

  • Material: volume conductive polypropylene
  • Complies with the ESD standard DIN EN 61340-5-1
  • Available as unreinforced and reinforced version
  • Available with open groove ends to allow the PCBs to slide through, or as bottom stop variants for secure fixing of the PCBs
  • Inlet bevels facilitate insertion and optional clip-on groove locks secure unused grooves.
  • Suitable for 400 x 300 mm containers
  • Holds a maximum of 20 PCBs with an insertion dimension of up to 320 mm

Double slotted wall 300/322
Slot number:20
Slot depth:2.5 mm
Slot width:3.5 mm
Slot pitch:10.16 mm


Article image
Article description
ESD
Version
Length
Width
Height
Price
Compare
2534.000.992 - Double slotted wall 300
2534.000.992
Double slotted wall 300
without base stop, unstrengthened
255 mm
345 mm
22 mm
-

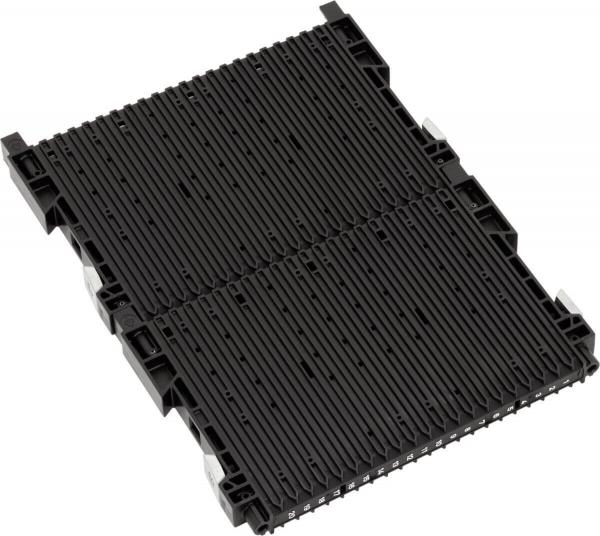

2534.022.992 - Double slotted wall 322
