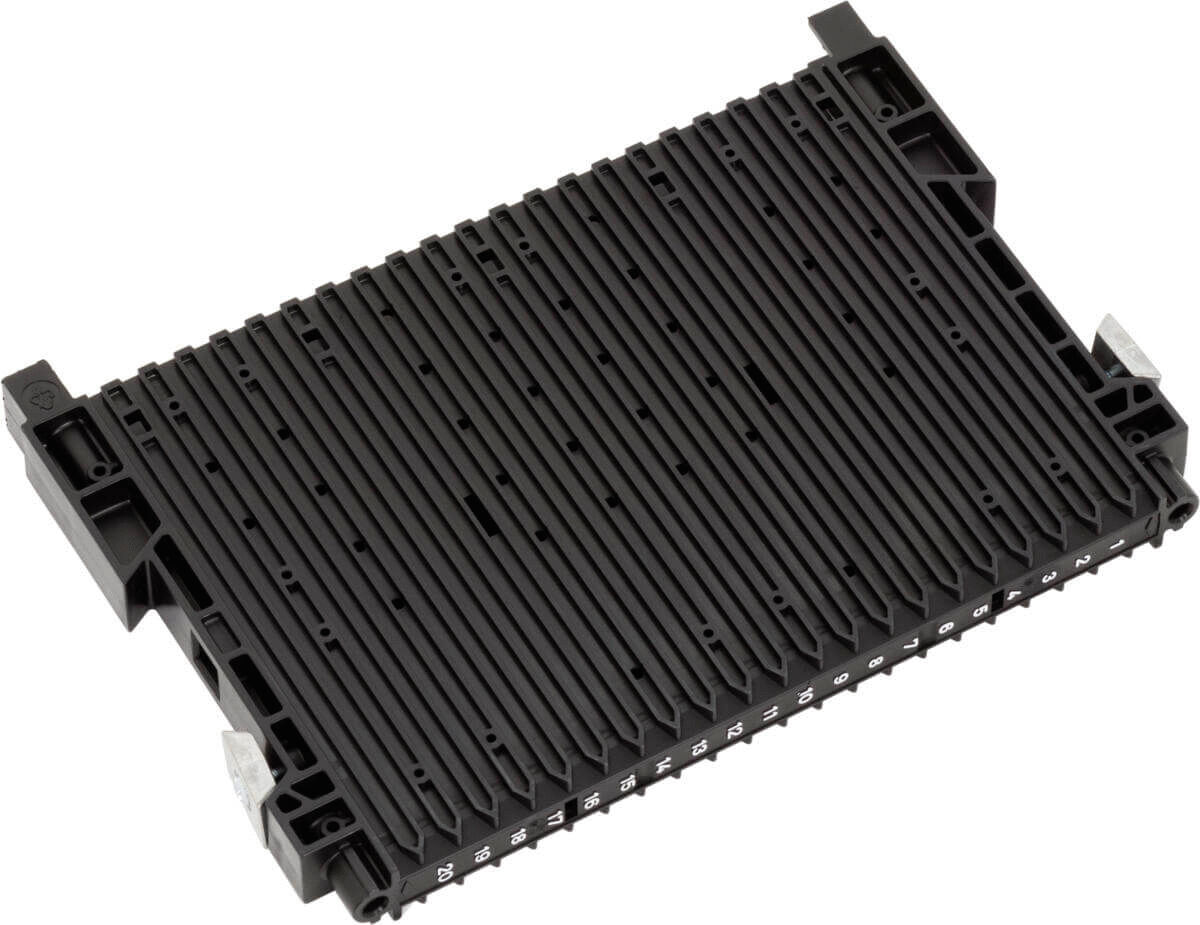

The image shows a rectangular, flat black component with many parallel grooves and side clips, likely used for electronic devices or machines.
Preview: The image shows a rectangular, flat black component with many parallel grooves and side clips, likely used for electronic devices or machines.
Preview: Image
Preview: Image
Preview: Image
Slotted wall 300
(Product No.: 2518.000.992)
The image shows a rectangular, flat black component with many parallel grooves and side clips, likely used for electronic devices or machines.
Mobile Preview: The image shows a rectangular, flat black component with many parallel grooves and side clips, likely used for electronic devices or machines.
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image
Notice / Inquire

Slotted wall 300

dpvlink:
4760
Version:
without base stop, unstrengthened
Length :
255 mm
Width :
180 mm
Height :
22 mm
Properties:
Further product information

chevron-down
available available
12,05 EUR
per PCE

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Slotted wall 300

The slotted wall 300 from WEZ provides an efficient solution for handling circuit boards in production environments, storage, and during transport. With a size of 255 x 180 x 22 mm and equipped with 20 slots, each 3.5 mm wide and 2.5 mm deep, this product fits perfectly into Euro containers and can be modularly configured for various application needs.
The slotted wall is made from black, volume-conductive polypropylene, making it electrostatically safe according to the ESD standard DIN EN 61340-5-1. This unreinforced model is designed without a bottom stop, allowing for the circuit boards to be pushed through. Weighing only 0.38 kg and with a temperature resistance from -20 to 80 °C, the slotted wall 300 is a robust and versatile choice for technical use.
Version
Version
without base stop, unstrengthened
Length
Length
255 mm
Width
Width
180 mm
Height
Height
22 mm
Color
Color
black
Conductivity
Conductivity
volume conductive
Material
Material
PP
ESD
ESD
yes
Groove depth
Groove depth
2.5 mm
Groove spacing
Groove spacing
10.16 mm
Groove width
Groove width
3.5 mm
Groove number
Groove number
20
Temperature resistance
Temperature resistance
-20 - 80 °C
Weight
Weight
0,38 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

In the picture, there are three parallel-arranged, matte aluminum profiles of various lengths. They have a rectangular shape with a slightly curved top.
Profile rail, length = 256 mm
Profile rail 0256 for WEZRack series 180
Length: 256 mm
dpvlink
4797

3,95 EUR
Show product
The image shows two small, black plastic parts. They have a rectangular base with two upright supports that lean slightly upwards. Ideal for mounts or attachments.
Slot lock (Pack = 100 pcs)
Groove lock for WEZ rack system 180
PU = 100 pieces
dpvlink
4803

28,60 EUR
Show product
The image shows a long, narrow, black object with rectangular ends. It has a smooth surface and could be a holder or a support bar.
Handle 230 x 8 mm
Handle 230 x 8 mm
unmounted for WEZ rack 180
dpvlink
4803

2,27 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 353
Complete Catalog 2023 - 2024

Product Family

Slotted wall 300 / 322

The slotted wall 300 is a component of the WEZ Rack System 180 and is used for the safe storage and handling of PCBs.

  • Material: volume conductive polypropylene
  • Complies with the ESD standard DIN EN 61340-5-1
  • Available as unreinforced and reinforced version
  • Available with open groove ends to allow the PCBs to slide through, or as bottom stop variants for secure fixing of the PCBs
  • Inlet bevels facilitate insertion and optional clip-on groove locks secure unused grooves.
  • Suitable for 400 x 300 mm containers
  • Holds a maximum of 20 PCBs with an insertion dimension of up to 320 mm

Slotted wall 300/322
Slot number:20
Slot depth:2.5 mm
Slot width:3.5 mm
Slot pitch:10.16 mm


Article image
Article description
ESD
Version
Length
Width
Height
Price
Compare
2518.000.992 - Slotted wall 300
2518.000.992
Slotted wall 300
without base stop, unstrengthened
255 mm
180 mm
22 mm
12,05 EUR
2518.900.992 - Slotted wall 300 reinforced
2518.900.992
Slotted wall 300 reinforced
without base stop, strengthened
255 mm
180 mm
22 mm
22,25 EUR
2518.022.992 - Slotted wall 322
2518.022.992
Slotted wall 322
with base stop type 22, unstrengthened
255 mm
180 mm
22 mm
15,70 EUR
2518.922.992 - Slotted wall 322 reinforced
2518.922.992
Slotted wall 322 reinforced
with base stop type 22, strengthened
255 mm
180 mm
22 mm
26,25 EUR
