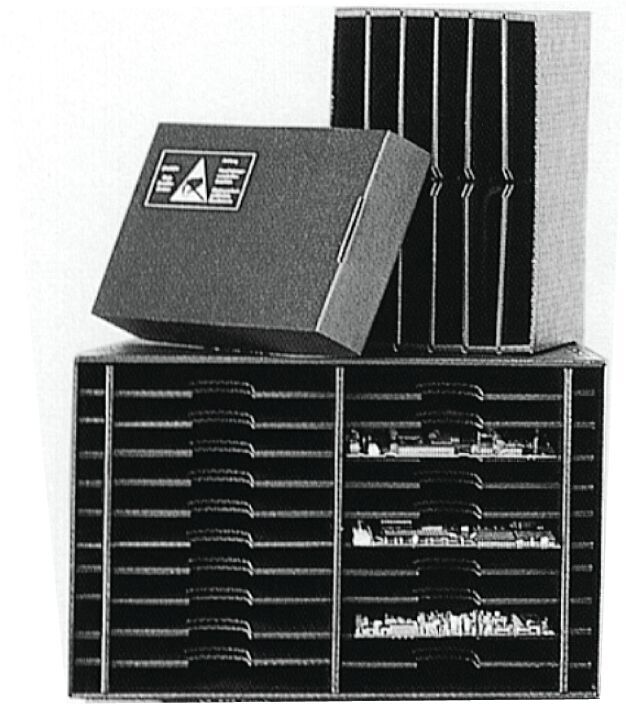

The image displays two black cardboard containers. On top is an open, upright model with vertical compartments; below is a flat container with numerous horizontal compartments.
CORTRONIC Partition container 493 x 390 x 166 mm
(Product No.: COR-45.TSC)
The image displays two black cardboard containers. On top is an open, upright model with vertical compartments; below is a flat container with numerous horizontal compartments.
Notice / Inquire

CORTRONIC Partition container 493 x 390 x 166 mm

dpvlink:
5787
outside LxWxH:
510 x 410 x 175 mm
inside LxWxH:
493 x 390 x 166 mm
Cavities:
20
Long partitions number:
3
Short partitions number:
9
Properties:
Further product information
Imprinting / Printing for boxes
Configure now


Minimum order:
10 PCE
at short notice at short notice
22,45 EUR

excl. 19% tax

10 PCE
Compare Compare
Notice / Inquire
Product Info

CORTRONIC Partition container 493 x 390 x 166 mm

The CORTRONIC partition container, manufactured by Kolb, provides an optimal solution for the secure storage and transport of sensitive electronic components. With its internal dimensions of 493 x 390 x 166 mm and an external dimension of 510 x 410 x 175 mm, the container is specifically designed for high demands in terms of electrostatic shielding. The surface has a resistance of 10^7 - 10^8 Ohm, making it an effective protection against electrostatic discharges.
The container is made from electrostatically conductive and sealed corrugated cardboard, which is additionally coated on the outside with a water-repellent and scratch-resistant coating. This ensures long-lasting use and robustness under various environmental conditions. Moreover, the product is fully recyclable, making it an environmentally friendly option.
With a total of 20 compartments, which can be flexibly adjusted by removing 9 short and 3 long partitions, the container offers variable compartment sizes for different requirements. The included lid further protects the contents from dust and other environmental influences.
This black partition container is not only practical but also features an ESD warning print that indicates the protective properties of the container.
Cavities
Cavities
20
Long partitions number
Long partitions number
3
Short partitions number
Short partitions number
9
Color
Color
black
Height
Height
175 mm
Internal height
166 mm
Internal length
493 mm
Internal width
Internal width
390 mm
Length
Length
510 mm
Width
Width
410 mm
Surface resistance Rs
Surface resistance Rs
107 - 108 Ω
Material
Material
corrugated board
recyclable
recyclable
yes
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 293
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes

Product Family

CORTRONIC Partition container

CORTRONIC corrugated cardboard containers are characterized by their robust construction and sophisticated design. By removing short or long bars, it is possible to change the compartment sizes. The basic version can thus be converted into versions A, B or C.

The containers have the following common features:

  • black
  • including lid
  • electrostatically dissipative coating and sealing on the inside and outside
  • water-repellent and scratch-resistant coating on the outside
  • interior/exterior surface resistance: RS = 107 - 108 Ohm
  • high shielding properties
  • electrostatic shielding <10 nJ (Energy Bag test)
  • recyclable
  • with ESD warning imprint


Individual parts (container, lid, partitions) available on request.




 Article

Internal dimensions
LxBxH mm

Compartment sizes
LxBxH mm

Compartments

Short
partitions

Long
partitions

COR-10.TSC

270x168x195

130x24x195
265x27x195 [A]

12
6

1
-

5
5

COR-15.TSC

372x388x84

109x18x84
165x18x84 [A]

60
40

19
19

4
3

COR-20.TSC

386x386x176

110x30x175
168x30x175 [A]
340x30x175 [B]

30
20
10

4
3
2

9
9
9

COR-40.TSC

424x272x281

178x18x280
365x18x280 [A]

22
11

3
2

10
10

COR-45.TSC

493x390x166

178x45x166
360x45x166 [A]

20
10

9
9

3
2

COR-48.TSC

563x355x150

123x24x150
165x24x150 [A]
250x24x150 [B]
515x24x150 [C]

44
33
22
11

5
4
3
2

10
10
10
10

COR-50.TSC

562x355x329

123x24x325
165x24x325 [A]
250x24x325 [B]
515x24x325 [C]

44
33
22
11

5
4
3
2

10
10
10
10

Single parts (containers, lids, partitions) on request


Article image
Article description
ESD
outside LxWxH
inside LxWxH
Cavities
Long partitions number
Short partitions number
Price
Compare
COR-10.TSC - CORTRONIC Partition container 270 x 169 x 195 mm
COR-10.TSC
CORTRONIC Partition container 270 x 169 x 195 mm
297 x 181 x 204 mm
270 x 169 x 195 mm
12
5
1
11,22 EUR
COR-15.TSC - CORTRONIC Partition container 372 x 388 x 84 mm
COR-15.TSC
CORTRONIC Partition container 372 x 388 x 84 mm
400 x 400 x 100 mm
372 x 388 x 84 mm
60
4
19
14,05 EUR
COR-20.TSC - CORTRONIC Partition container 386 x 386 x 176 mm
COR-20.TSC
CORTRONIC Partition container 386 x 386 x 176 mm
415 x 405 x 190 mm
386 x 386 x 176 mm
30
9
4
20,20 EUR
COR-40.TSC - CORTRONIC Partition container 424 x 272 x 281 mm
COR-40.TSC
CORTRONIC Partition container 424 x 272 x 281 mm
450 x 290 x 290 mm
424 x 272 x 281 mm
22
10
3
27,65 EUR
COR-45.TSC - CORTRONIC Partition container 493 x 390 x 166 mm
COR-45.TSC
CORTRONIC Partition container 493 x 390 x 166 mm
510 x 410 x 175 mm
493 x 390 x 166 mm
20
3
9
22,45 EUR
COR-48.TSC - CORTRONIC Partition container 562 x 355 x 150 mm
COR-48.TSC
CORTRONIC Partition container 562 x 355 x 150 mm
595 x 380 x 160 mm
562 x 355 x 150 mm
44
10
5
24,75 EUR
COR-50.TSC - CORTRONIC Partition container 562 x 355 x 329 mm
COR-50.TSC
CORTRONIC Partition container 562 x 355 x 329 mm
595 x 380 x 335 mm
562 x 355 x 329 mm
44
10
5
39,10 EUR
