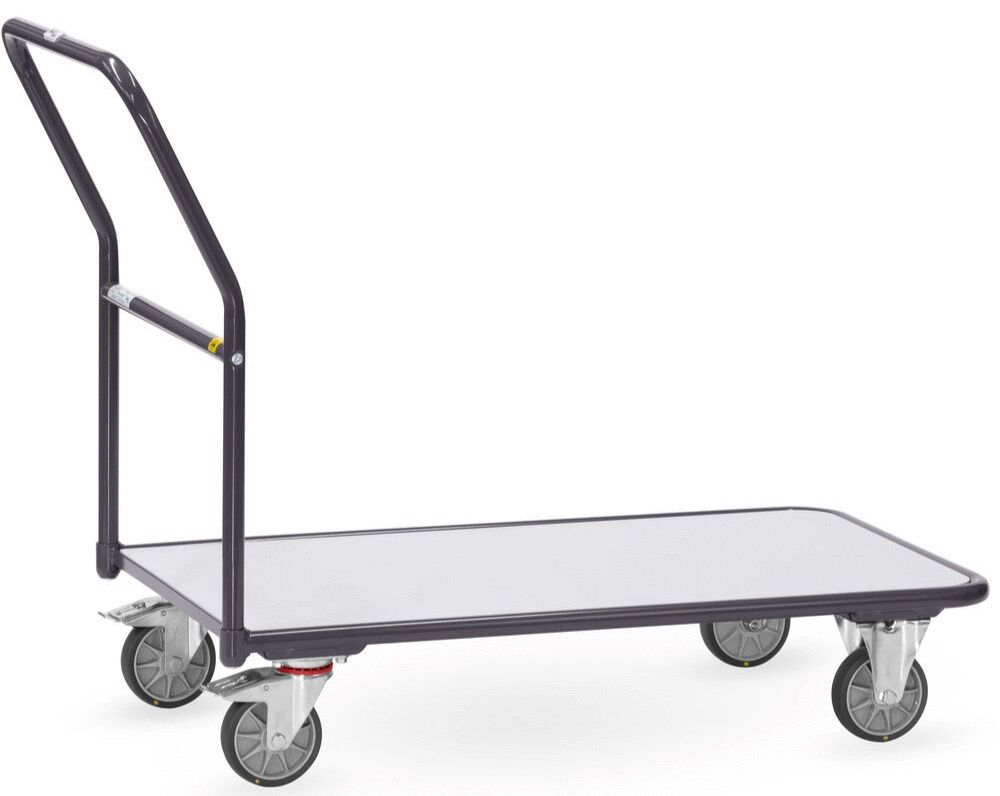

The image shows a handcart platform with two fixed and two swivel wheels. It has a flat, rectangular base and an ergonomic handle to facilitate maneuvering.
ESD magazine trolley 1000 x 600 mm
(Product No.: 091.91202)
The image shows a handcart platform with two fixed and two swivel wheels. It has a flat, rectangular base and an ergonomic handle to facilitate maneuvering.
Notice / Inquire

ESD magazine trolley 1000 x 600 mm

dpvlink:
30414
Length :
1250 mm
Width :
600 mm
Height :
910 mm
Loading bed:
1000 x 600 mm
Properties:
Further product information

chevron-down
Delivery time! Delivery time!
328,45 EUR
per PCE

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD magazine trolley 1000 x 600 mm

The ESD magazine cart manufactured by Fetra is made of steel tube and profile steel, welded, and coated with an electrically conductive powder coating in slate grey RAL 7015. This model offers flexibility and stability through its screw and plug construction. The floor of the cart is made of an electrically conductive wood-based panel according to DIN 68765, allowing for the safe transport of sensitive components.
The dimensions of the cart are 1250 mm in length, 600 mm in width, and 910 mm in height, with a load capacity of up to 300 kg on a loading area of 1000 x 600 mm. The cart is equipped with two swivel and two fixed casters, which are fitted with TPE-ESD tires (thermoplastic elastomer) and precision groove ball bearings, ensuring very low starting, rolling, and swiveling resistance as well as quiet operation on flat floors. The tires are non-marking, leaving no traces, and locks on the swivel casters increase safety during use. The weight of the cart is 19 kg and the wheel size is 125 mm in diameter.
Length
Length
1250 mm
Width
Width
600 mm
Height
Height
910 mm
Loading bed
Loading bed
1000 x 600 mm
Wheel Ø
Wheel Ø
125 mm
Conductivity
Conductivity
conductive
Material
Material
steel
Load capacity
Load capacity
300 kg
Weight
Weight
19 kg
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

ESD Magazine trolleys

The ESD magazine trolley impresses with its electrically conductive design, robust construction and excellent handling characteristics. It is specially designed for use in ESD-protected areas.

Features:

  • Electrically conductive for safe use in ESD areas
  • Robust construction: Welded tubular steel and sectional steel
  • Surface: Electrically conductive powder-coated in slate grey RAL 7015
  • Base: Electrically conductive wood-based panel in accordance with DIN 68765
  • Assembly: Screw and plug-in construction


Chassis:

  • Castors: 2 swivel castors and 2 fixed castors
  • Tyres: TPE-ESD tyres (thermoplastic elastomer)
  • Bearings: Hubs with precision deep-groove ball bearings
  • Locks on the swivel castors


Handling characteristics:

  • Very low starting, rolling and swivel resistance
  • Quiet running on level floors
  • Traceless: non-marking tires

Article image
Article description
ESD
Length
Width
Height
Loading bed
Price
Compare
091.91200 - ESD magazine trolley 850 x 450 mm
091.91200
ESD magazine trolley 850 x 450 mm
1100 mm
450 mm
910 mm
850 x 450 mm
294,35 EUR
091.91202 - ESD magazine trolley 1000 x 600 mm
091.91202
ESD magazine trolley 1000 x 600 mm
1250 mm
600 mm
910 mm
1000 x 600 mm
328,45 EUR
091.91203 - ESD magazine trolley 1000 x 700 mm
091.91203
ESD magazine trolley 1000 x 700 mm
1250 mm
700 mm
910 mm
1000 x 700 mm
358,10 EUR
