Upright tube mounting kit for Concept Ergo
(Product No.: UFSCE-49)
Notice / Inquire

Upright tube mounting kit for Concept Ergo

dpvlink:
31540
suitable for system:
Concept Ergo
Properties:
Further product information
Treston Configurator
Configure now


Delivery time! Delivery time!
34,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

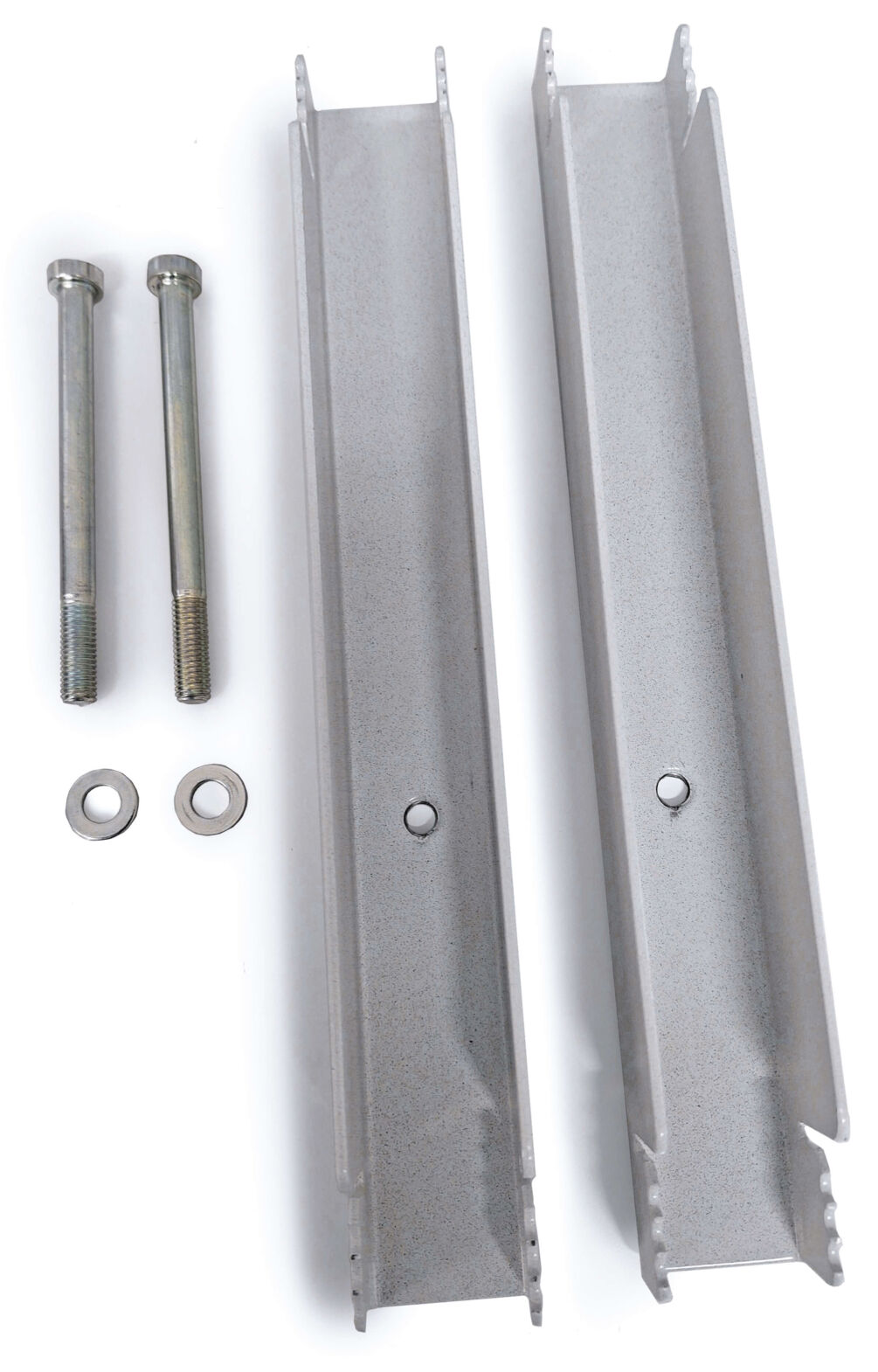

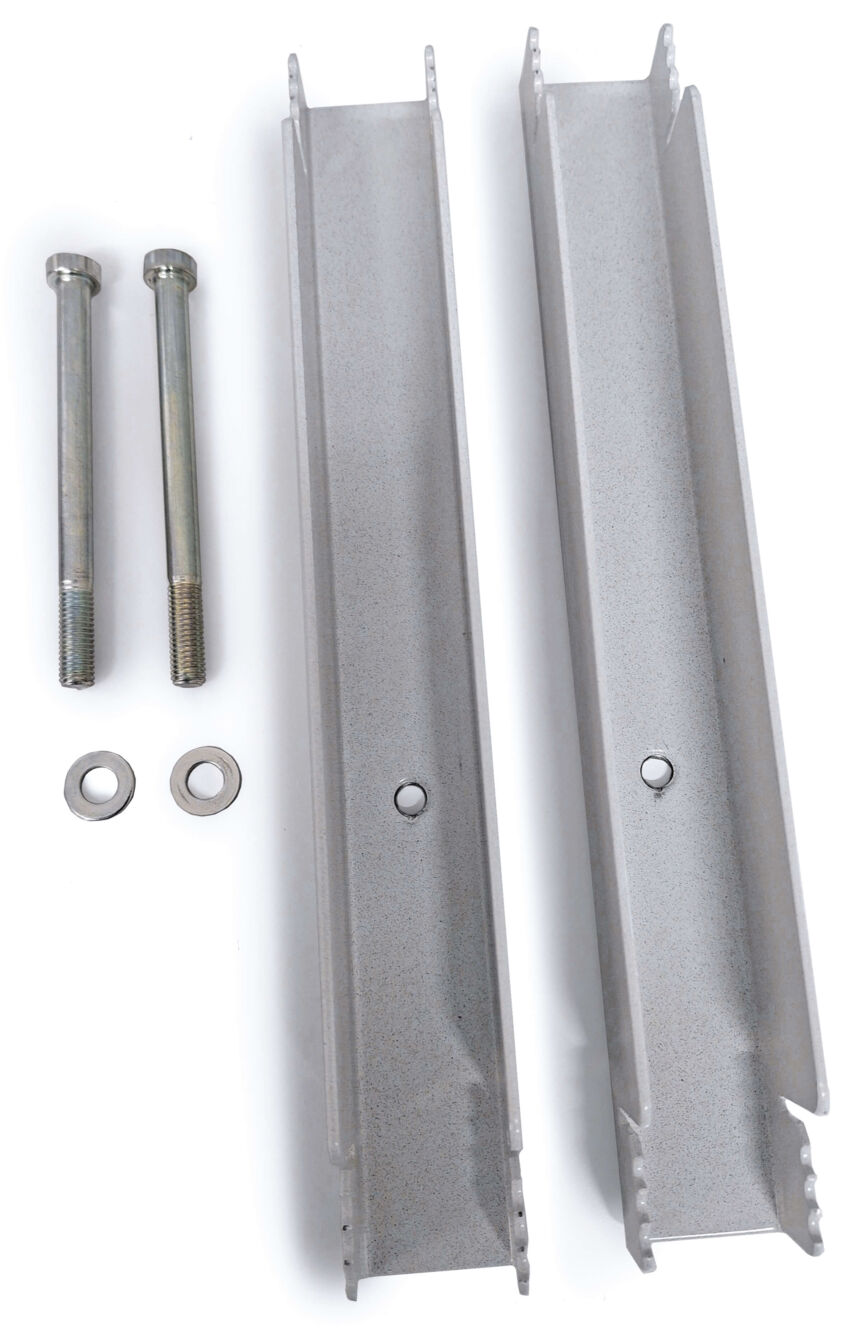

Upright tube mounting kit for Concept Ergo

The Treston grid tube attachment kit is specifically designed for use on the Concept Ergo workbench and allows for a secure and flexible attachment of two grid tubes. The assembly is possible at any position on the back of the table, regardless of predefined holes. This offers the possibility to position grid tube accessories exactly where they are needed, allowing for a customized adjustment to the specific requirements of the workspace.
The set includes brackets for two grid tubes, with a maximum load capacity of 100 kg per module. The grid tubes are available separately. The product is characterized by its ESD safety and an epoxy powder-coated surface, which emphasizes the durability and resistance of the steel material. Weighing only 0.8 kg and in light gray color, this attachment set fits perfectly with the Concept Ergo system and supports efficient work processes through its high functionality.
suitable for system
suitable for system
Concept Ergo
Color
Color
light grey
Material
Material
steel
Surface
Surface
Epoxy powder-coated
ESD
ESD
yes
Load capacity
Load capacity
100 kg
Weight
Weight
0.8 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a simple, white shelving frame with two vertical sides connected by a horizontal bar at the top. It features various perforations for mounting options.
Upright tube module ESD, 2xM500
Upright tube module ESD, 1359 /1046 mm, 2x M500
RAL 7035 ESD, load capacity 100kg/module spacing,
Delivery includes 5 cable clips

(suitable for Concept tables width 1000/1200)
dpvlink
19302

256,10 EUR
Show product
The image shows a simple, white shelving frame with two vertical sides connected by a horizontal bar at the top. It features various perforations for mounting options.
Upright tube module ESD, 2xM750
Upright tube module ESD, 1359 / 1046 mm, 2x M750
RAL 7035 ESD, load capacity 100kg/module spacing,
Delivery includes 5 cable clips

(suitable for Concept tables width 1500/1800/2000 mm and TP tables width 1500 mm)
dpvlink
19302

272,20 EUR
Show product
The image shows a simple, white shelving system with four vertical posts. The posts are perforated to attach shelves at various heights.
Upright tube module ESD, 4xM500 1359 mm
Upright tube module ESD, 1359 / 1046 mm, 4x M500
RAL 7035 ESD, load capacity 100kg/module spacing,
Delivery includes 5 cable clips

(suitable for Concept tables width 2000 mm)
dpvlink
19302

444,20 EUR
Show product

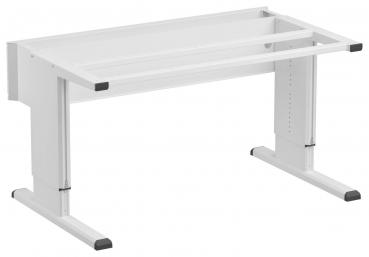

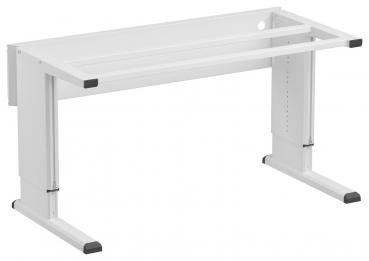

ESD work table frame Concept Ergo 600 x 1000...
