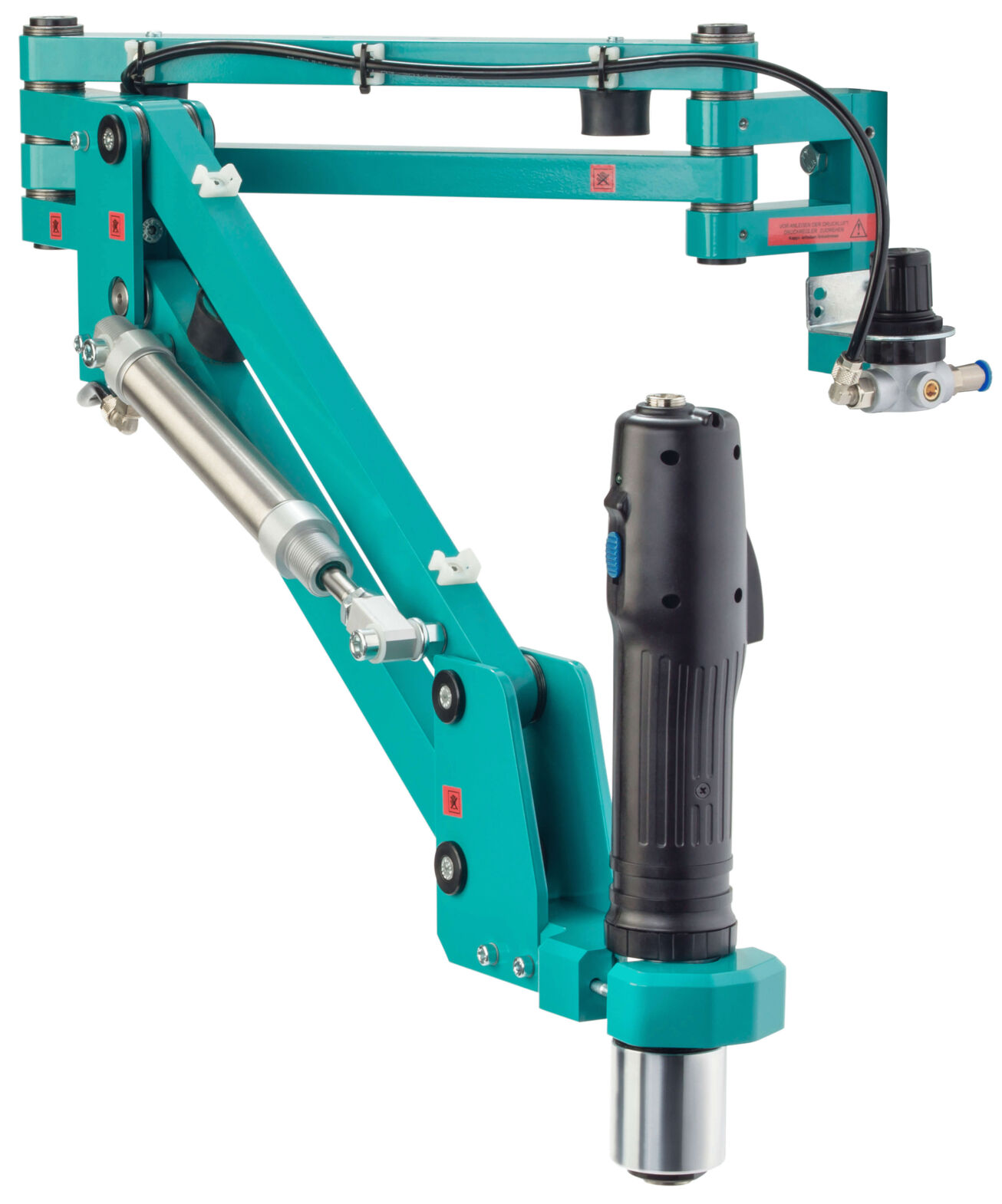

The image shows a blue, mechanical arm with a handle and a tool at the end. The arm has multiple joints and a powerful connection for use.

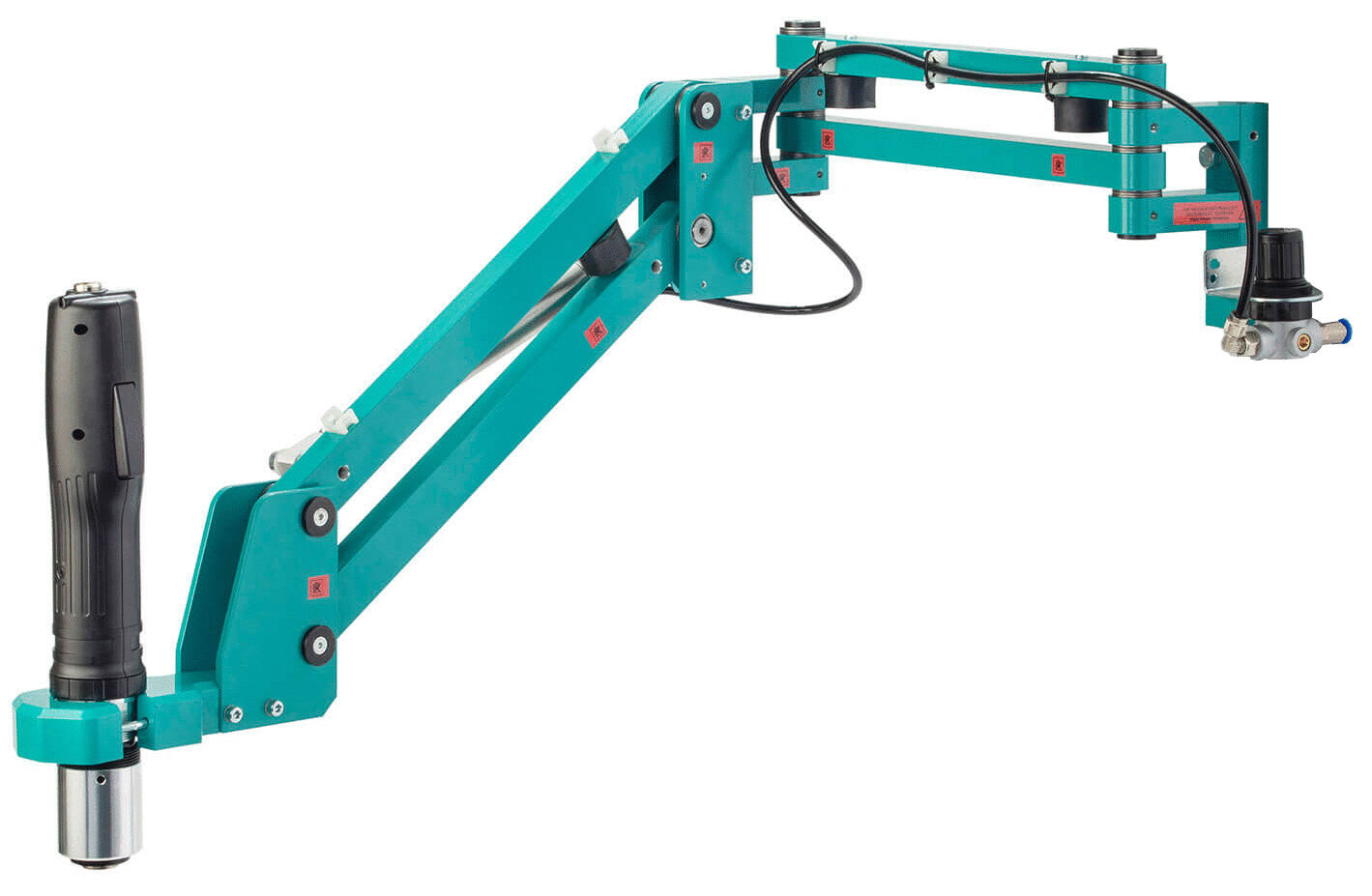

The image shows a mechanical arm in bold turquoise, consisting of several joints. At one end there is a tool handle, and at the other a work fixture.
Preview: The image shows a blue, mechanical arm with a handle and a tool at the end. The arm has multiple joints and a powerful connection for use.
Preview: The image shows a mechanical arm in bold turquoise, consisting of several joints. At one end there is a tool handle, and at the other a work fixture.
PoSy80 base frame for wall mounting
(Product No.: PoSy-80W)
The image shows a blue, mechanical arm with a handle and a tool at the end. The arm has multiple joints and a powerful connection for use.
The image shows a mechanical arm in bold turquoise, consisting of several joints. At one end there is a tool handle, and at the other a work fixture.
Mobile Preview: The image shows a blue, mechanical arm with a handle and a tool at the end. The arm has multiple joints and a powerful connection for use.
Mobile Preview: The image shows a mechanical arm in bold turquoise, consisting of several joints. At one end there is a tool handle, and at the other a work fixture.
Notice / Inquire

PoSy80 base frame for wall mounting

dpvlink:
20459
Properties:
Further product information

at short notice at short notice
1.271,70 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

PoSy80 base frame for wall mounting

The PoSy80 base frame for wall mounting is an advanced positioning system that allows precise tool guidance through its exact positioning on the X, Y, and Z axes. With an accuracy of up to 0.01 mm within the swivel range and the ability to store up to 80 positions, it is ideal for use with electric, EC, and pneumatic screwdrivers.
The technical specifications of the parallel support arm include a span of approximately 960 mm, a maximum torque of 80 Nm, a tool holder size of 32 - 45 mm, and a column height of 600 mm. The pneumatic connection is 6 mm with a plug connection and operates at 6 bar.
Additionally, the PoSy3D-Box offers advanced features such as an SSI absolute encoder for position measurements without machine zero point, a depth measurement of approximately 0.5 mm, and an expandable swivel range up to 800 mm. The control is carried out via Com and RS485 interfaces, with eight programs directly programmable and an unlimited number more via RS485.
The system is characterized by an extremely torsion-resistant construction, is completely ball-bearing mounted, and effectively absorbs reaction moments. The pneumatic cylinder is adjustable for different tool weights and can be expanded to a 3-axis positioning system.
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 448
Complete Catalog 2023 - 2024

Product Family

Parallel support arm with positioning system

The positioning system PoSy80 assures a precise tool guidance when screwing your components. Using the PoSy80 together with the parallel support arm it is possible to determine every position on the X, Y and possibly Z-axis. Within the pivoting range this position is accurate up to 0,01 mm.

Maintenance-free parallel arm with adjustable tool holder. Precise tool guidance facilitates positioning.

  • Extremely torsion-resistant construction
  • Completely mounted on ball bearings
  • Reaction torques are absorbed
  • Compressed air cylinder adjustable to different tool weights
  • Can be extended to a 3-axis positioning system

Article image
Article description
ESD
Price
Compare
PoSy-80S - PoSy80 base frame with column
PoSy-80S
PoSy80 base frame with column
1.490,70 EUR
PoSy-80W - PoSy80 base frame for wall mounting
PoSy-80W
PoSy80 base frame for wall mounting
1.271,70 EUR
