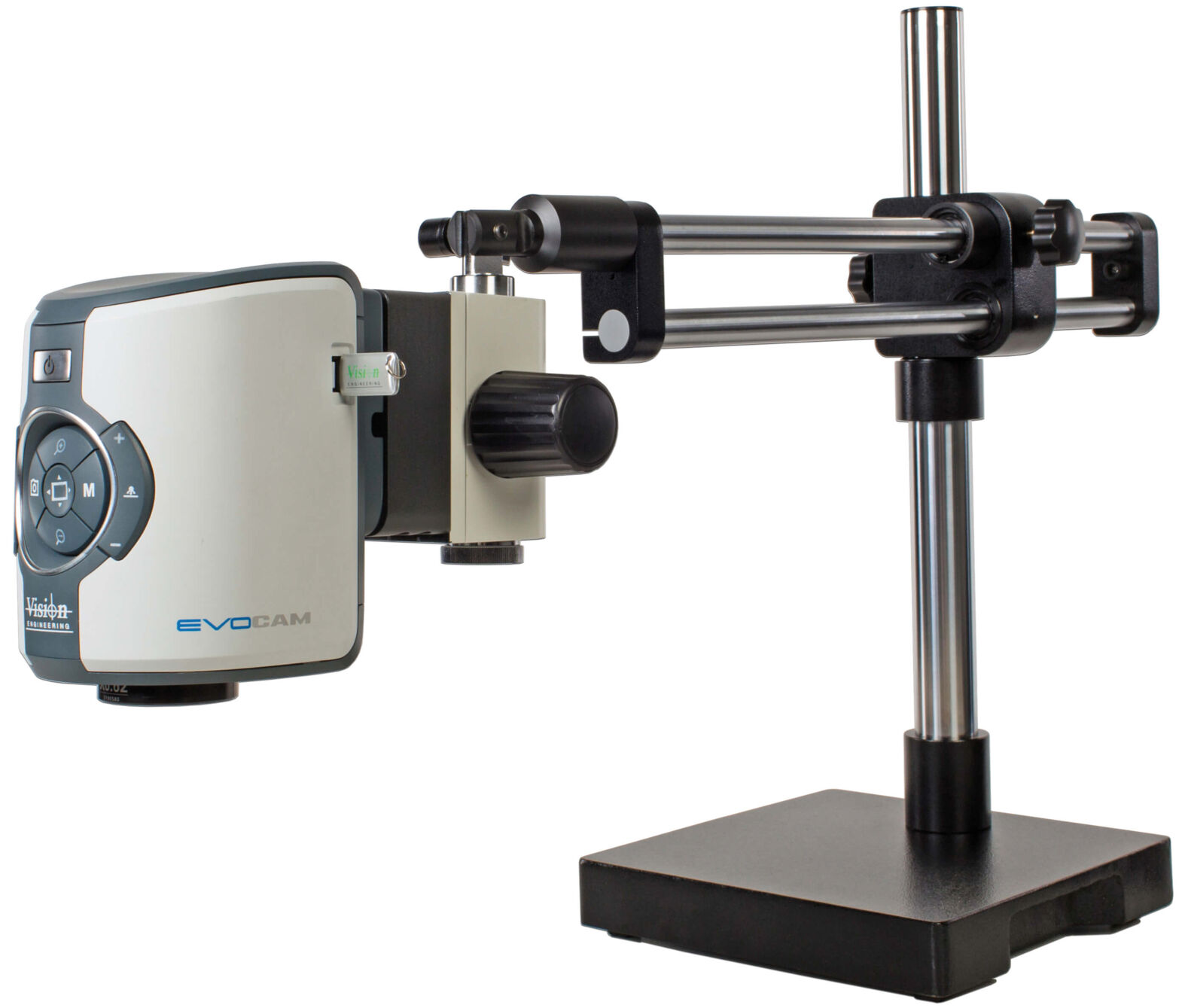

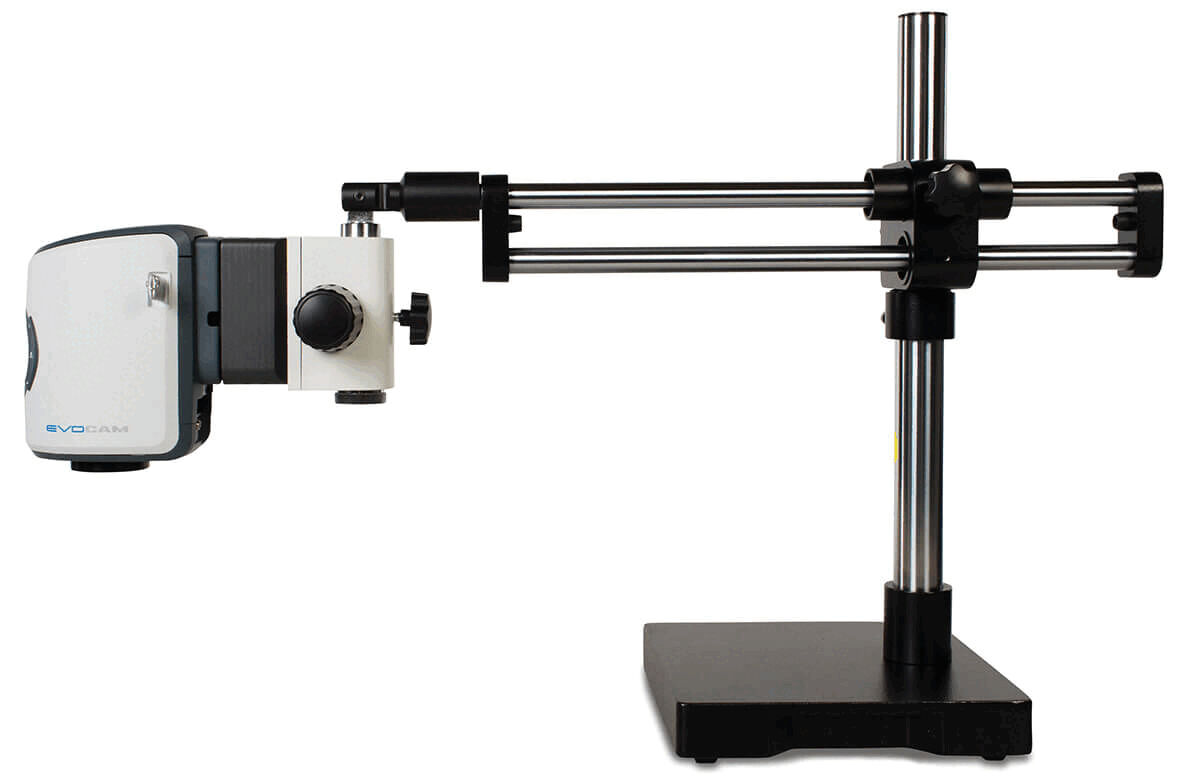

EVO Cam II with double arm column stand
The EVO Cam II video microscope from Vision is distinguished by its high performance and advanced technology. Included in the package are the EVO Cam II camera head with integrated LED incident light and a USB stick, as well as a precise double-arm column stand with focus function, including the EVB-90 adapter. This system offers an impressive recording resolution of 1920 x 1080 pixels and supports a digital zoom of up to 12x and an optical zoom of up to 30x.The power supply of the microscope is provided through a voltage of 100 to 240 V and it has a power of 72 W. The color temperature of the LED light source is 5500 K, which ensures clear and precise image reproduction. The robust double-arm column stand allows for flexible and stable positioning of the microscope, ideal for detailed examinations in research and development. This state-of-the-art system is delivered without a lens, color monitor, and other accessories, but offers a solid basic equipment for professional applications.
Details
- Power Power
- 72 W
- Voltage Voltage
- 100 - 240 V
- Illuminant Illuminant
- LED
- Capture resolution Capture resolution
- 1920 x 1080
- Digital zoom max. Digital zoom max.
- 12x
- Light color Light color
- 5500 K
- Optical zoom max. Optical zoom max.
- 30x
- Support Support
- Double-arm column stand
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
EVO Cam II digital microscope
Intuitive, easy setup
EVO Cam II has two user levels to ensure that users can always use the right functions & tools. Clear user interface - On-screen feature description provides users with information about the controls in one of 10 pre-installed languages.
Easy team setup - Ensure multiple EVO Cam systems are all configured identically by exporting settings from your master and sharing with the team. Save your settings files for later retrieval.
Powerful and effective tools ensure consistency, efficiency and ease of use of your system
Improve operator throughput and quality standards with the right, simple and effective features:
Instant sample comparison between the difference of a stored sample and the sample being analyzed. The 30:1 zoom ratio means that magnifications from 10x to 300x can be accessed with a single objective.
Use hotkeys and shortcuts to quickly access functions.
Save your most frequently used camera settings with up to ten presets. Select the optional remote control to improve user convenience and provide faster access to preset system settings.
Use overlays for comparisons, instructions or measurements by placing a transparent image over the sample view.
Adjust the zoom range to ensure correct inspection settings.
Easily capture and share images with Wi-Fi - ideal for multiple users to quickly view and download images.
Simple measurements
Perform simple measurements with virtual XY measurement lines or the scalable grid, directly on the screen. Calibration tracking over the zoom range allows measurement at different points in the zoom range.
Exceptional image quality in Full HD resolution without image delay
EVO Cam II's wide range of precision lenses and wide-angle lenses allow you to customize your own application-specific solutions so that you can concentrate fully on the image. With two automatic and one manual exposure modes, with depth of field control, you can determine how much the subject should be in focus.
Brightness reference levels set the desired parameters for the automatic exposure function. The automatic white balance and the extension of the dynamic range increase the performance of the system. Achieving maximum image sharpness is additionally supported by the latest sensor with backlighting.
Technical data
Camera | Full-HD |
Incident light | 8-point LED ring light. Color temperature 5500 K |
Control | On/off, zoom +/-, overview mode, ring light illumination, transmitted light illumination, image capture |
Output | HDMI, USB 3, USB 2, WiFi |
Camera
Camera zoom | 30:1 |
Digital zoom | 12:1 |
Camera resolution | 1920 x 1080 |
Sensor | 1/2,8" CMOS (backlit) |
Frame rate | 50 fps & 60 fps (switchable) |
File format | PNG, JPEG+, JPEG, JPEG- |
Functions
Optional license | Focus stacking (max. depth 110 mm) |
Inspection | Image comparison, overlays, supervisor mode, configurable zoom range, import/export settings |
Documentation | Image acquisition, time stamp |
Measurements | Virtual measuring lines (movable in the X-axis, Y-axis, diagonal - point-to-point), scalable grid, overlays, calibration mode |
General functions | Image capture, image playback mode, noise reduction, lighting parameters |
Illumination control | Automatic, aperture priority, manual |
Focusing | Automatic, manual |
Quick access buttons (front keypad) | Presets, white balance, key lock, exposure auto/man, focus auto/man |
Functions in supervisor mode | Image capture, zoom, lighting control, overlay on/off, metering lines on/off, Grid On/Off, presets 1-10, image comparison On/Off, image playback, focus stacking |
Programmable presets | 10 (save, import/export) |
Image capture/saving | USB stick or via PC connection |
Languages | English, French, German, Spanish, Italian, Portuguese, Russian, Chinese, Japanese, Korean |
Image mode | Automatic white balance, black and white mode, dynamic range, noise reduction, infrared mode |
