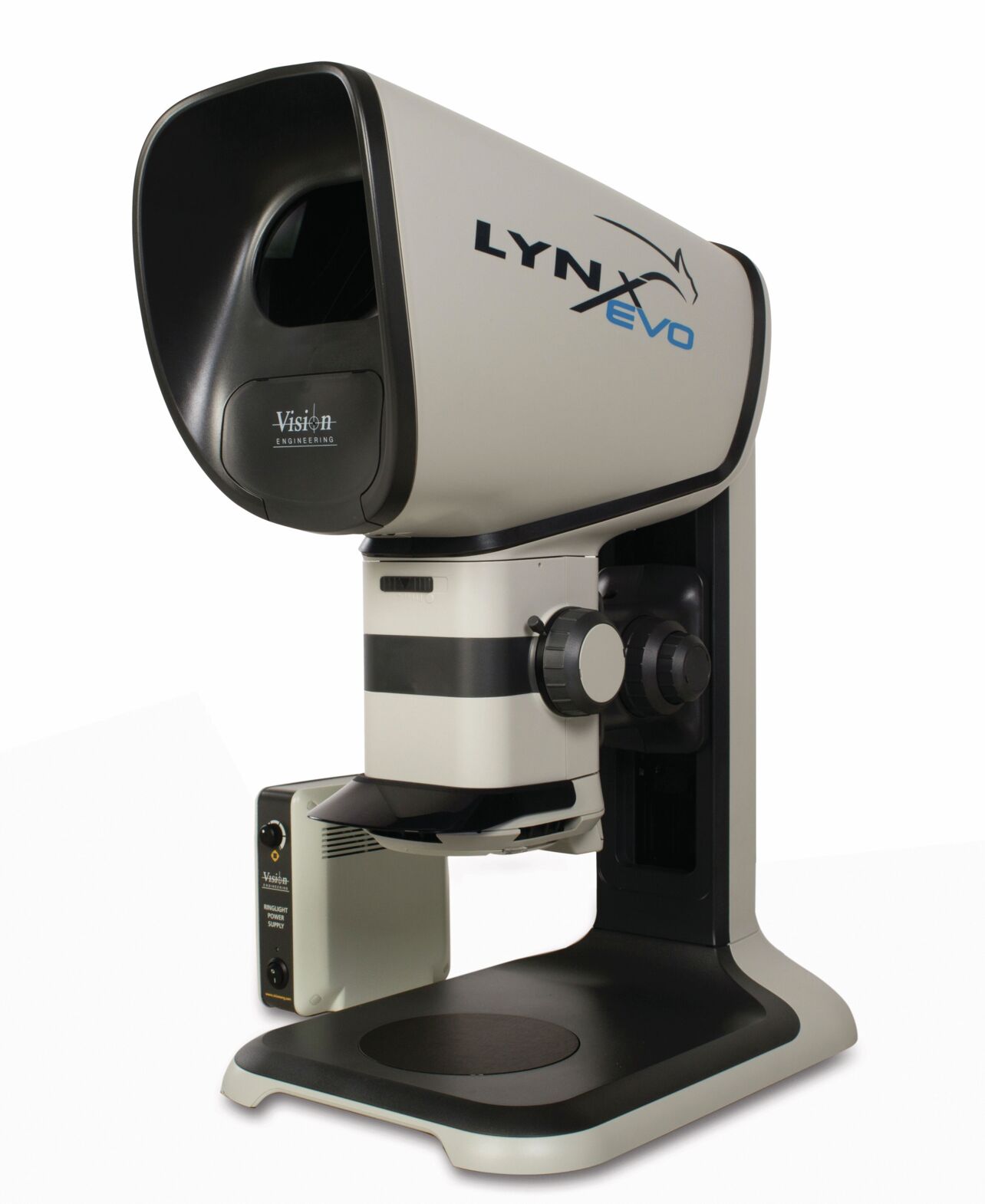

Lynx EVO with Ergo stand and rotating viewer

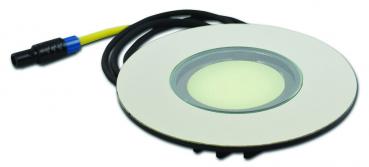

The Lynx EVO with Ergo stand and angled optics, manufactured by Vision, is an advanced stereo microscope designed for technical precision work. This model is characterized by its sturdy construction with a width of 280 mm, a height of 670 mm, and a depth of 420 mm. The total weight of the system is 15.3 kg, ensuring stable and reliable handling.The power supply is flexibly designed and supports voltages from 100 to 240 V. The integrated LED angled optics, which allow a 360° view, provide excellent illumination of the object under examination. The working distance is 200 mm, which provides ample space for manipulating objects under the microscope.

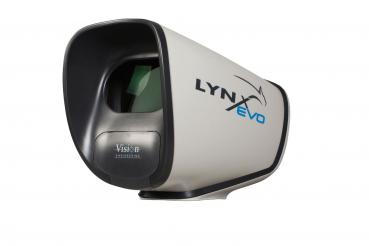

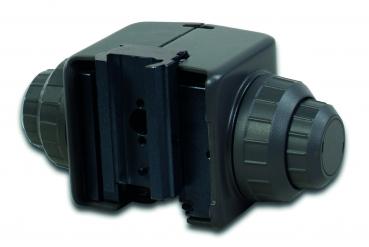

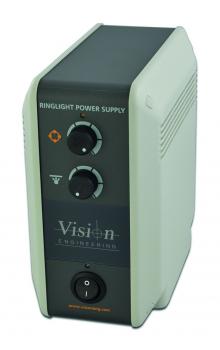

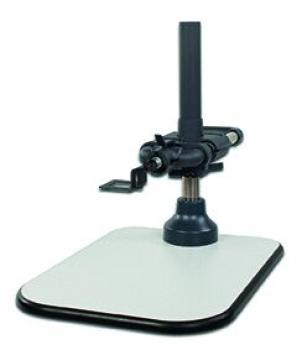

Included in the delivery are the LynxEVO stereo head with a cover, a LynxEVO Zoom with a 10:1 ratio, the Ergo stand with fine and coarse focusing, and a dimmer PSU. The device's capture resolution reaches 2592 x 1944 pixels, with a zoom range from 4.2x to 42x. The maximum field of view at full zoom is 3.8 mm, while the minimum is 10.2 mm.
Thus, this microscope represents an ideal solution for professionals who value precise detail work and reliable technology.
Details
- Voltage Voltage
- 100 - 240 V
- Depth Depth
- 420 mm
- Height Height
- 670 mm
- Width Width
- 280 mm
- Illuminant Illuminant
- LED
- Capture resolution Capture resolution
- 2592 x 1944
- Field of view max. zoom Field of view max. zoom
- 3.8 mm
- Field of view min. zoom Field of view min. zoom
- 10.2 mm
- Support Support
- Ergo stand
- Working distance Working distance
- 200 mm
- Zoom range Zoom range
- 4.2x - 42x
- Weight Weight
- 15.3 kg
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Lynx EVO eyepieceless stereo microscope
Maximum productivity through superior ergonomics
The Lynx EVO was developed to sustainably improve the way you work. Whether inspection, rework or quality control - with razor-sharp, high-resolution 3D stereo images you stay focused, efficient and relaxed - even when working for hours on end. With magnifications from 2.7x to 240x, the Lynx EVO can be used flexibly and is ideal for a wide range of applications.
Efficiency rethought - more space, more precision, more control
The eyepieceless design of the Lynx EVO allows a clear view of the working environment, optimizes your hand-eye coordination and provides a generous working area.
Best of all: no need to adjust eyepieces, no need to get used to it - perfect for use by multiple users.
Comfort that pays off
The Lynx EVO stands for ergonomics without compromise. No eyepieces, no rigid posture - instead comfortable working with natural head and body movement. Less fatigue, more well-being and a lower risk of physical strain. People who wear (safety) glasses also benefit from the open design.
Dynascope® – The revolution in microscopy
Experience the next generation of optical imaging - with the integrated Dynascope® technology in the Lynx EVO.
This patented projection technology puts an end to conventional eyepieces - and opens up a completely new way of viewing: true-color, razor-sharp and in impressive 3D.
See. Without limits.
Instead of classic eyepieces, the Lynx EVO offers an ergonomically optimized viewing head with a large, unobstructed field of view. The advantage:
No need for precise eye alignment - just look in and get started. High-resolution stereo microscopy has never been so comfortable.
The secret behind Dynascope®
At the heart of the system is a rotating multi-lens disk with over 3.5 million micro-lenses - each just a few micrometers in size.
These lenses focus countless light paths and form a clear, high-contrast image - without any image distortion. The two light paths are combined by Dynascope® in the viewing area.
