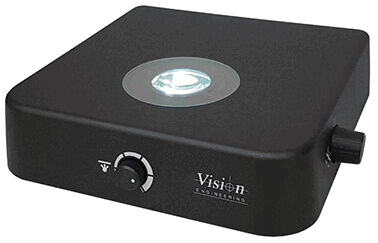

The image displays a square, black device with a circular lens in the center. On the front, there is a dial and a control light. It is a vision aid device.
Transmitted light unit with tiltable mirror
(Product No.: TMB001)
The image displays a square, black device with a circular lens in the center. On the front, there is a dial and a control light. It is a vision aid device.
Notice / Inquire

Transmitted light unit with tiltable mirror

dpvlink:
27635
Further product information

  End of Life
at short notice at short notice
1.458,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Transmitted light unit with tiltable mirror

The transmitted light unit with clip mirror from Vision allows transparent-looking objects to be clearly displayed under normal bright field illumination with three-dimensional properties. This lighting unit is specifically designed to be individually adapted to each sample, thereby making details visible. By adjusting intensity, angle, and aperture, otherwise invisible edges, textures, and transitions are significantly highlighted. Thus, the transmitted light unit enhances the three-dimensional representation and enables targeted light control to highlight important details.
The unit is compatible with Vision Engineering's ocular-less, conventional stereo, and digital microscopes, making it particularly versatile in application. It is used in fields such as plastics engineering, optics, ceramics, biotechnology, research, and pharmacy. Additionally, the product is suitable for the models IOTA, ERGO, PIXO, Lynx EVO, and EVO Cam II and comes with a power supply.
This technical solution offers adjustable shutter speeds, lighting angles, and light intensity to ensure optimal image representation for every type of object.
