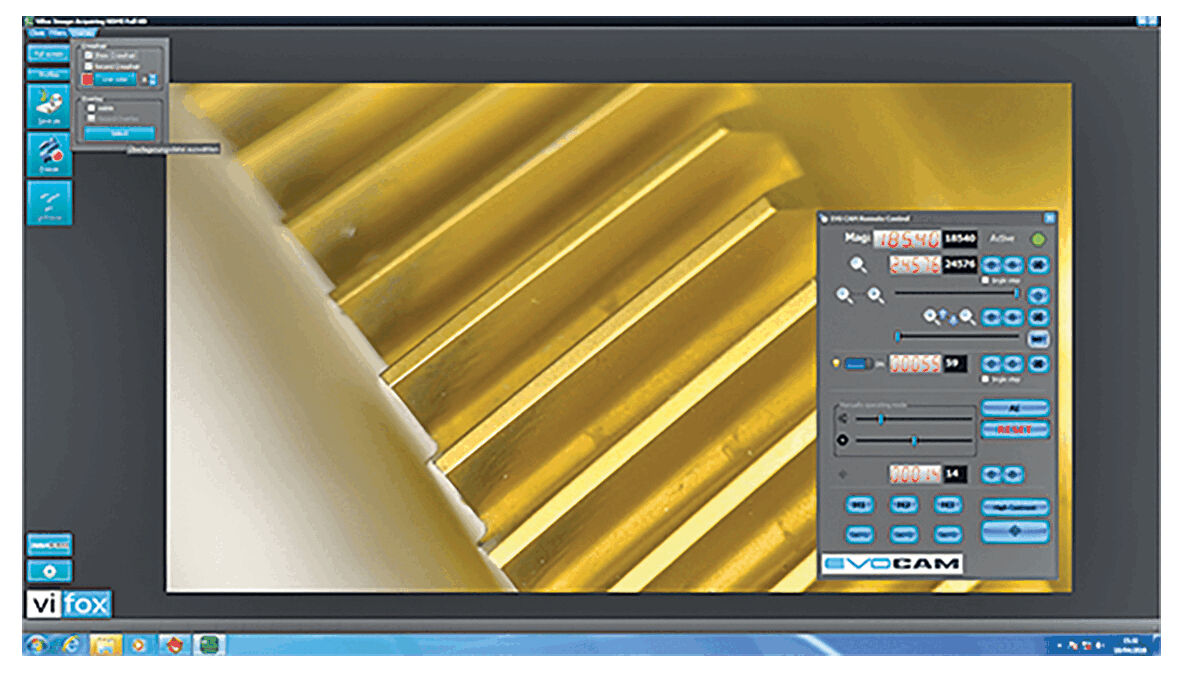

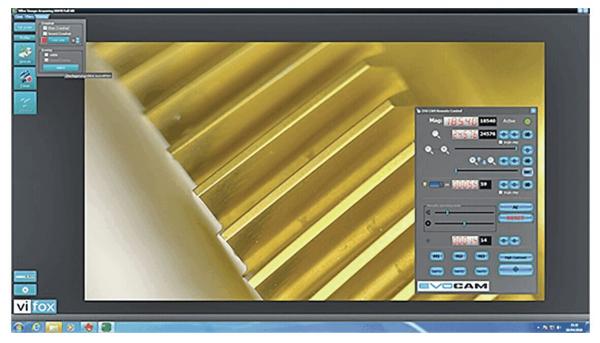

The image displays a computer-generated user interface with an enlarged view of fine, parallel grooves in gold color. On the left side, tools and controls are depicted to alter the view.

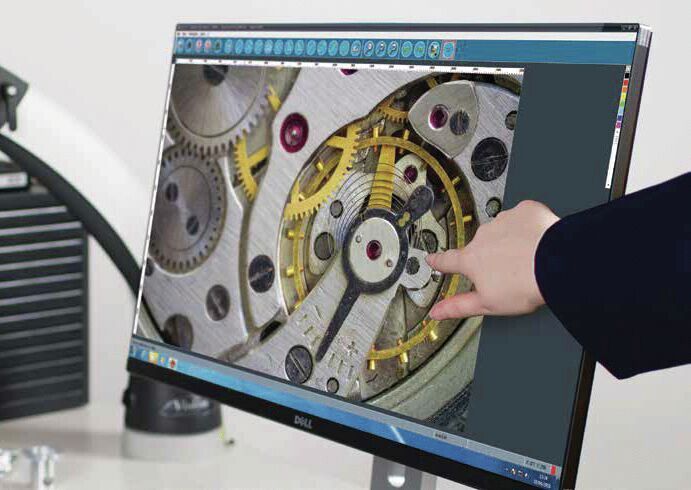

On the screen, details of the clockwork are visible, with gears and springs in silver and gold. A hand points to a specific area of the mechanism.
Preview: The image displays a computer-generated user interface with an enlarged view of fine, parallel grooves in gold color. On the left side, tools and controls are depicted to alter the view.
Preview: On the screen, details of the clockwork are visible, with gears and springs in silver and gold. A hand points to a specific area of the mechanism.
Vifox 9.0 Imaging software 9.0
(Product No.: VECE-VIFO-EVO)
The image displays a computer-generated user interface with an enlarged view of fine, parallel grooves in gold color. On the left side, tools and controls are depicted to alter the view.
On the screen, details of the clockwork are visible, with gears and springs in silver and gold. A hand points to a specific area of the mechanism.
Mobile Preview: The image displays a computer-generated user interface with an enlarged view of fine, parallel grooves in gold color. On the left side, tools and controls are depicted to alter the view.
Mobile Preview: On the screen, details of the clockwork are visible, with gears and springs in silver and gold. A hand points to a specific area of the mechanism.
Notice / Inquire

Vifox 9.0 Imaging software 9.0

dpvlink:
28105
Further product information

at short notice at short notice
1.424,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Vifox 9.0 Imaging software 9.0

The Vifox 9.0 Imaging Software, developed by Vision, offers a comprehensive solution for image capture, measurement, and documentation. Compatible with the EVO Cam II, Mantis, and Lynx EVO systems, this software enables quick and easy image capture through an integrated image buffer. Users can save images in various formats such as JPG, BMP, PNG, or TIFF and have the option to add overlays like crosshairs, grids, and labels.
The software supports extensive 2D measurement functions for distances, circles, angles, and areas, including special applications such as weld measurement and layer thickness measurement. The intuitive user interface allows for easy selection of measuring tools and the direct transfer of results to applications like Excel or Word. Additionally, a gallery function facilitates the quick overview and selection of images.
Additional features include creating or importing scalable overlays, complete editing of measurement lines, and the ability to copy captured images via drag & drop into other applications. The software is available in English and German and offers an online measurement preview as well as digital zoom, making it an essential tool for technical professionals.
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

ViFox Software

Smart imaging software for documentation

Based on two application-dependent basic packages, Vifox EVO can be modularly expanded from an intuitive image capture and measurement application to a powerful image processing tool - perfectly tailored to your exact application. You don't have to spend money on functions you don't need. Simply choose the basic package that suits you and expand it with special modules to create a software solution that meets your exact needs.

Image acquisition, measurement & documentation

  • Easy and fast image acquisition via integrated image buffer
  • 2D screen measurement
  • Save and recall calibration values
  • Gallery function for quick overview and selection of images (or image selection)



Measurement functions

Calibratable measuring tools enable accurate results. Easy storage and recall of calibration data makes operation convenient.

Create or import scalable 2D overlays to check against specifications or other quality requirement.

  • Measuring (2D) distances, circles, angles, areas, circumference, etc.
  • Polygonal distance measurement
  • Grid creation, point-by-point area determination
  • Gallery and scroll function for quick image selection
  • With a-measurement for weld seam measurement & simple layer thickness measurement
  • Display of grids
  • Correct measurement by “snapping” the start and end points of existing measurements
  • Define which measured values are transferred to the data fields or the report
  • Extensive display of measurement lines and labels for each measurement type



List of functions:

  • Save images as JPG, BMP, PNG or TIFF
  • Show crosshairs, grids and labels as overlays
  • Create or import scalable overlays
  • Full editing of dimension lines, arrows, labels, etc.
  • Intuitive measurement tool selection
  • Easy reporting by transferring tables to Excel/Word
  • Captured images can be copied to other applications via drag & drop
  • Supported languages: English and German

Minimum system requirements:

  • Windows 10 (64 bit)
  • IBM-compatible PC
  • CPU: Intel i7
  • RAM: min. 8 GB
  • Graphics card: min. 1 GB VRAM and own graphics processor
  • HDD: min. 2 GB free (SSD recommended)
  • USB: min. 1 free USB3.0 port
  • Dot NET Framework: 3.51 SP1, 4.5, 4.6, 4.61
  • Local administration rights required for installation
