LED magnifier lamp Omega 7 ESD
LED magnifier lamp Omega 7 ESD

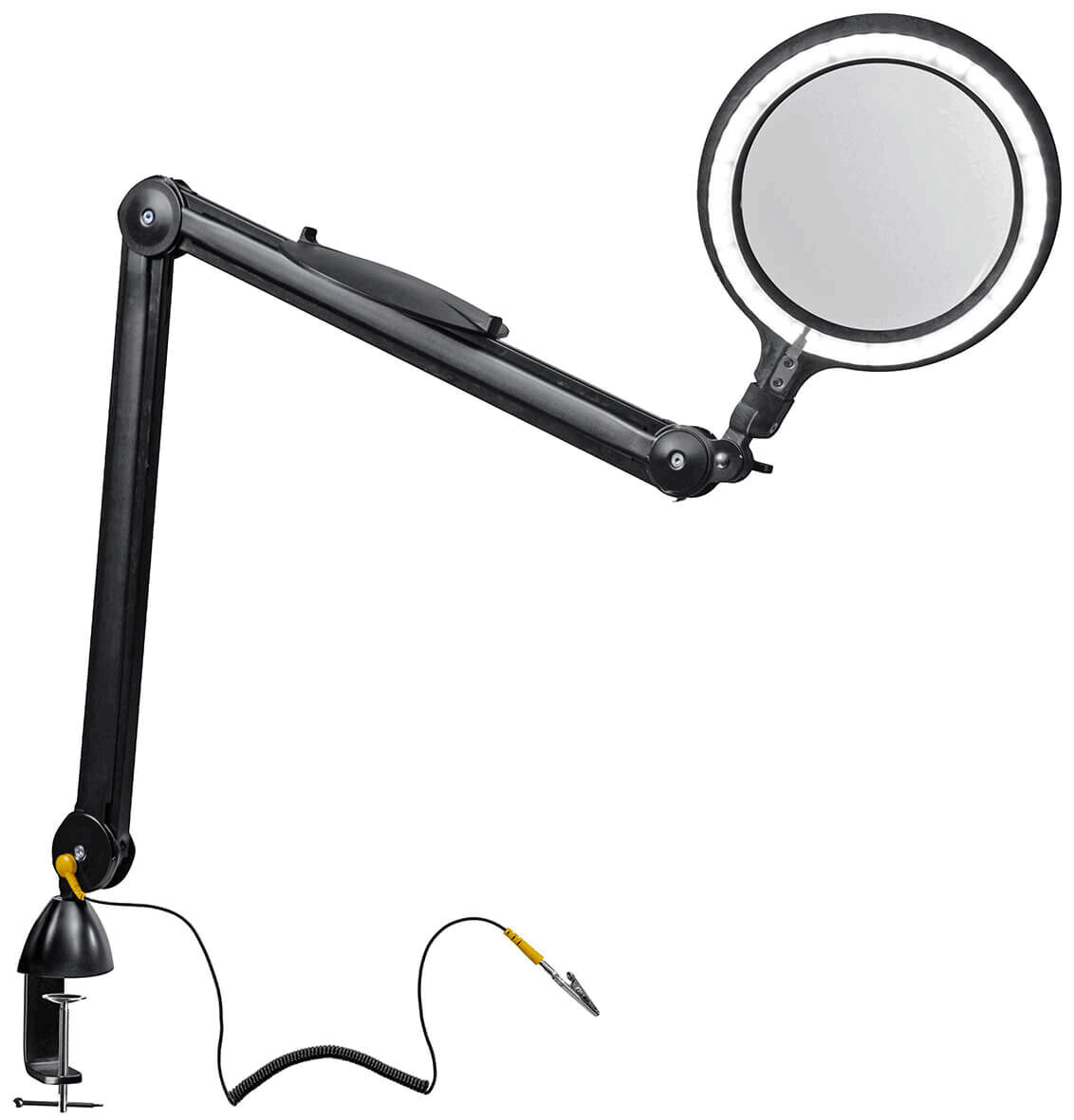

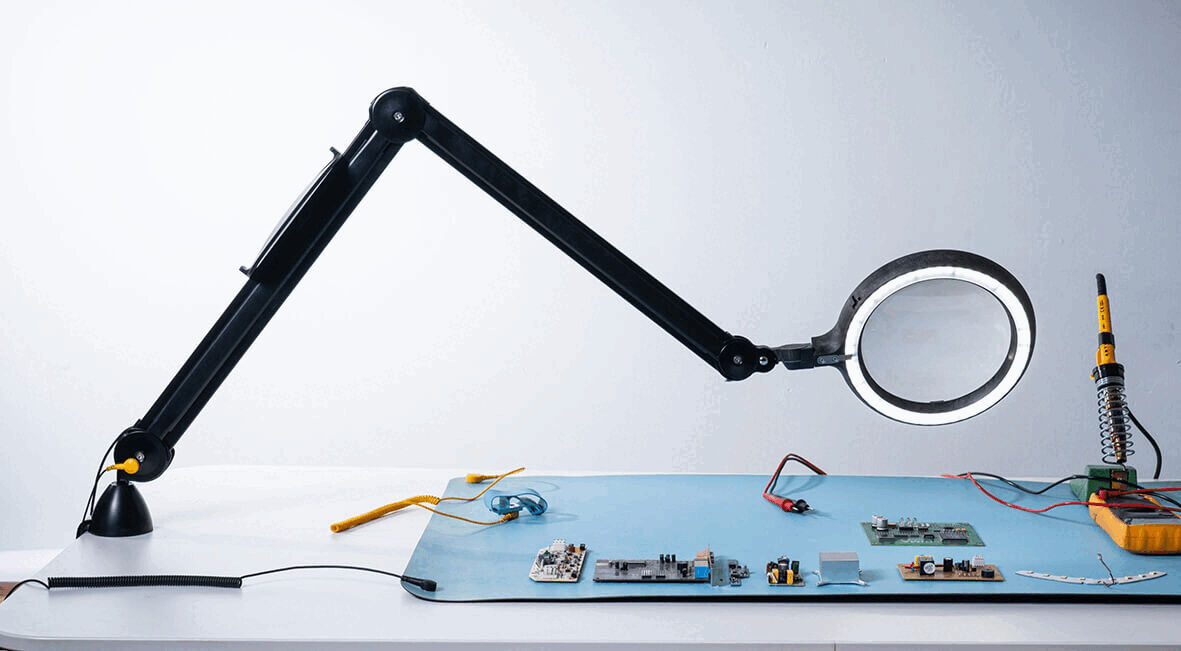

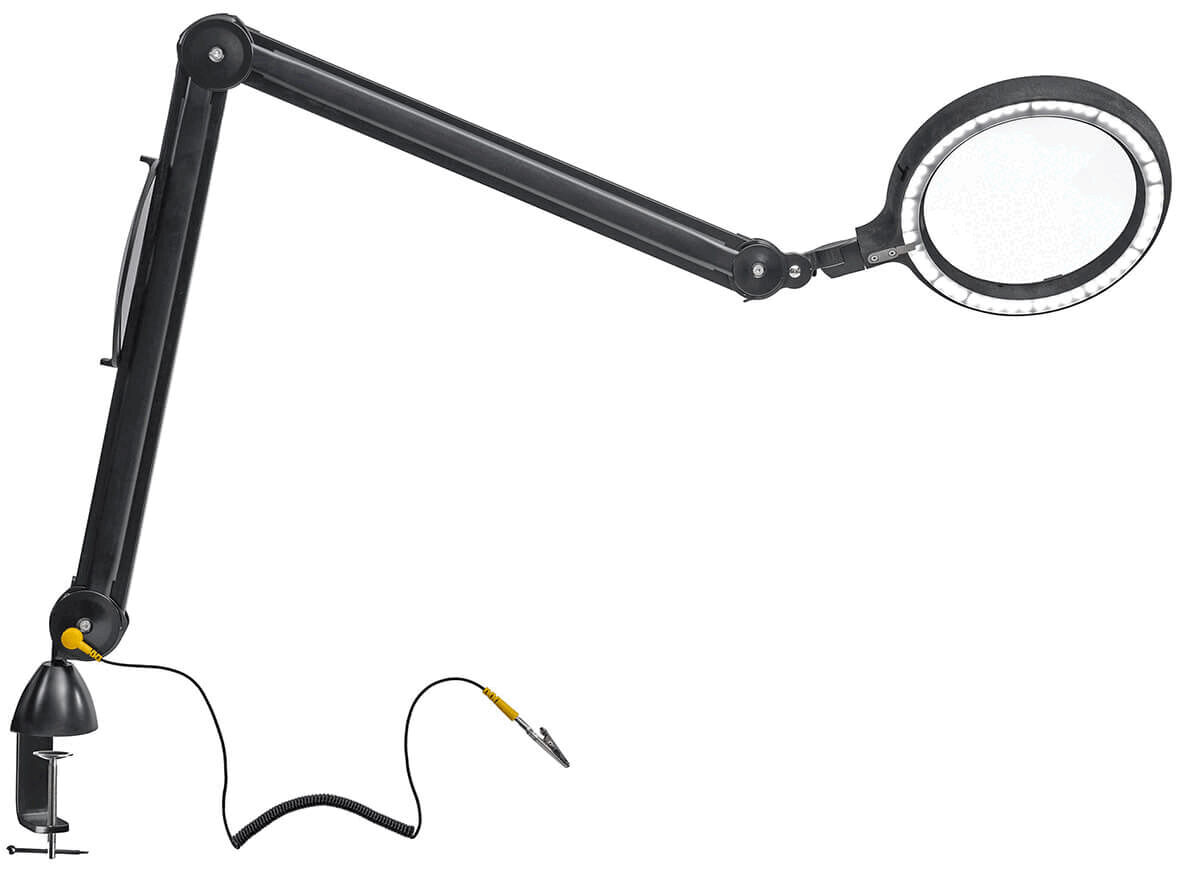

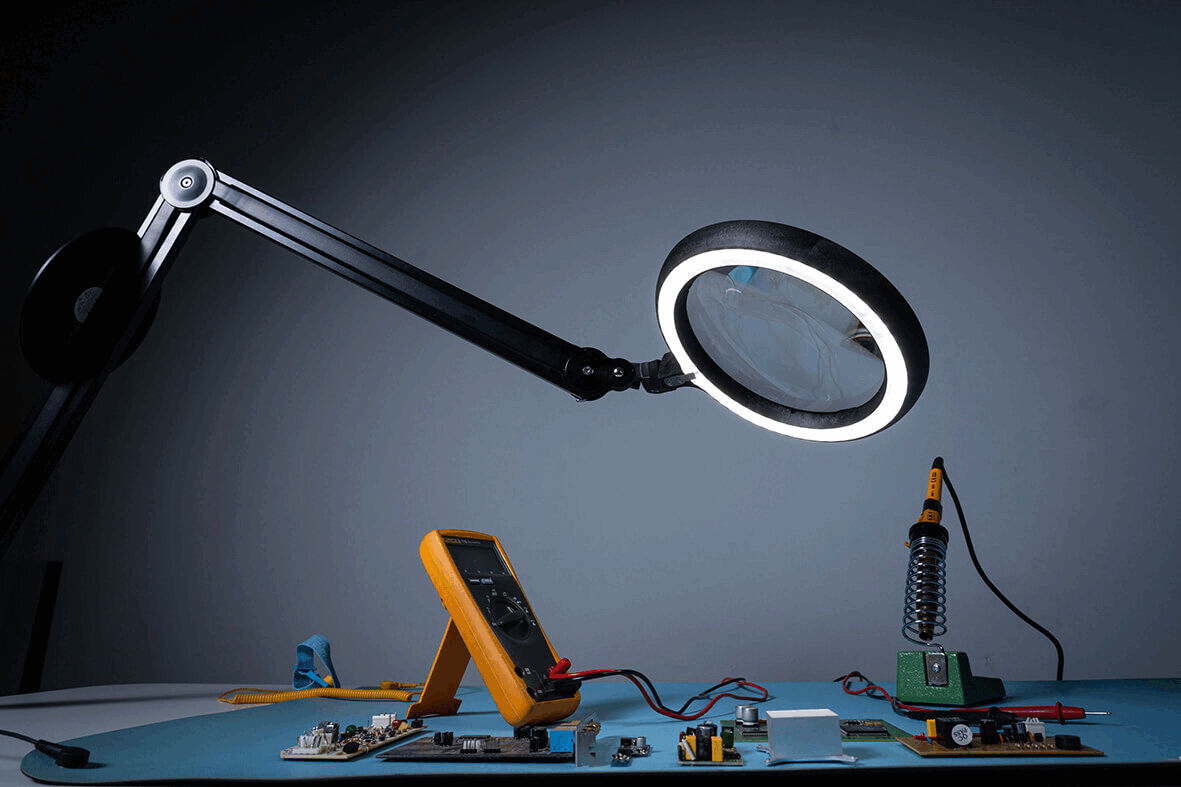

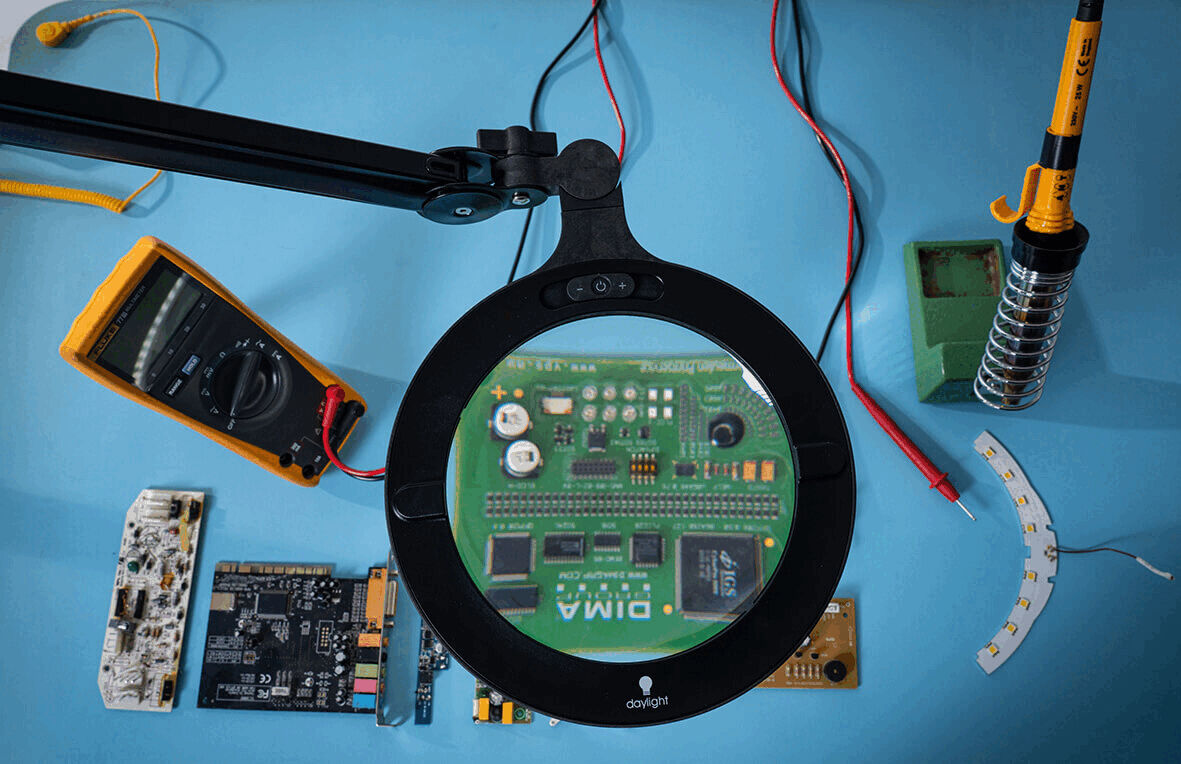

The Daylight Omega 7 ESD LED magnifying lamp is specifically designed for use in ESD-protected areas (EPA) and meets the standards IEC 61340-5-1 and ANSI/ESD S20.20. This high-quality magnifying lamp provides excellent illumination with 8,000 Lux at a distance of 15 cm and is equipped with daylight LEDs that have a color rendering index (CRI) of over 95. The three selectable color temperatures (2,700 K, 4,000 K, 5,500 K) and four brightness levels, including continuous dimming, allow for precise adjustment of lighting conditions to different work environments.The Omega 7 ESD features a 17.5 cm optical quality glass lens with 3 diopters (1.75x magnification) that can be quickly and easily cleaned or replaced. The robust construction made of carbon fiber and the ergonomic wing nut on the 3-joint head ensure flexible and precise positioning. Additionally, the magnifying lamp offers four independently controllable light segments, which enable the creation of shadows and highlighting of specific details to improve contrast and clarity.
Other features include a 2.0 m long cable, a weight of 4100 g, and an automatic shut-off after 9 hours to save energy. The included magnetic lens cover can be attached to the arm when not in use, facilitating handling and storage.
Details
- Power [W] Power [W]
- 12,5 W
- Lens Lens
- glass lens
- Magnification Magnification
- 1.75x/4x
- Cable length Cable length
- 2.0 m
- Color Color
- black
- Swivel arm/frame Swivel arm/frame
- 950 mm
- Width Width
- 230 mm
- Illuminance at 15 cm Illuminance at 15 cm
- 8,000 Lux
- Illuminant Illuminant
- LED
- Lighting type Lighting type
- ring light
- Color rendering index Color rendering index
- 95+
- Diopters Diopters
- 3
- Lens dimensions Lens dimensions
- 175 mm
- ESD ESD
- yes
- Color temperature Color temperature
- 2.700 - 5,500 K
- Weight Weight
- 4100 g
Show accessories
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
