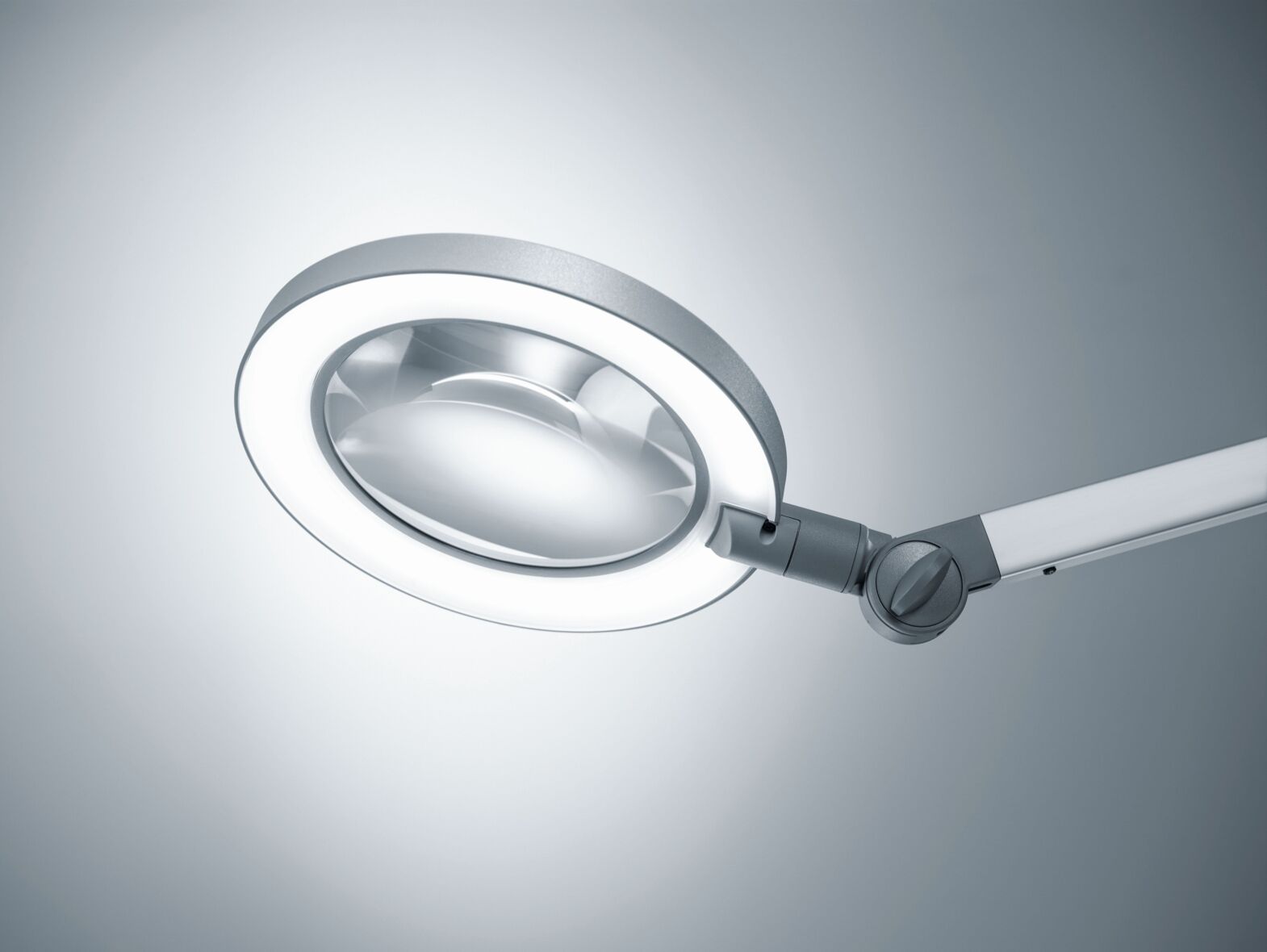

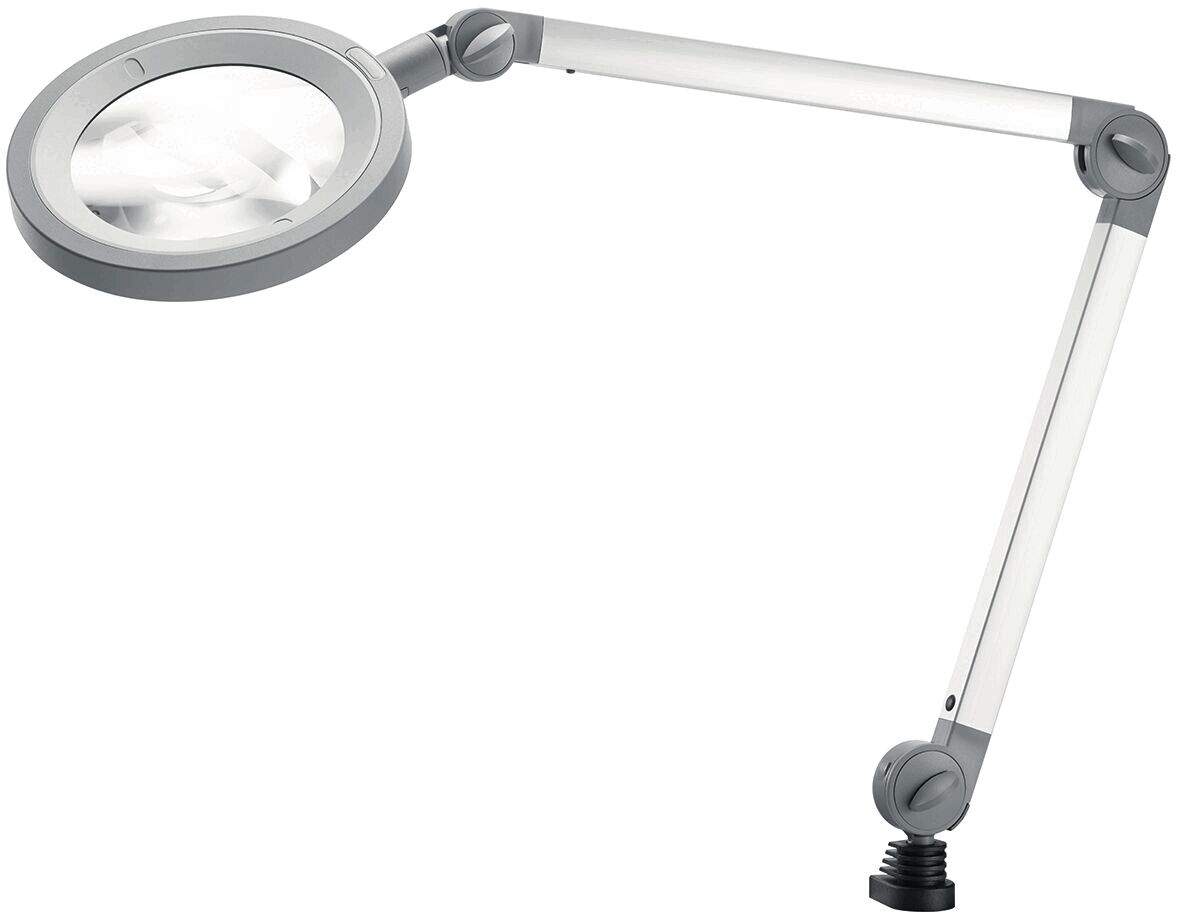

The image shows an adjustable magnifying glass with integrated lighting. The long arm is flexible and allows for easy positioning for precise work or reading.

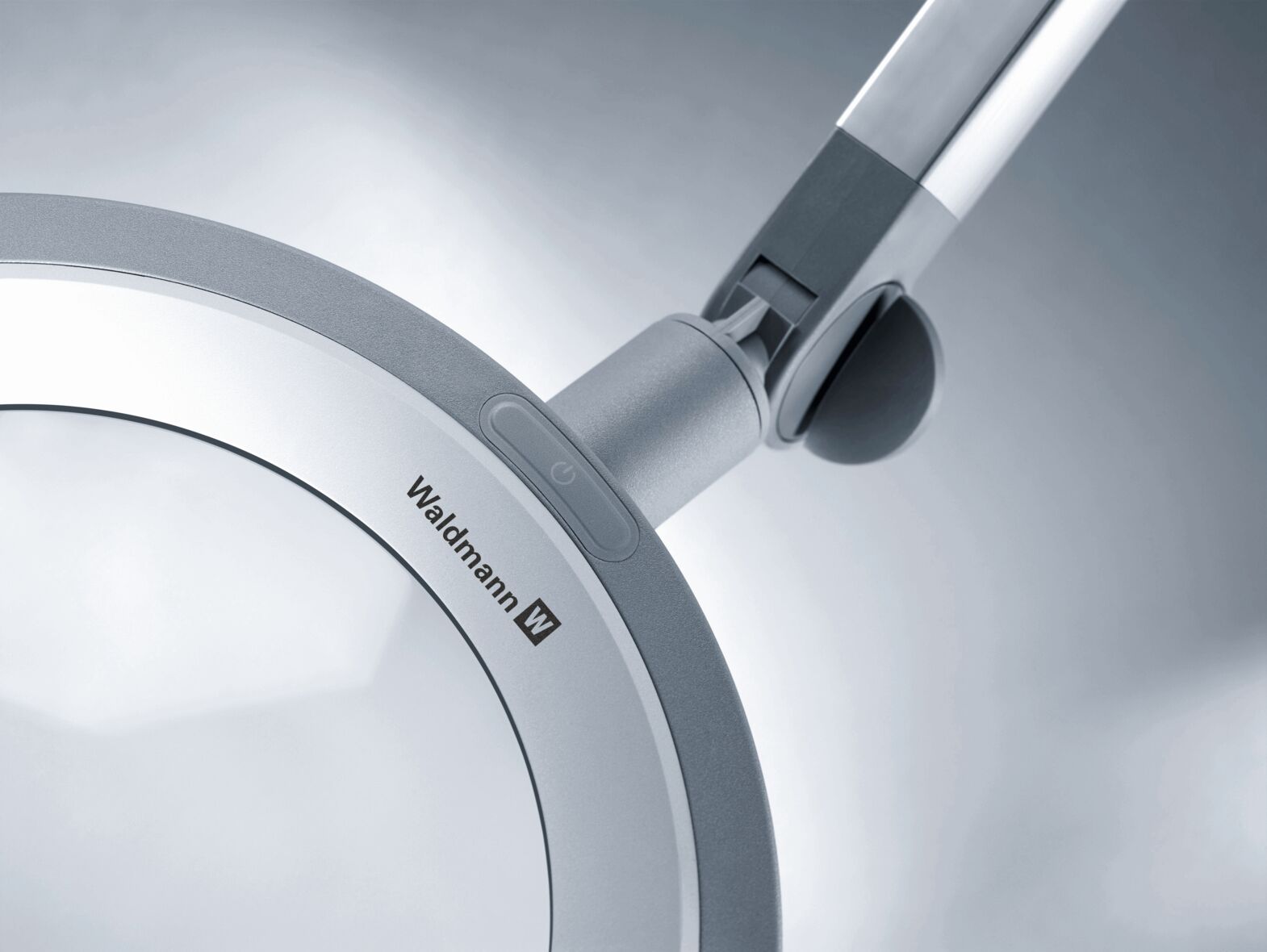

The image displays a feature-rich magnifying glass with light, mounted on a flexible, white arm. The round lamp edge ensures even illumination. The background is simple and bright.

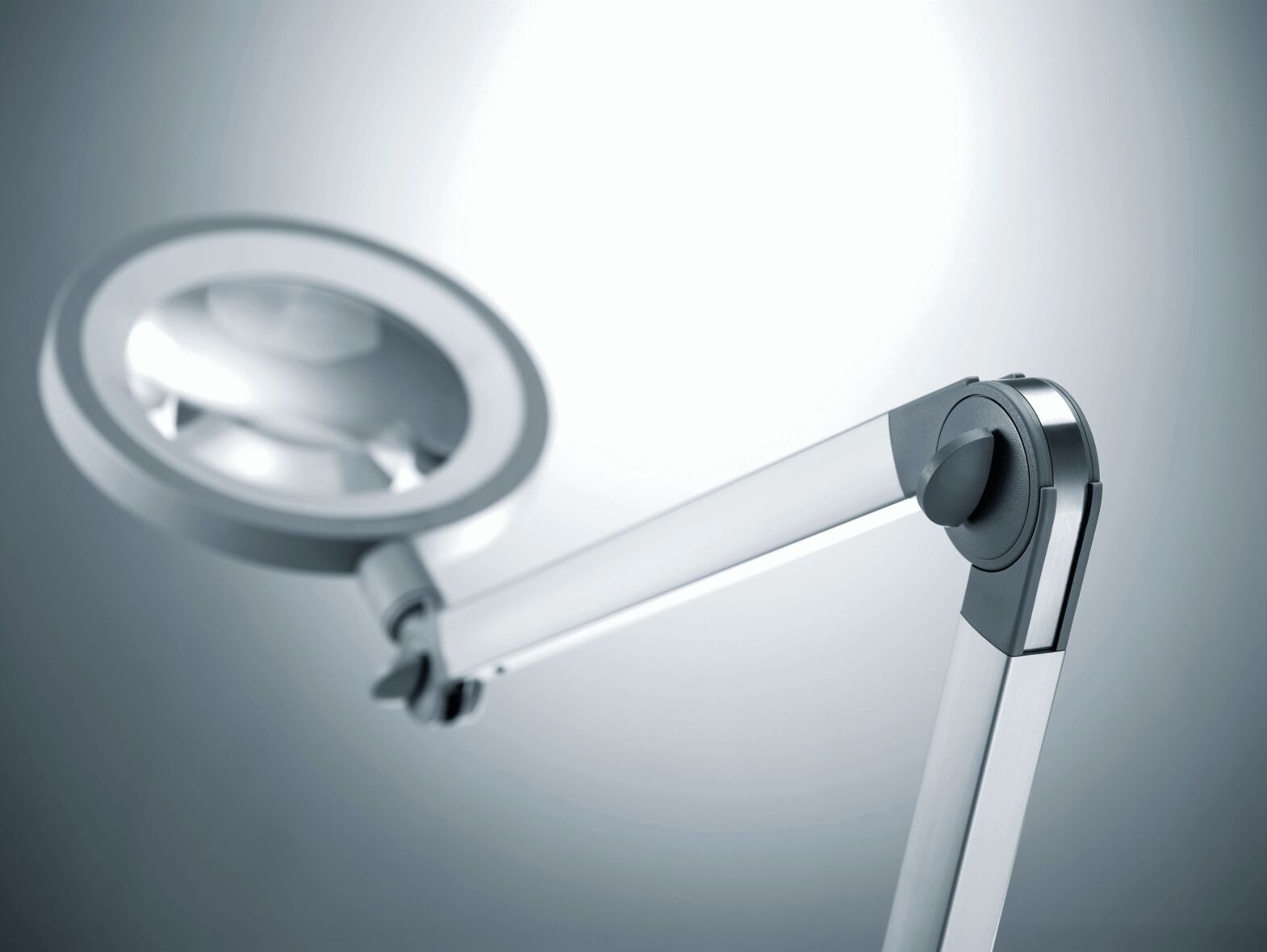

The image shows a modern light arm with a large, round lamp. The arm is swivelable and made of silver metal, with a clear, focused light inside the lamp.
The image displays a magnifying lamp with a round, transparent glass and an integrated ring of light. The arm is flexible and allows for various positions.

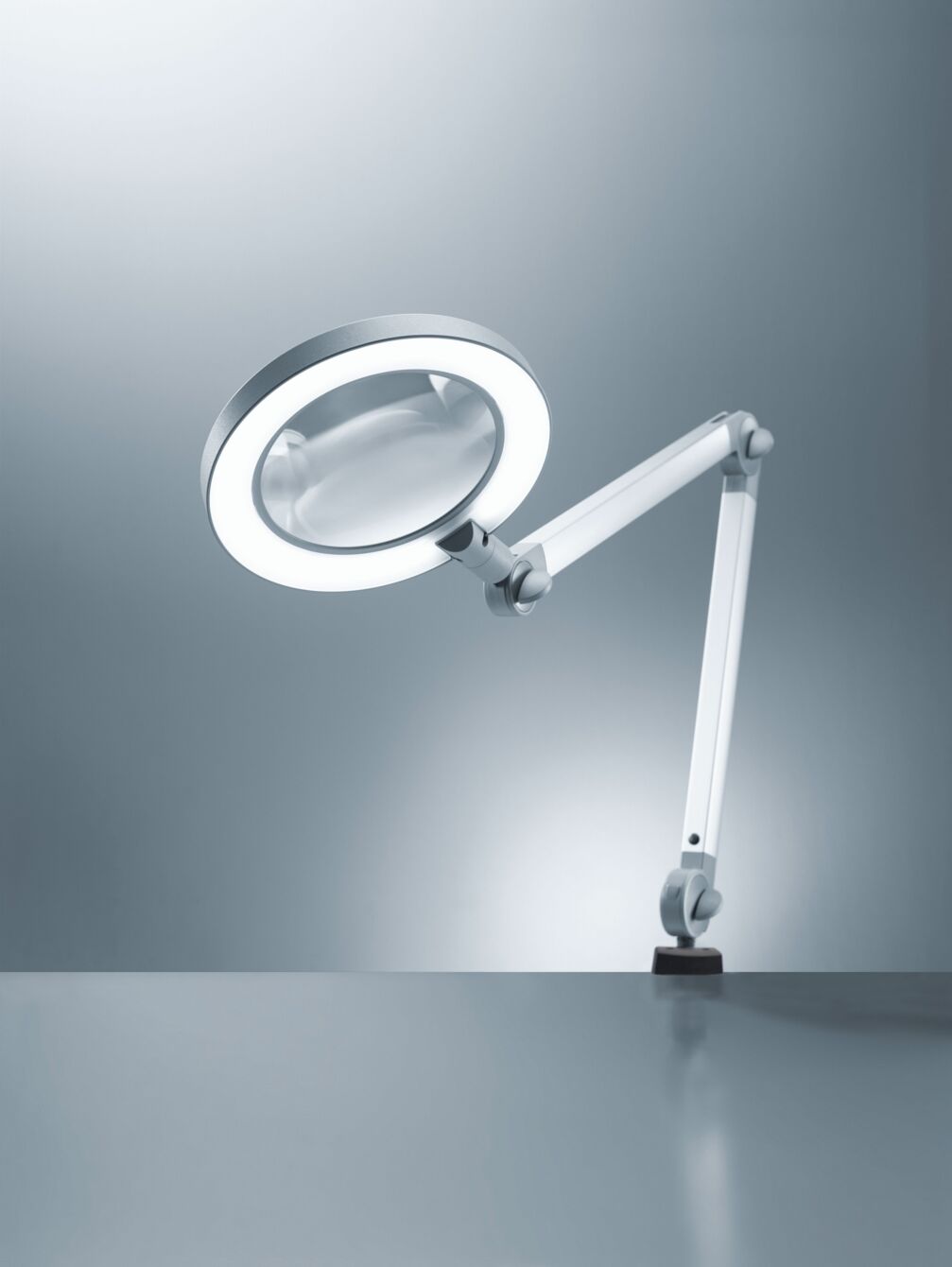

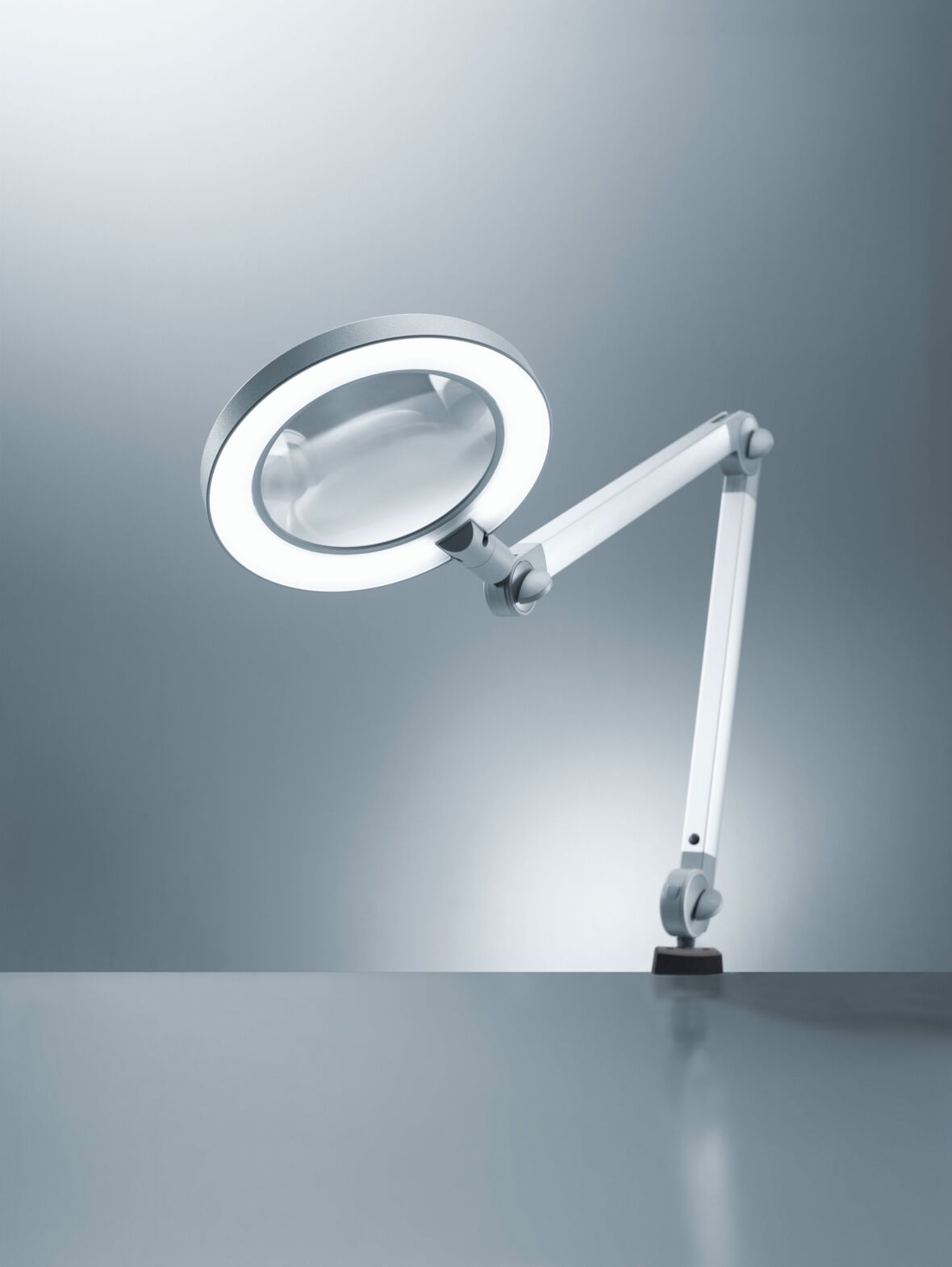

The image displays a modern magnifying glass with a large, round lens, surrounded by a slim silver frame. An adjustable arm allows for flexible positioning.

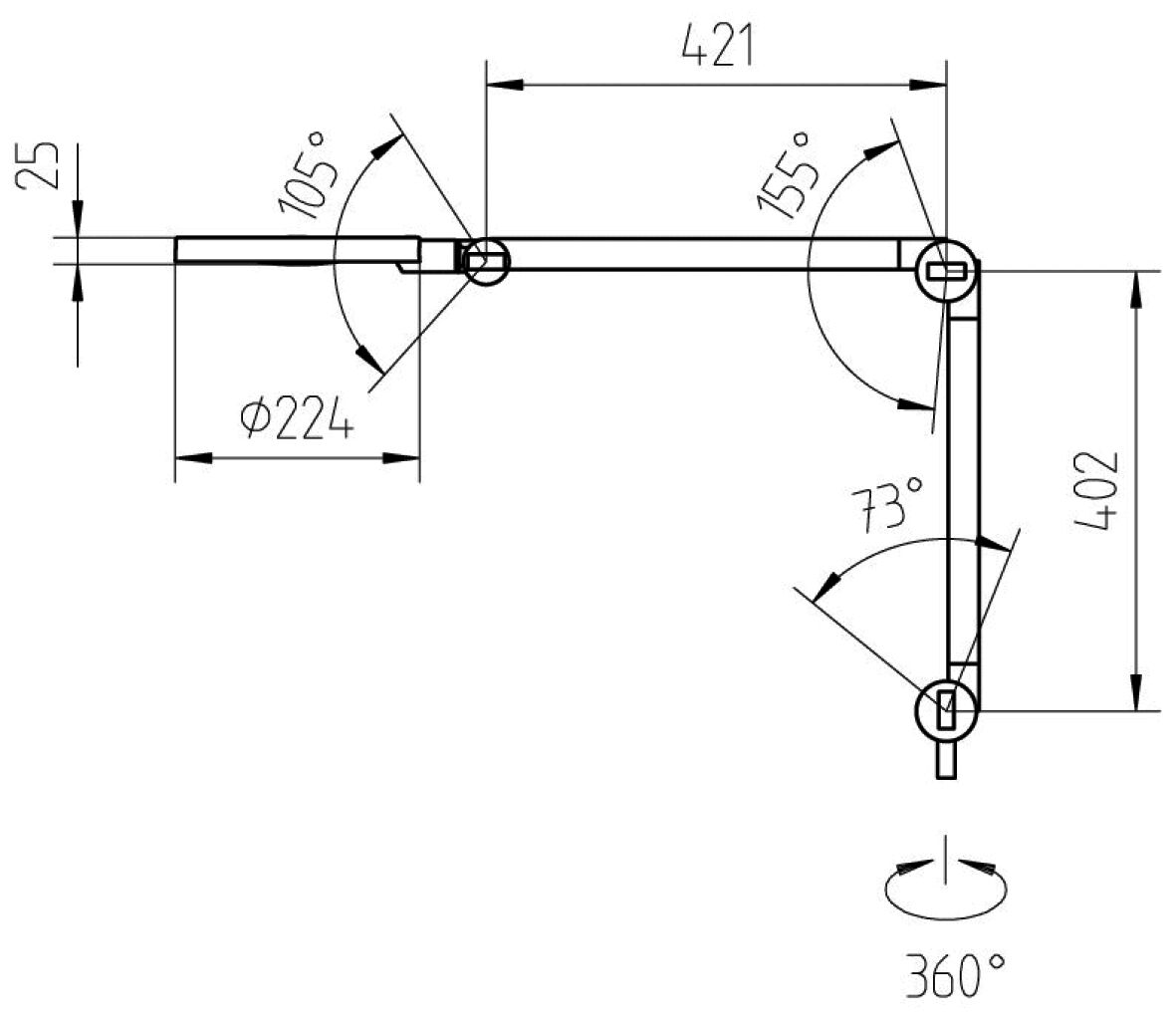

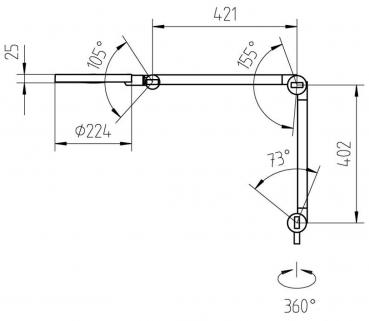

The image shows a technical drawing of a joint mechanism. Various dimensions and angles are indicated, describing the shape and movement properties of the mechanism.
Preview: The image shows an adjustable magnifying glass with integrated lighting. The long arm is flexible and allows for easy positioning for precise work or reading.
Preview: The image displays a feature-rich magnifying glass with light, mounted on a flexible, white arm. The round lamp edge ensures even illumination. The background is simple and bright.
Preview: The image shows a modern light arm with a large, round lamp. The arm is swivelable and made of silver metal, with a clear, focused light inside the lamp.
Preview: The image displays a magnifying lamp with a round, transparent glass and an integrated ring of light. The arm is flexible and allows for various positions.
Preview: The image displays a modern magnifying glass with a large, round lens, surrounded by a slim silver frame. An adjustable arm allows for flexible positioning.
Preview: The image shows a technical drawing of a joint mechanism. Various dimensions and angles are indicated, describing the shape and movement properties of the mechanism.
Magnifier lamp MLP
(Product No.: 703.170)
The image shows an adjustable magnifying glass with integrated lighting. The long arm is flexible and allows for easy positioning for precise work or reading.
The image displays a feature-rich magnifying glass with light, mounted on a flexible, white arm. The round lamp edge ensures even illumination. The background is simple and bright.
The image shows a modern light arm with a large, round lamp. The arm is swivelable and made of silver metal, with a clear, focused light inside the lamp.
The image displays a magnifying lamp with a round, transparent glass and an integrated ring of light. The arm is flexible and allows for various positions.
The image displays a modern magnifying glass with a large, round lens, surrounded by a slim silver frame. An adjustable arm allows for flexible positioning.
The image shows a technical drawing of a joint mechanism. Various dimensions and angles are indicated, describing the shape and movement properties of the mechanism.
Mobile Preview: The image shows an adjustable magnifying glass with integrated lighting. The long arm is flexible and allows for easy positioning for precise work or reading.
Mobile Preview: The image displays a feature-rich magnifying glass with light, mounted on a flexible, white arm. The round lamp edge ensures even illumination. The background is simple and bright.
Mobile Preview: The image shows a modern light arm with a large, round lamp. The arm is swivelable and made of silver metal, with a clear, focused light inside the lamp.
Mobile Preview: The image displays a magnifying lamp with a round, transparent glass and an integrated ring of light. The arm is flexible and allows for various positions.
Mobile Preview: The image displays a modern magnifying glass with a large, round lens, surrounded by a slim silver frame. An adjustable arm allows for flexible positioning.
Mobile Preview: The image shows a technical drawing of a joint mechanism. Various dimensions and angles are indicated, describing the shape and movement properties of the mechanism.
Notice / Inquire

Magnifier lamp MLP

dpvlink:
20953
Magnification:
1.875x
Color temperature:
5,000 K
Luminous flux:
800 Lumen
Further product information

at short notice at short notice
351,00 EUR
per PCE

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Magnifier lamp MLP

The Waldmann MLD magnifying lamp combines high functionality with modern design and is specifically designed for technical use. With a neutral white light color of 5000 K and a luminous flux of 800 lumens, it provides excellent illumination. The lamp is equipped with a 160 mm diameter plastic lens and 3.5 diopters, which allows for a magnification of 1.875x.
The housing is made of anodized aluminum and gray plastic, giving the lamp a robust and durable quality. The stepless dimming function and the multifunction button allow for easy operation. The lamp is also equipped with an electronic plug-in ballast and can be connected to power supplies from 100-240 V.
Weighing about 2.5 kg and with a power cord length of 3.20 m, the MLD magnifying lamp is practical to handle and versatile in use. It comes with a table clamp that allows for attachment to tables with a thickness of 0 to 70 mm. The IP 20 protection class ensures safe use in dry indoor areas.
Magnification
Magnification
1.875x
Color temperature
Color temperature
5,000 K
Luminous flux
Luminous flux
800 Lumen
Cable length
Cable length
3.20 m
Color
Color
aluminum anodized / grey
Voltage
Voltage
100 - 240 V
Swivel arm/frame
Swivel arm/frame
823 mm
Illuminant
Illuminant
LED
Lighting type
Lighting type
ring light
Luminous color
Luminous color
neutral white
Power [W]
Power [W]
11 W
Color rendering index
Color rendering index
80+
Diopters
Diopters
3,5
Lens
Lens
plastique lens
Lens dimensions
Lens dimensions
160 mm
Material
Material
plastic / aluminum
Surface
Surface
anodized
ESD
ESD
no
Weight
Weight
2500 g
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Magnifier lamp MLP

Article image
Article description
ESD
Magnification
Color temperature
Luminous flux
Price
Compare
703.170 - Magnifier lamp MLP
703.170
Magnifier lamp MLP
1.875x
5,000 K
800 Lumen
351,00 EUR
