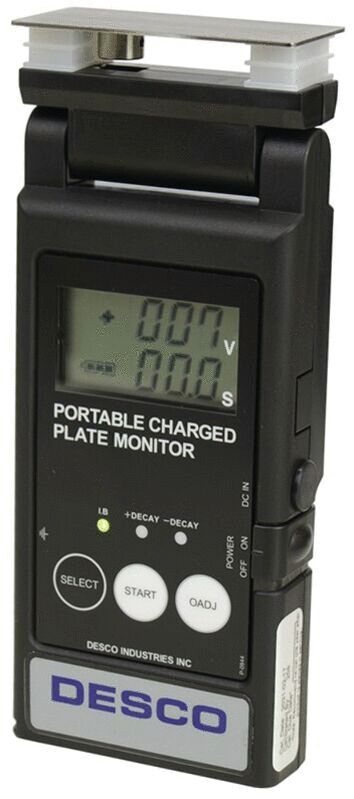

The image displays a portable device for measuring electric charge. It features a digital display with buttons and a top plate for measurement. The color scheme is primarily black.

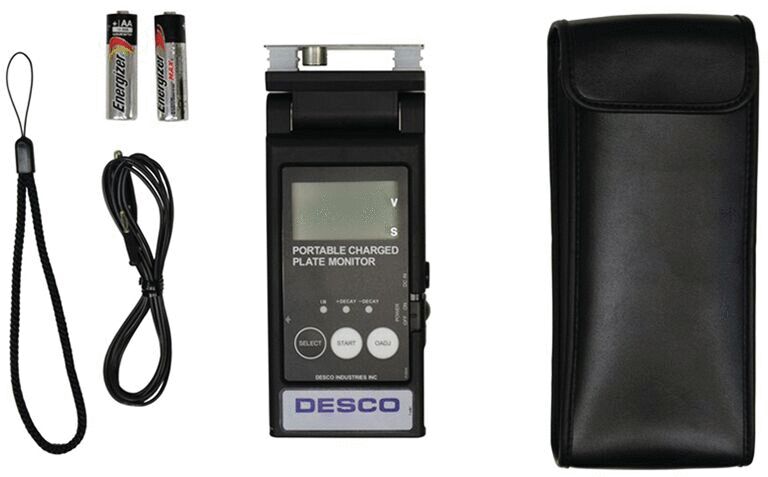

The image shows a portable device, a flat monitor with a digital display. Next to it are two batteries, a cable, and a black bag.

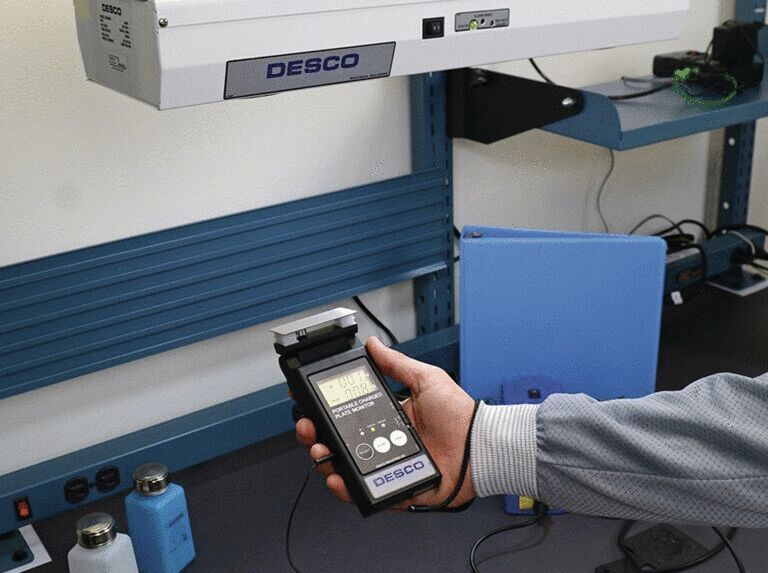

The image shows a handheld device from DESCO being held in hand. In the background, shelves with various equipment and a blue binder are visible.
Preview: The image displays a portable device for measuring electric charge. It features a digital display with buttons and a top plate for measurement. The color scheme is primarily black.
Preview: The image shows a portable device, a flat monitor with a digital display. Next to it are two batteries, a cable, and a black bag.
Preview: The image shows a handheld device from DESCO being held in hand. In the background, shelves with various equipment and a blue binder are visible.
Portable Charged Plate Monitor
(Product No.: 718-19494)
The image displays a portable device for measuring electric charge. It features a digital display with buttons and a top plate for measurement. The color scheme is primarily black.
The image shows a portable device, a flat monitor with a digital display. Next to it are two batteries, a cable, and a black bag.
The image shows a handheld device from DESCO being held in hand. In the background, shelves with various equipment and a blue binder are visible.
Mobile Preview: The image displays a portable device for measuring electric charge. It features a digital display with buttons and a top plate for measurement. The color scheme is primarily black.
Mobile Preview: The image shows a portable device, a flat monitor with a digital display. Next to it are two batteries, a cable, and a black bag.
Mobile Preview: The image shows a handheld device from DESCO being held in hand. In the background, shelves with various equipment and a blue binder are visible.
Notice / Inquire

Portable Charged Plate Monitor

dpvlink:
26670
Height :
174 mm
Length :
70 mm
Weight:
0.24 kg
Further product information

Delivery time! Delivery time!
2.453,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Portable Charged Plate Monitor

The portable Charged Plate Monitor Desco 19494 is a precise, handy measuring instrument specifically designed for checking the offset voltage and discharge times of air ionizers. This device is designed according to the standards ANSI/ESD SP3.3 and ESD TR53, offering measurement ranges from ±1000 V to ±100 V. Thanks to its compact dimensions (70 x 30 x 174 mm) and a low weight of only 0.24 kg, it is ideally suited for mobile use in industrial environments.
The 19494 is characterized by its user-friendliness and a non-reflective LCD display. A special feature is the head that can be tilted by 180°, facilitating measurement in hard-to-reach places. The device's plate measures 70 x 32 mm. Two AA batteries are required for power supply, ensuring flexible and easy handling during operation.
Additional features include a grounding cable and a handy carrying case, which ensure the safe transport and storage of the monitor. Each device is NIST-calibrated and comes with a corresponding certificate, confirming the accuracy and reliability of the measurements.
Height
Height
174 mm
Length
Length
70 mm
Weight
Weight
0.24 kg
Width
Width
30 mm
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 215
Complete Catalog 2023 - 2024

Product Family

Portable Charged Plate Monitor 19494

The portable Charged Plate Monitor 19494 is a handy device for measuring offset voltage and discharge times of air ionizers in compliance with ANSI/ESD SP3.3 and ESD TR53. Due to its compact design and the battery operation, it is ideal for the mobile use in industrial areas. The portable Charged Plate Monitor 19494 is easy to use, and with its 180° tiltable head, it can be used in very difficult to reach areas.

  • measurements between ± 1000 V and ± 100 V
  • AA batteries
  • LCD display (reflection-free)
  • dimensions 70 x 30 x 174 mm
  • 180° tiltable head
  • plate dimensions 70 x 32 mm
  • NIST calibrated with certification
