Ground Pro® Handheld Ground Integrity Meter
(Product No.: 3M-CTM051)

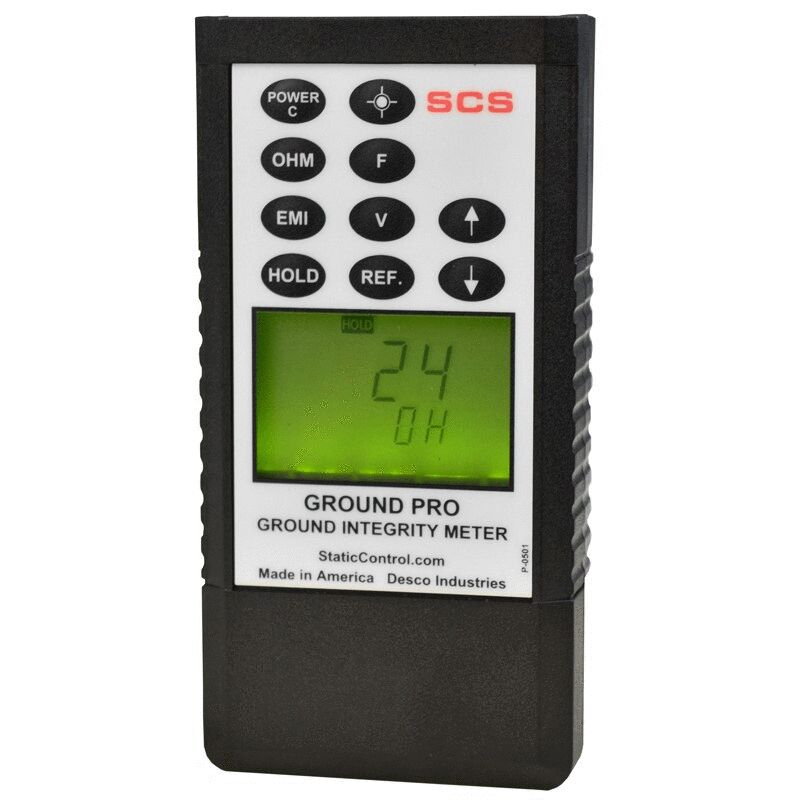

The image displays a portable testing device for checking ground integrity. It has a black casing with a digital display and several buttons for operation.

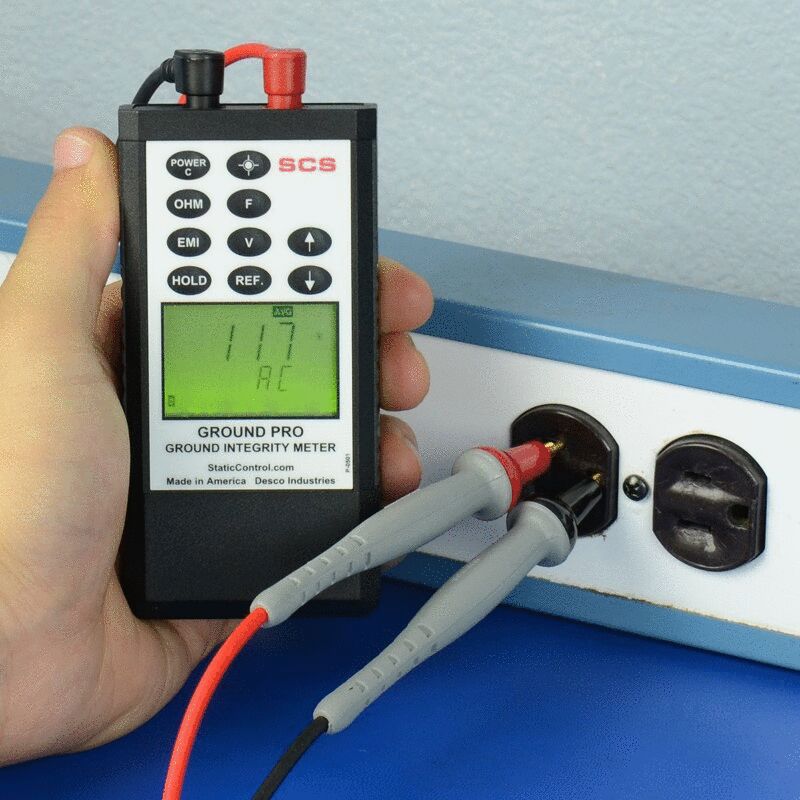

A handheld grounding tester is being held. It displays a number (117) on a green screen. Two red and gray cables are connected to an outlet.

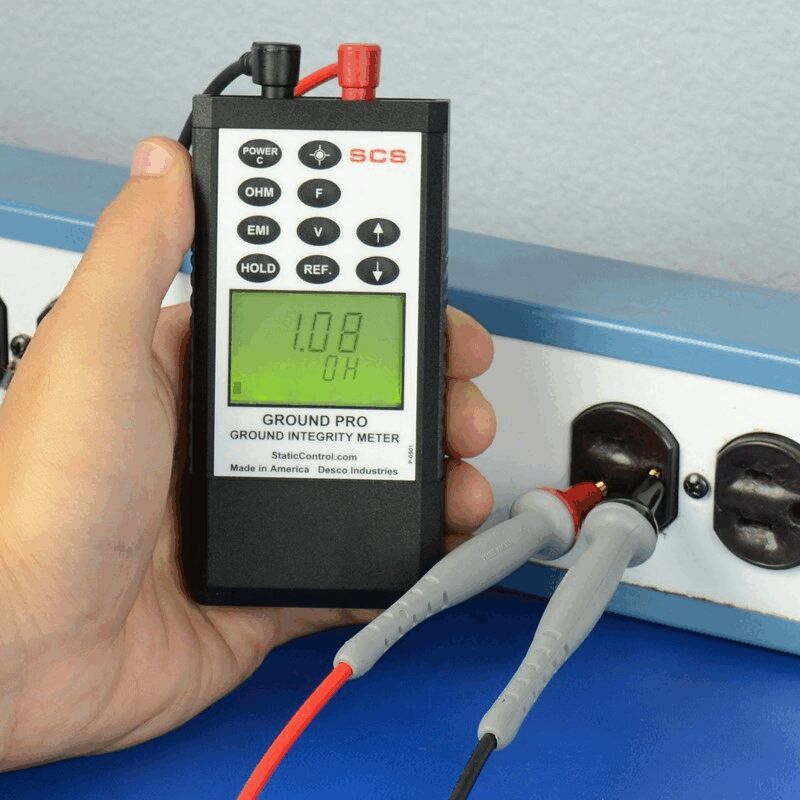

A handheld device for measuring soil conductivity, with a digital display showing a value of 1.08 ohms. It is connected to an outlet with two cables.

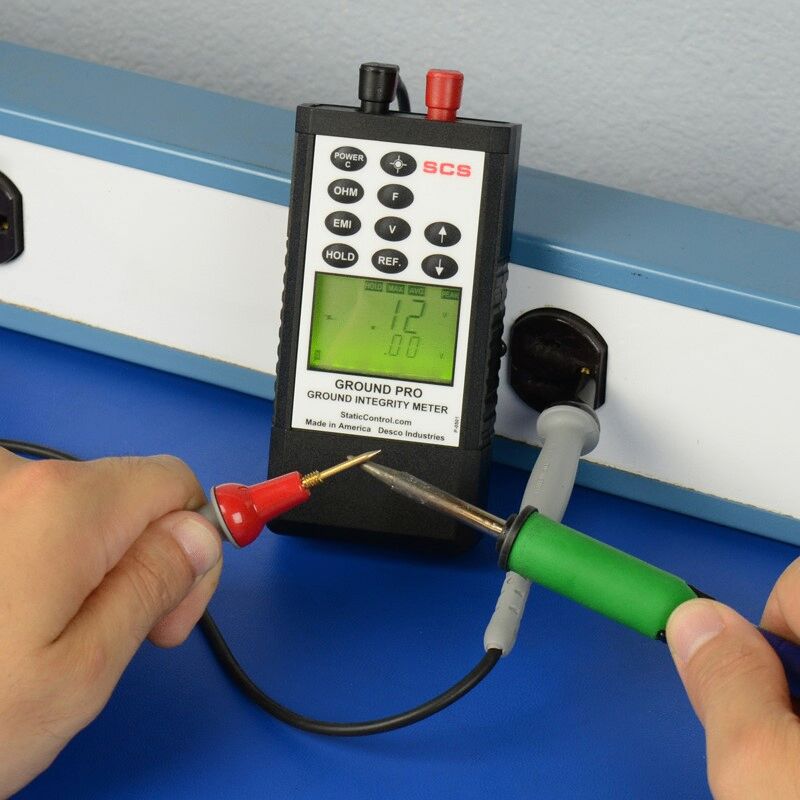

The image shows a measuring device with a screen and buttons. One hand is holding a green probe, the other a red one. These are connected by a cable that leads into the device.

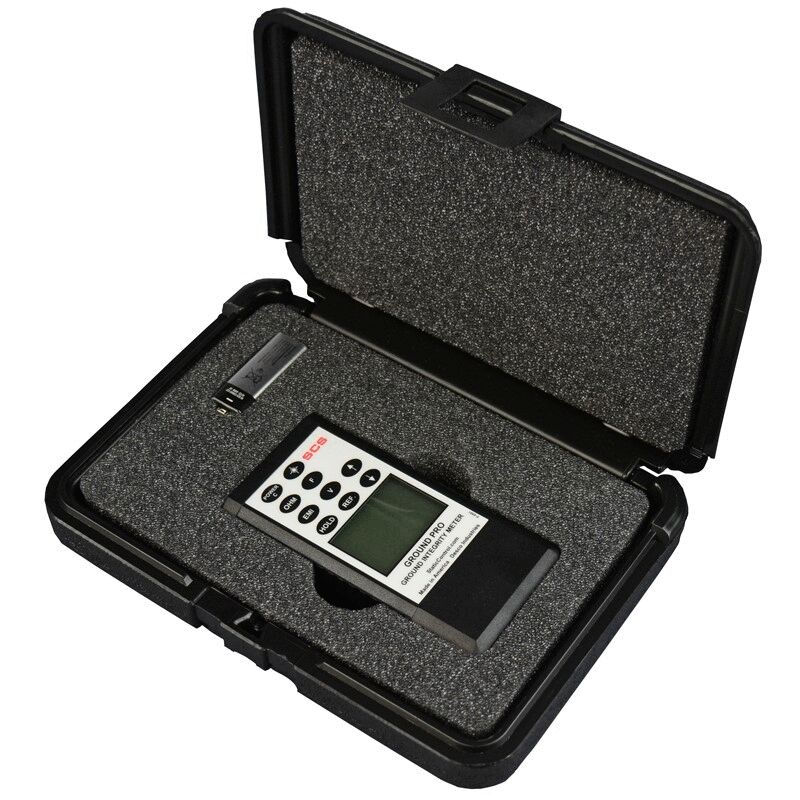

The image displays an electronic measuring device in a black, sturdy storage box. The device features a screen and buttons for various functions, all set within a foam-padded interior.
Mobile Preview: The image displays a portable testing device for checking ground integrity. It has a black casing with a digital display and several buttons for operation.
Mobile Preview: A handheld grounding tester is being held. It displays a number (117) on a green screen. Two red and gray cables are connected to an outlet.
Mobile Preview: A handheld device for measuring soil conductivity, with a digital display showing a value of 1.08 ohms. It is connected to an outlet with two cables.
Mobile Preview: The image shows a measuring device with a screen and buttons. One hand is holding a green probe, the other a red one. These are connected by a cable that leads into the device.
Mobile Preview: The image displays an electronic measuring device in a black, sturdy storage box. The device features a screen and buttons for various functions, all set within a foam-padded interior.
Notice / Inquire

Ground Pro® Handheld Ground Integrity Meter

dpvlink:
28818
Further product information

available available
1.750,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Ground Pro® Handheld Ground Integrity Meter

The Ground Pro® Handheld Ground Integrity Meter from SCS is an advanced instrument for verifying the grounding connection of your equipment. It complies with the grounding standards ANSI/ESD S6.1 and ANSI/ESD S20.20 and enables the measurement of ground impedance as well as AC and DC voltage at ground level. Additionally, it detects high-frequency noise or electromagnetic interference (EMI), which can indicate potential operational disruptions early on.
The technical specifications include a size of 114 x 92 x 28 mm and a weight of 140g. The device is powered by a 9V alkaline battery and offers an impedance measurement range from 0.000 to 1999 Ω. The measurement accuracy is ± (2% + 0.01 Ω) for the lowest range and varies in higher ranges. It measures EMI voltages from 10 mV to 5 V peak and offers a bandwidth from 9 kHz to 450 MHz.
Additional features include an Auto-Zero function to correct the impedance of the measuring leads, a programmable impedance alarm, and NIST calibration, which ensures the highest measurement accuracy and reliability. The device operates optimally at an ambient temperature of 10 °C and a humidity of 50-80%.
