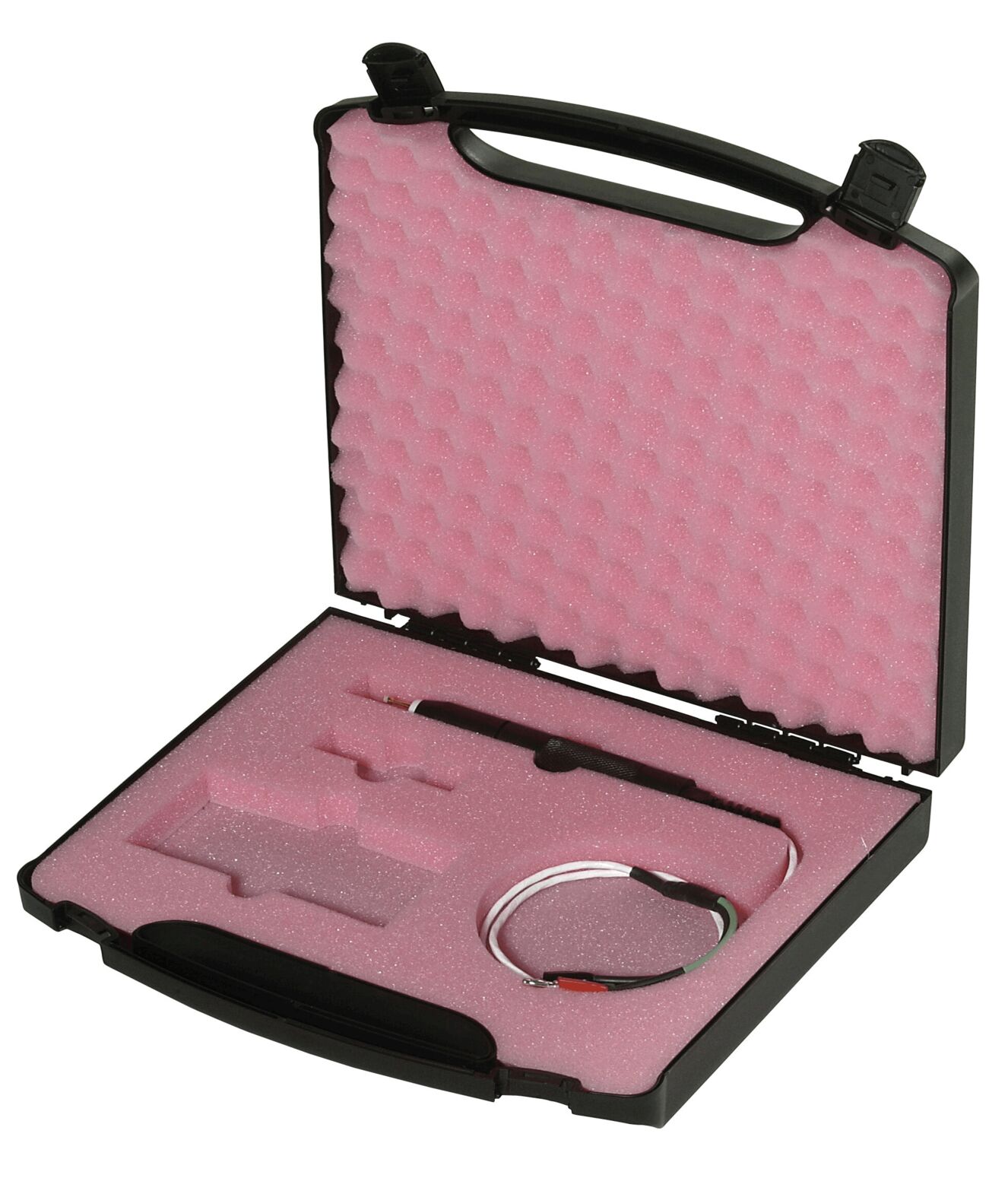

The image shows an open black suitcase with a pink foam interior. Inside are several tools and a circular object. The suitcase has a handle.
Mini probe set two-point electrode
(Product No.: 7220.840.SET)
The image shows an open black suitcase with a pink foam interior. Inside are several tools and a circular object. The suitcase has a handle.
Notice / Inquire

Mini probe set two-point electrode

dpvlink:
7120
Recommended calibration interval:
24 months bzw. according to test equipment list
Further product information

available available
596,50 EUR
per PCE

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Mini probe set two-point electrode

The Mini Probe Set Two-Point Electrode Model 844 is optimal for conducting surface resistance measurements on various small packages such as SMD blister strips, conveyor belts, and thermoforming trays. It is distinguished by its ability to perform precise measurements even in recesses. The spring-loaded electrode pins ensure even pressure, which increases measurement accuracy. The probe head of this model is interchangeable and features a BNC connector, allowing flexible connection to various high-resistance meters. The conductive contact rubber further improves measurement reliability.
The set is delivered in a conductive carrying case, which also includes a calibration certificate to confirm accuracy and reliability. With a length of 220 mm and a diameter of 22 mm, the device is handy and easy to handle. The recommended calibration interval is 24 months or according to the testing equipment list, ensuring long-term maintenance and accuracy.
Recommended calibration interval
Recommended calibration interval
24 months bzw. according to test equipment list
Length
Length
220 mm
Ø
Ø
22 mm
Show accessories
Accessories

Accessories

The image shows a black calibration device with a vertical, cylindrical column. On the surface, there is a label that reads "Calibration Unit 844".
Calibration unit for two-point electrode...
Calibration unit for two-point electrode
Model 844
dpvlink
7120

64,65 EUR
Show product
Calibration for two-point electrode of mini...
Calibration for Mini probe 7220.844
incl. certificate
dpvlink
26315

48,75 EUR
Show product

Spares

The image shows two long, slender objects made of shiny gold, ending at the top with a small, round, gray tip. These parts appear to be tools or industrial components.
Replacement measuring pins for measuring...
Replacement measuring pins for measuring head 844
(U = 2 pieces)
dpvlink
7120

69,35 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 209
Complete Catalog 2023 - 2024

Product Family

Mini probe set

  • For surface resistance measurements on small packages (SMD blister belts, conveyor belts, deep draw drays, etc.)
  • For the connection to a high resistance meter
  • measurement in deepening possible
  • even pressure by sprung electrode pins
  • exchangeable measuring head with BNC connector
  • conductive rubber

Article image
Article description
ESD
Recommended calibration interval
Length
Ø
Width
Height
Material
Price
Compare
7220.840.SET - Mini probe set two-point electrode
7220.840.SET
Mini probe set two-point electrode
24 months bzw. according to test equipment list
220 mm
22 mm



596,50 EUR
7220.844.C - Calibration unit for two-point electrode model 844
7220.844.C
Calibration unit for two-point electrode model 844
3 years bzw. according to test equipment list
70 mm

100 mm
20 mm
plastic
64,65 EUR
7220.844.1 - Replacement measuring pins for measuring head 844
7220.844.1
Replacement measuring pins for measuring head 844






69,35 EUR
