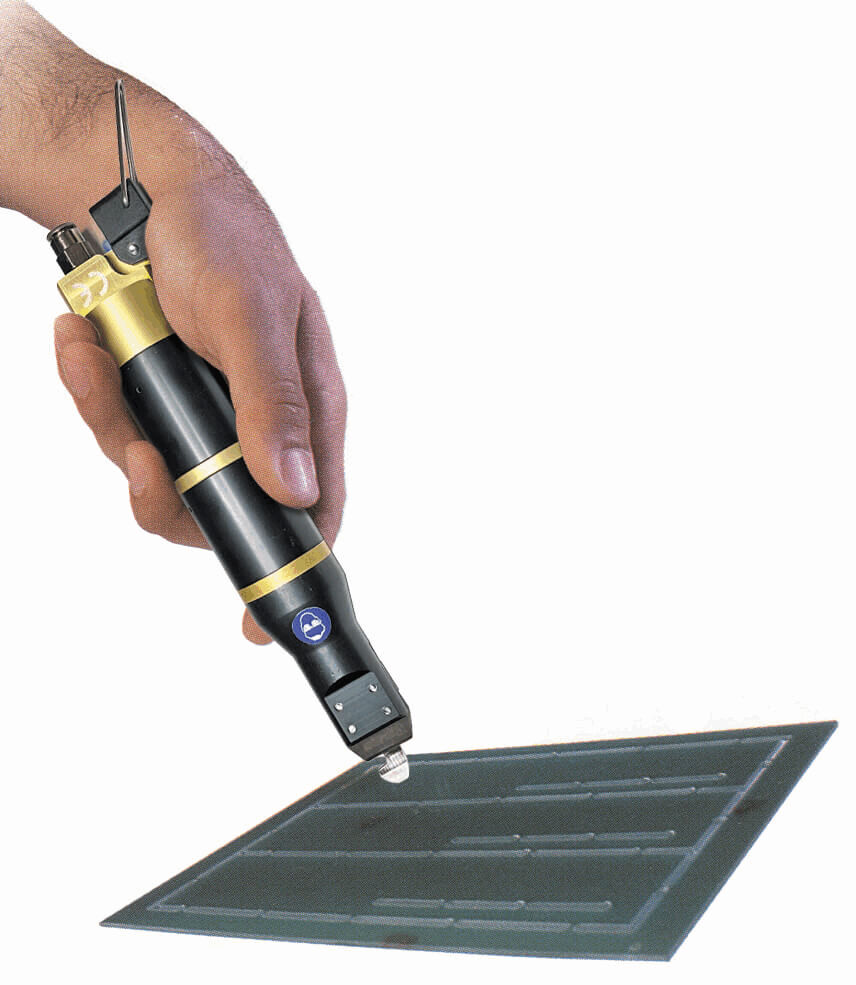

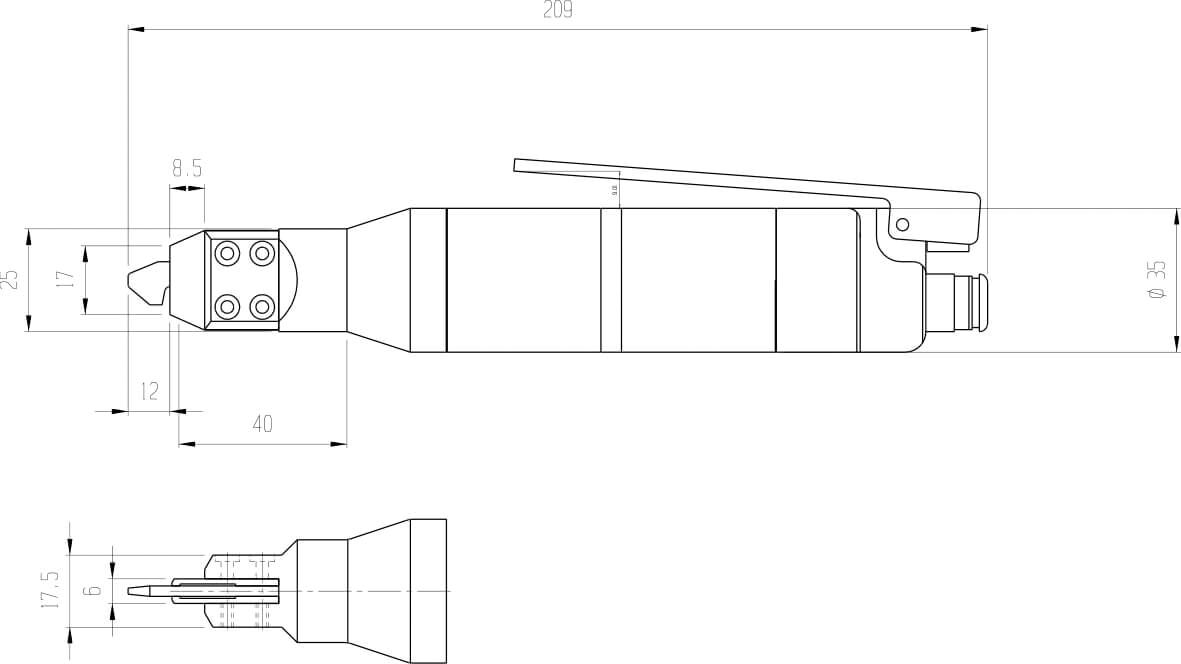

The image shows a black and gold tool that looks like a pen and is being held by a hand. It is used to create patterns on a green material. Below it is a technical drawing.
Off-cut remover DPP 20N
(Product No.: DPP-20N)
The image shows a black and gold tool that looks like a pen and is being held by a hand. It is used to create patterns on a green material. Below it is a technical drawing.
Notice / Inquire

Off-cut remover DPP 20N

dpvlink:
5610
Further product information

at short notice at short notice
471,80 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

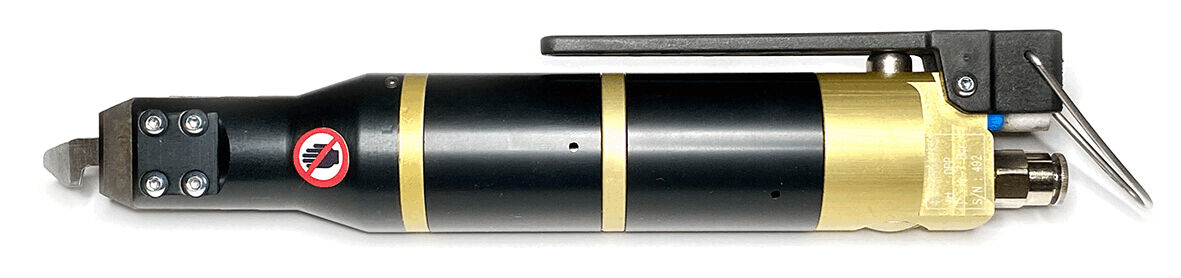

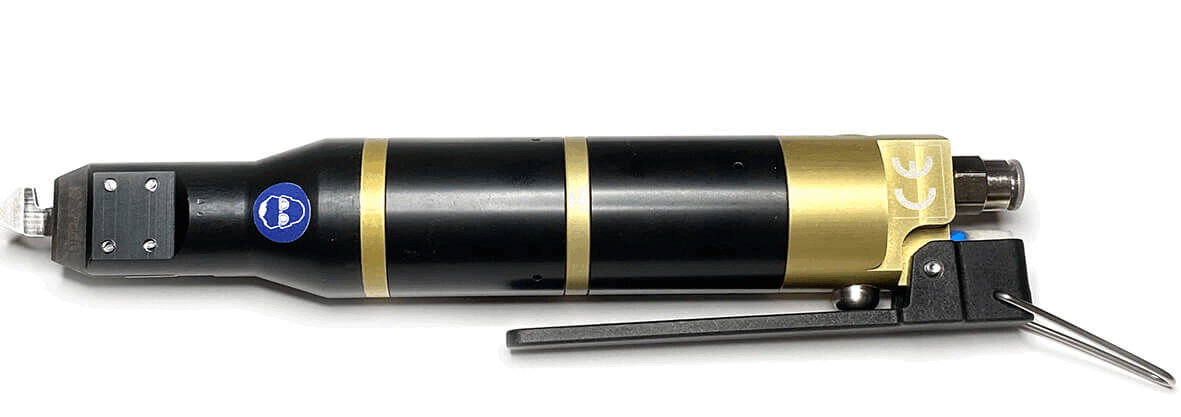

Off-cut remover DPP 20N

The Piergiacomi DPP 20N web separator is a pneumatic separator specifically designed for the precise and rapid separation of routed PCB panels. With a blade width of 2.0 mm and a cutting force of 80 kg, this device enables efficient work even in hard-to-reach areas. The compact size and handy shape of the device ensure easy handling.
The blades, made from high-quality special steel, guarantee clean and smooth cuts. Four different blade thicknesses are available, allowing flexible adaptation to different material thicknesses and types. For the operation of the web separator, a compressed air supply of 6 to 7 bar is necessary, which facilitates use in various industrial environments.
This tool thus represents an ideal solution for technical applications where precision and efficiency are paramount.
Compressed air supply
Compressed air supply
6 - 7 bar
Blade width
Blade width
2.0 mm
Cutting force
Cutting force
80 kg
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 511
Complete Catalog 2023 - 2024

Product Family

Off-cut remover DPP

The DPP pneumatic off-cut remover enables PCBs to be cut quickly, efficiently and safely. The result is precise and clean cut edges. Thanks to interchangeable special steel blades in various thicknesses, the device can be flexibly adapted to individual requirements. A total of four different blade variants are available.


Article image
Article description
Compressed air supply
Blade width
Cutting force
Price
Compare
DPP-18N - Off-cut remover DPP 18N
DPP-18N
Off-cut remover DPP 18N
6 - 7 bar
1.8 mm
80 kg
449,35 EUR
DPP-20N - Off-cut remover DPP 20N
DPP-20N
Off-cut remover DPP 20N
6 - 7 bar
2.0 mm
80 kg
471,80 EUR
DPP-23N - Off-cut remover DPP 23N
DPP-23N
Off-cut remover DPP 23N
6 - 7 bar
2.3 mm
80 kg
471,80 EUR
DPP-24N - Off-cut remover DPP 24N
DPP-24N
Off-cut remover DPP 24N
6 - 7 bar
2.4 mm
80 kg
471,80 EUR
DPP-25N - Off-cut remover DPP 25N
DPP-25N
Off-cut remover DPP 25N
6 - 7 bar
2.5 mm
80 kg
471,80 EUR
DPP-Set - Off-cut remover DPP set incl. case
DPP-Set
Off-cut remover DPP set incl. case



780,90 EUR
