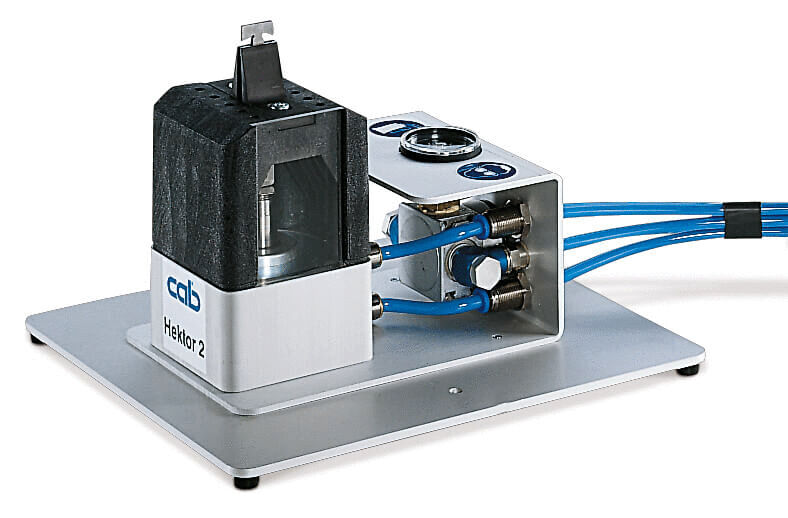

The image displays a device called "cab Hektograf 2" on a rectangular metal plate. It features a black block on top as well as several connections and hoses on the side.
Off-cut remover Hektor 2
(Product No.: 8932145)
The image displays a device called "cab Hektograf 2" on a rectangular metal plate. It features a black block on top as well as several connections and hoses on the side.
Notice / Inquire

Off-cut remover Hektor 2

dpvlink:
5547
Note:
- please order blades separately -
Further product information

at short notice at short notice
980,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Off-cut remover Hektor 2

The board separator Hektor 2, manufactured by CAB, is an efficient device for the gentle and rapid separation of routed PCB panels. The two-part die allows for easy assembly or blade replacement, which are available in five standard widths and custom intermediate sizes. The blades, made of special steel, including the L-blade for small web distances and the T-blade for edge web processing, prevent jamming in the milling groove.
The operating pressure can be adjusted directly on the device, and the punching process is triggered via a foot pedal. The punch waste is collected in a container and can be easily disposed of. The board separator measures 220 mm in width, 170 mm in height, and 255 mm in depth, with a weight of 2.7 kg. It operates optimally at an ambient temperature of 10 to 35 °C and can be stored at a humidity of 10 to 85%. The scope of delivery includes the Hektor 2 with pressure regulator and foot pedal, but without blades.
Depth
Depth
255 mm
Height
Height
170 mm
Width
Width
220 mm
Humidity
Humidity
10 - 85 %
Operating temperature
Operating temperature
10 - 35 °C
Storage temperature
Storage temperature
0 - 60 °C
Transport temperature
Transport temperature
-25 - 60 °C
Weight
Weight
2.7 kg
- please order blades separately -
Show accessories
Accessories

Accessories

The image shows a metallic tool with a long, narrow shape. It has a notched edge and three round holes in a row. The surface is textured and silver.
Blade L 1.5 standard
Blade 1.5 mm L for Hector
(C = 1.35 mm)
dpvlink
5554

45,00 EUR
Show product
The image shows a metallic tool with a long, narrow shape. It has a notched edge and three round holes in a row. The surface is textured and silver.
Blade L 2.0 standard
Blade 2.0 mm L for Hector
(C = 1.85 mm)
dpvlink
5554

45,00 EUR
Show product
The image shows a metallic tool with a long, narrow shape. It has a notched edge and three round holes in a row. The surface is textured and silver.
Blade L 2.5 standard
Blade 2.5 mm L for Hector
(C = 2.35 mm)
dpvlink
5554

45,00 EUR
Show product
The image shows a metallic tool with a long, narrow shape. It has a notched edge and three round holes in a row. The surface is textured and silver.
Blade L 3.0 standard
Blade 3.0 mm L for Hector
(C = 2.85 mm)
dpvlink
5554

45,00 EUR
Show product
The image shows a metallic tool with a long, flat shape. At the top, it has a narrow notch, and below there are three round recesses. The surface is textured.
Blade T 1.5 standard
Blade 1.5 mm T for Hector
(C = 1.35 mm)
dpvlink
5554

57,00 EUR
Show product
The image shows a metallic tool with a long, flat shape. At the top, it has a narrow notch, and below there are three round recesses. The surface is textured.
Blade T 2.0 standard
Blade 2.0 mm T for Hector
(C = 1.85 mm)
dpvlink
5554

57,00 EUR
Show product
The image shows a metallic tool with a long, flat shape. At the top, it has a narrow notch, and below there are three round recesses. The surface is textured.
Blade T 2.5 standard
Blade 2.5 mm T for Hector
(C = 2.35 mm)
dpvlink
5554

57,00 EUR
Show product
The image shows a metallic tool with a long, narrow shape. It has a notched edge and three round holes in a row. The surface is textured and silver.
Blade L 2.4 standard
Blade 2.4 mm L for Hector
(C = 2.25 mm)
dpvlink
5554

45,00 EUR
Show product
The image shows a metallic tool with a long, flat shape. At the top, it has a narrow notch, and below there are three round recesses. The surface is textured.
Blade T 3.0, standard
Blade 3.0 mm T for Hector
(C = 2.85 mm)
dpvlink
5554

57,00 EUR
Show product

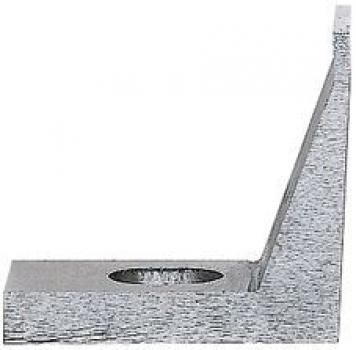

The image shows an L-shaped metal piece that is flat on the bottom and has a raised section on one side. There is a round indentation in the flat surface.
Matrix for Hektor 2 (precision casting)
Matrix for Hektor 2 / 3
!!!! replaces article 893 2142 !!!
dpvlink
5554

89,00 EUR
Show product
The image shows a metallic tool with a long, flat shape. At the top, it has a narrow notch, and below there are three round recesses. The surface is textured.
Blade T 2.4 standard
Blade 2.4 mm T for Hektor
(C = 2.25 mm)
dpvlink
5554

57,00 EUR
Show product
The image shows two flat metal pieces with a smooth surface. Each piece has a narrow notch at the top and three round holes in the center, which are symmetrically arranged.
Blade width, according to customer's specifications...
Replacement blade -special width- for Hektor
dpvlink
5554

Price on request
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 510
Complete Catalog 2023 - 2024

Product Family

Off-cut remover Hektor 2

Article image
Article description
ESD
Depth
Height
Width
Humidity
Operating temperature
Storage temperature
Transport temperature
Weight
Price
Compare
8932145 - Off-cut remover Hektor 2
8932145
Off-cut remover Hektor 2
255 mm
170 mm
220 mm
10 - 85 %
10 - 35 °C
0 - 60 °C
-25 - 60 °C
2.7 kg
980,00 EUR
