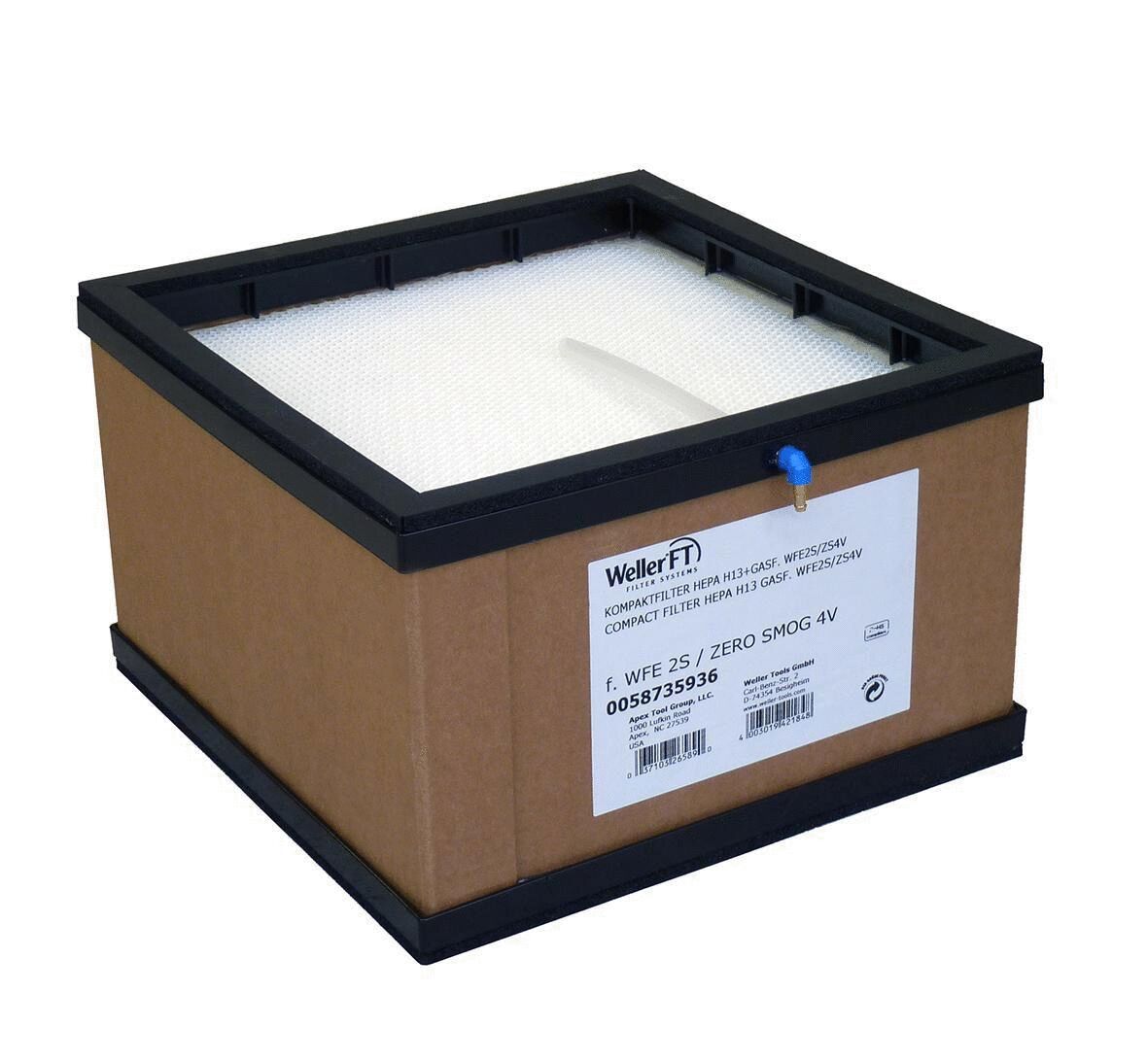

The image displays a square, brown cardboard box with a black plastic frame. At the top, a white, textured surface is visible. On the front, there is a label with technical information.
Compact filters for Zero Smog 4V
(Product No.: 587.359.36)
The image displays a square, brown cardboard box with a black plastic frame. At the top, a white, textured surface is visible. On the front, there is a label with technical information.
Notice / Inquire

Compact filters for Zero Smog 4V

dpvlink:
19148
Properties:
Further product information

available available
231,65 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Compact filters for Zero Smog 4V

The Weller compact filter is specifically designed for use in the extraction systems Zero Smog EL, TL, 4V, and 6V. This high-quality replacement part consists of a H13 class particle filter that effectively filters even the smallest particles, and a broadband gas filter made up of 50% activated carbon and 50% Chemisorb. This combination ensures comprehensive cleaning of air from particles and gases.
The filter perfectly fits the models WFE 2S and Zero Smog 4V and has a width of 285 mm, a height of 175 mm, and a length of 285 mm. These dimensions guarantee easy installation and seamless operation, thereby keeping work environments safe and clean. Ideal for technical buyers who value quality and efficiency.
Height
Height
175 mm
Length
Length
285 mm
Width
Width
285 mm
Weight
Weight
2.7 kg
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 631
Complete Catalog 2023 - 2024

Product Family


This product is compatible with (for example):

The image shows a silver air purifier with three black openings on top. It has a control area with buttons and a display on the front and is mounted on wheels.
Zero Smog 4V solder fume extraction
Zero Smog 4 V
volume extraction with built-in turbine
with particle filter H13
and wide band gas filter
(50% activated carbon/50% Chemisorb)
fine dust filter F7
max. capacity 4 workstations
dpvlink
16607

1.880,80 EUR
Show product
The image shows a smoke extraction device. It has a large, gray body with several openings on top. A flexible hose leads to an open, black exit area.
Solder fume extraction unit Zero Smog 4V...
Zero Smog 4V Kit 1 funnel
Portable volume extraction unit
for 1 workstation, with filter H13 and
wide band gas filter (50% activated carbon/50%
Chemisorb)
fine dust filter F7
max capacity 4 workstations
comprising: 536.606.99 Zero Smog 4V
536.571.99 KIT 1 WF funnel for volume extraction, incl set for table mounting
dpvlink
16611

2.175,60 EUR
Show product
The image displays a device for extracting vapors. It features a rectangular, silver-colored body with four openings on top and a flexible, hose-like outlet pointing to the right.
Solder fume extraction unit Zero Smog 4V...
Zero Smog 4V Kit 1 nozzle
Portable volume extraction unit
for 1 workstation with filter H13 and wide band
gas filter (50% activated carbon/50% Chemisorb)
fine dust filter F7
max. capacity 4 workstations:
536.606.99 Zero Smog 4V
536.572.99 2x KIT 1 WF beveled nozzle for volume extraction
536.574.99 throttle
536.575.99 table mounting set
536.576.99 extraction hose
dpvlink
16611

2.175,60 EUR
Show product
The image shows a smoke extraction device with a rectangular, gray casing and two black, flexible hoses that are bent upwards providing exhaust air.
Solder fume extraction unit Zero Smog 4V...
Zero Smog 4V Kit 1 funnel
Portable volume extraction unit
for 2 workstations with filter H13 and wide band
gas filter (50% activated carbon/50% Chemisorb)
fine dust filter F7
max. capacity 4 workstations:
536.606.99 Zero Smog 4V
536.571.99 2x KIT 1 WF funnel for volume extraction, incl. set for table mounting
dpvlink
16611

2.407,20 EUR
Show product
The image displays a gray device labeled "FT ZERO SMOG Series" with two flexible hoses. The hoses are black, and one ends in a flat nozzle.
Solder fume extraction unit Zero Smog 4V...
Zero Smog 4V Kit 1 nozzle
Portable volume extraction unit
for 2 workstations with filter H13 and wide band
gas filter (50% activated carbon/50% Chemisorb)
fine dust filter F7
max. capacity 4 workstations:
536.606.99 Zero Smog 4V
536.572.99 2x KIT 1 WF beveled nozzle for volume extraction
including table mounting set
dpvlink
16611

2.407,20 EUR
Show product
The image shows a silver air purifier with three black openings on top. It has a control area with buttons and a display on the front and is mounted on wheels.
Zero Smog 4V solder fume extraction for adhesive...
Zero Smog 4 V
volume extraction with built-in turbine
with filter for adhesive fumes
consisting of wide band gas filter
(50% activated carbon/50% Chemisorb)
fine dust filter F7
max. capacity 4 workstations
dpvlink
16607

1.974,60 EUR
Show product
