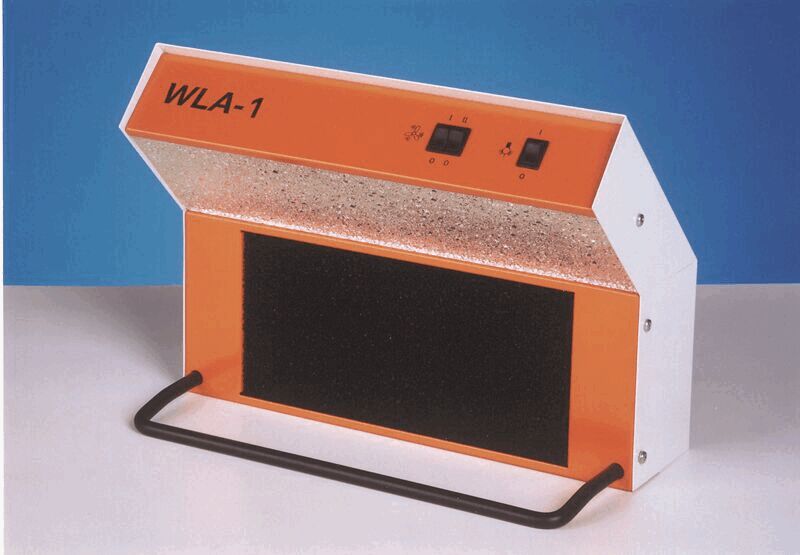

The image shows a device with a slanted top surface. It has an orange front and a black, textured area underneath. Control knobs are located on the side.
WLA-1 LED solder fume extractor
(Product No.: 200.200)
The image shows a device with a slanted top surface. It has an orange front and a black, textured area underneath. Control knobs are located on the side.
Notice / Inquire

WLA-1 LED solder fume extractor

dpvlink:
3568
Further product information

at short notice at short notice
464,70 EUR
per PCE

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

WLA-1 LED solder fume extractor

The WLA-1 LED solder fume extractor is specifically designed to effectively remove harmful fumes, gases, and vapors produced during soldering. This compact tabletop unit, measuring 260 x 340 x 170 mm and featuring a light gray casing with an orange front, offers an optimal solution for clean air at the workplace. Equipped with a highly effective Poret-Carbon activated carbon filter and two quiet axial fans, it enables an air throughput of 30 m³/h on the lower and 70 m³/h on the higher setting, which can be adjusted via a 2-stage switch.
The integrated LED lamp with a power of 6.2 W provides sufficient lighting for the work area. The filter life is approximately 40 operating hours under medium load. The device, which is designed for operation with a voltage of 230 V and a power of 50 W, is available as a tabletop version without a stand bracket or articulated stand. This makes the WLA-1 LED a flexible and efficient solution for air cleaning in soldering work areas.
Power
Power
50 W
Voltage
Voltage
230 V
Height
Height
260 mm
Length
Length
170 mm
Width
Width
340 mm
Air flow/hour
Air flow/hour
30 / 70 m³
Show accessories
Accessories

Accessories

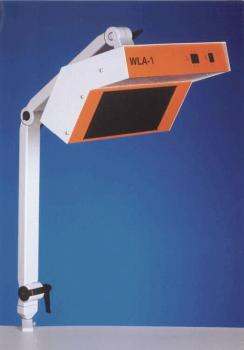

The image shows a reading lamp with a large, rectangular shade. The shade is orange and black, attached to a flexible arm that can be mounted on a wall or a table.
Tripod with articulated arm for WLA-1 solder...
Tripod with articulated arm for WLA-1
dpvlink
30931

138,95 EUR
Show product
The image shows a device with a slanted top surface. It has an orange front and a black, textured area underneath. Control knobs are located on the side.
Support stand for WLA- 1 solder fume extractor...
Support stand for WLA-1
dpvlink
30931

52,40 EUR
Show product
Replacement activated carbon filter for WLA-1...
Activated carbon filter for WLA-1
(PORET-CARBON)
dpvlink
30931

5,85 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 627
Complete Catalog 2023 - 2024

Product Family

WLA 1 LED Solder fume extractor

Article image
Article description
ESD
Power
Voltage
Height
Length
Width
Air flow/hour
Price
Compare
200.200 - WLA-1 LED solder fume extractor
200.200
WLA-1 LED solder fume extractor
50 W
230 V
260 mm
170 mm
340 mm
30 / 70 m³
464,70 EUR
