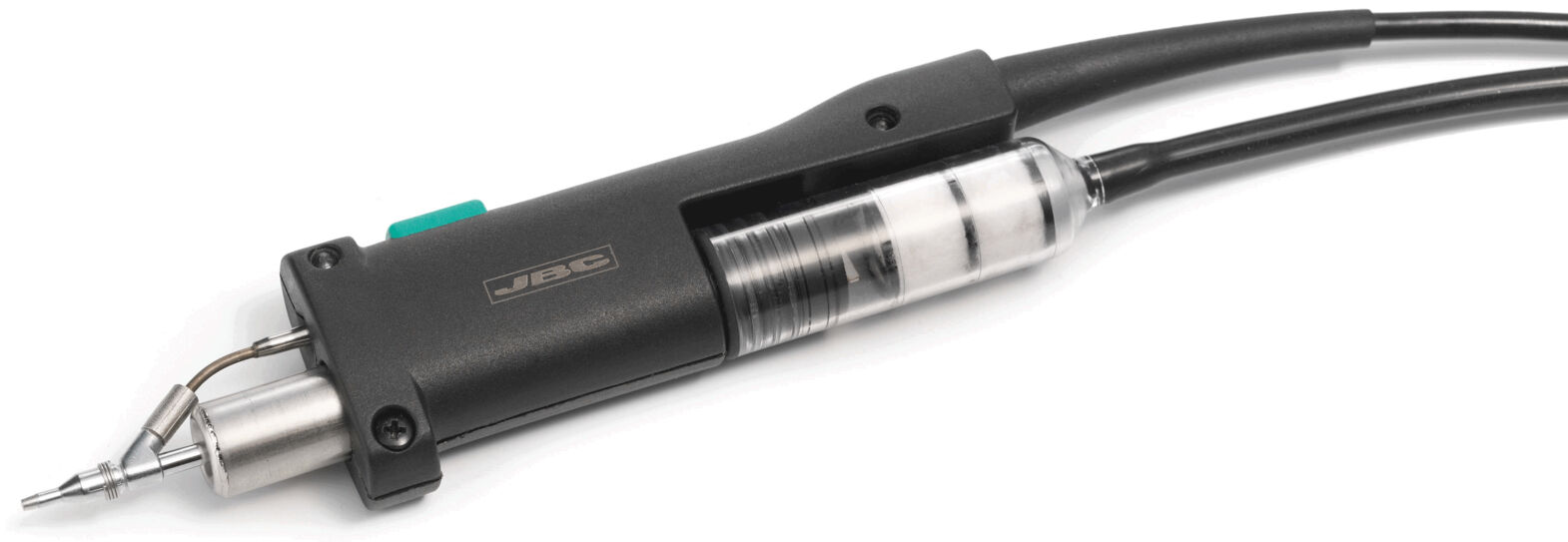

The image shows a tool with a long, narrow body. It has a metal tip and a transparent section that displays a spring mechanism. Two cables are attached.
DS360-A desoldering iron
(Product No.: JBC-DS360-A)
The image shows a tool with a long, narrow body. It has a metal tip and a transparent section that displays a spring mechanism. Two cables are attached.
Notice / Inquire

DS360-A desoldering iron

dpvlink:
20507
Power:
40 W
suitable soldering tip series:
C360
Width :
22 mm
Height :
41 mm
Length :
119 mm
Properties:
Further product information

at short notice at short notice
505,00 EUR
per PCE

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

DS360-A desoldering iron

The JBC DS360-A Desoldering Iron is a precise and powerful tool, specifically designed for efficient desoldering of SMD and conventional components. It delivers a high performance of 40 watts and features an integrated vacuum pump that removes soldered joints quickly and cleanly. Its ergonomic design ensures comfortable operation, and the smart sleep and hibernation function extends the life of the nozzles and saves energy. The DS360 is lightweight and easy to clean and maintain. Disposable cardboard sleeves and filter sets are conveniently replaceable. The desoldering iron is compatible with the C360 series soldering tips. It comes with the C360-004.



Power
Power
40 W
suitable soldering tip series
suitable soldering tip series
C360
Width
Width
22 mm
Height
Height
41 mm
Length
Length
119 mm
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image displays technical drawings of an electrical connector plug. At the top are two views: a side view and a top view. Below is another view with labels and dimensions.
Desoldering nozzle C560-003
JBC 560-003 desoldering nozzle for DR560
-for pin with max = Ø 0.8 mm
-A = Ø 2.7 mm, B = Ø 1.0 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

26,00 EUR
Show product
The image displays technical drawings of a connector with dimensions. Various views of the connector are shown, including its top side and a detailed view.
Desoldering nozzle C560-004
JBC 560-004 desoldering nozzle for DR560
-for pin with max = Ø 1.1 mm
-A = Ø 3.2 mm, B = Ø 1.3 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

26,00 EUR
Show product
The image displays technical drawings of a component, likely a connector. It includes various views and dimensions, indicating diameters and a maximum pin size.
Desoldering nozzle C560-005
JBC 560-001 desoldering nozzle for DR560
-for pin with max = Ø 1.3 mm
-A = Ø 3.4 mm, B = Ø 1.5 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

26,00 EUR
Show product
The image displays technical drawings of a connector plug. At the top are two views of the plug with dimensions, below is a side view with labels. Shapes are round and cylindrical.
Desoldering nozzle C560-006
JBC 560-006 desoldering nozzle for DR560
-for pin with max = Ø 1.7 mm
-A = Ø 4.2 mm, B = Ø 1.9 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

26,00 EUR
Show product
The image displays technical drawings of a component from multiple perspectives. At the top, there are two views depicted, with a side view on the right and a top view on the left. Below, there is an additional view with dimensions.
Desoldering nozzle C560-009
JBC 560-009 desoldering nozzle for DR560
-for pin with max = Ø 1.1 mm
-A = Ø 5.0 mm, B = Ø 1.3 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

26,00 EUR
Show product
The image shows various views of a technical component, likely a nozzle or connector. The dimensions are marked, and the item is labeled C560-013.
Desoldering nozzle C560-013
JBC 560-013 desoldering nozzle for DR560
- A= Ø 2.7 mm, B= Ø 1.0 mm
- specially for pad cleaning
-for screwing, mounting by thread on the iron
dpvlink
25943

26,00 EUR
Show product
The image displays a technical drawing of a nozzle element. It consists of a cylindrical body with a narrow, pointed end and includes measurements of diameters and a part number.
Desoldering nozzle C560-001
JBC 560-001 desoldering nozzle for DR560
-for pin with max = Ø 0.4 mm
-A = Ø 1.4 mm, B = Ø 0.6 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

25,00 EUR
Show product
The image displays various views of a special nozzle or tip, including its length, diameter, and maximum pin size. Technical dimensions are provided.
Desoldering nozzle C560-002
JBC 560-002 desoldering nozzle for DR560
-for pin with max = Ø 0.6 mm
-A = Ø 1.8 mm, B = Ø 0.8 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

25,00 EUR
Show product
The image displays technical drawings of a mechanical part that is round on one side and threaded on the other. Dimensions are provided in millimeters.
Desoldering nozzle C560-007
JBC 560-007 desoldering nozzle for DR560
-for pin with max = Ø 2.2 mm
-A = Ø 4.8 mm, B = Ø 2.4 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

26,00 EUR
Show product
The image displays a technical drawing of a spray nozzle attachment with various views. The nozzle opening has precise dimensions, specified in millimeters and inches.
Desoldering nozzle C560-011
JBC 560-011 desoldering nozzle for DR560
- A= Ø 1.4 mm, B= Ø 0.6 mm
- specially for pad cleaning
-for screwing, mounting by thread on the iron
dpvlink
25943

25,00 EUR
Show product
The image displays various views of a fine, metallic tip with different diameters. The dimensions are provided in millimeters and inches, with detailed drawings.
Desoldering nozzle C560-012
JBC 560-012 desoldering nozzle for DR560
- A= Ø 1.8 mm, B= Ø 0.8 mm
- specially for pad cleaning
-for screwing, mounting by thread on the iron
dpvlink
25943

25,00 EUR
Show product
The image displays technical drawings of a component with various views. It features a conical tip, a cylindrical body, and visible dimensions in millimeters and inches.
Desoldering nozzle C560-014
JBC 560-014 desoldering nozzle for DR560
-for pin with max = Ø 0.6 mm
-A = Ø 2.5 mm, B = Ø 0.8 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

26,00 EUR
Show product
The image displays technical drawings of a small, cylindrical connector with dimensions and various views. The connector has a spiraled part and geometric details.
Desoldering nozzle C560-015
JBC 560-015 desoldering nozzle for DR560
-for pin with max = Ø 2.8 mm
-A = Ø 5.2 mm, B = Ø 3.0 mm
-Tip use: for pin
-for screwing, mounting by thread on the iron
dpvlink
25943

26,00 EUR
Show product
The image shows a technical drawing of a component with a sharp, conical shape. Dimensions are provided at one end, and two views are depicted: a side view and a top view.
Desoldering nozzle C560-017
JBC 560-017 desoldering nozzle for DR560
-for pin with D max = Ø 1.0 mm
-A = Ø 2.0 mm, B = Ø 1.1 mm
-for screwing, mounting by thread on the iron
dpvlink
25943

26,00 EUR
Show product
The image displays a technical design of a cylindrical connector. Dimensions are provided, including a diameter of 6 mm and various views of the component.
Desoldering nozzle C360-001
JBC C360-001 desoldering nozzle for DS360
-for pin D max = Ø 0.4 mm
-A = Ø 1.0 mm, B = Ø 0.6 mm
-Tip use: for pin
-for attachment
dpvlink
29545

10,00 EUR
Show product
The image shows a technical drawing of a connector. It has a pointed shape, with various views and dimensions. The representation also includes details such as diameter and threading.
Desoldering nozzle C360-002
JBC C360-002 desoldering nozzle for DS360
-for pin D max = Ø 0.6 mm
-A = Ø 1.2 mm, B = Ø 0.8 mm
-Tip use: for pin
-for attachment
dpvlink
29545

10,00 EUR
Show product
The image displays technical drawings of a component, likely a connector. There are various views and dimensions that describe the details of the shape and size.
Desoldering nozzle C360-003
JBC C360-003 desoldering nozzle for DS360
-for pin D max = Ø 0.8 mm
-A =Ø 1.4 mm, B = Ø 1.0 mm
-Tip use: for pin
-for attachment
dpvlink
29545

10,00 EUR
Show product
The image displays technical drawings of a connector from various perspectives. Dimensions are provided, including diameter and length in millimeters and inches.
Desoldering nozzle C360-004
JBC C360-004 desoldering nozzle for DS360
-for pin D max = Ø 1.0 mm
-A = Ø 1.6 mm, B = Ø 1.2 mm
-Tip use: for pin
-for attachment
dpvlink
29545

10,00 EUR
Show product
The image displays technical drawings of a connector plug. At the top are two views of the plug with dimensions, below is a side view with labels. Shapes are round and cylindrical.
Desoldering nozzle C360-006
JBC C360-006 desoldering nozzle for DS360
-for pin D max = Ø 1.3 mm
-A =Ø 3.0 mm, B = Ø 1.5 mm
-for attachment
dpvlink
29545

10,00 EUR
Show product
The image displays a technical drawing of an object, likely a connector. It features three views: one side view and two different views with dimensions in millimeters and inches.
Desoldering nozzle C360-007
JBC C360-007 desoldering nozzle for DS360
-for pin D max = Ø 1.2 mm
-A = Ø 1.9 mm, B = Ø 1.4 mm
-Tip use: for pin
-for attachment
dpvlink
29545

10,00 EUR
Show product
The image displays technical drawings of a component-like object with various views. It includes dimensions in millimeters, clarifying the shape and dimensions of the object.
Desoldering nozzle C360-011
JBC C360-011 desoldering nozzle for DS360
-A = Ø 1.0 mm, B = Ø 0.6 mm
-for attachment
dpvlink
29545

14,00 EUR
Show product
The image displays technical drawings of a small, conical attachment with various views and dimensions in millimeters. The attachment has a straight tip and a ridged handle.
Desoldering nozzle C360-012
JBC C360-012 desoldering nozzle for DS360
-A = Ø 1.2 mm, B = Ø 0.8 mm
-for attachment
dpvlink
29545

14,00 EUR
Show product
The image displays technical drawings of a plug with various views. It is cylindrical with a conical end and detailed dimensions in millimeters.
Desoldering nozzle C360-013
JBC C360-013 desoldering nozzle for DS360
-A = Ø 1.4 mm, B = Ø 1.0 mm
-for attachment
dpvlink
29545

14,00 EUR
Show product
The image shows a technical drawing of a plug. It has a conical shape, with various views and measurements in millimeters for the precise dimensions.
Desoldering nozzle C360-014
JBC C360-014 desoldering nozzle for DS360
-A = Ø 1.6 mm, B = Ø 1.2 mm
-for attachment
dpvlink
29545

14,00 EUR
Show product

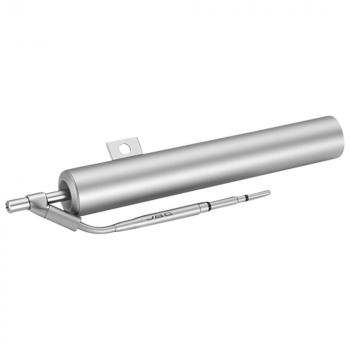

The image shows a silver cylinder with a mount on one end. On the side, there is a smaller, curved outlet. The cylinder has a smooth, shiny surface.
Heating element DSV-DS
JBC DSV-DS heating element
-DSV-DS heating element for DS360
dpvlink
29827

142,00 EUR
Show product
