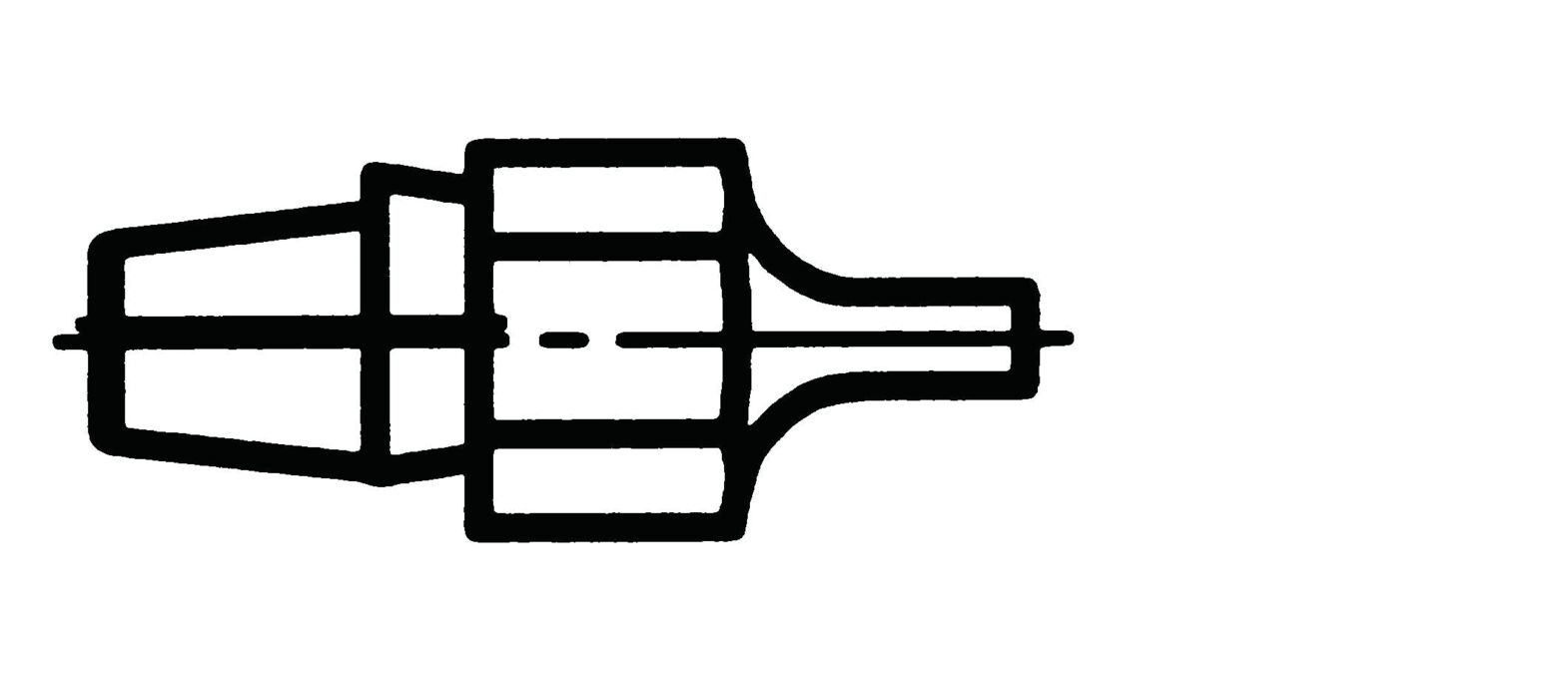

The image shows a schematic representation of a cylinder with a wider, conical upper part and a narrower, straight lower end. It has clear, defined lines.
Suction nozzle DX 120
(Product No.: 513.152.99)
The image shows a schematic representation of a cylinder with a wider, conical upper part and a narrower, straight lower end. It has clear, defined lines.
Notice / Inquire

Suction nozzle DX 120

dpvlink:
6867
External Ø:
2.5 mm
Internal Ø:
1.1 mm
Length :
22 mm
Further product information

available available
10,05 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Suction nozzle DX 120

The suction nozzle DX 120 from Weller is a highly specialized accessory for desoldering stations, designed without an inner tube to efficiently clean SMD components. It is compatible with the models DSX 80 and DSXV 80 and is characterized by its precise manufacturing from heat-resistant materials. With an inner diameter of 1.1 mm and an outer diameter of 2.5 mm, the nozzle offers optimal fit and functionality. The total length of the nozzle is 22 mm, making it ideal for detailed work in the field of electronic repair, prototyping, and production. Its special construction allows for precise suction of molten solder, which increases the efficiency and quality of work.
As a product of the renowned manufacturer Weller, the suction nozzle DX 120 guarantees reliability and durability for professional applications.
External Ø
External Ø
2.5 mm
Internal Ø
Internal Ø
1.1 mm
Length
Length
22 mm
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 617
Complete Catalog 2023 - 2024

Product Family

Weller Suction nozzles eccentric fastening for DSX 80, DSXV 80

The DX suction nozzles are designed for the DSX 80 and DSXV 80 desoldering irons and are ideal for removing solder from a wide variety of solder joints. They heat up, melt the solder and suck it out through an integrated tube into the tin collection container when the vacuum is activated.


Article image
Article description
ESD
External Ø
Internal Ø
Length
Test No.
Price
Compare
513.140.99 - Suction nozzle DX 110
513.140.99
Suction nozzle DX 110
1.9 mm
0.7 mm
23 mm

10,05 EUR
513.141.99 - Suction nozzle DX 111
513.141.99
Suction nozzle DX 111
2.5 mm
0.7 mm
23 mm
1
10,05 EUR
513.142.99 - Suction nozzle DX 112
513.142.99
Suction nozzle DX 112
2.3 mm
1.0 mm
23 mm
2
10,05 EUR
513.143.99 - Suction nozzle DX 113
513.143.99
Suction nozzle DX 113
2.5 mm
1.2 mm
23 mm
3
10,05 EUR
513.150.99 - Suction nozzle DX 113HM
513.150.99
Suction nozzle DX 113HM
2.5 mm
1.2 mm
23 mm
3
12,85 EUR
513.144.99 - Suction nozzle DX 114
513.144.99
Suction nozzle DX 114
3.3 mm
1.8 mm
23 mm
4
10,05 EUR
513.145.99 - Suction nozzle DX 115
513.145.99
Suction nozzle DX 115
1.9 mm
0.7 mm
23 mm
5
10,05 EUR
513.146.99 - Suction nozzle DX 116
513.146.99
Suction nozzle DX 116
2.7 mm
1.2 mm
29 mm
6
10,05 EUR
513.147.99 - Suction nozzle DX 117
513.147.99
Suction nozzle DX 117
2.7 mm
0.7 mm
23 mm
7
10,05 EUR
513.148.99 - Suction nozzle DX 118
513.148.99
Suction nozzle DX 118
1.5 mm
0.7 mm
23 mm
8
10,05 EUR
513.151.99 - Suction nozzle DX 119
513.151.99
Suction nozzle DX 119
1.1 mm
0.7 mm
31 mm
9
10,05 EUR
513.152.99 - Suction nozzle DX 120
513.152.99
Suction nozzle DX 120
2.5 mm
1.1 mm
22 mm

10,05 EUR
513.153.99 - Measuring nozzle
513.153.99
Measuring nozzle
3.3 mm
0.55 mm
21.5 mm

17,80 EUR
587.067.94 - Cone insert cleaning tool
587.067.94
Cone insert cleaning tool




22,10 EUR
513.790.99 - Suction nozzles set DX 110 - 115 DX
513.790.99
Suction nozzles set DX 110 - 115 DX




62,20 EUR
Show Compare List (0)

This product is compatible with (for example):

The image shows a soldering iron set: A soldering iron with a black handle and metal tip, connected by a cable. Next to it is a stand with a sponge and a small metal brush for cleaning.
DSX 80 desoldering iron set
ESD / Power: 80 W / Heating-up time: 80 s
DSX 80 desoldering iron Kit, 80 W / 24 V
with desoldering iron DSX80, safety rest WDH 30,
suction nozzle DX 112 + DX 113, cleaning kit and
seal for glass container
dpvlink
3856

378,05 EUR
excl. 19% tax
Show product
The image shows a soldering iron tool in black with a long, slender metal tip and a yellow regulator on the handle. It has a power cord that leads to the power source.
DSX 80 desoldering iron
ESD / Power: 80 W / Heating-up time: 80 s
Desoldering iron DSX 80
with desoldering nozzle DX 113HM
dpvlink
3856

272,80 EUR
excl. 19% tax
Show product
