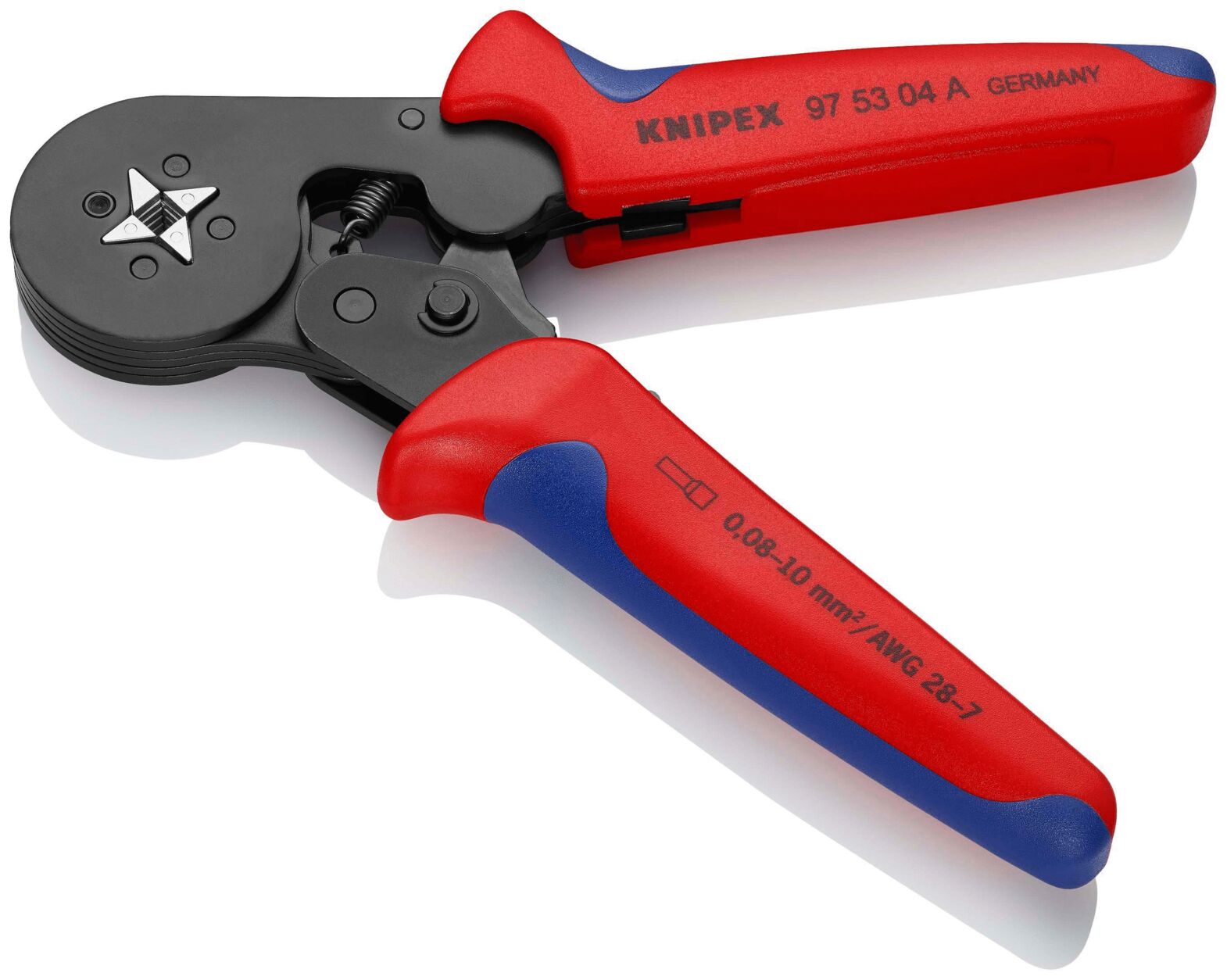

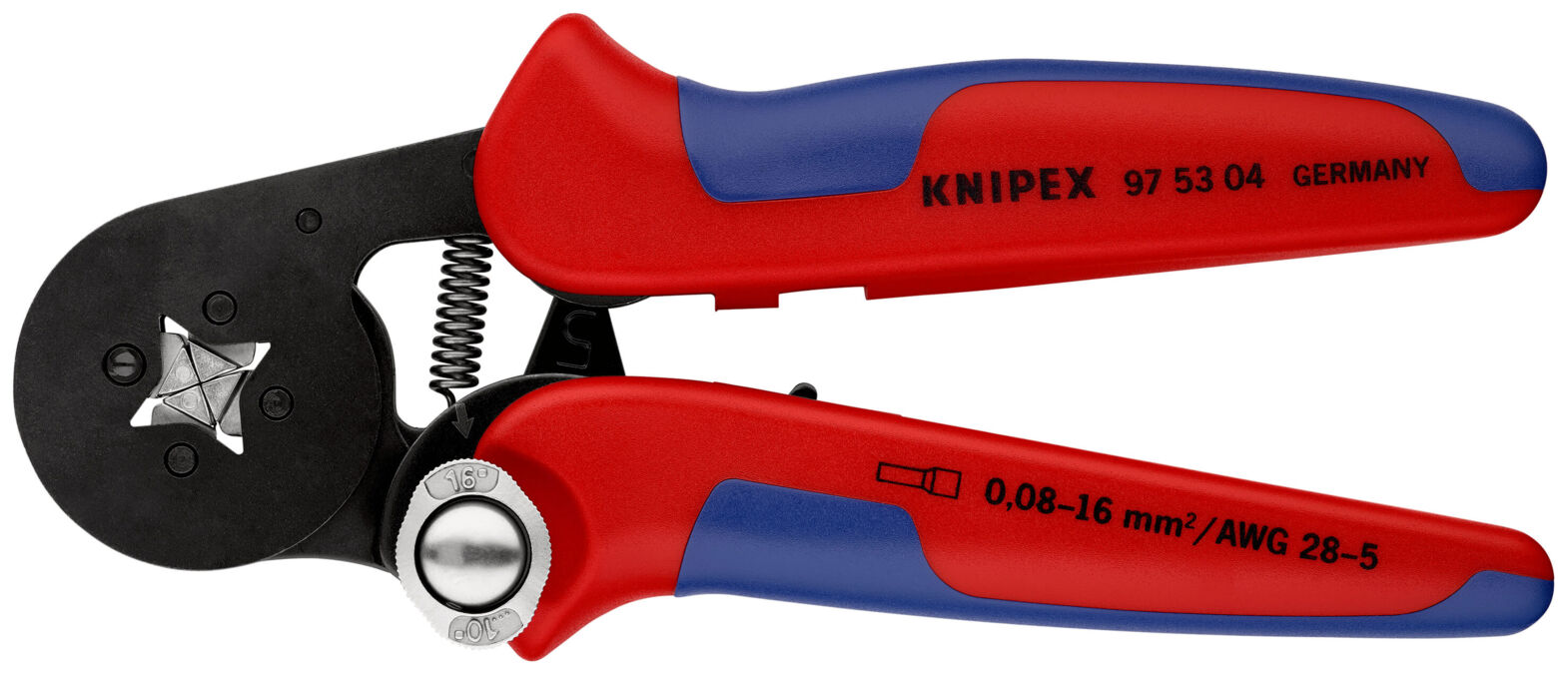

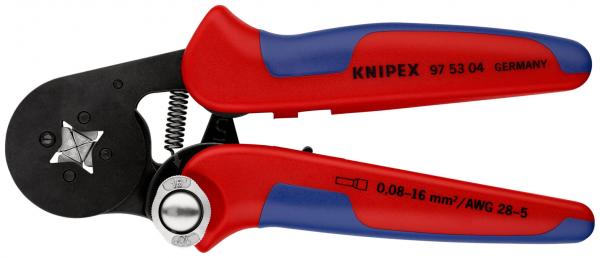

Self-adjusting crimping pliers with square crimping
(Product No.: K-975304.180)
The image shows a cable cutter with red and blue handles. The cutting blades are black and have a serrated surface. Technical details are marked on the tool.
The image displays a red and blue crimping tool. The handles are ergonomically shaped, with a non-slip surface. There is a star symbol on the head. The tool is made of metal.
The image shows a cable cutter being held by a hand. It has red grip areas and a black working surface where a cable is being handled.
The image displays the interface of a tool, likely a pair of pliers or cutters. The head is black with a star-shaped indentation. The handle is red and blue.
Mobile Preview: The image shows a cable cutter with red and blue handles. The cutting blades are black and have a serrated surface. Technical details are marked on the tool.
Mobile Preview: The image displays a red and blue crimping tool. The handles are ergonomically shaped, with a non-slip surface. There is a star symbol on the head. The tool is made of metal.
Mobile Preview: The image shows a cable cutter being held by a hand. It has red grip areas and a black working surface where a cable is being handled.
Mobile Preview: The image displays the interface of a tool, likely a pair of pliers or cutters. The head is black with a star-shaped indentation. The handle is red and blue.
Notice / Inquire

Self-adjusting crimping pliers with square crimping

dpvlink:
8991
Length :
180 mm
Capacity:
0.08 - 16,00 mm²
AWG:
28 - 6
Further product information

at short notice at short notice
141,80 EUR
per PCE

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Self-adjusting crimping pliers with square crimping

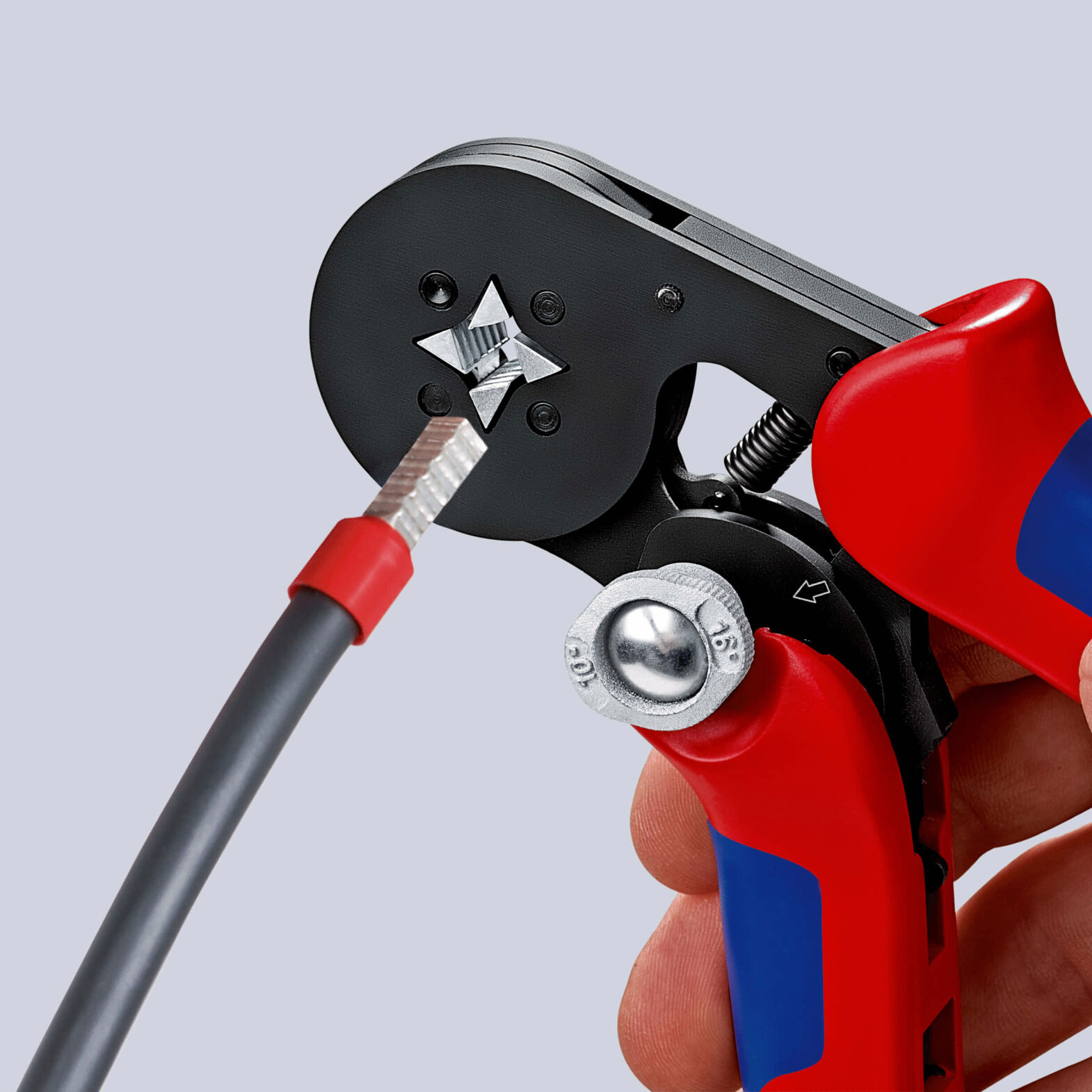

The self-adjusting crimping tool from Knipex, model 97 53 04, allows for precise and standard-compliant crimping of wire end ferrules according to DIN 46228 parts 1 + 4 and is UL-approved in combination with Knipex wire end ferrules 97 99 330 - 399. This tool is ideal for wire end ferrules from 0.08 mm² to 16.0 mm² and automates the adjustment to the desired size, which virtually eliminates crimping errors and enables fast operation.
The tool is made from chrome vanadium electric steel, oil-hardened, and offers smooth, fatigue-free operation due to its ergonomic design and short handle span. With a length of 180 mm, a width of 77 mm, and a weight of 459 g, it is handy and robust. The toggle lever mechanism supports force amplification, allowing for effortless processing of larger cross-sections up to 16 mm².

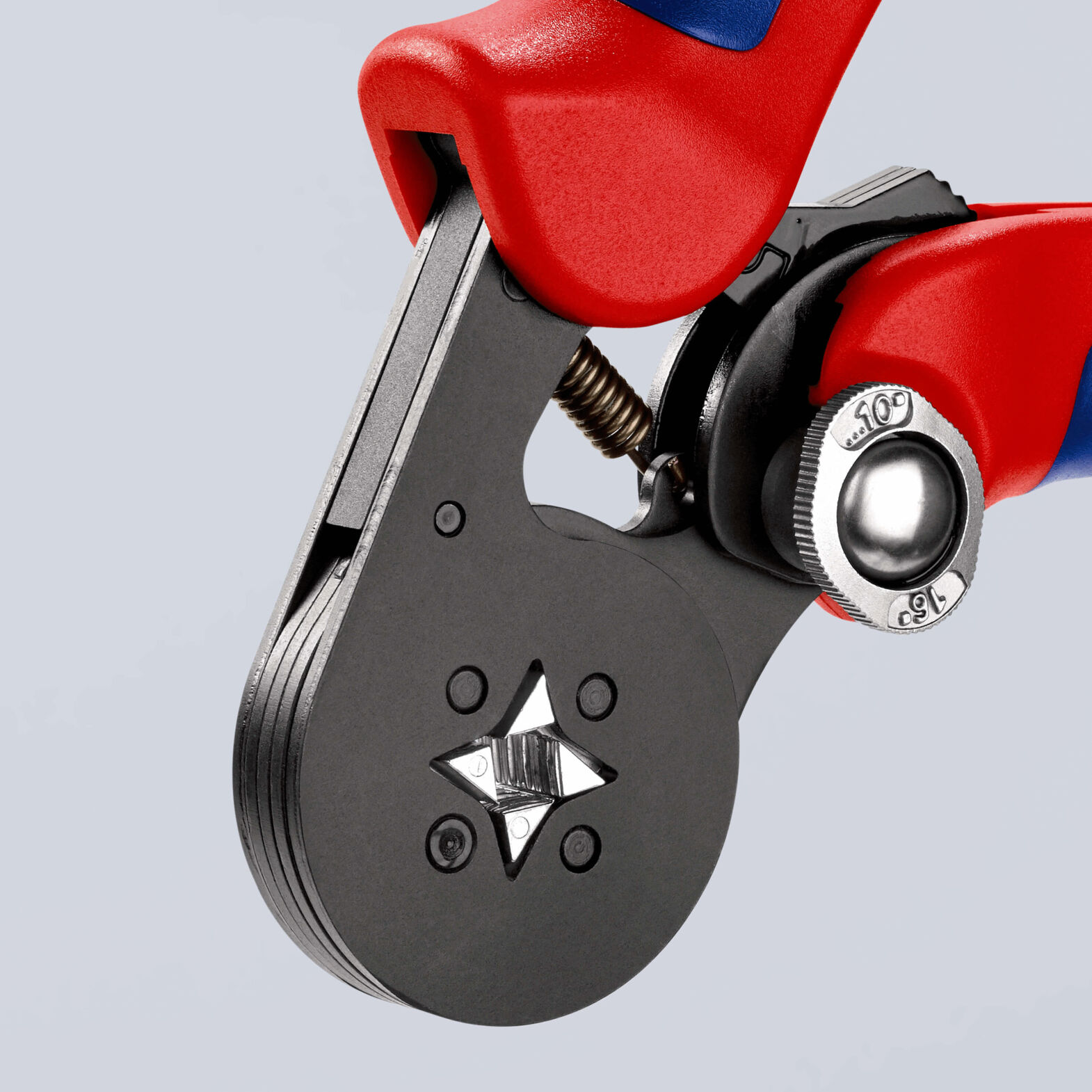

The tool features a releasable forced lock that ensures consistently high crimp quality, as the crimp pressure is precisely set at the factory. This model is also suitable for twin wire end ferrules up to 2 x 6 mm² or 2 x AWG 10 and reliably connects wires using a square profile.
Length
Length
180 mm
Capacity
Capacity
0.08 - 16,00 mm²
AWG
AWG
28 - 6
Max Ø soft
Max Ø soft
0,.32-4.12 mm
Height
Height
21 mm
Width
Width
77 mm
Material
Material
chrome-vanadium electirc steel / oil-hardened
ESD
ESD
no
Weight
Weight
459 g
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 491
Complete Catalog 2023 - 2024

Product Family

Self-adjusting crimping pliers with square crimp

Article image
Article description
ESD
Length
Capacity
AWG
Price
Compare
K-975304.180 - Self-adjusting crimping pliers with square crimping
K-975304.180
Self-adjusting crimping pliers with square crimping
180 mm
0.08 - 16,00 mm²
28 - 6
141,80 EUR
