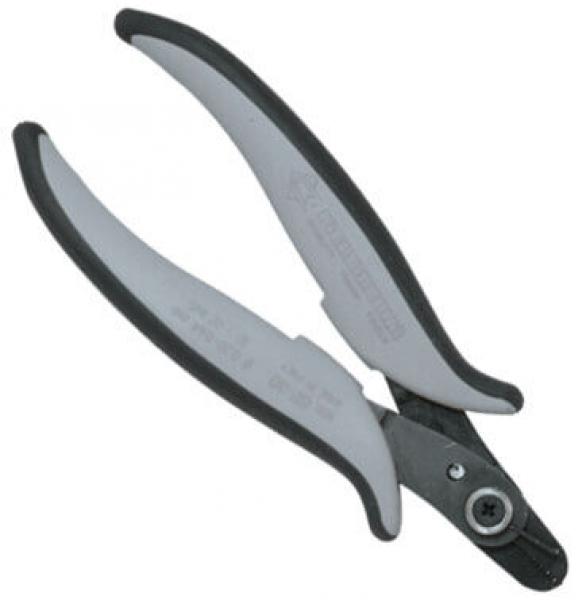

Preview: The image shows a pair of pliers with long, curved handles. The handles are partly black and partly gray. The pliers are designed for precise work, especially for cutting.

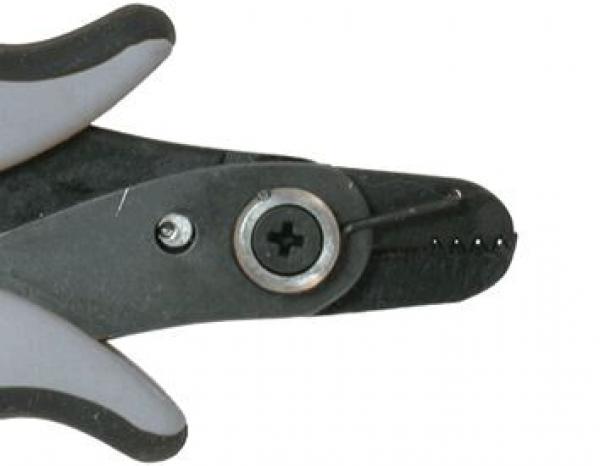

Preview: The image shows the head of a pair of pliers. It has two rubber grips and a metallic cutting edge. A screw head is visible at the top, and the cutting edge has fine teeth.

Stripping tool SF-30.D

(Product No.: SF-30.D)

Mobile Preview: The image shows a pair of pliers with long, curved handles. The handles are partly black and partly gray. The pliers are designed for precise work, especially for cutting.

Mobile Preview: The image shows the head of a pair of pliers. It has two rubber grips and a metallic cutting edge. A screw head is visible at the top, and the cutting edge has fine teeth.

(Product No.: SF-30.D)

Stripping tool SF-30.D

Name: Stripping tool SF-30.D
SKU: SF-30.D
Price: 14.45 EUR
Availability: InStock

ArticleNo: SF-30.D

dpvlink:

2285

Max Ø soft:

0.2-0.64 mm

AWG:

32 - 22

Length :

141 mm

Jaw length:

20 mm

Head width:

14 mm

Properties:

Further product information

Availability: available

available

14,45 EUR

excl. 19% tax

1 PCE

Compare

Notice / Inquire

Product Info

Stripping tool SF-30.D

The Piergiacomi SF-30.D stripping tool is specifically designed for the precise stripping of cables with a diameter of 0.20 to 0.64 mm (equivalent to 32 to 22 AWG). With a blade length of 8 mm and a jaw length of 20 mm, this tool allows for careful removal of the sheathing without damaging the underlying conductors. The robust construction with a steel thickness of 2.5 mm and an overall length of 141 mm ensures durability and reliability in use.
The weight of the tool is 78 g, which allows for easy handling. The model also features ESD safety to prevent electrostatic discharges. The head width of 14 mm supports precise work even in tight areas. The handle of the model St offers ergonomic comfort and secure grip during the stripping process. Ideal for technical professionals in electronics and electrical engineering.

Details

Max Ø soft Max Ø soft: 0.2-0.64 mm
AWG AWG: 32 - 22
Length Length: 141 mm
Jaw length Jaw length: 20 mm
Head width Head width: 14 mm
Blade length Blade length: 8 mm
ESD ESD: yes
Weight Weight: 78 g

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 488

Complete Catalog 2023 - 2024

Product Family

Stripping tool SF-30.D

Piergiacomi stripping tools are specially designed for sensitive electronic work. They are made in Italy from high-quality carbon steel and have an anti-reflective phosphate coating. The ergonomic dolphin handle made of slip-resistant material ensures a secure grip, even during prolonged use.

These pliers comply with the IEC 61340-5-1 standard and prevent damage to sensitive components thanks to their ideal surface resistance (106 - 109 Ω). The integrated return spring reduces the force required and increases efficiency.
