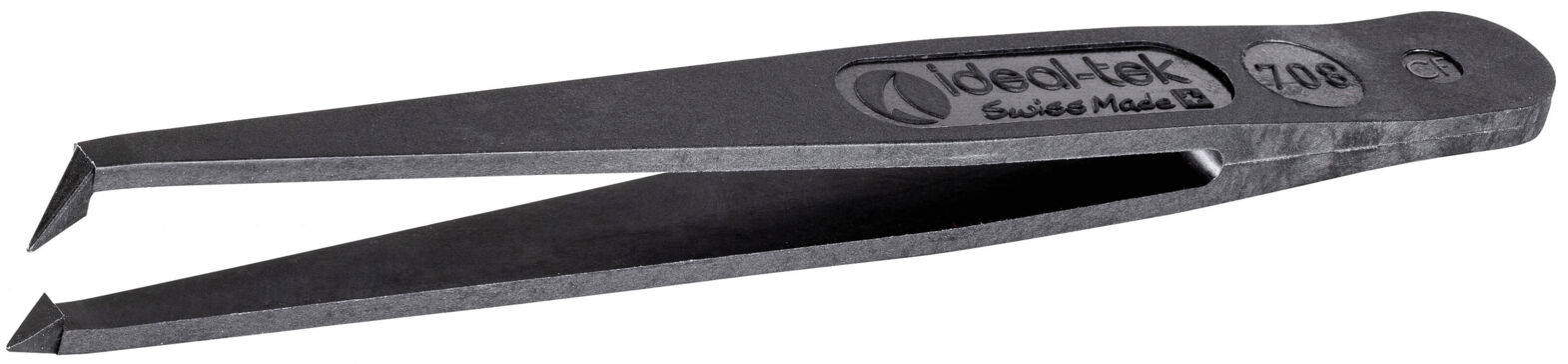

Preview: The image shows a black tweezer. It has a narrow, slightly curved shape with two pointed ends suitable for gripping small objects.

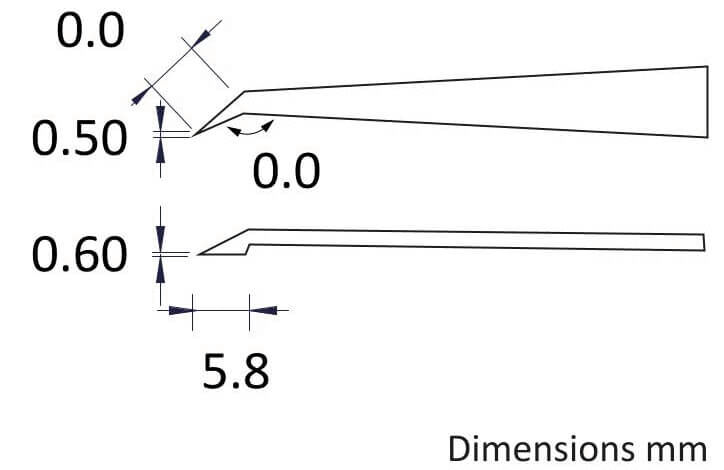

Preview: The image displays technical drawings of an object with dimensions in millimeters. There are two views, one with narrow edges and one with a rounded end. Dimensions are schematically provided.

ESD Plastic tweezers 708.CF

(Product No.: I-708.CF)

Mobile Preview: The image shows a black tweezer. It has a narrow, slightly curved shape with two pointed ends suitable for gripping small objects.

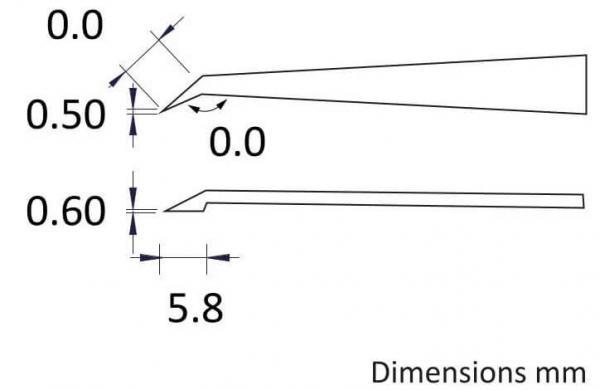

Mobile Preview: The image displays technical drawings of an object with dimensions in millimeters. There are two views, one with narrow edges and one with a rounded end. Dimensions are schematically provided.

(Product No.: I-708.CF)

ESD Plastic tweezers 708.CF

Name: ESD Plastic tweezers 708.CF
SKU: I-708.CF
Price: 2.90 EUR
Availability: InStock

ArticleNo: I-708.CF

dpvlink:

12463

Tweezer type:

precision tweezers

Tip form:

angled

Degree of bending:

45 °

Gripping surface:

smooth

Handle surface:

smooth

Tip type characteristics:

beveled/very fine, short

Properties:

Further product information

Availability: available

available

2,90 EUR
per PCE

excl. 19% tax

1 PCE

Compare

Notice / Inquire

Product Info

ESD Plastic tweezers 708.CF

The ESD plastic tweezer 708.CF by ideal-tek is specifically designed for use in areas where sensitive, small components need to be handled precisely. With a tip width of only 0.5 mm and a tip length of 5.8 mm, this high-quality tool allows for excellent maneuverability and visibility during work, thanks to its finely angled and short tip. The tweezer is made from reinforced ESD plastic, consisting of a combination of polyamide and carbon, making it antistatic and minimizing the risk of scratches.
The total length of the tweezer is 115 mm with a weight of only 5 g, making it particularly handy. The smooth gripping and handle surface ensures a comfortable and secure hold. This precision tweezer is ideal for tasks requiring high precision and simultaneously protects sensitive components from electrostatic discharge.

Details

Tweezer type Tweezer type: precision tweezers
Tip form Tip form: angled
Degree of bending Degree of bending: 45 °
Gripping surface Gripping surface: smooth
Handle surface Handle surface: smooth
Tip type characteristics Tip type characteristics: beveled/very fine, short
Height Height: 11 mm
Length Length: 115 mm
Thickness/diameter Thickness/diameter: 0.6 mm
Tip length Tip length: 5.8 mm
Tip width Tip width: 0.5 mm
Width Width: 11.5 mm
Material Material: polyamid / carbon
ESD ESD: yes
twezzers code twezzers code: 708
Weight Weight: 5 g

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Smooth gripping surface

Smooth gripping surfaces leave no marks on sensitive materials. They are ideal for fine work and gripping single wires or delicate surfaces.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 394

Complete Catalog 2023 - 2024

Product Family

Ideal-tek Plastic precision tweezers

Precision tweezers made of plastic are indispensable tools for numerous applications and offer a cost-effective alternative to metal tweezers. They are particularly suitable for handling sensitive and scratch-prone materials such as electronic components, glass and ceramic substrates. Thanks to their lightweight yet strong and robust material, they are ideal for use in electronics, microscopy and in the assembly and manufacture of medical devices. They are also frequently used in forensic, electronic and sample preparation applications.

Conductive carbon fiber - reinforced Carbofib CF
