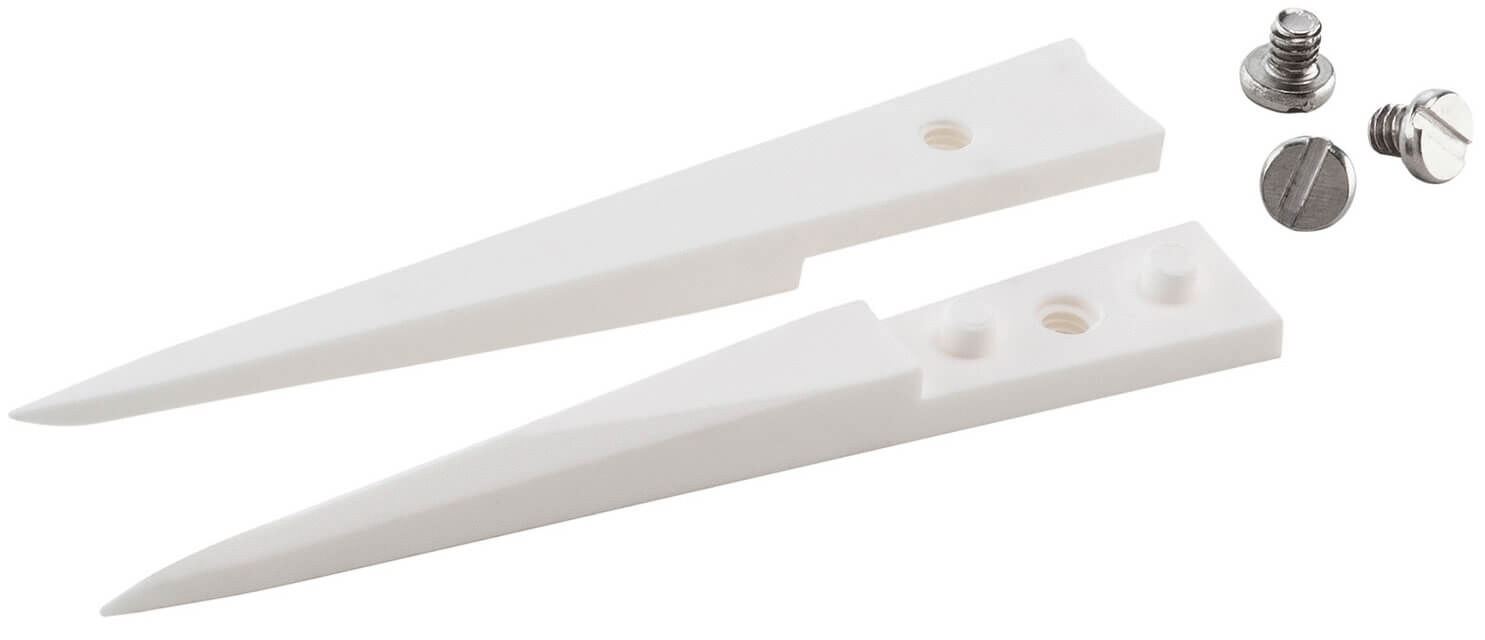

The image shows two elongated, pointed objects made of white material, shaped like wedges. Next to them are two screws, one with a Phillips head and one with a crowned head.
The image displays technical drawings of two objects. The top features a pointed element with dimensions of 0.30 mm. Below, a flatter element measures 0.25 mm. The label "Dimensions mm" is at the bottom edge.
Preview: The image shows two elongated, pointed objects made of white material, shaped like wedges. Next to them are two screws, one with a Phillips head and one with a crowned head.
Preview: The image displays technical drawings of two objects. The top features a pointed element with dimensions of 0.30 mm. Below, a flatter element measures 0.25 mm. The label "Dimensions mm" is at the bottom edge.
Exchangeable ceramic tips A72MZ
(Product No.: I-A72MZ)
The image shows two elongated, pointed objects made of white material, shaped like wedges. Next to them are two screws, one with a Phillips head and one with a crowned head.
The image displays technical drawings of two objects. The top features a pointed element with dimensions of 0.30 mm. Below, a flatter element measures 0.25 mm. The label "Dimensions mm" is at the bottom edge.
Mobile Preview: The image shows two elongated, pointed objects made of white material, shaped like wedges. Next to them are two screws, one with a Phillips head and one with a crowned head.
Mobile Preview: The image displays technical drawings of two objects. The top features a pointed element with dimensions of 0.30 mm. Below, a flatter element measures 0.25 mm. The label "Dimensions mm" is at the bottom edge.
Notice / Inquire

Exchangeable ceramic tips A72MZ

dpvlink:
11600
Tip form:
straight
Gripping surface:
smooth
Tip type characteristics:
fine, pointed, strong
Properties:
Further product information

at short notice at short notice
27,95 EUR
per PCE

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Exchangeable ceramic tips A72MZ

The ceramic interchangeable tip A72MZ by ideal-tek is a high-quality tweezer with a tip made of Zirconia Toughened Alumina (ZTA), an advanced ceramic blend that offers an excellent combination of zirconium oxide and aluminum oxide. This material is characterized by high strength, excellent hardness, and low density without open porosity. The surface of the tip is extremely hard, providing good abrasion and wear resistance, as well as impressive bending strength and fracture toughness.
The thermal properties are also remarkable with high temperature stability up to 1400°C and a shock resistance of 325°C. Additionally, the tip is electrically insulating with a volume resistance of over 1012 Ω and a hardness of 1700 HV according to Vickers.
The straight, fine, and pointed shape of the ceramic tip with a width of 6.5 mm and a tip width of only 0.3 mm at a thickness of 0.25 mm makes it ideal for precise applications such as soldering processes and handling components in thermal and chemical processes, where stiff tips are required. The total length is 45 mm and the weight is a light 3 g. Ideal for applications where precision and durability are paramount.
Tip form
Tip form
straight
Gripping surface
Gripping surface
smooth
Tip type characteristics
Tip type characteristics
fine, pointed, strong
Height
Height
3 mm
Length
Length
45 mm
Thickness/diameter
Thickness/diameter
0.25 mm
Tip width
Tip width
0.3 mm
Width
Width
6.5 mm
Material
Material
Zirconia ceramic
Tip
Tip
Ceramic
ESD
ESD
no
twezzers code
twezzers code
72
Weight
Weight
3 g
Pictograms
Smooth gripping surface
Smooth gripping surfaces leave no marks on sensitive materials. They are ideal for fine work and gripping single wires or delicate surfaces.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 397
Complete Catalog 2023 - 2024

Product Family

Exchangable ceramic tips for tweezers with exchangeable tip

The ceramic exchangeable tips are made of zirconia-reinforced aluminum oxide (ZTA), an advanced material known for its unique combination of strength (due to zirconia) and hardness (due to aluminum oxide). This composition results in forceps tips with relatively low density, no open porosity and a very hard surface that ensures exceptional abrasion and wear resistance. The tweezers have excellent flexural strength and fracture toughness, making them ideal for intensive use.



The thermal properties of these tweezers tips are remarkable and offer high temperature stability. They are highly corrosion resistant and resistant to most chemicals, making them suitable for use in environments with soldering processes and when handling components during thermal and chemical processes.


Article image
Article description
ESD
Tip form
Gripping surface
Tip type characteristics
Price
Compare
I-A2AMZ - Exchangeable ceramic tips A2AMZ
I-A2AMZ
Exchangeable ceramic tips A2AMZ
straight
smooth
fine, round, flat
27,95 EUR
I-A71MZ - Exchangeable ceramic tips A71MZ
I-A71MZ
Exchangeable ceramic tips A71MZ
straight
smooth
fine, beveled
27,95 EUR
I-A72MZ - Exchangeable ceramic tips A72MZ
I-A72MZ
Exchangeable ceramic tips A72MZ
straight
smooth
fine, pointed, strong
27,95 EUR
I-A73MZ - Exchangeable ceramic tips A73MZ
I-A73MZ
Exchangeable ceramic tips A73MZ
straight
smooth
fine, pointed
27,95 EUR
I-A74MZ - Exchangeable ceramic tips A74MZ
I-A74MZ
Exchangeable ceramic tips A74MZ
straight
smooth
fine, pointed, strong
27,95 EUR
