Controller for CC series
dpvlink 28214

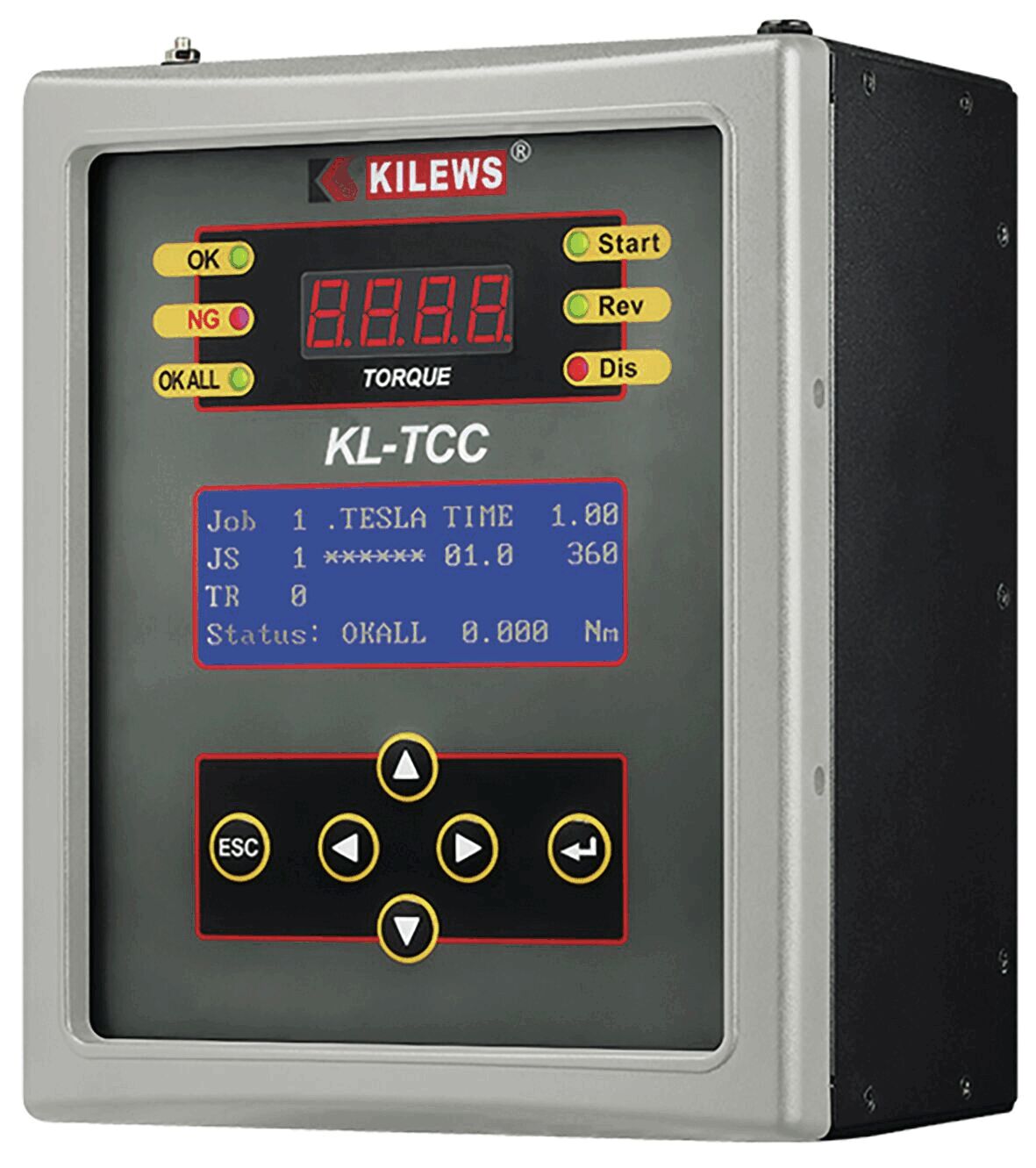

The KL-TCC control unit for current-controlled screwdriving systems. These ensure a high level of safety during the tightening processes and enable the direct recording of measured values via torque and angle sensors as such and not indirect determination via the motor current. All kinds of screwdriving or strategies can be set. Multi-stage tightening process and control functions.

Inputs: Sensor/Release, Reset, Start, Reverse
Outputs: OK / NG / OK All /Start /Reverse
Interfaces: 2 x RS232, Micro-SD, Ethernet

  • Suitable for the CC series
  • Easy programming via a PC or directly via the controller
  • Export of screwdriving data via RS232 interface, to Micro SD or via LAN
  • Real-time monitoring
  • Software for the N-DAS data management system
  • Up to 15 screwdriving parameter sets / programs can be stored
  • Up to 15 program sequences / subroutines can be programmed
  • Up to 4 steps / steps per screwdriving process

Model

KL-TCC

Input voltage

AC115V - 240V 50/60Hz

Output voltage

DC 40V, max. 9A

Screwdrivers

SGT-CC series

Inlets

Sensor / release, reset, start, reverse

Outlets

OK / NG / OK ALL / Start / Reverse

Seriel interface

RS-232X2, Micro SD, LAN

Weight

4.6 kg

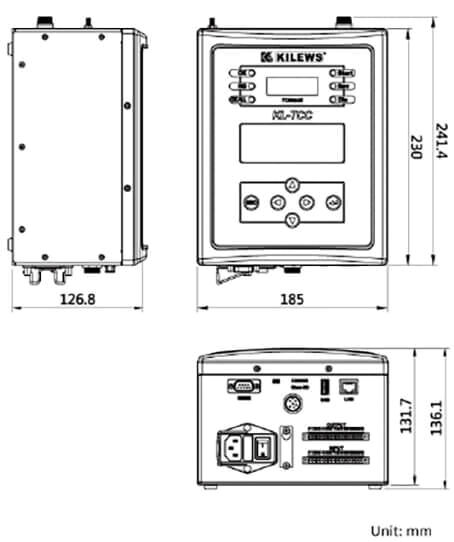

Dimensions

185 x 241 x 127 mm

Article image
Article description
ESD
Input voltage
Power
Output voltage DC
Length
Width
Height
Price
Compare
SGT-KL-TCC - Controller for CC series
SGT-KL-TCC
Controller for CC series
100 - 240 V/AC
90 W
40 V/DC
185 mm
241 mm
127 mm
2.163,00 EUR
