The innovative EPApro ® end-to-end solution for your ESD protected working areas combines a user-friendly precision hardware with a forward-looking software solution designed for the measurement of your ESD safety equipment as well as the comfortable and standard-compliant documentation and central management of the collected data. Multifunctional EPApro ® interfaces and switch outputs allow for a simple integration in the existing infrastructure of your company.

The advantages at a glance:

measurement

Quick measurement, extensive measuring options with short test time

User-friendly

User-friendly, simple handling

Standard-compliant

Standard-compliant testing in compliance with DIN EN ISO 61340-5-1 and ANSI ESD S20.20

Adjustable measuring voltage

Adjustable measuring voltage and configurable thresholds

access control system

Suitable for the use in access control systems

networking

Suitable for cross-location networking via LAN or WLAN

compliance with GDPR

Data logging in compliance with GDPR

Automated data exchange

Automated data exchange with other programs

  • Data logging in compliance with GDPR
  • Suitable for cross-location networking via LAN or WLAN
  • Simple data handling and secure archiving on a central server
  • Vast report functions
  • Simple backup functions ensure data security via single click at any time
  • Automated data exchange with other programs
  • No client software required, server installation via VM (Virtual Machine)
  • Simple update function and maintenance via the EPApro ® portal
Compatible access control systems from Gotschlich

Thanks to programmable switching outputs, the EPApro system can be easily integrated into existing access control systems.
Find out more

The components

EPApro® ESD Personnel tester 1000

EPApro ® ESD Personnel tester 1000

The EPApro ® 1000 is a compact measuring device to verify the personnel grounding and fulfills the requirements of IEC (DIN EN) 61340-5-1 and ANSI ESD S20.20 as well ass the GDPR (general data protection regulation).

Programmable switch outputs allow using it as access control. A privacy mode offers the possibility to log and display the measurement without names. The measurements are logged and stored in the EPApro ® 1000 device conforming to standards and the GDPR. It is possible to retrieve measured data via network or maintain them locally on the device by means of the stand-alone function.

Find out more

Products in the online shop

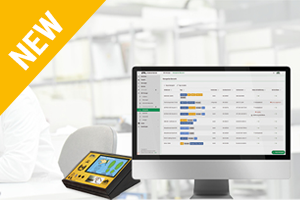

EPApro® Control Server Software

EPApro ® Control Server Software

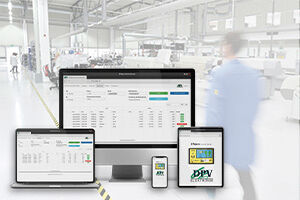

The EPApro ® Control Server software allows for a central management across locations of the measurement, device and employee data collected by the ESD personnel testers and transmitted to the EPApro ® Control Server by means of the company network.

All data is stored in a central database directly on your company server in compliance with the GDPR.
It is possible to configure the EPApro ® 1000 devices centrally via the EPApro ® Control Server. Modifications of the device parameters are automatically synchronized with the server.

Find out more

Products in the online shop

EPApro® Support

EPApro ® Support

In addition to our sales representatives who supply you with detailed advice and instruction on site, our EPApro ® support provides you with advice and assistance.

It is possible to calibrate EPApro ® 1000 devices directly on site by using an optionally available menu-driven calibration unit. A return to the factory is thus not necessary. Update packs will be regularly available for download in the EPApro® portal.

Contact us: support@epapro.de

Additional modules available for your EPApro® Control Server

In addition to the standard version, we offer additional modules that expand the functions and possible applications. Detailed information on booking and installing the modules can be found at: dpv-elektronik.de/modules. We would also be happy to advise you personally on which module best suits your requirements.
Bild + Text

Training module
License for EPApro® Control Server version 2.3.0 or higher

Enables use of the training module for the EPApro® Control Server.

  • Management of ESD training for employees
  • Notification directly on the EPApro® personal testing device when training is about to expire or has already expired
  • Optional: Denial of access if training has expired
  • Optional: Notify employees by email about their ESD training status
to the article
Bild + Text

Measurement configuration module
License for EPApro® Control Server version 2.3.0 or higher

Enables individual measurement configurations instead of a fixed measurement configuration per employee.

  • Different measurement configurations per employee on different EPApro® personal testing devices EPApro® personal testing devices
  • Optional: Mapping of time-dependent special functions to production areas via special function groups
to the article
Bild + Text

Microsoft SQL Connector module
License for EPApro® Control Server version 2.3.0 or higher

Enables the use of an external Microsoft SQL Server database for data storage on the EPApro® Control Server.

Attention! Currently only possible for new installations. Data transfer from an existing EPApro® Control Server is not possible at this time.
  • Operation of the EPApro® Control Server database on an external Microsoft SQL Server (instead of the internal MySQL database)
  • This allows you to use the familiar and widely used Microsoft database system.
  • Better scalability in larger environments
    (database and web application run on different server systems)
  • Support for Microsoft SQL Server 2017 (Windows/Linux) or newer
to the article

Do you have any questions or need personalised advice?

Please feel free to contact us by phone or email using our contact form.

Contact

Everything summarized!

A clear summary of all information concerning the EPApro ® ESD Personnel Tester 1000 and all components of the EPApro ® control system can be found in the current leaflet. Available as flipping book, for download or as free printed version (only in German).
